Custom Water Cooling clamp
Print Profile(1)
Description
Hey makers,
i have a cpu custom watercool loop in my pc, i upgraded some component so i did a makeover with a new case from NXTZ,
in this brand case it is a vertical metal strip that is perfect to mount the waterpump/resivour i did not found anithing in specific,

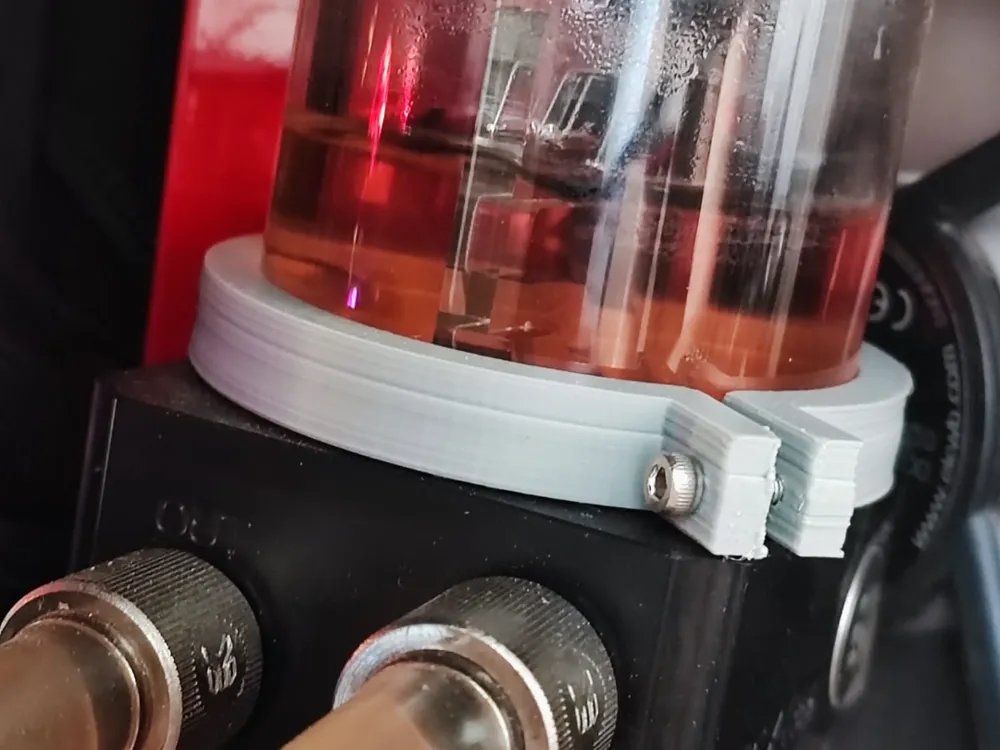

and with the 60 mm diameter water cylinder, so i modeled a clamp, with the backside a similar T-nut to secure it from the back.
The only required things are 2 M3:
M3 nut&screw: front clamp, the print have a bit of give both way to accomodate slighly different size, end be easy to place and remove in case it is needed.
M3 nut&screw: back side, it is sa simple shaped t-nut, put in place on the back side and screw, in my case i did not placed the m3 nut on the inside back clamp, it is plenty strong as it is but if you feel not so confident i modeled the shaped nut insert just in case,
BE AWARE IN CASE YOU PLACE THE BACK SIDE M3 NUT: you need a long m3 screw (longer then 12mm) and it need to just reach the nut in the insert and not more to not scratch or brake the acryilic/glass cylinder.
