Canyon SP0096 Taillight Mount

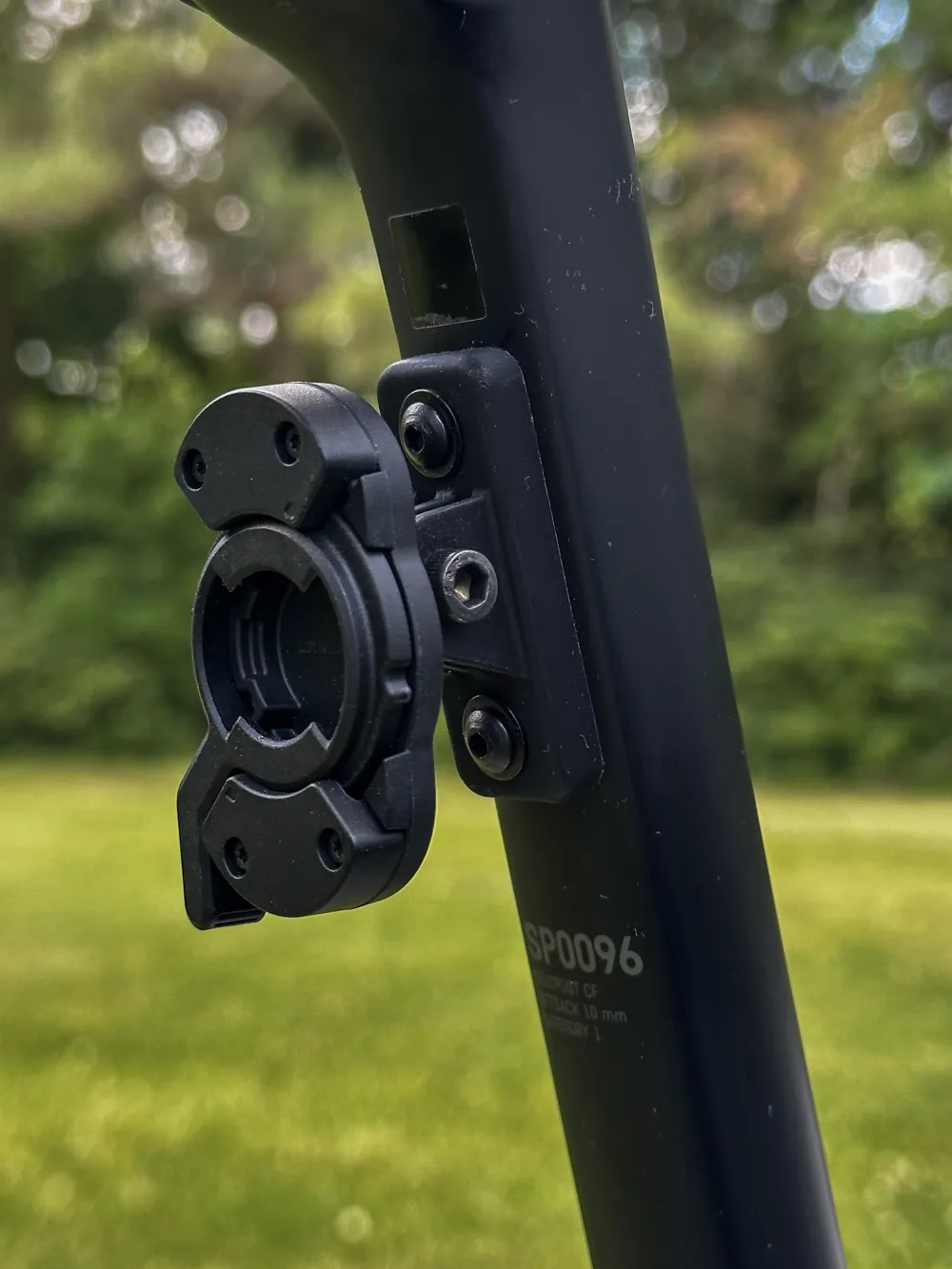

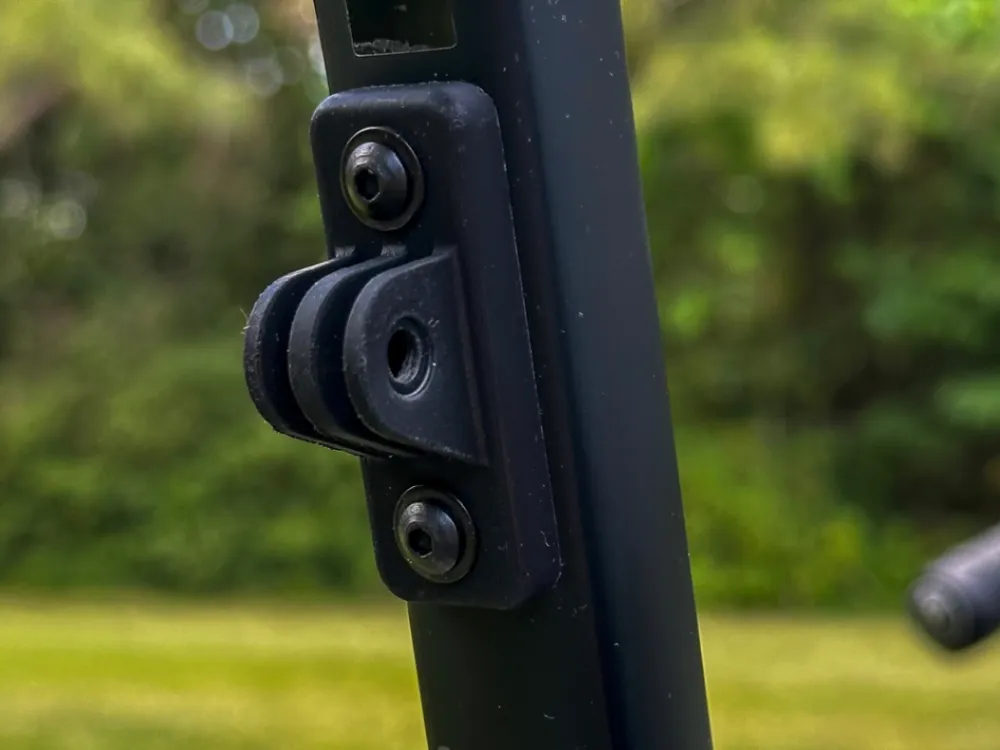

Canyon SP0096 seatpost mount for Garmin Varia or other devices that can utilize the GoPro-style 3-lug mounts.  Direct mounts already exist for the smaller Garmin Varias but the options are more limited for the heavier Varia RCT715.  Purchasing the Garmin “Seat Rail Mount Kit” gets you the proper adapter to attach the RCT715 to this mount (see pictures).

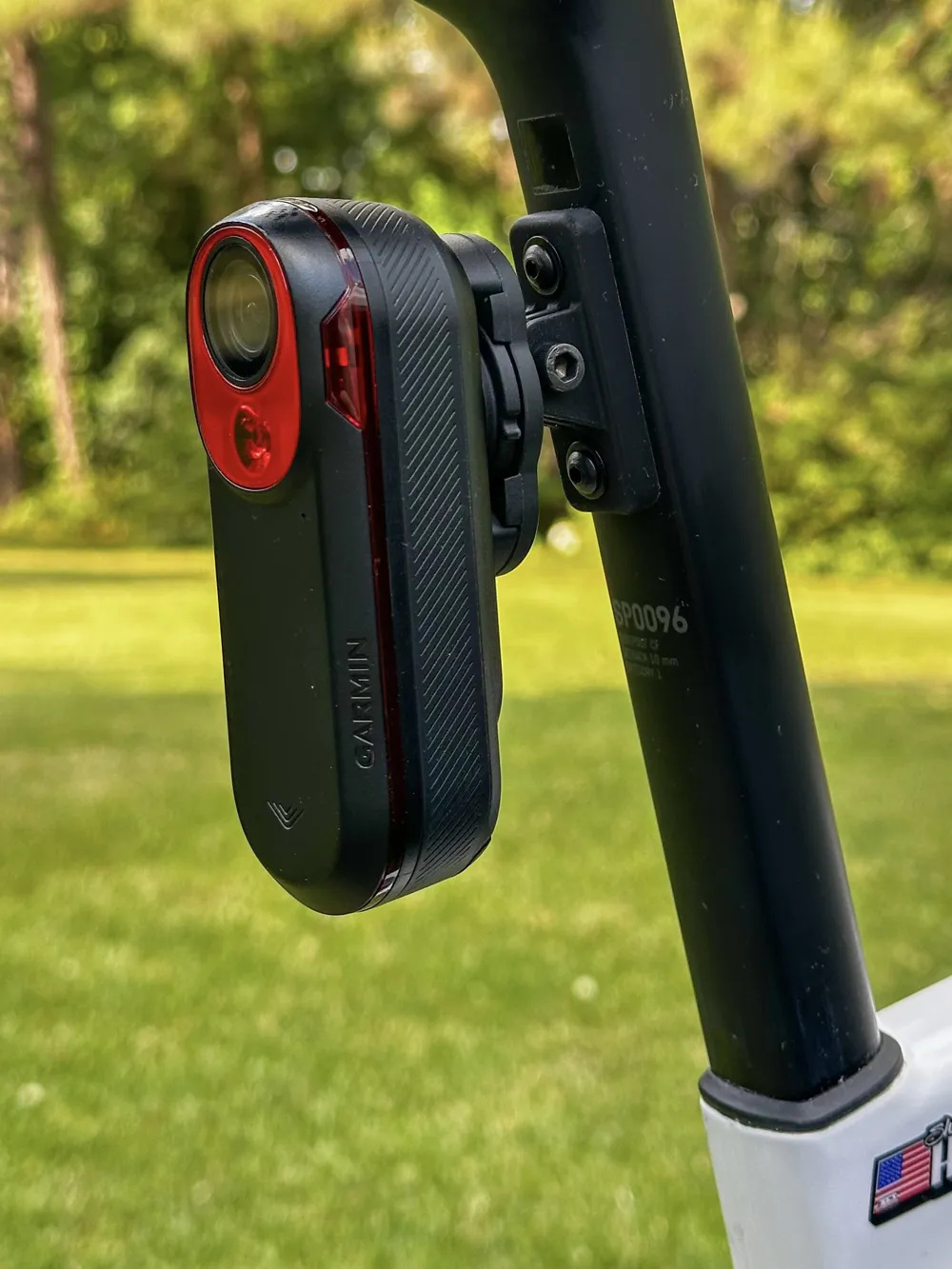

I printed using Bambu PLA Tough+.   It is set up to print fairly slow and at a 45 degree angle for smoothness, as well as 100% infill.  The “lugs” do still get compressed a bit by the single nut/bolt used to attach the taillight adapter (as seen in the main photo), but despite this I have not had issues with the light “drooping” or getting loose.  Feel free to make adjustments that may help improve the strength.

To attach to the threaded holes in the seatpost you will need 2 M4x0.7 screws in 12mm length.
