FSHi - GoPro Hero 9 / 10 / 11 / 12 / 13 Case

“FSHi” - a love letter to fisheye photography!

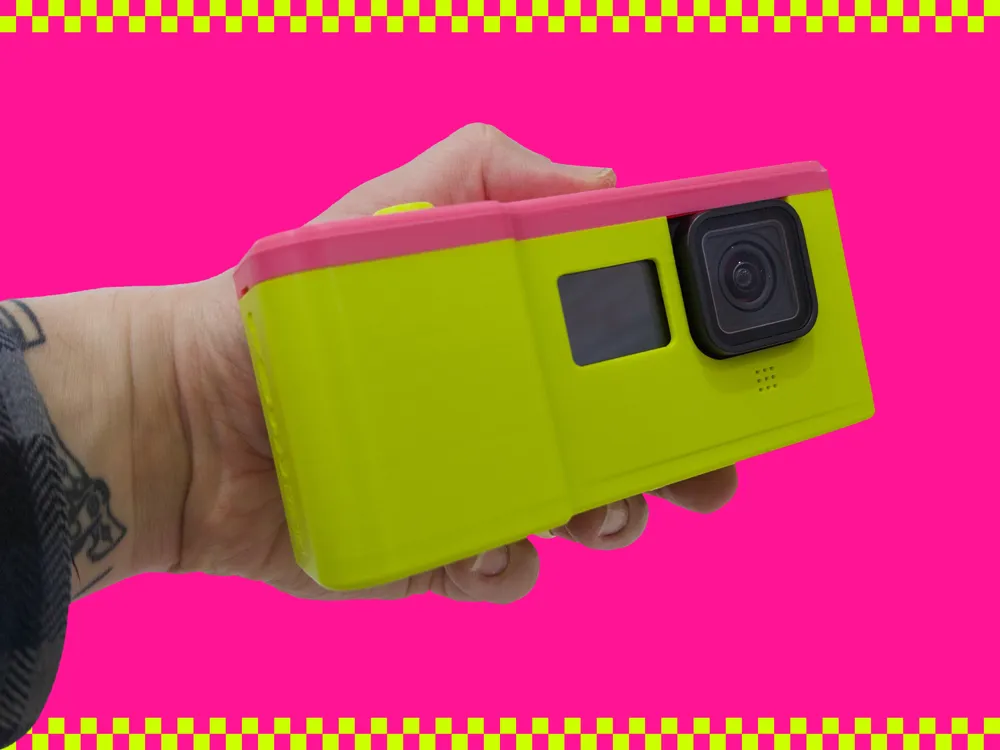

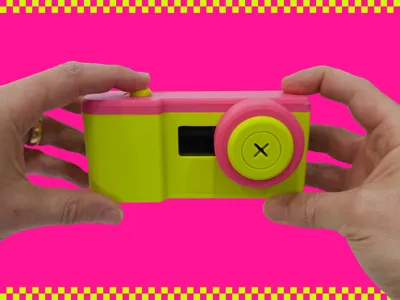

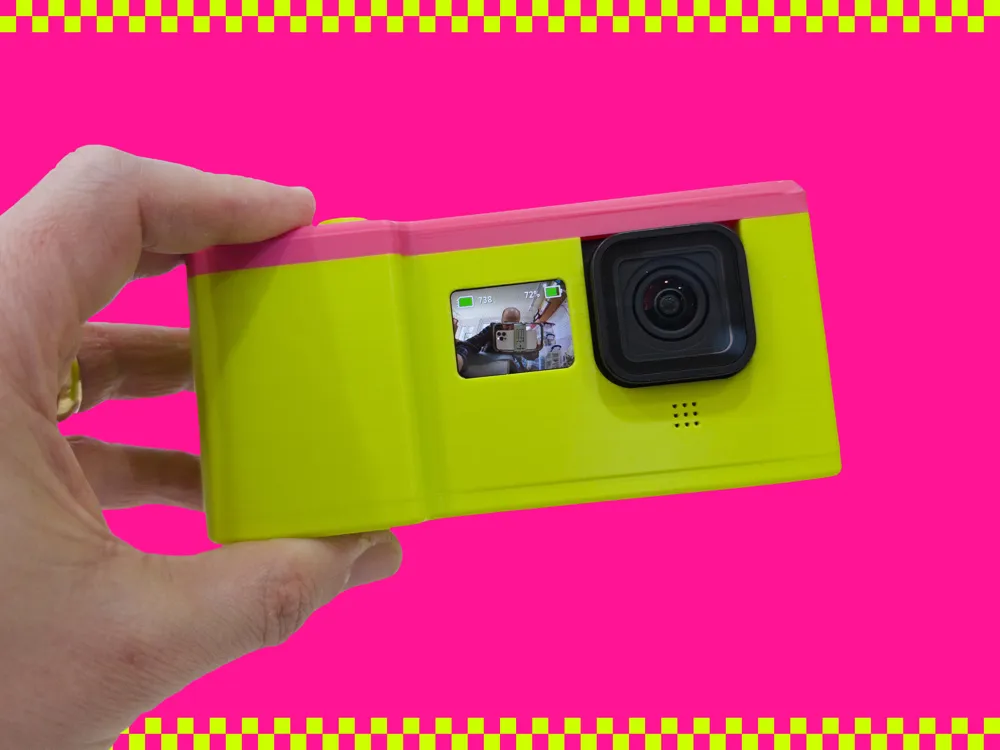

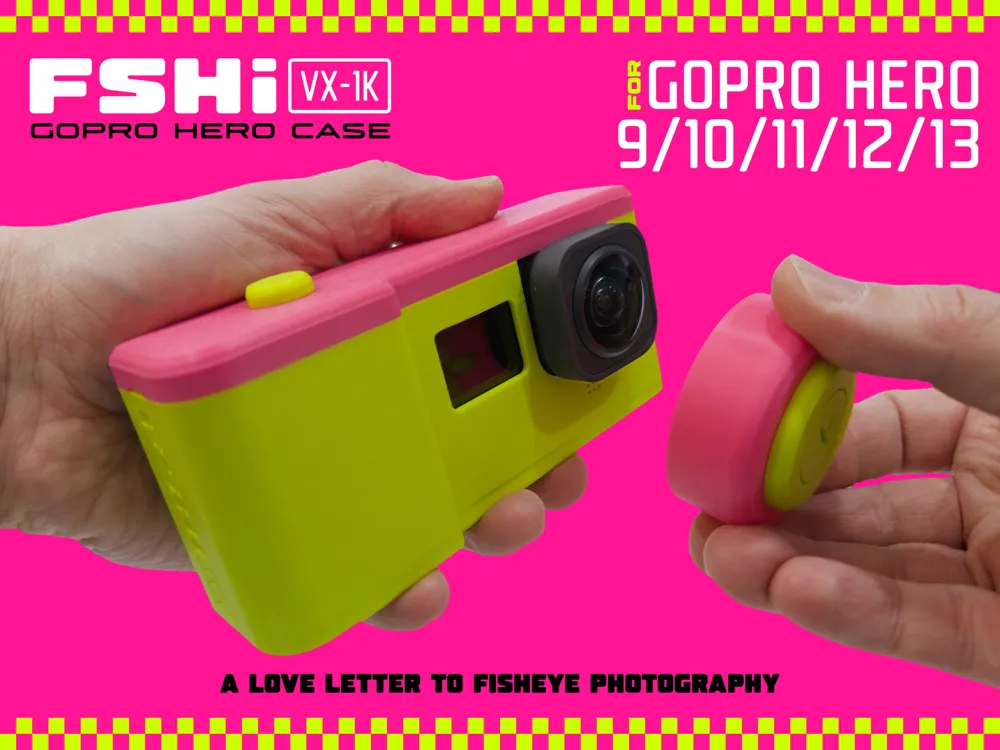

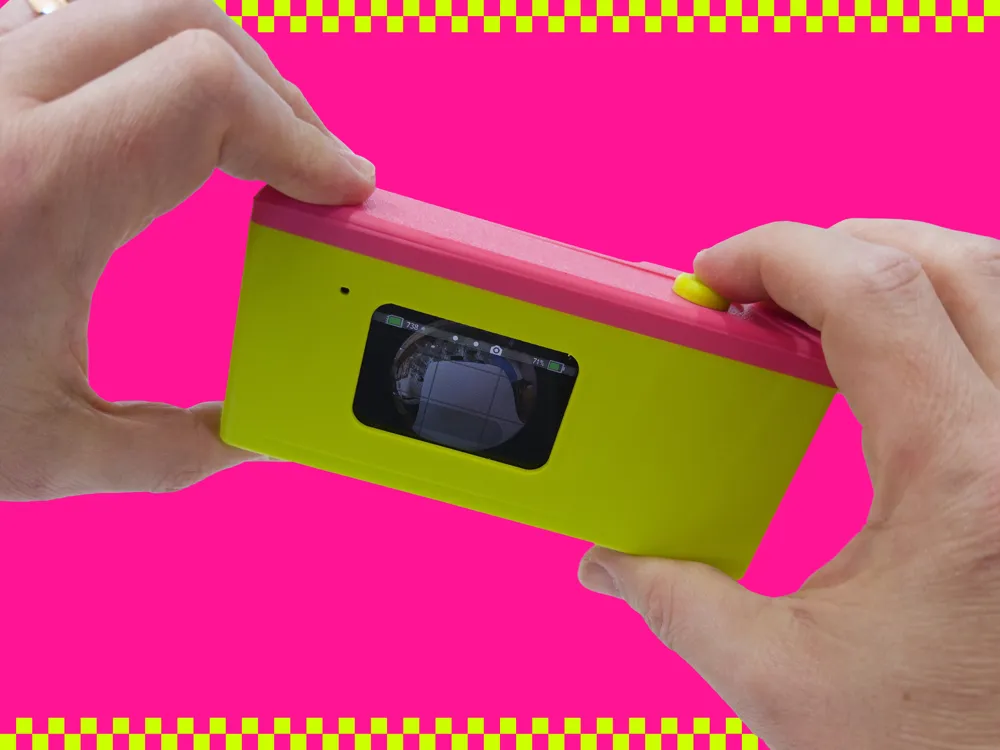

This is an ergonomic camera housing & lens cap for the GoPro Hero Black 9 • 10 • 11 • 12 • 13. There's 2 options for the lens cap - the regular lens or the official ‘Max Lens Mod’. I recently found the fun in using my GoPro as a stills camera, shooting in RAW and grading in Lightroom, so I wanted a more ergonomic and traditional way to hold & shoot with the GoPro! (You can still use it as a standard action camera in this housing of course.)

This is the first iteration, which I'm calling the ‘ VX-1K ’ (a nod to a famous fisheye skate camera of the past), as I'm hoping to iterate a future version with extra items like camera strap, tripod mount etc.

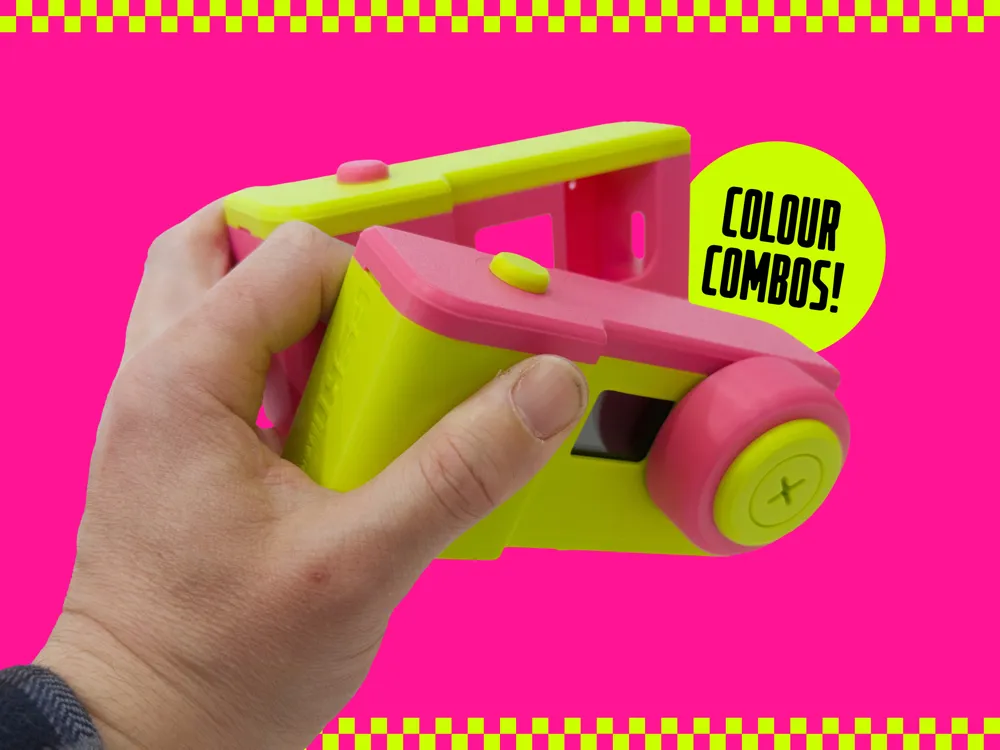

The print consists of a few different elements, on different build plates, to allow you to get colourful and creative!

• Main housing to hold the GoPro
• Top plate with ‘springy’ element for pressing the capture button

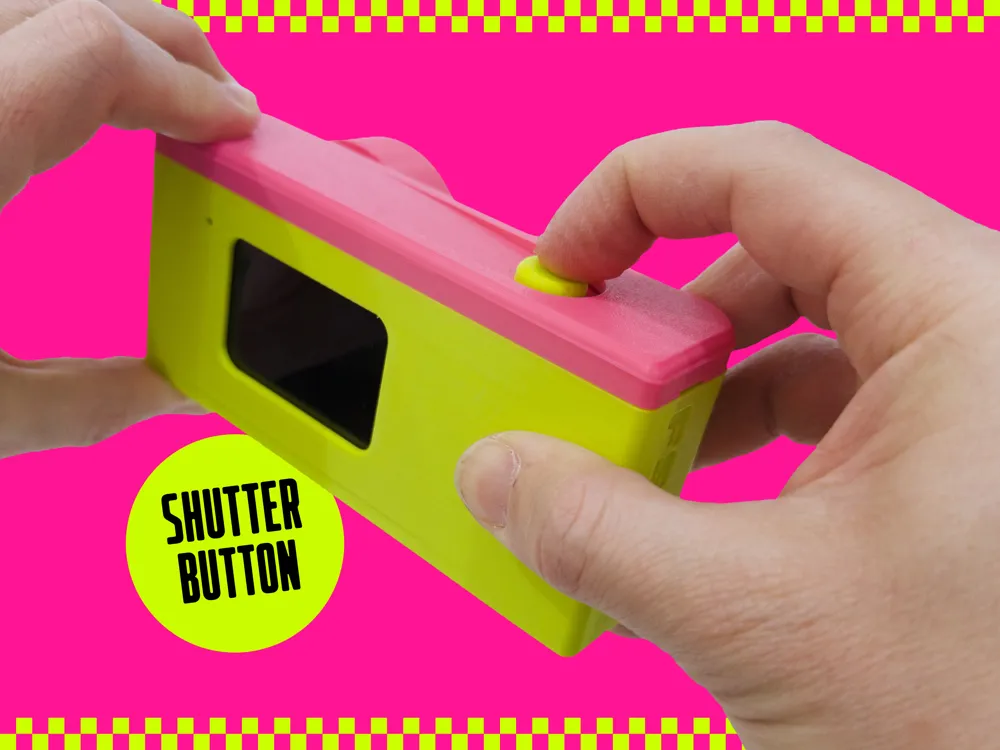

• Shutter button which snaps into place

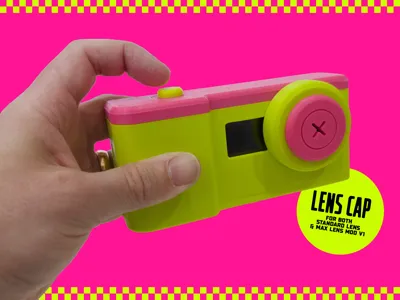

• Lens cap (regular lens or ‘max lens mod’ - only tested with the ‘1.0’ max lens)
• Lens cap front part which snaps into place

The main housing needs to print with supports, but everything else prints clean, and just snaps together. This is my first public print but I wanted to create something simple and fun, I hope you enjoy! I

++++ INSTRUCTIONS ++++

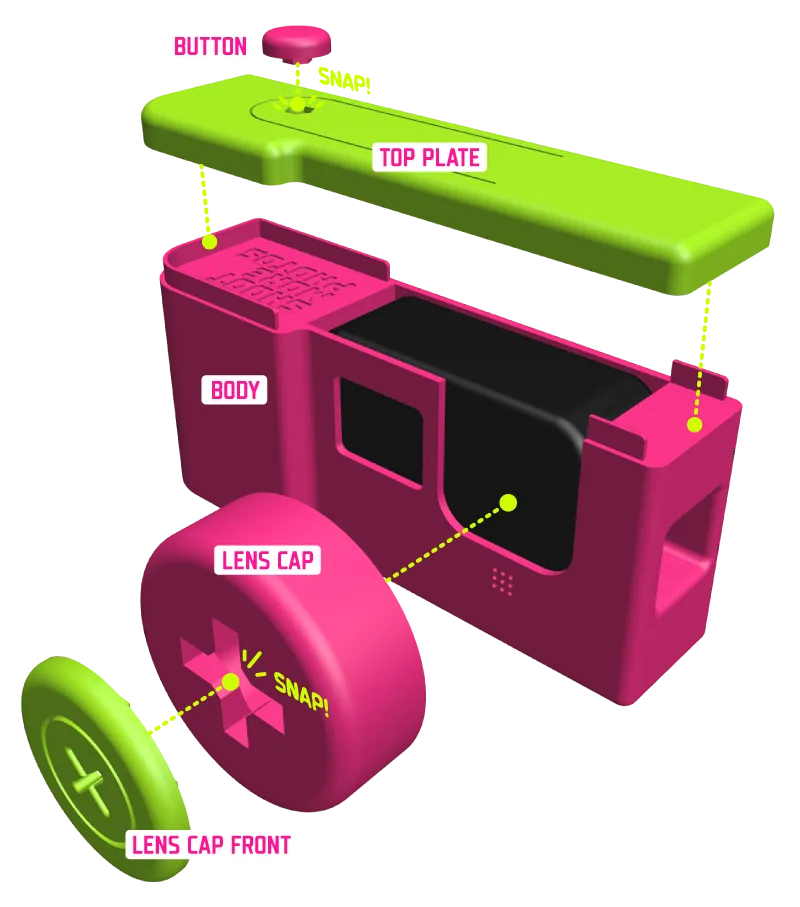

It's easy to put together, everything just pushes into place once printed:

1. Take the BUTTON and snap it into the hole on the TOP PLATE.
2. Push down on the BUTTON a few times to loosen the bendy part on the TOP PLATE (this is how the button works).

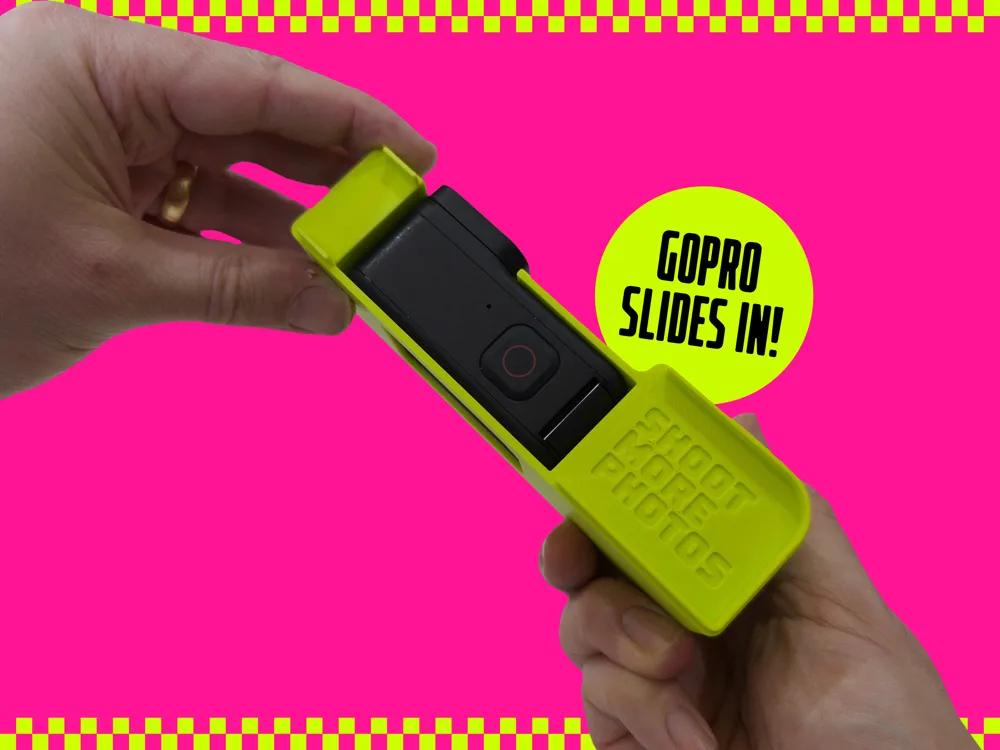

3. Take your GoPro and slide it into the BODY.

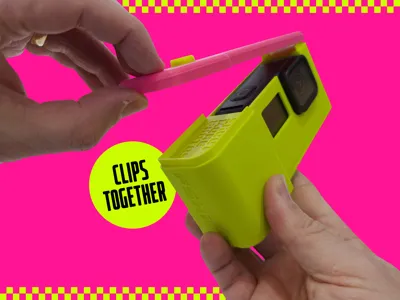

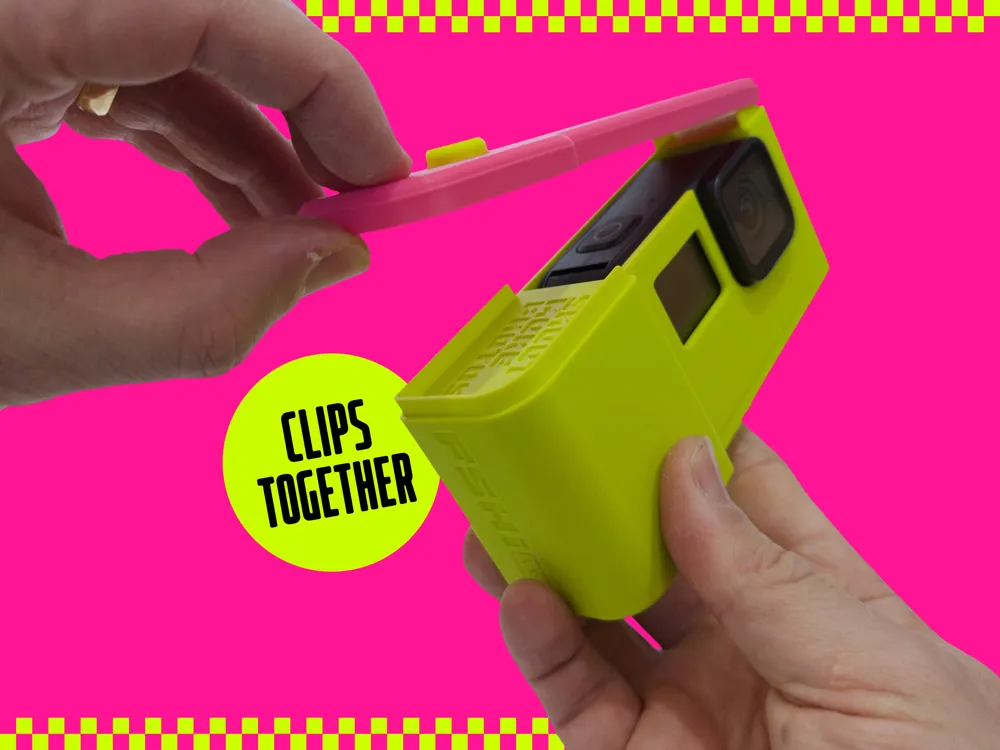

4. Push the TOP PLATE down onto the ridges of the BODY so it's nice and secure.
5. Take the LENS CAP FRONT and snap it into the ‘plus’ hole of the main LENS CAP.
6. Slide that LENS CAP combo onto the front of your lens.
7. Take your GoPro everywhere you go and shoot fun fisheye photos.
