Exhaust Fan Hose Adapter for X2D
Print Profile(6)
Description
Boost Me (for free)

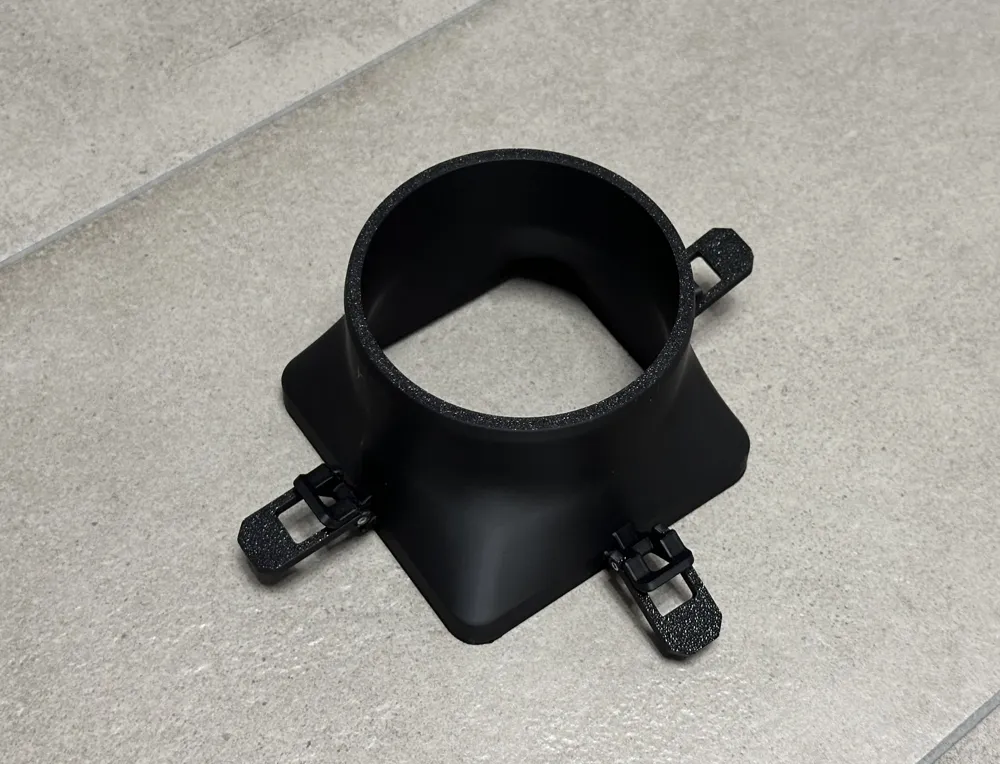

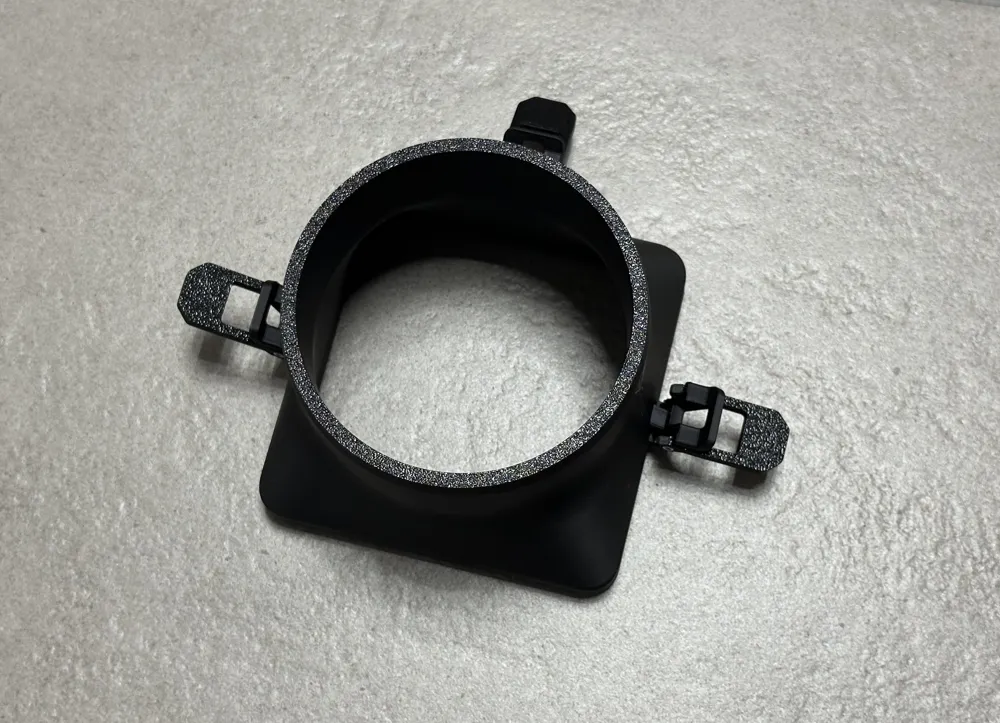

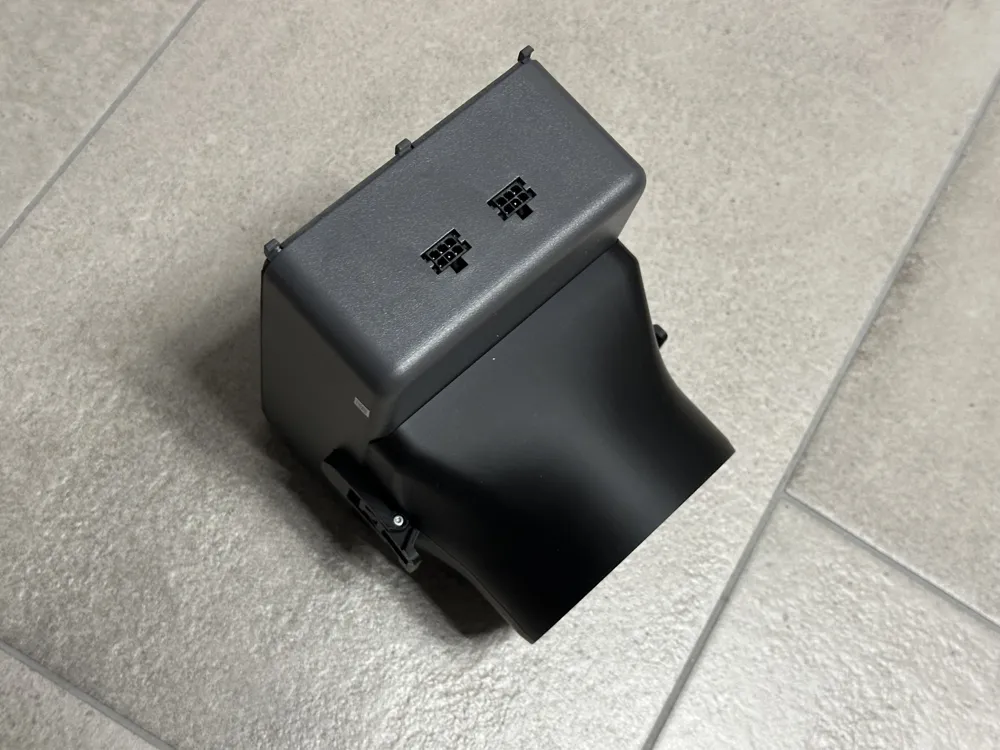

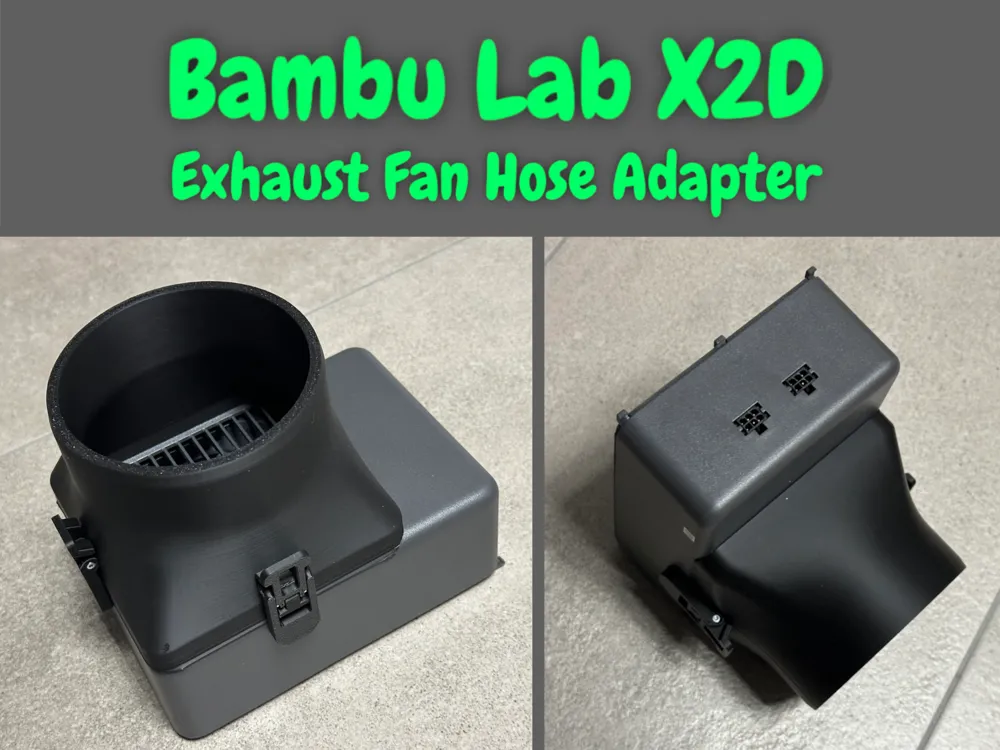

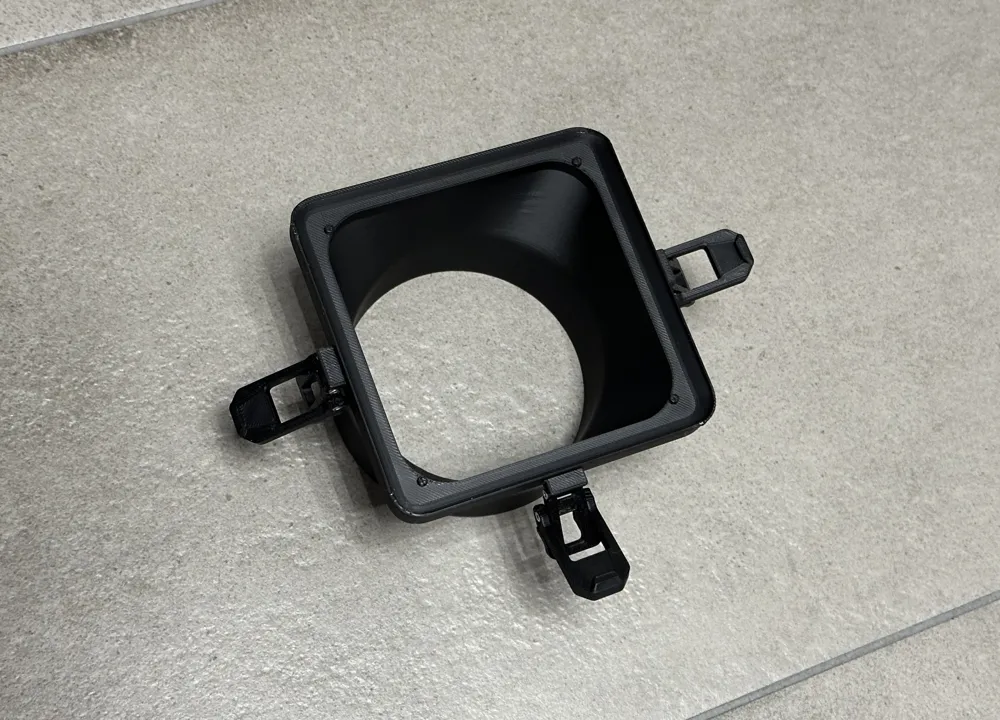

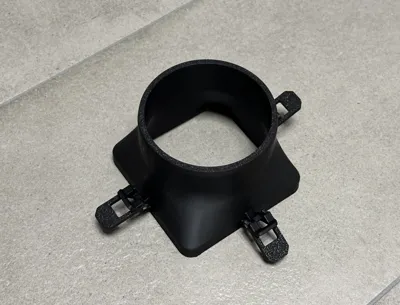

The model is an 50/65/74/80/100 mm adapter for the premade original exhaust fan of Bambu Lab X2D, which has a slightly different shape than the printed cases for P2S. It can be used to vent e.g. outside a window or a filter system.
If you need a different adapter than 50/65/74/80/100 mm, please comment with your needed size and I will provide a profile.
Print and Assembly Instructions:
It is recommended to use PETG or ABS/ASA for this filter.
- First print the adapter
- Assemble the clips: You need to source BT2x5mm screws for it (self-tapping screws). You can try normal M2x5mm screws that are not self-tapping, but I cannot guarantee that it works well.
- Assemble it to the External Exhaust Fan Kit
- Assemble your exhaust hose
Sourcing of the Parts:
Example links for BT2x5mm screws (only for X2D, the P2S kit already includes them):
Other models:
