Support for TP-Link Tapo C113 on the Bambu Lab A1

🛠️ Functional Solutions | Design by Loesch

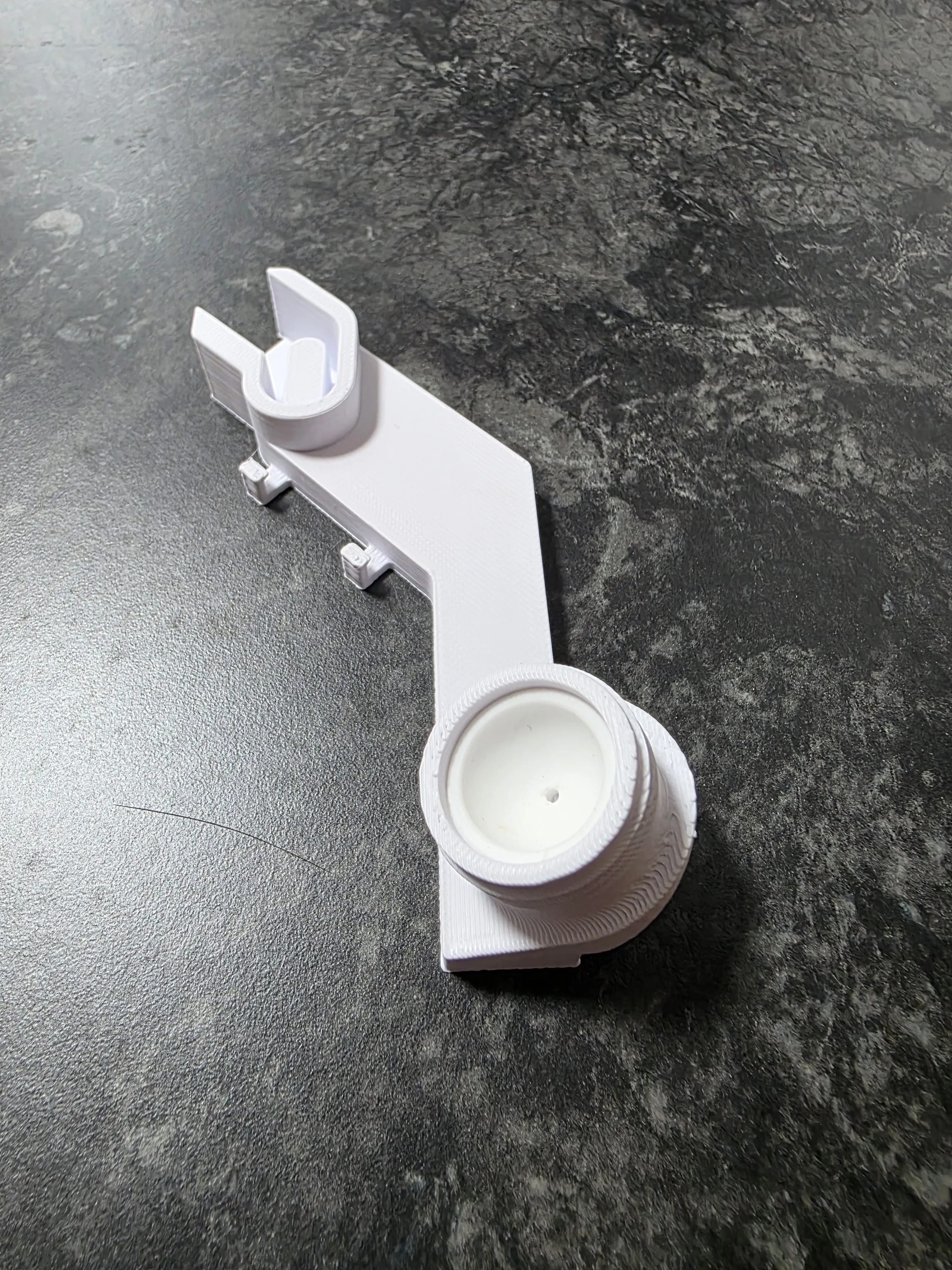

TP-Link Tapo C113 Mount for Bambu Lab (Z-Arm) | Firm Screw-Free Attachment

If you use the Tapo C113 to monitor your prints, this mount solves the main problem:
correct positioning + real stability + clean installation (screw-free).

🚀 Key Features

• Zero screws or hardware → quick and clean assembly

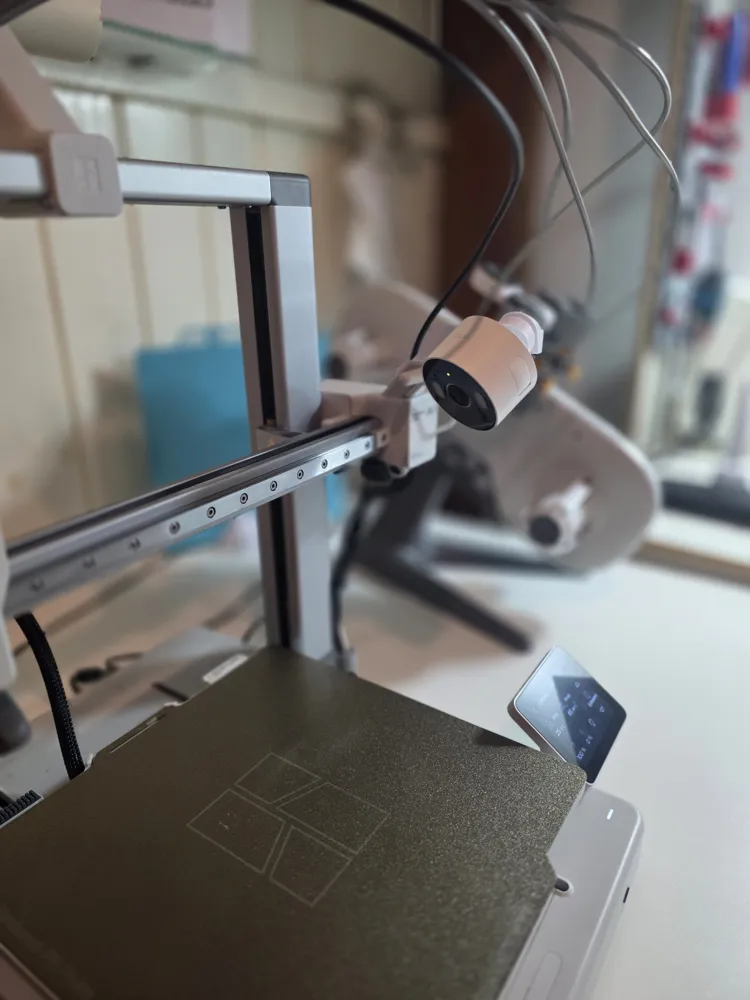

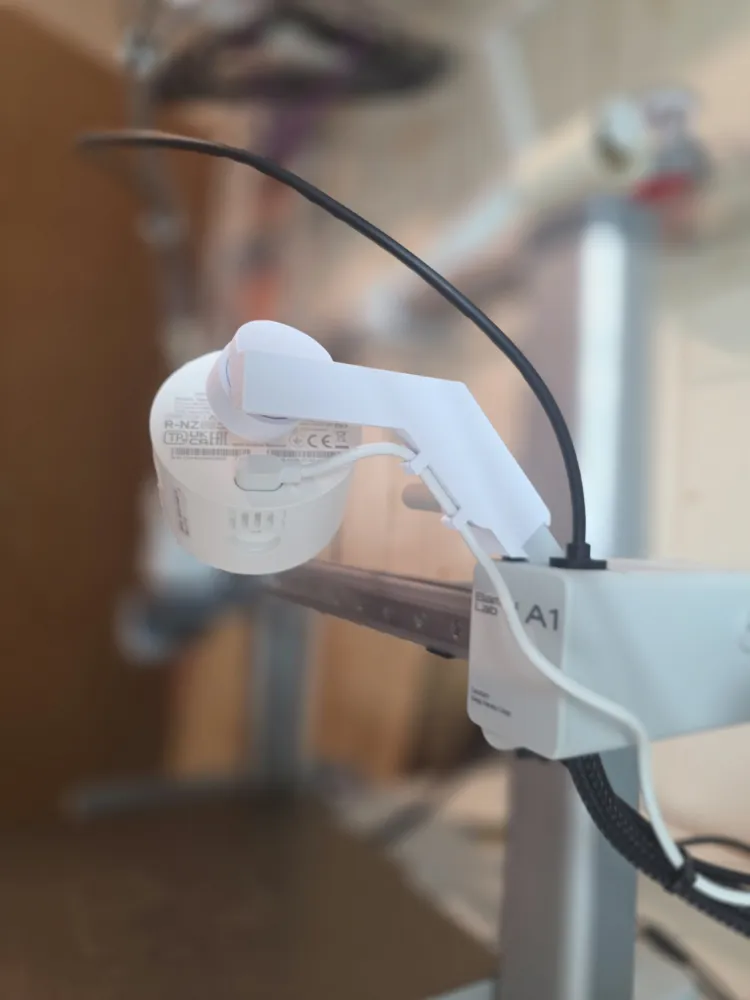

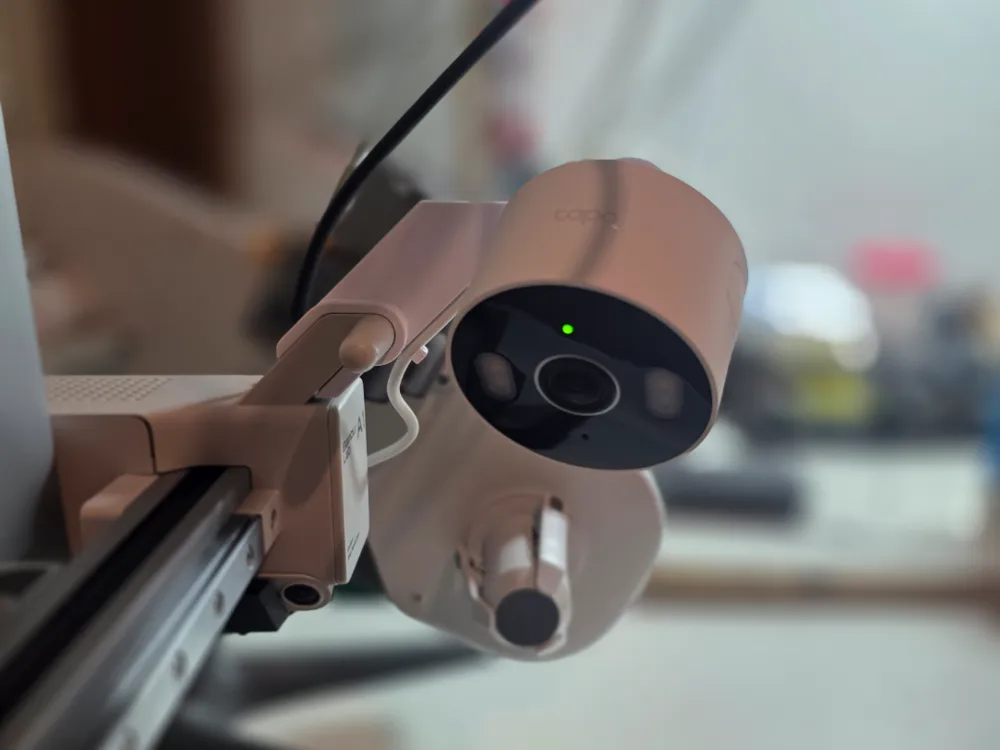

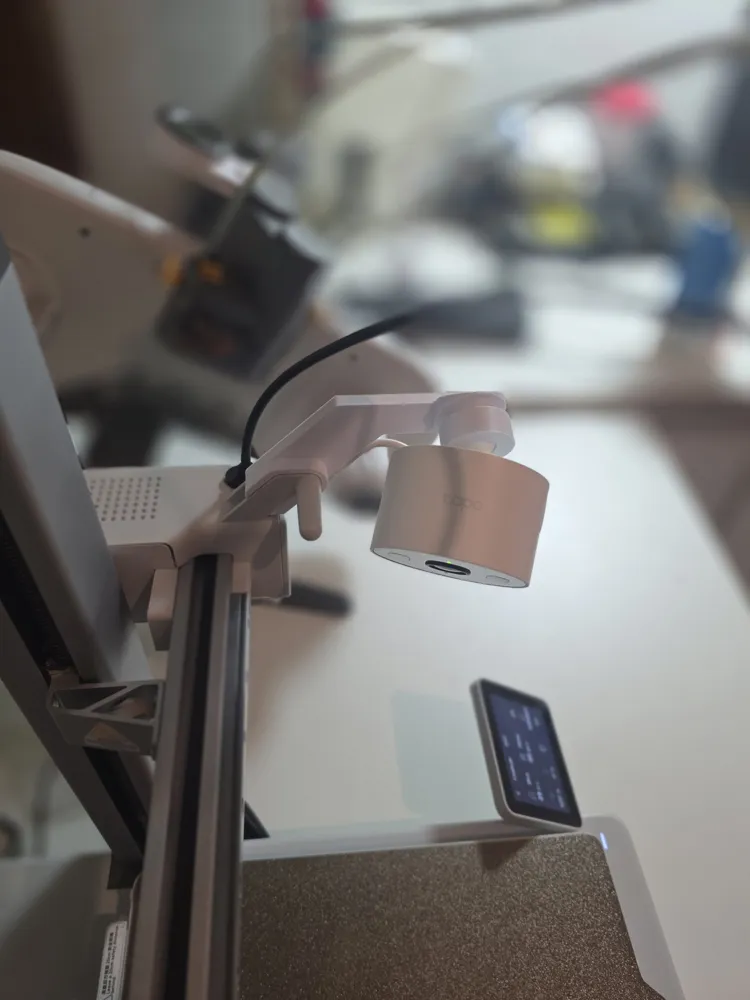

• Attachment to Bambu Lab Z-arm → ideal printing area angle
• Firm tilt adjustment → does not sag with vibration
• Uses the original Tapo rubber → maintains the same factory friction system
• Compact design → does not interfere with printer operation

🔧 Installation

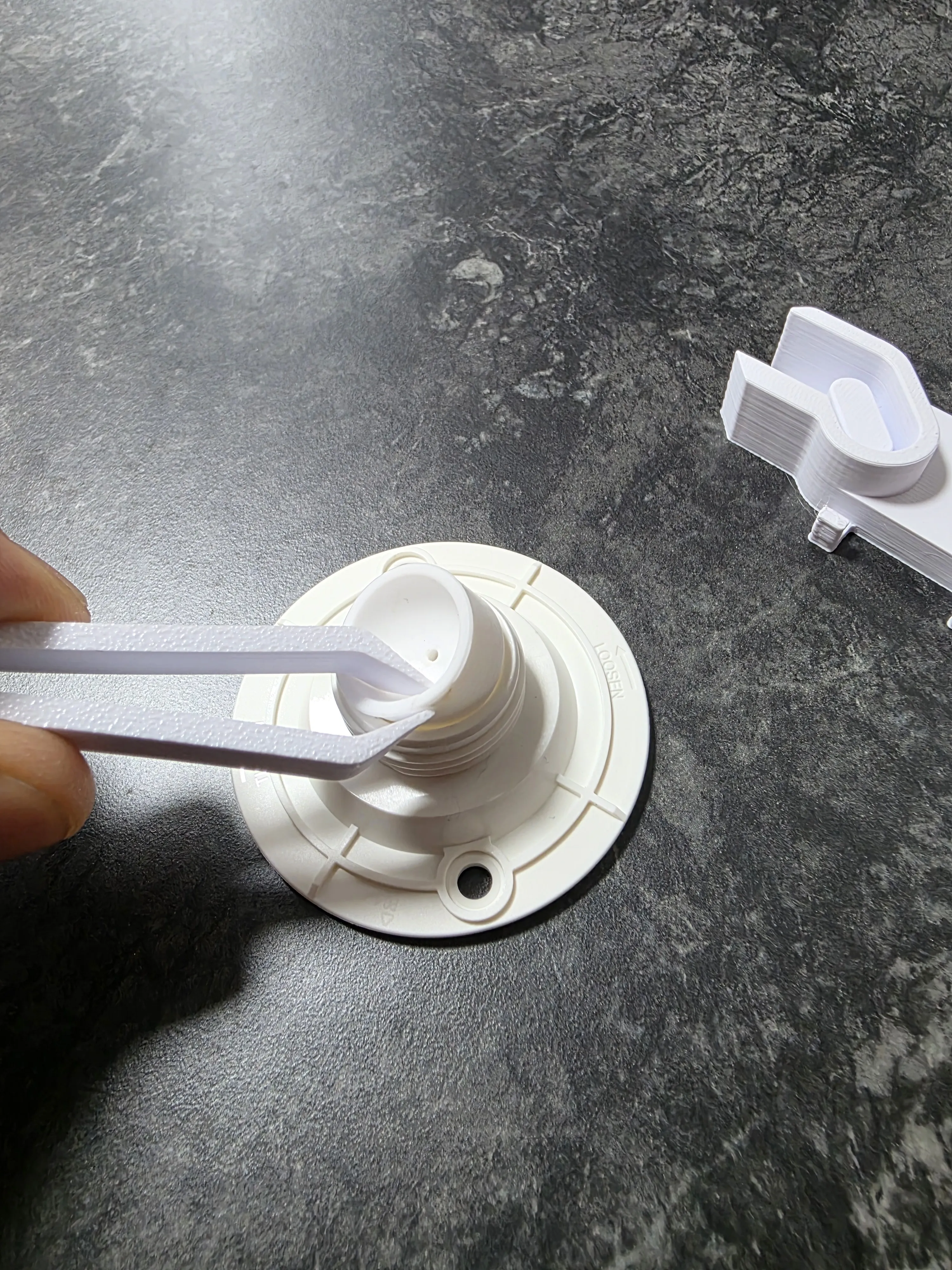

1. Open the camera's original base

2. Remove the internal rubber



3. Insert the rubber into the printed mount



4. Position the camera
5. Tighten with the nut until the desired firmness is achieved

📌 Result: smooth adjustment with precisely locked position

⚙️ Print Settings

• Material: PLA
• Infill: 15%
• Walls: 2 lines
• Layer height: 0.2 mm
• Supports: not required (depending on orientation)

🎯 Application

• Remote print monitoring
• Time-lapse
• Failure detection during the process

⚠️ Important Note

This model relies on the original Tapo rubber to function correctly.
Without it, the firmness adjustment will not be efficient.

⚠️ Note on framing

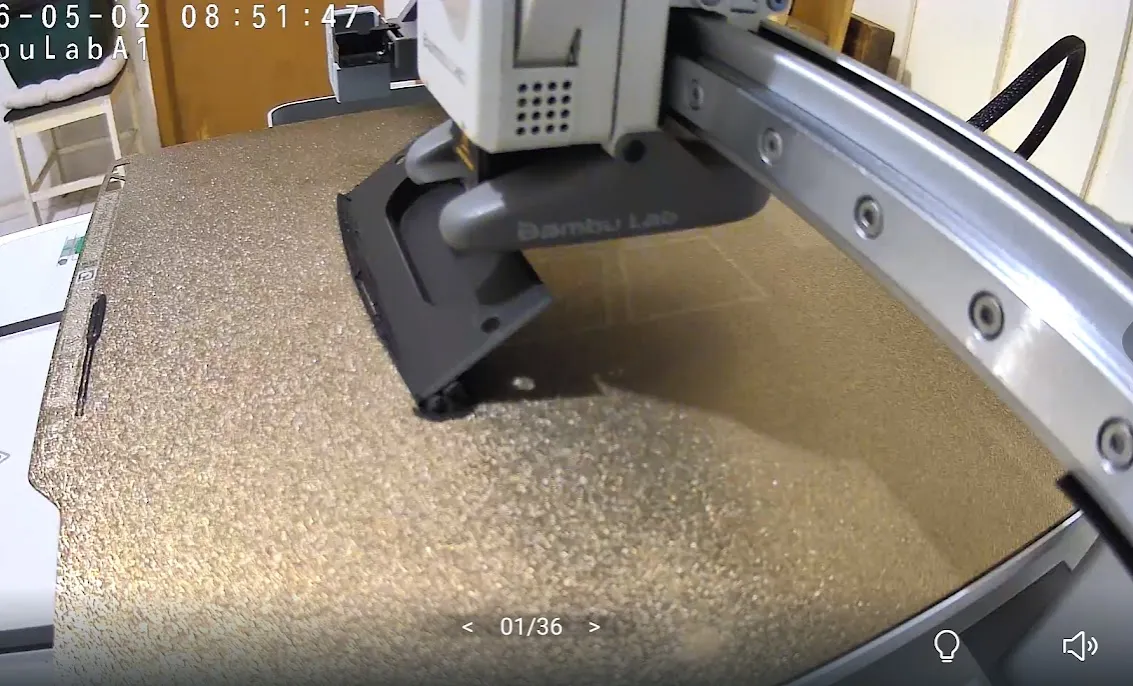

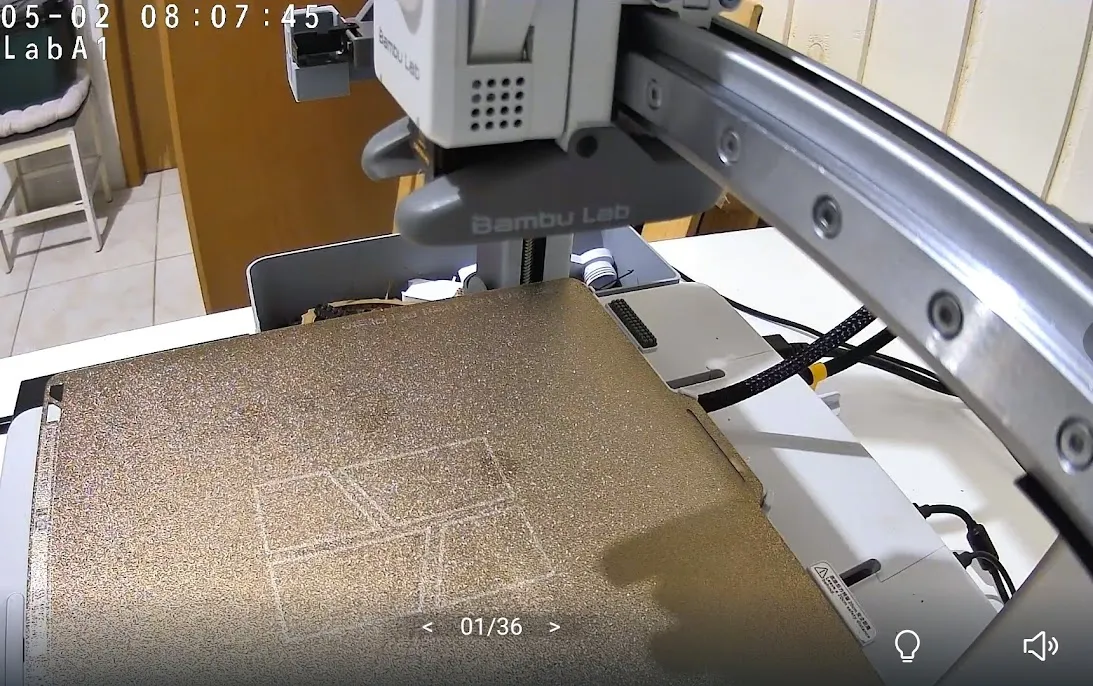

Fixed on the Z-axis, the camera follows the printer's vertical movement.

➡️ Shows almost the entire bed most of the time
➡️ For tall prints, the base may partially go out of frame

🎯 Mount focus: real-time monitoring of the current layer and hotend
(failure detection, blobs, and clogs)

❗ If you need the entire part always visible, prefer a fixed mount outside the Z-axis.

🔄 Additional Compatibility (unofficial)

Designed specifically for the Tapo C113, but there may be compatibility with other Tapo series models that use a similar mounting system.

There is a possibility of compatibility with the Tapo TCW61, however:

⚠️ There is no guarantee of a perfect fit — dimensional differences may affect fit and firmness.
