Outside 90 Degree Bracket (3030)
Print Profile(2)
Bill of Materials
Description
Optimized prints. Clean CAD. Complete drawings. Modular T-slot accessories for engineers who care about complete design packages.

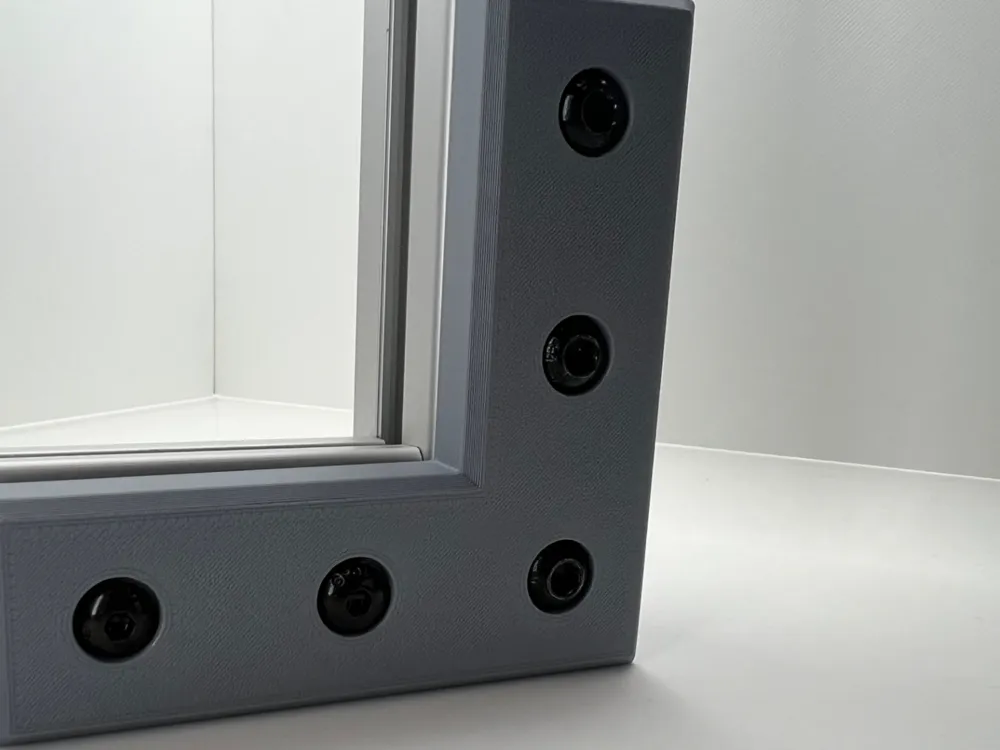

This is a 90-degree corner exterior bracket for 30x30 T-slot aluminum extrusion profiles strong enough for moderate strength structures. The bracket is keyed for ease of placement. The corner hole can be placed on either of the aluminum extrusions. The model comes in a low profile and gusseted version print profiles.
All dimensions are in millimeters.
Like, Boost and Follow me for more!
Recommended Print Settings
Material: PLA
Layer Height: 0.2 mm
Wall Loops: 4+
Infill: 15-100% up to solid (depending on strength needs)
Supports: Include supports for cleaner holes.
Orientation: Print with holes faced down.
Compatibility
Compatibility
Designed for M6 Screw with 16mm length: T-Slotted Framing, End-Feed Nut and M6 Button Head, 30mm Rail, Sliver | McMaster-Carr
Designed and Tested on 3030 T-slot Aluminum Extrusion: T-Slotted Framing, Single 4-Slot Rail, Black, 30 mm High x 30 mm Wide, Hollow | McMaster-Carr
