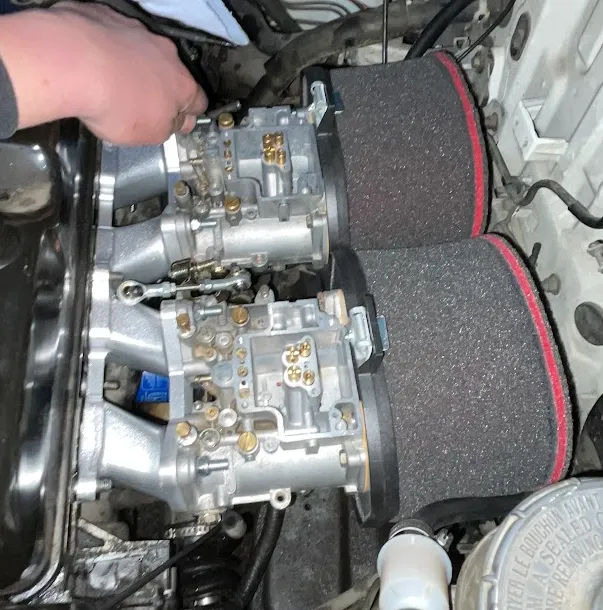

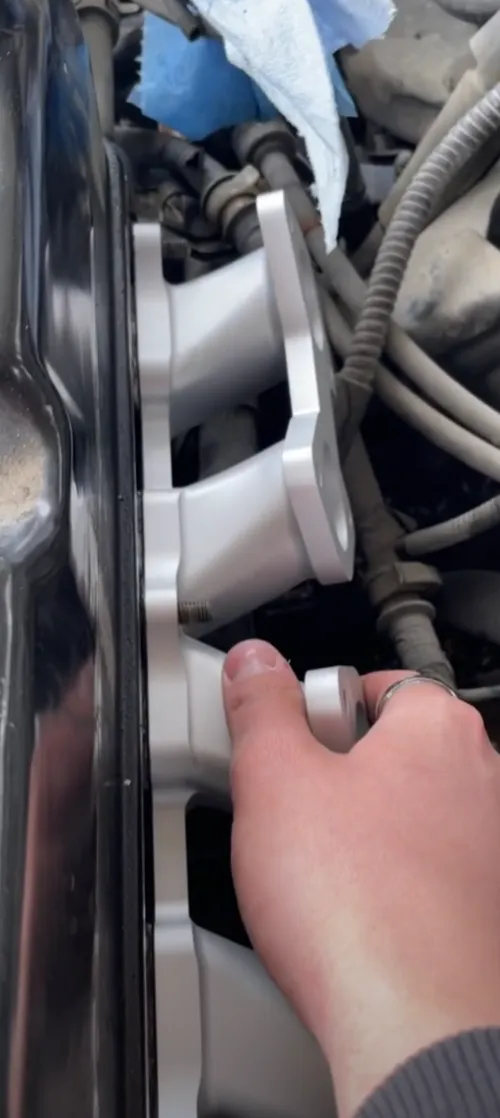

B20A3/4 intake manifold for DHLA/DCOE caburettors
Print Profile(0)
Description

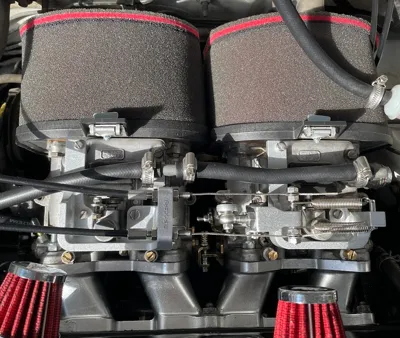

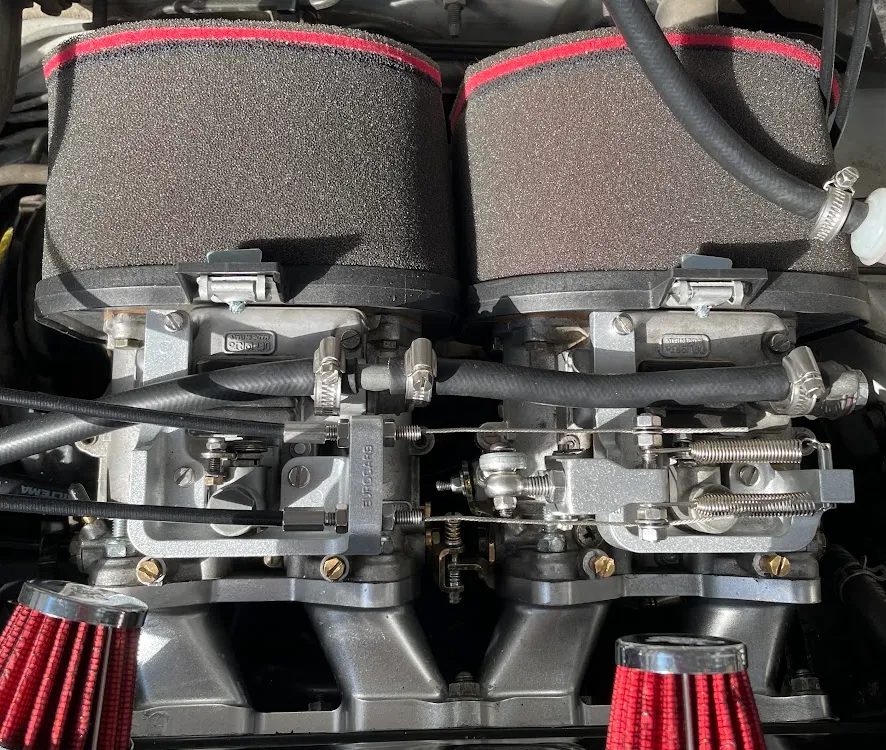

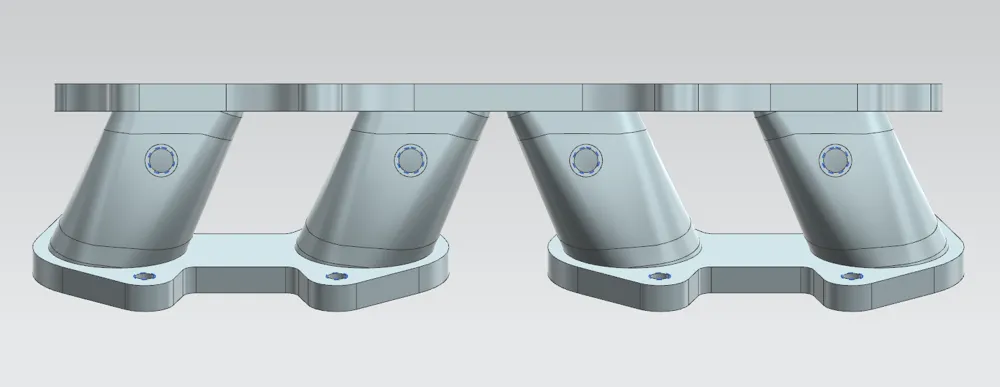

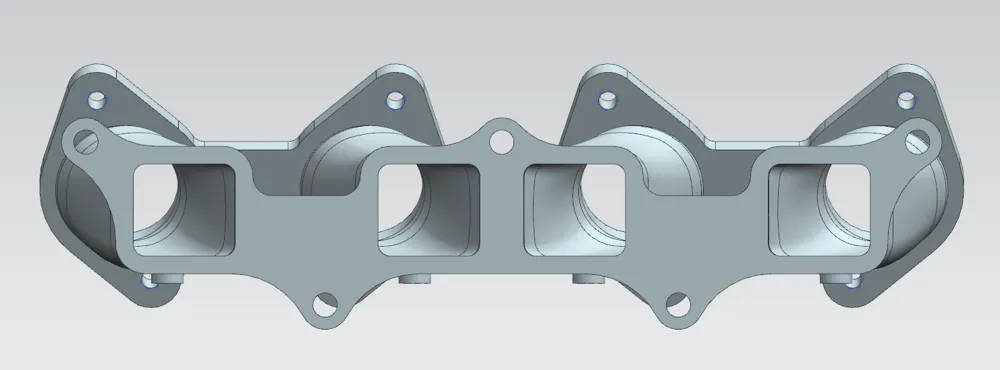

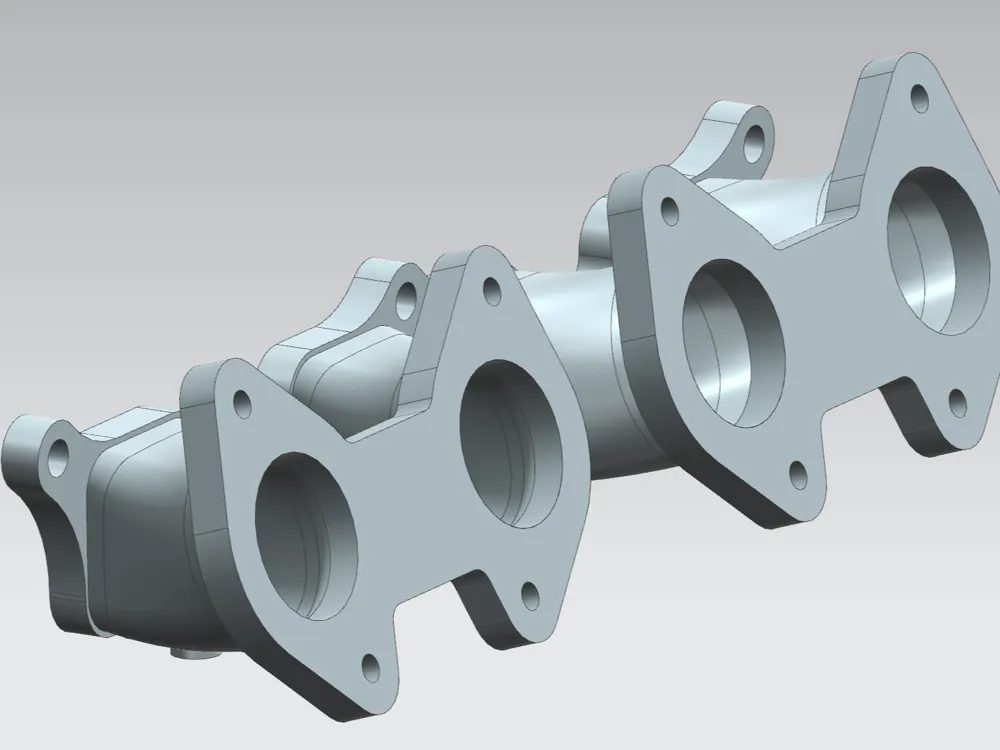

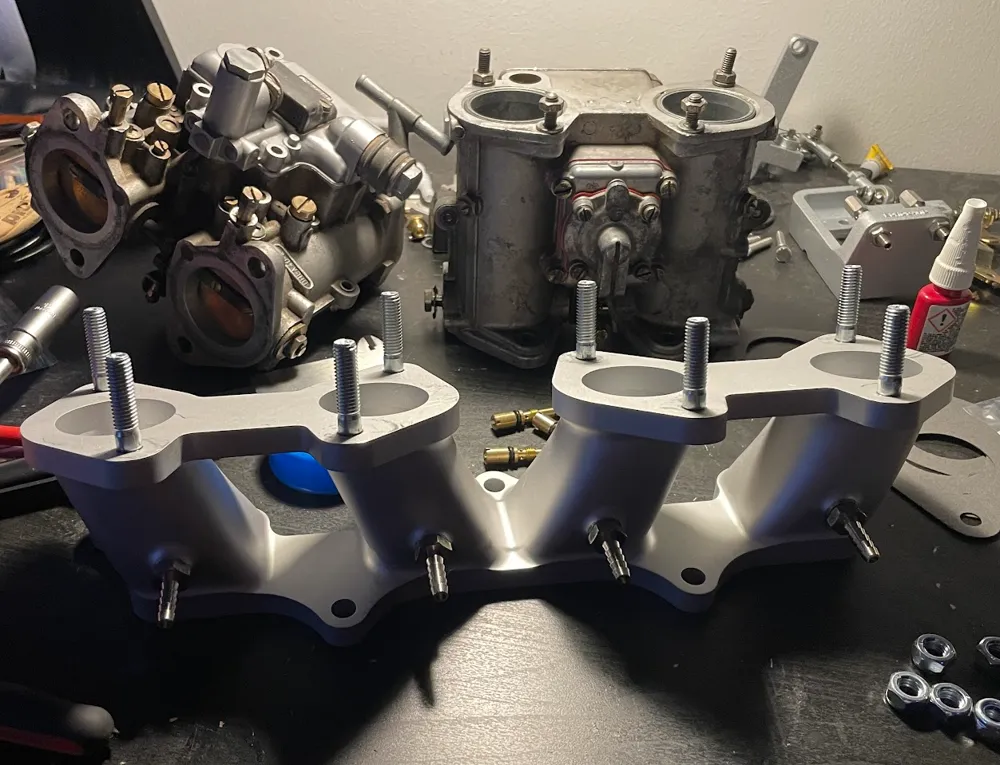

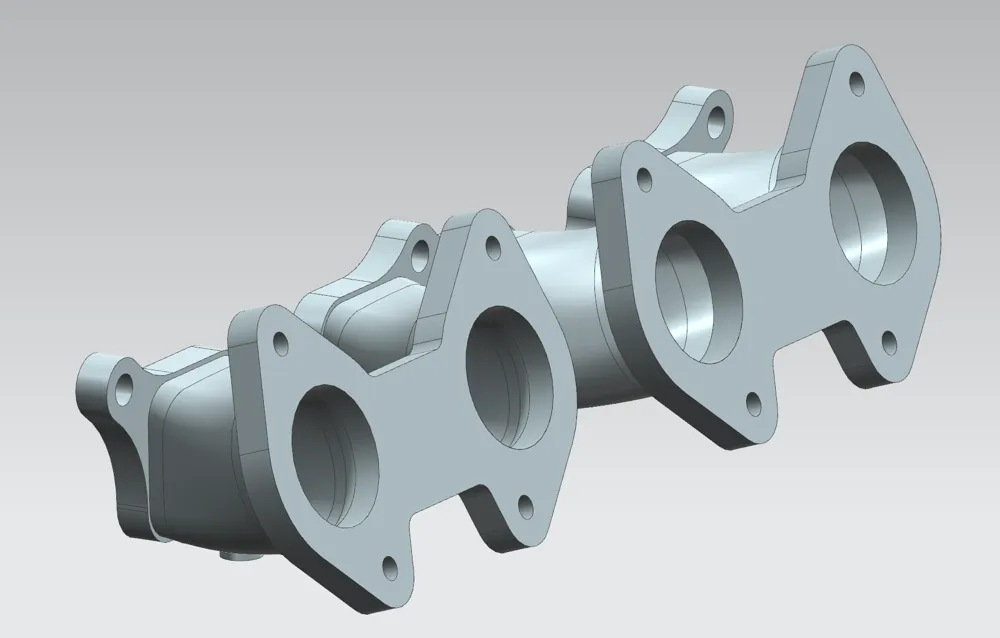

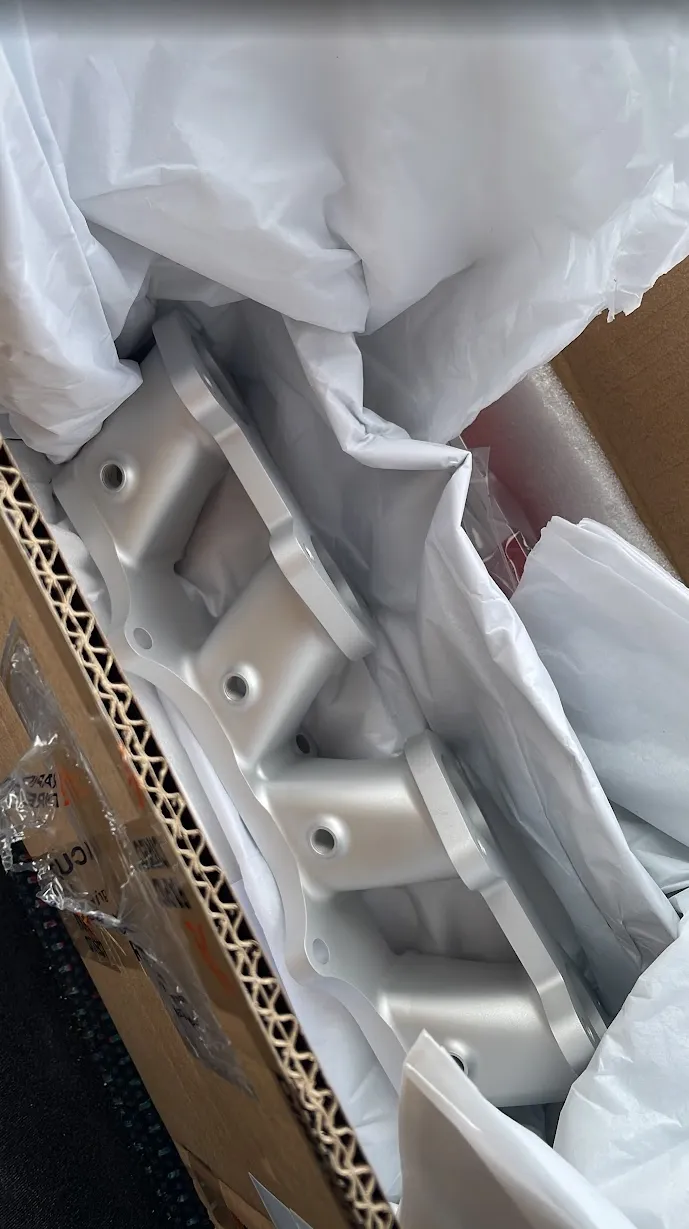

Intake manifold for swapping on Dellorto DHLA40:s or Weber DCOE 40mm:s

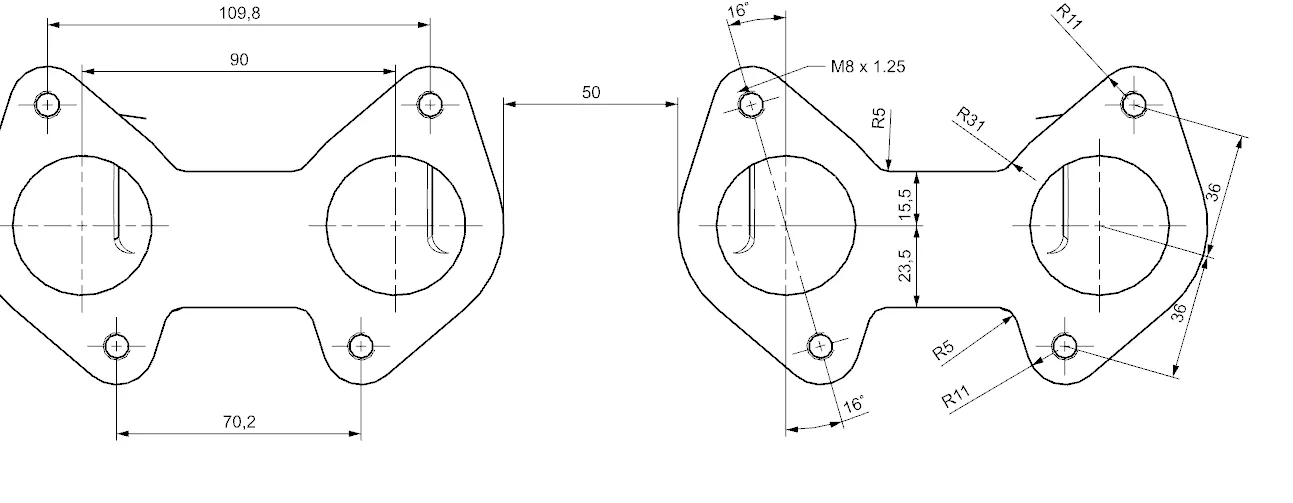

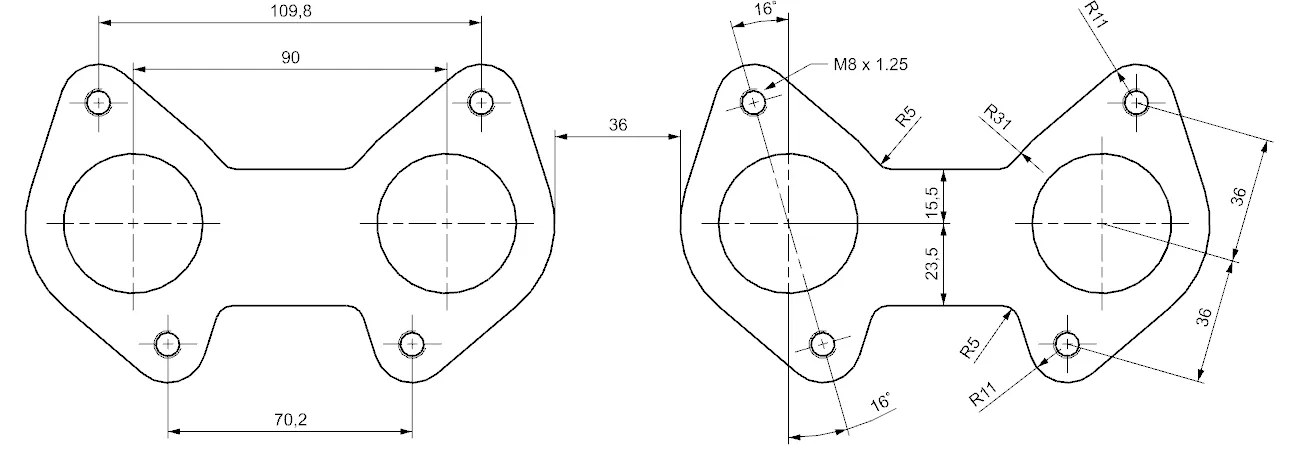

Difference between the narrow and wide model is that on the narrow model the gap between the inner carburetor flanges is 36mm on the narrow and 50mm on the wide model.
Full guide to swap here:
https://www.preludepower.com/threads/dhla-dcoe-addhe-swap-guide-for-the-b20a4-3-engines.468113
Other parts required:
Vacuum piping, an anti-pulse valve for the distributor advance (bought mine at Eurocarb LTD.) 1/8 BSP/NPT threaded hose nipples to connect to the manifold for the vacuum, custom intake manifold gasket to the engine head as the stock one will not suffice.

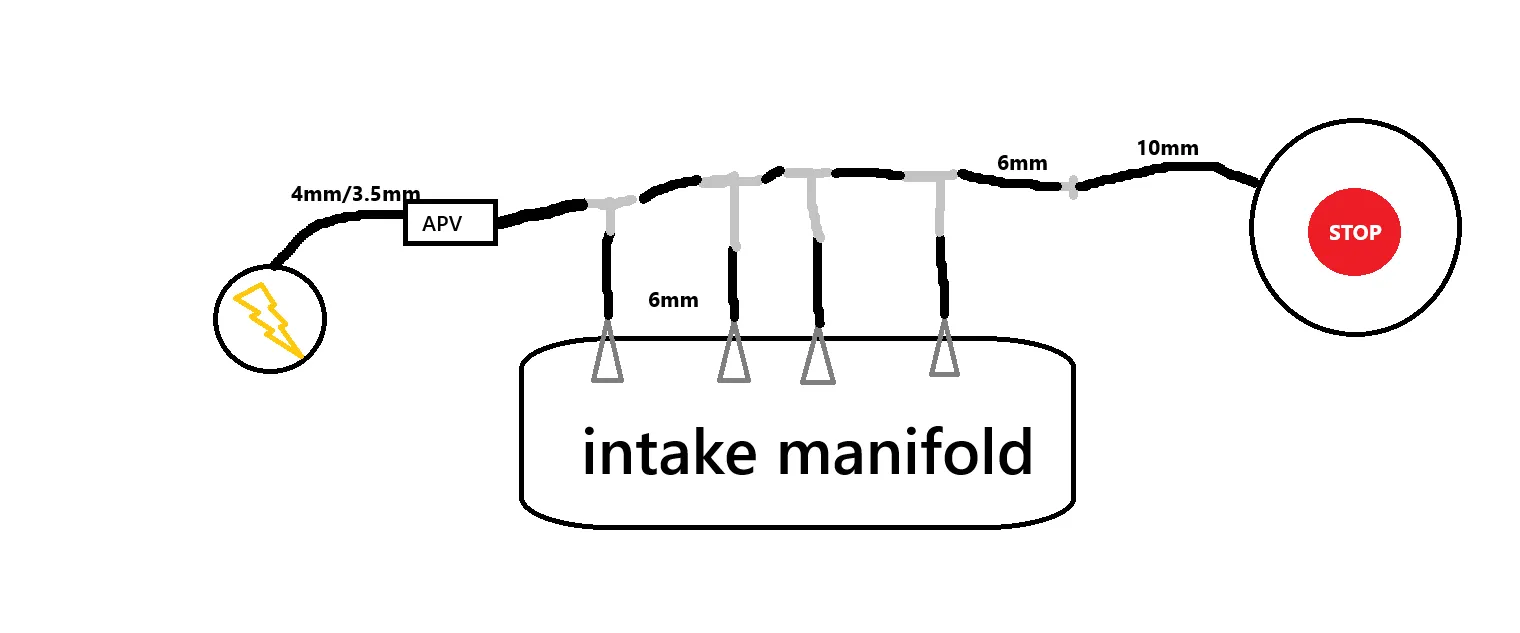

Here is my vacuum piping:
