Whoopstor Modular Drone & Battery Storage Box

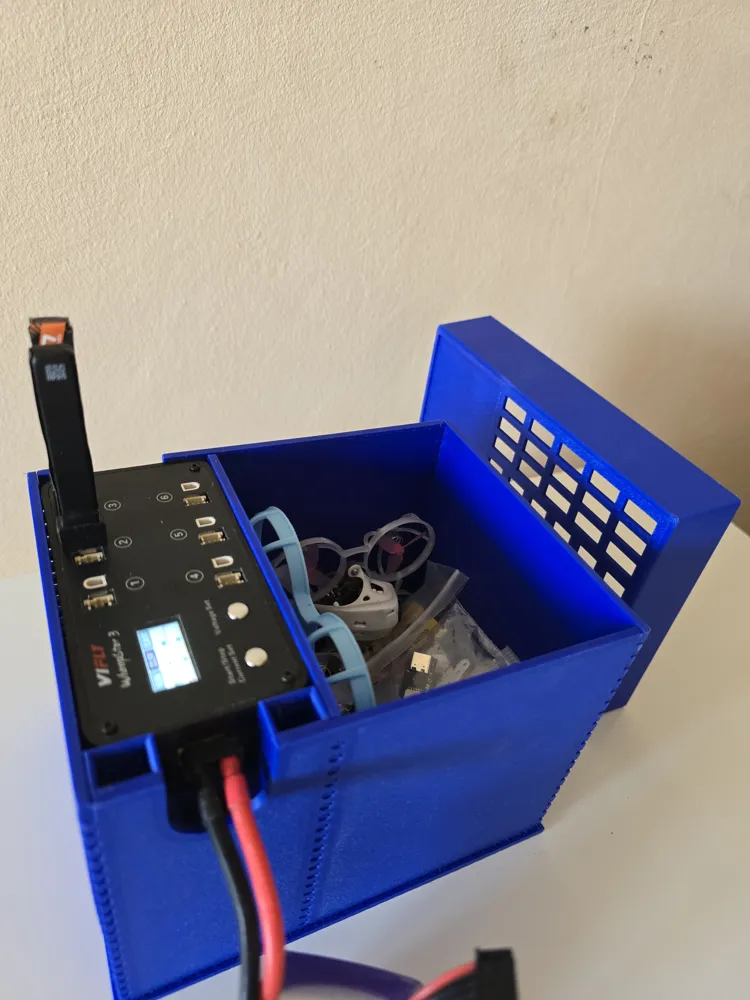

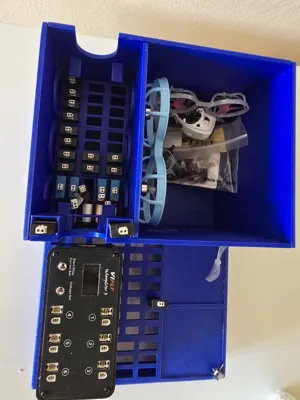

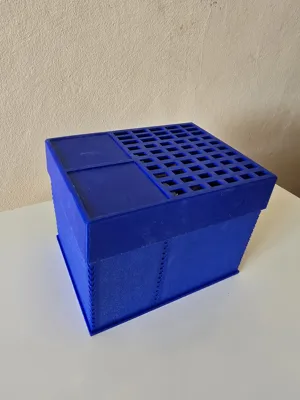

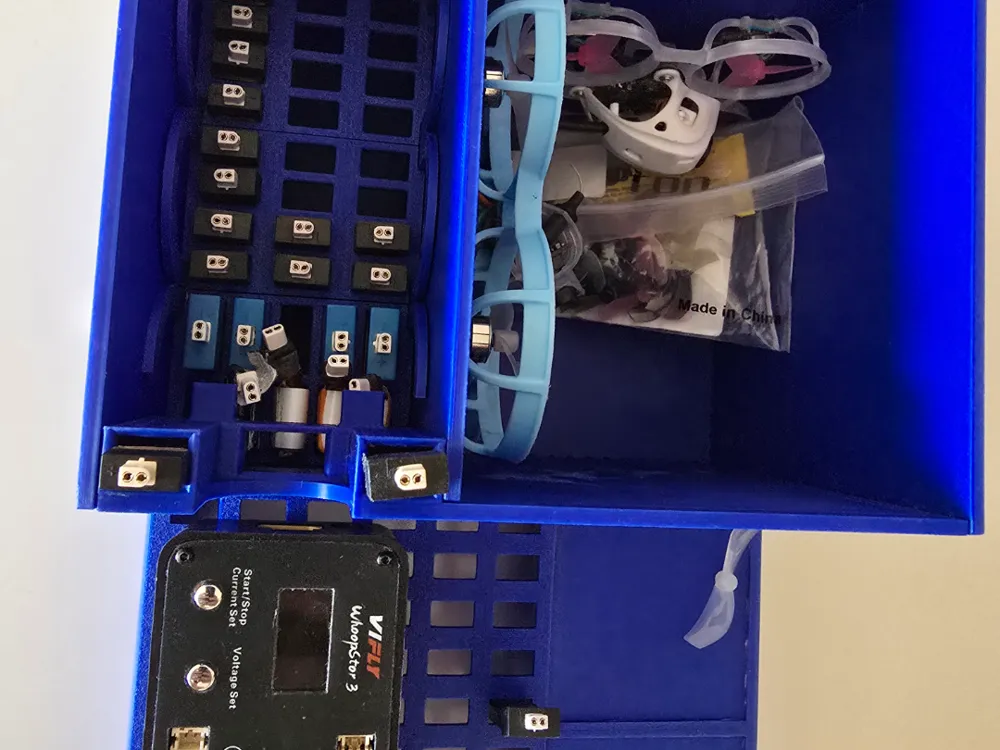

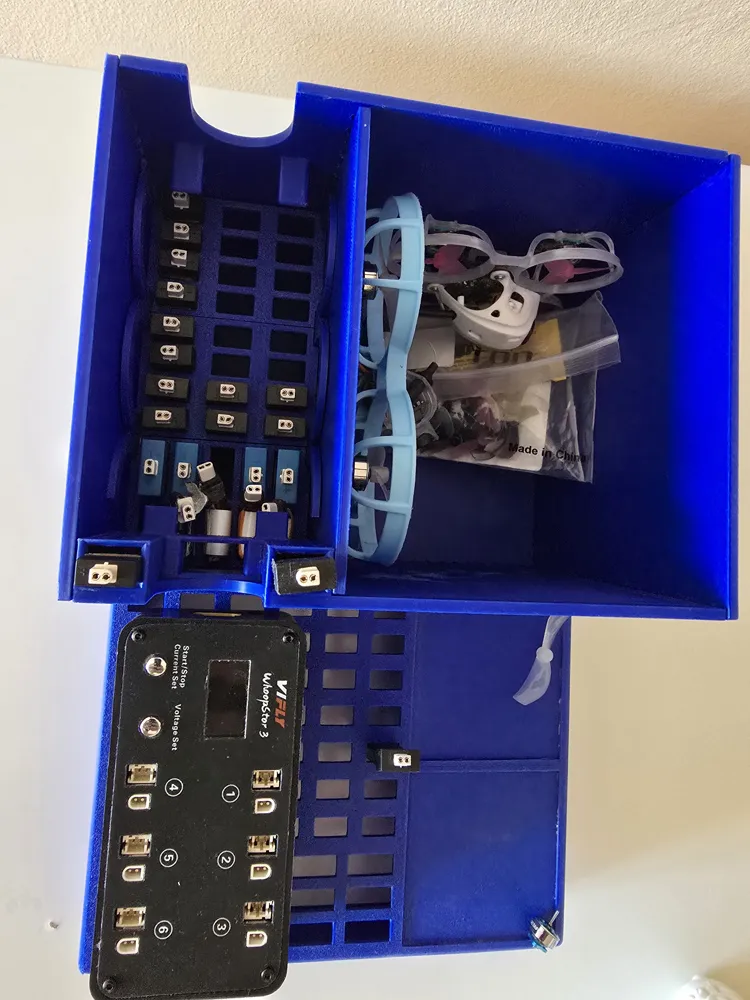

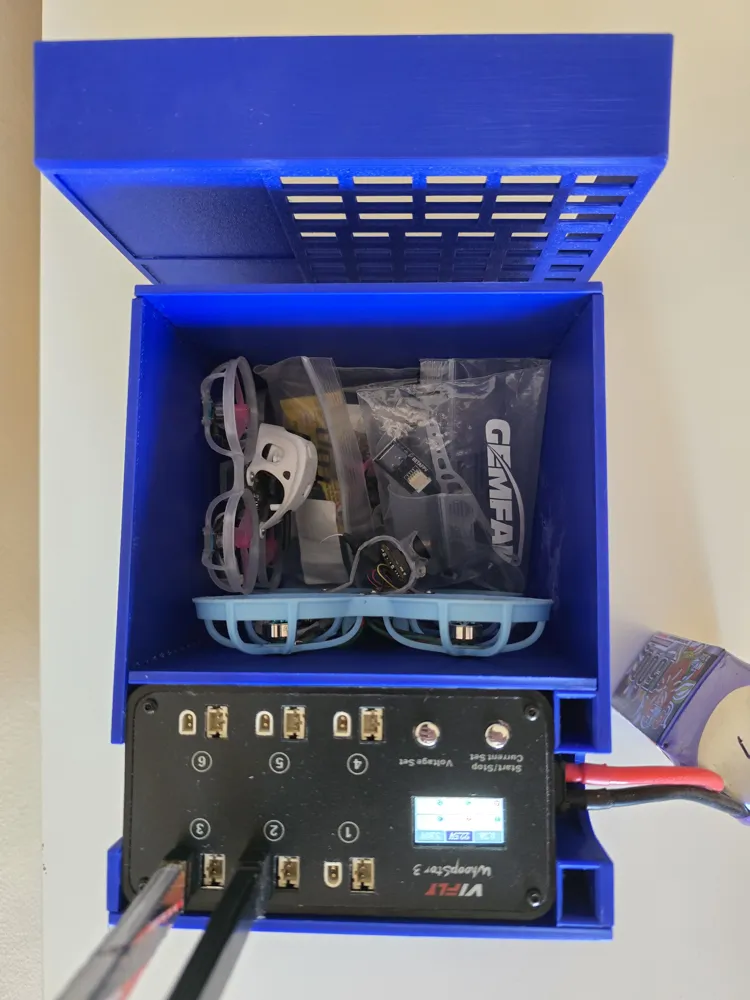

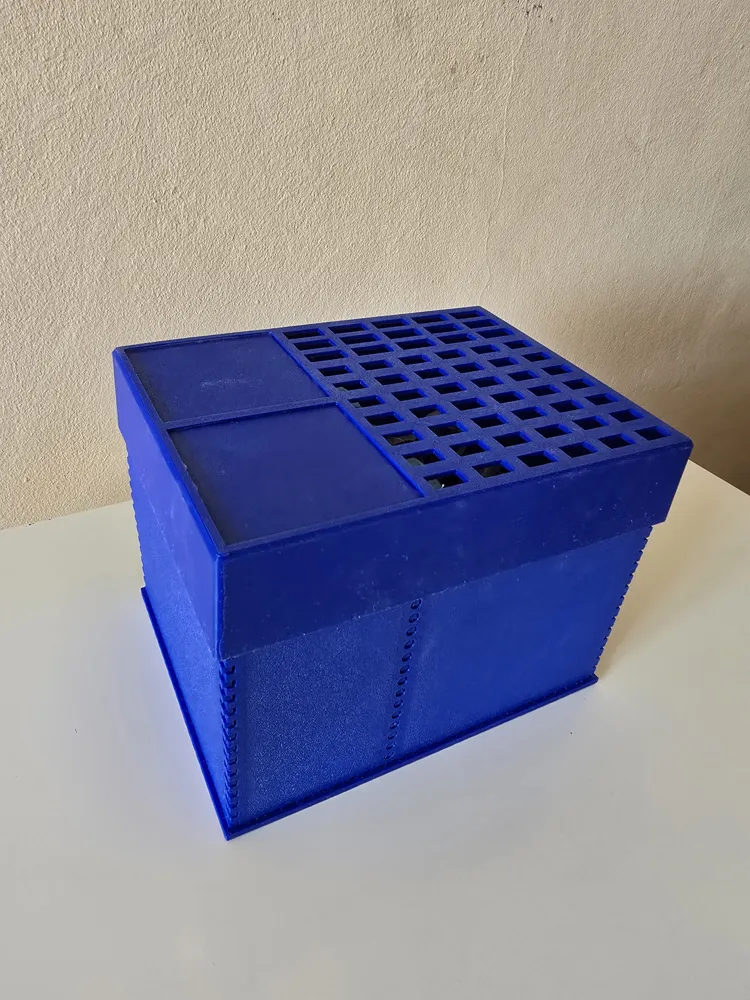

A compact, 3D-printable storage and organization box designed to hold a charger, drone accessories, and battery cassettes in one place. The layout keeps everything separated and easy to access, while the lid and inserts help organize small parts securely.

Printing / Assembly Notes

• A clamp may be needed during assembly.
  In the community release, I enlarged all holes by 0.1 mm and narrowed the teeth by 0.05 mm to make assembly easier, but I cannot guarantee that this will fully eliminate the need for clamping.
• The lid is made from 2 separate parts and should be assembled with glue.

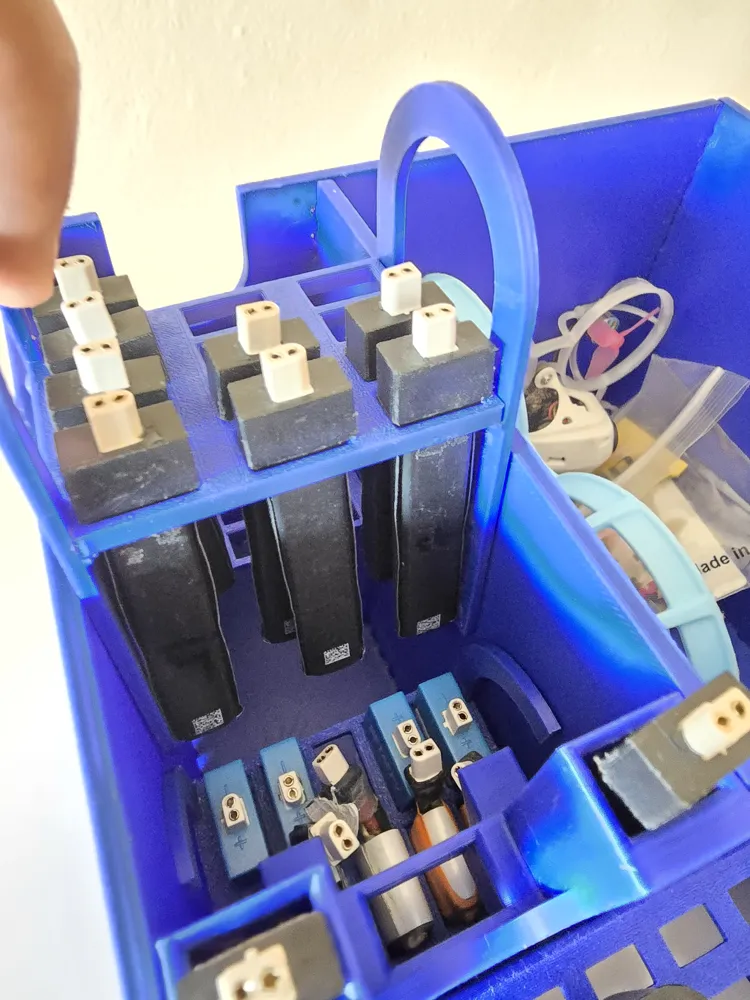

• The battery cassettes are also made from 3 parts and should be glued together.
• Pay attention to part orientation.
  Try to place the parts so the textured side faces outward. For example, the lid part is already oriented correctly on the Bambu Lab build plate in the model file, with the chamfer facing down. The goal is to make the visible outer surfaces look as clean and textured as possible.

Redesign Suggestion

If someone wants to redesign this model, I would recommend shortening the main body to the length of the charger and using the freed space to extend the drone compartment. This will make the box easier to fit into backpacks and will maintain its compatibility with 75mm models.
