Round Bases for Miniatures (25mm - 150mm)
Print Profile(7)
Description

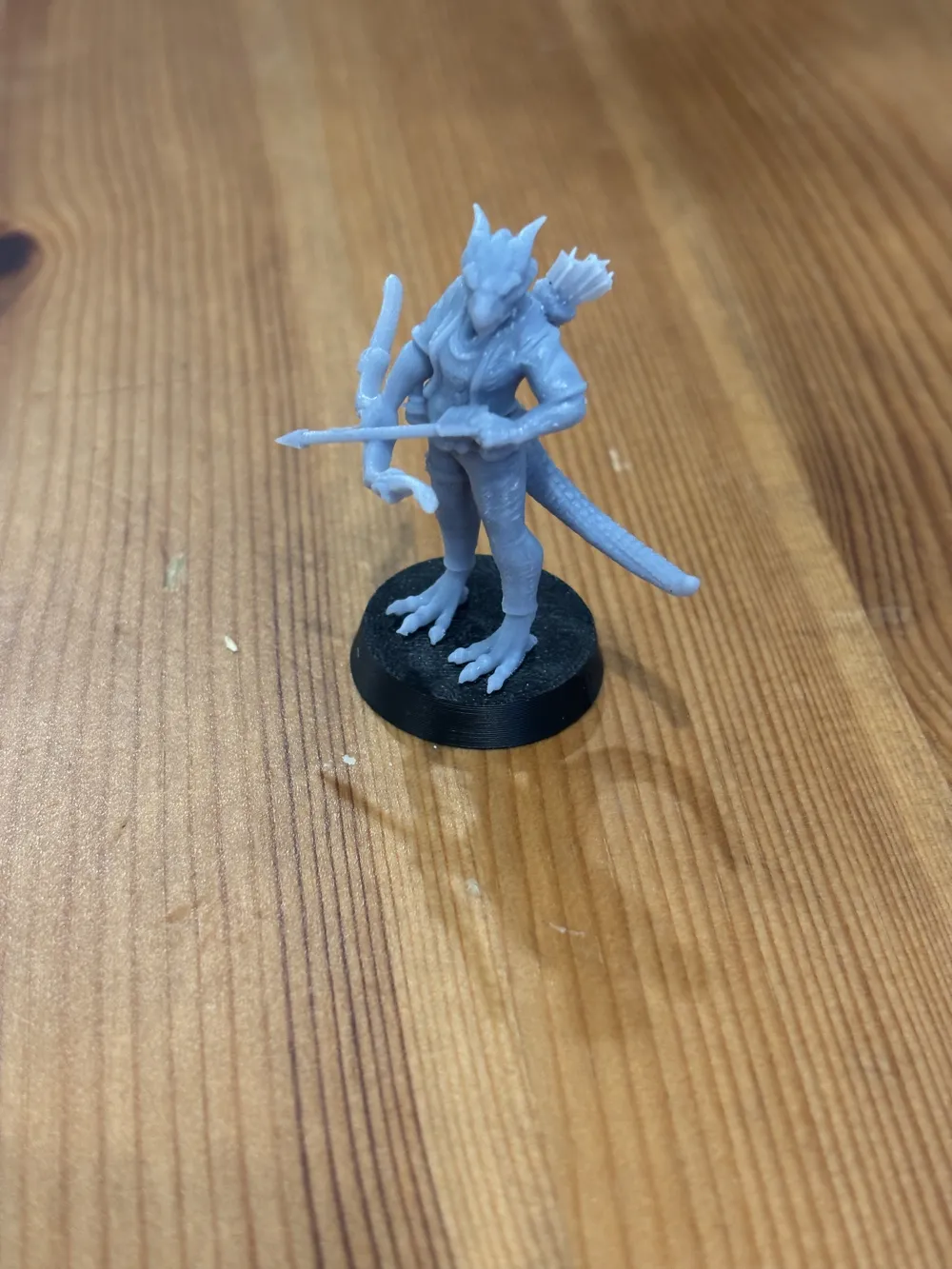

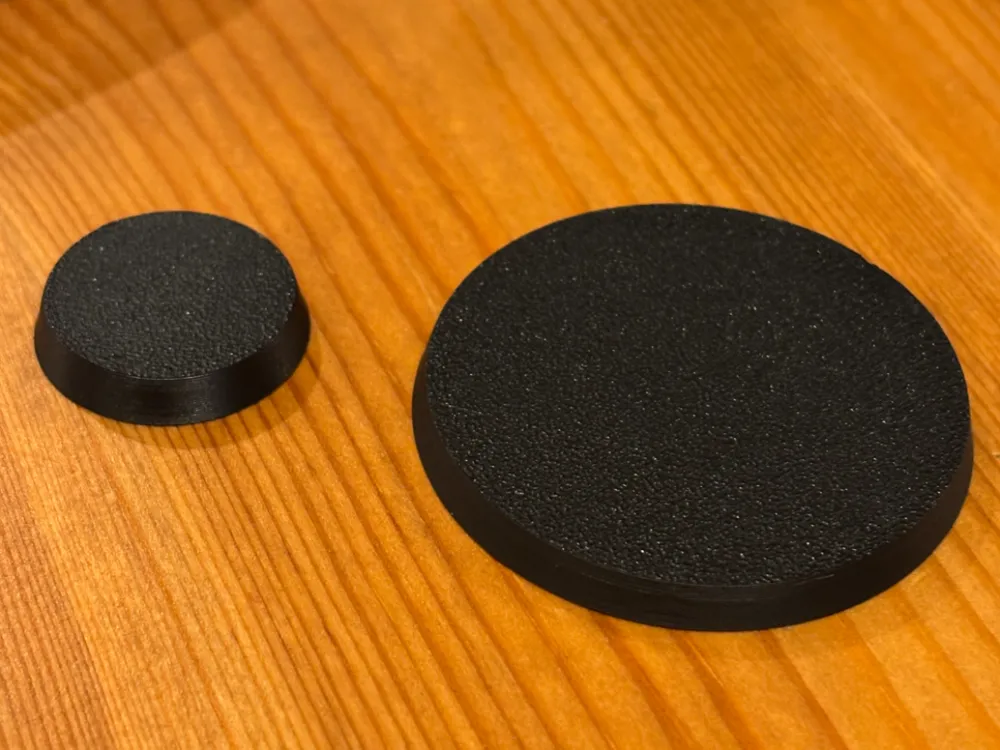

I tried a bunch of bases online and were never happy with them. I like using magnets for my printed minis for D&D so I made these bases to make that easy to do. There are bases from 25mm (small/medium) all the way up to 150mm (tiamat sized). There are options for different sized magnets as well as no magnets. If you need a bigger size or different magnet size, let me know.
The tolerance for the magnet holes are 0.3mm in diameter and in height.

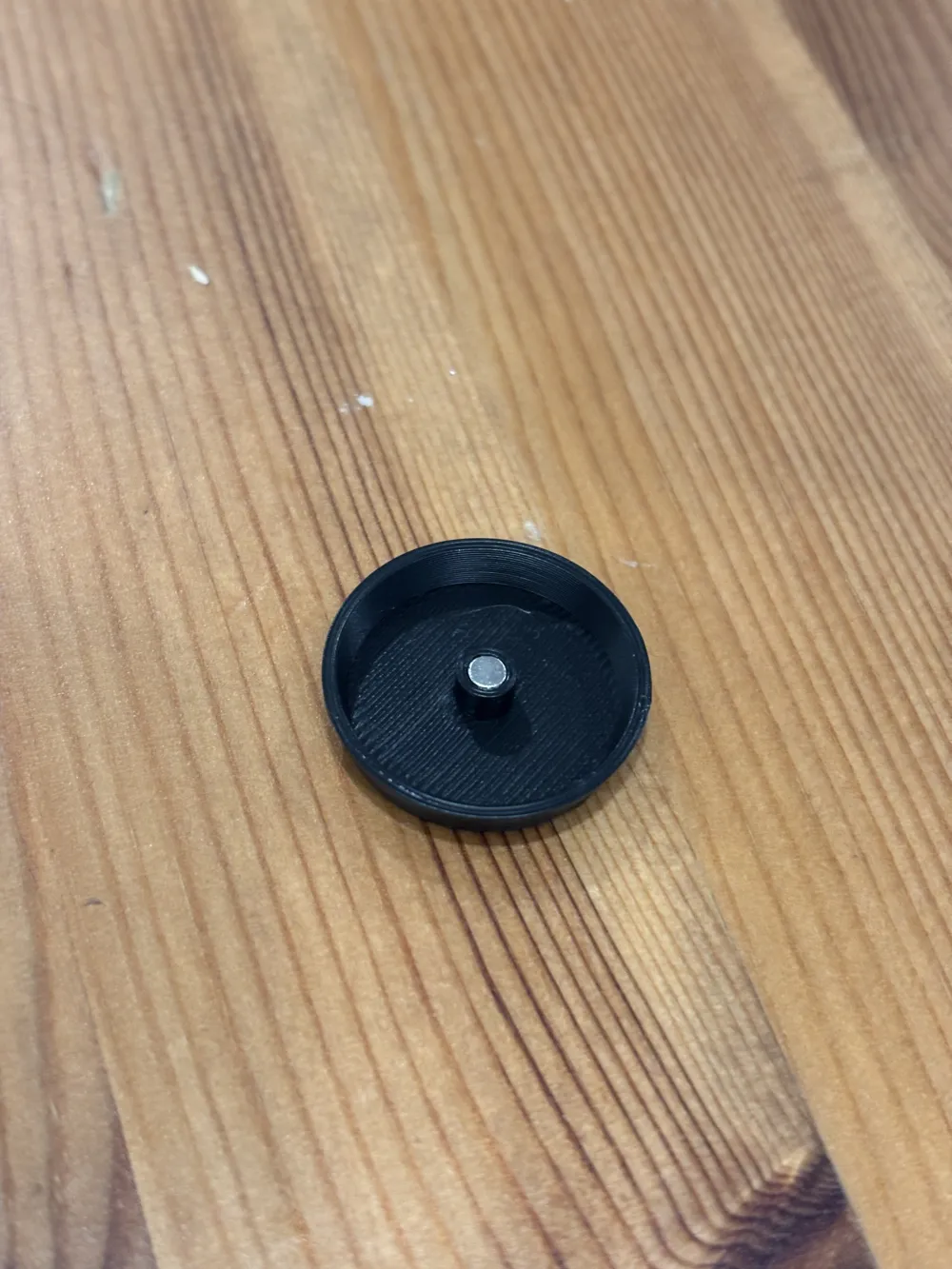

To add a magnet (do this one magnet at a time so the glue doesn't set witht he magnet in the wrong place):
- Put a drop or two of super glue on a scrap piece of cardboard
- Dab the magnet into the super glue (it helps to hold a long column so you don't get any on your fingers
- Push the magnet a little bit into the magnet hold
- Use pliers to squeeze the magnet all the way in or until it is flush with the edge (do this quickly before the glue sets)
- Once all magnets are correctly in, leave it upside down (magnets facing up) while the fumes from the glue dissipates otherwise a white residue will build up on the plastic
EDIT: I have added 32mm and 60mm sized bases for use with bigger medium-sized and large sized models like those from Artisan Guild.
Base Sizes (Updated 30/4/26):
- Medium 25mm
- Medium 32mm
- Large 50mm
- Large 60mm
- Huge 75mm
- Gargantuan 100mm
- Gargantuan 125mm
- Gargantuan 150mm
Magnet Sizes (Updated 30/4/26):
- 3x3.8mm
- 3x4mm
- 5x1mm
- 5x2mm
- 6x1.6mm
- 6x2mm
- No Magnet
