Replacement IP67 Enclosure Backplate - 118x69mm
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
Please support the design and free publication of functional parts which return autonomy and control to the consumer. Every boost is greatly appreciated as it supports further time investment in creating these models!

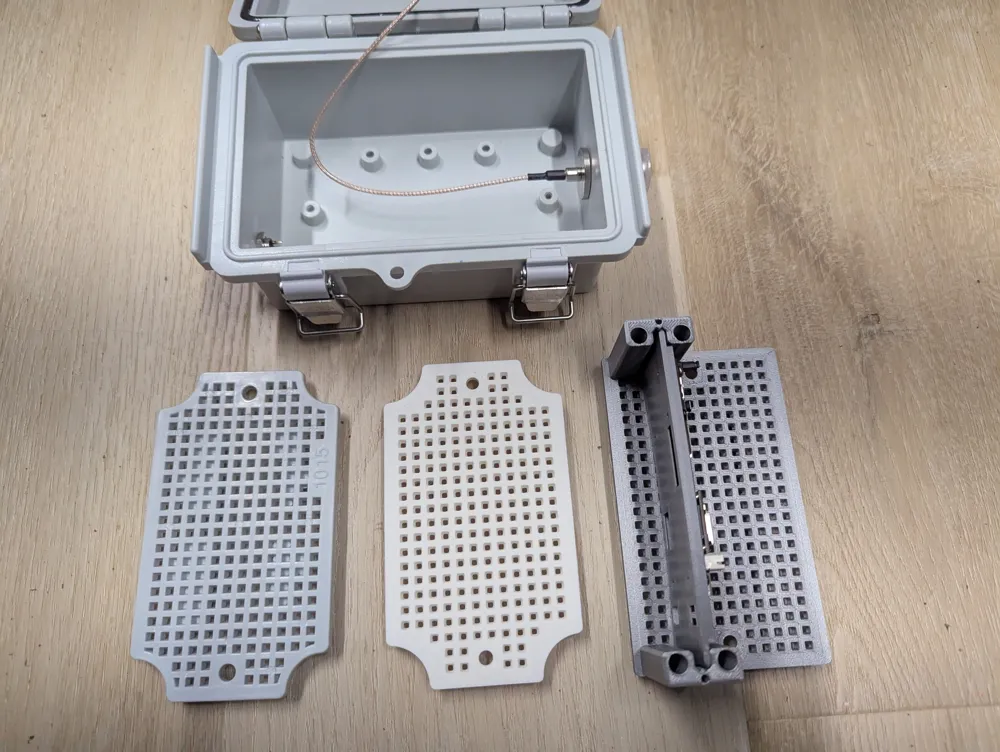

This model is a replacement for 118x69mm backplates from generic 150 x 100 x 70mm IP67 enclosures. I designed this when building a Meshcore repeater, but this could equally be useful for anyone mounting a Ras Pi, ESP32/ESP8266, or other device outdoors.
Ensure you print this in a material that can withstand sunny hot temperatures (ie: ABS, ASA) if your applications call for it.

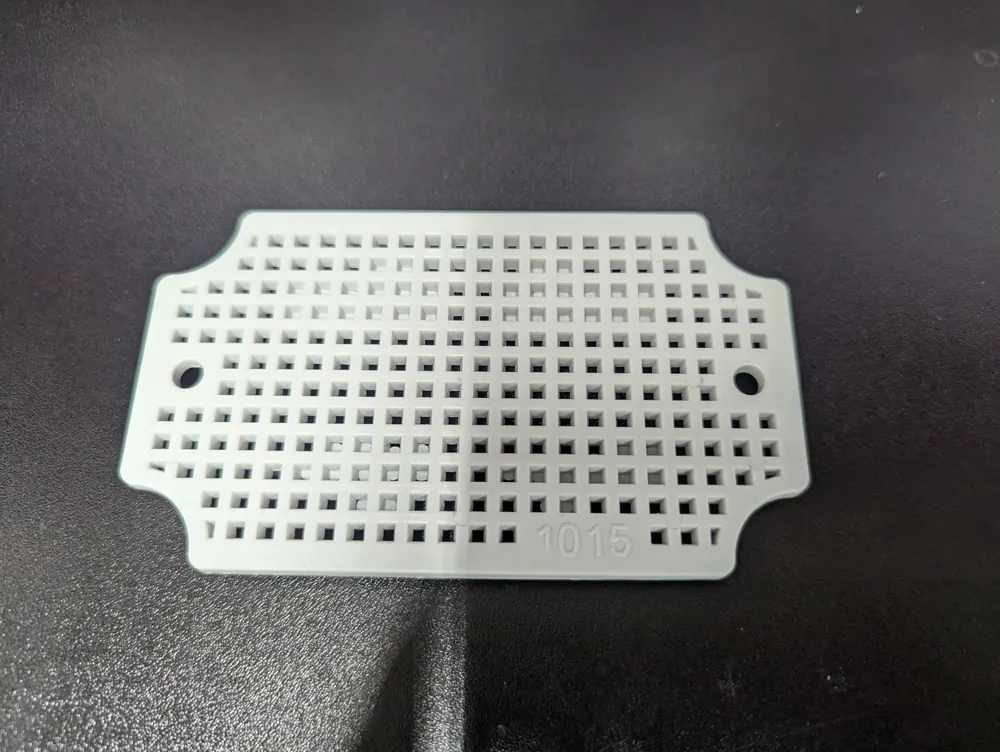

- Baseplate is 118x69mm, and mounting hole spacing is 100mm. Measure your enclosure to confirm compatibility before printing.
- 5mm grid of holes are 3mm squares tapering down. Both M3 and BT2.5 style screws are compatible.
- 2x shapes: curved corners (1:1 replica of the original), and rectangular (for extra mounting space)

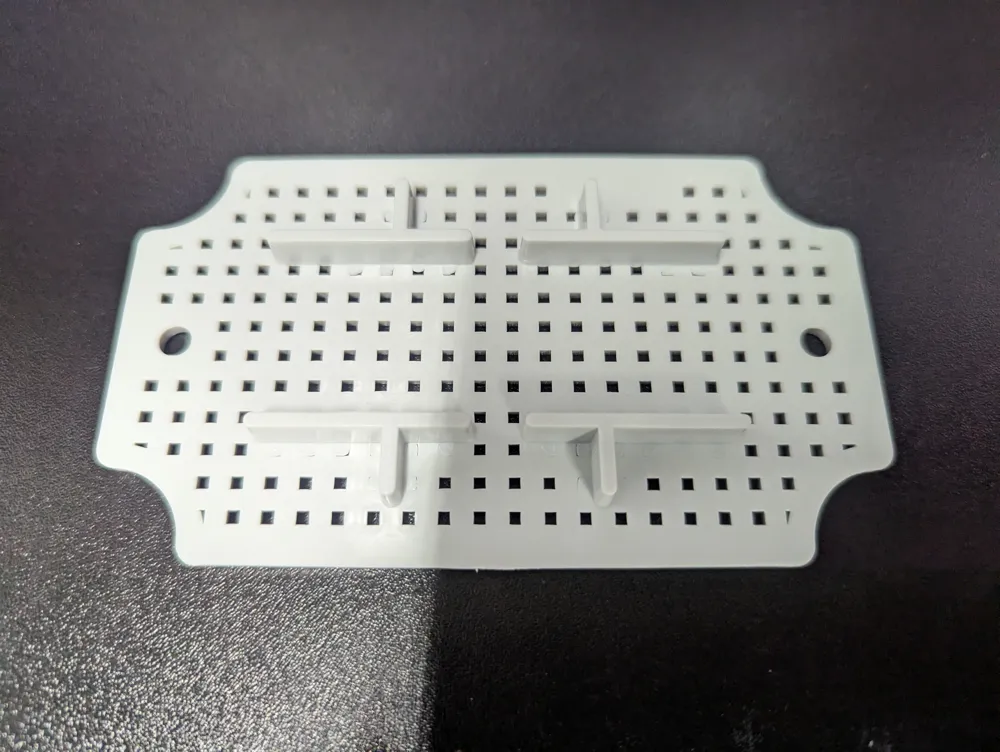

- 2x variations: with or without the support ribs are included for each shape.
