Description

Boost Me (for free)

If you would like to financially help me continue to create content, it would be much appreciated https://buymeacoffee.com/daninplanotx THANK YOU

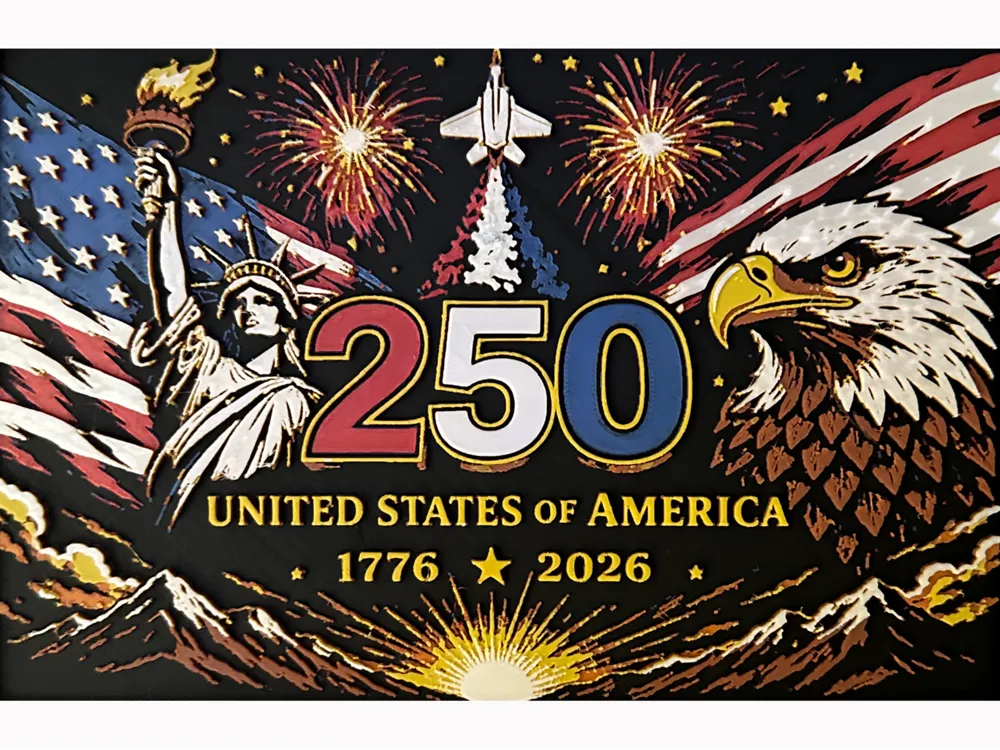

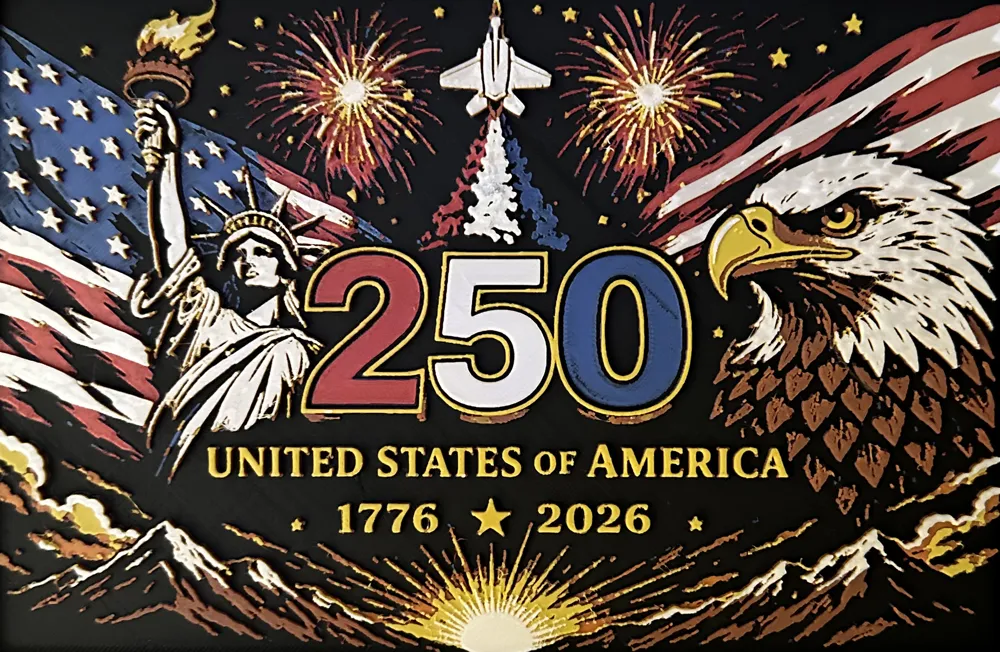

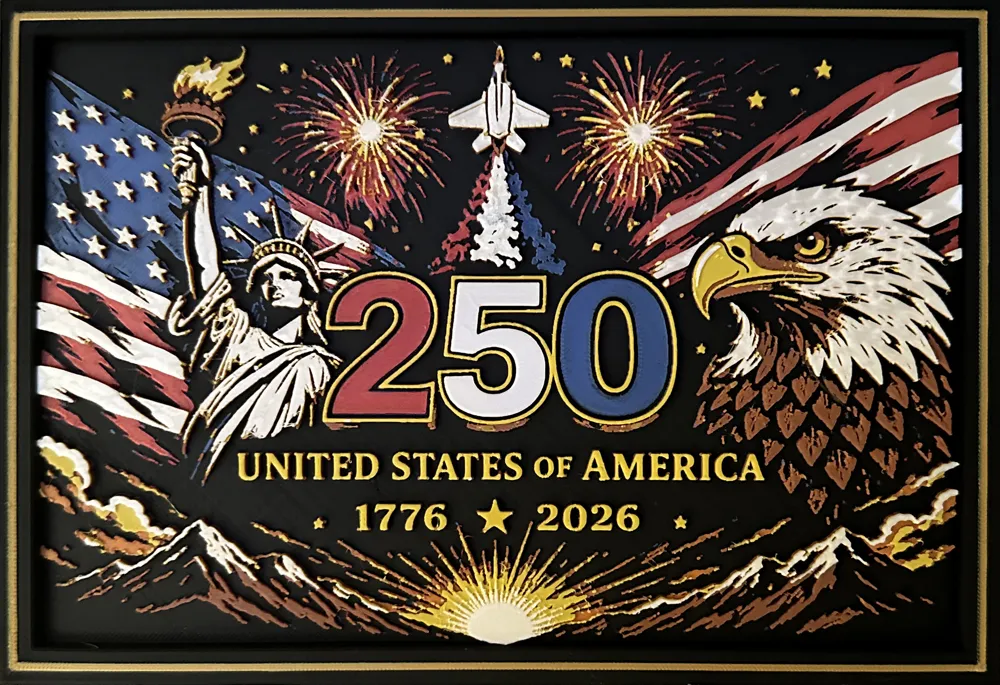

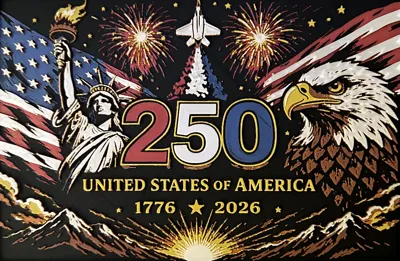

Happy Birthday America 250 Years!



AI inspired hueforge celebrating our countries birthday.



PRINTING INSTRUCTIONS:

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm


The Model is 200x141.67mm in size. Important, if you resize this hueforge - do not change the Z scale or the colors will not be correct when printed. Make sure the Z thickness is set to 3.84mm.

You may print at higher layer heights below the Base Thickness of 0.48mm. This is currently already setup in the print file.
The Max allowed Thickness is 4mm and the Actual Thickness is 3.84mm



Filaments Used:
    #000000 PLA BambuLab Basic Black  Transmission Distance: 0.6
    #2f54cd PLA BambuLab Silk Blue  Transmission Distance: 1.6
    #d02727 PLA BambuLab Silk Candy Red  Transmission Distance: 4
    #ff9016 PLA BambuLab Basic Pumpkin Orange  Transmission Distance: 8.8
    #9d432c PLA BambuLab Basic Brown  Transmission Distance: 3.2
    #fce300 PLA BambuLab Basic Yellow  Transmission Distance: 10
    #ffffff PLA BambuLab Basic Jade White  Transmission Distance: 13
This print uses 7 unique filaments


Swap Instructions:
    Start with Black
    At layer #6 (0.56mm) swap to Blue
    At layer #8 (0.72mm) swap to Candy Red
    At layer #13 (1.12mm) swap to Pumpkin Orange
    At layer #18 (1.52mm) swap to Brown
    At layer #24 (2mm) swap to Yellow
    At layer #33 (2.72mm) swap to White for the rest.



NOTES: You can probably stop the print after 8-10 layers of white. Sometimes, I use other brands of white that are not as opaque as Bambulab's Jade White, o I put some pauses in the print file and you can see if it's white enough for you to end the print early.
