Hello makers! This is Ganapro.

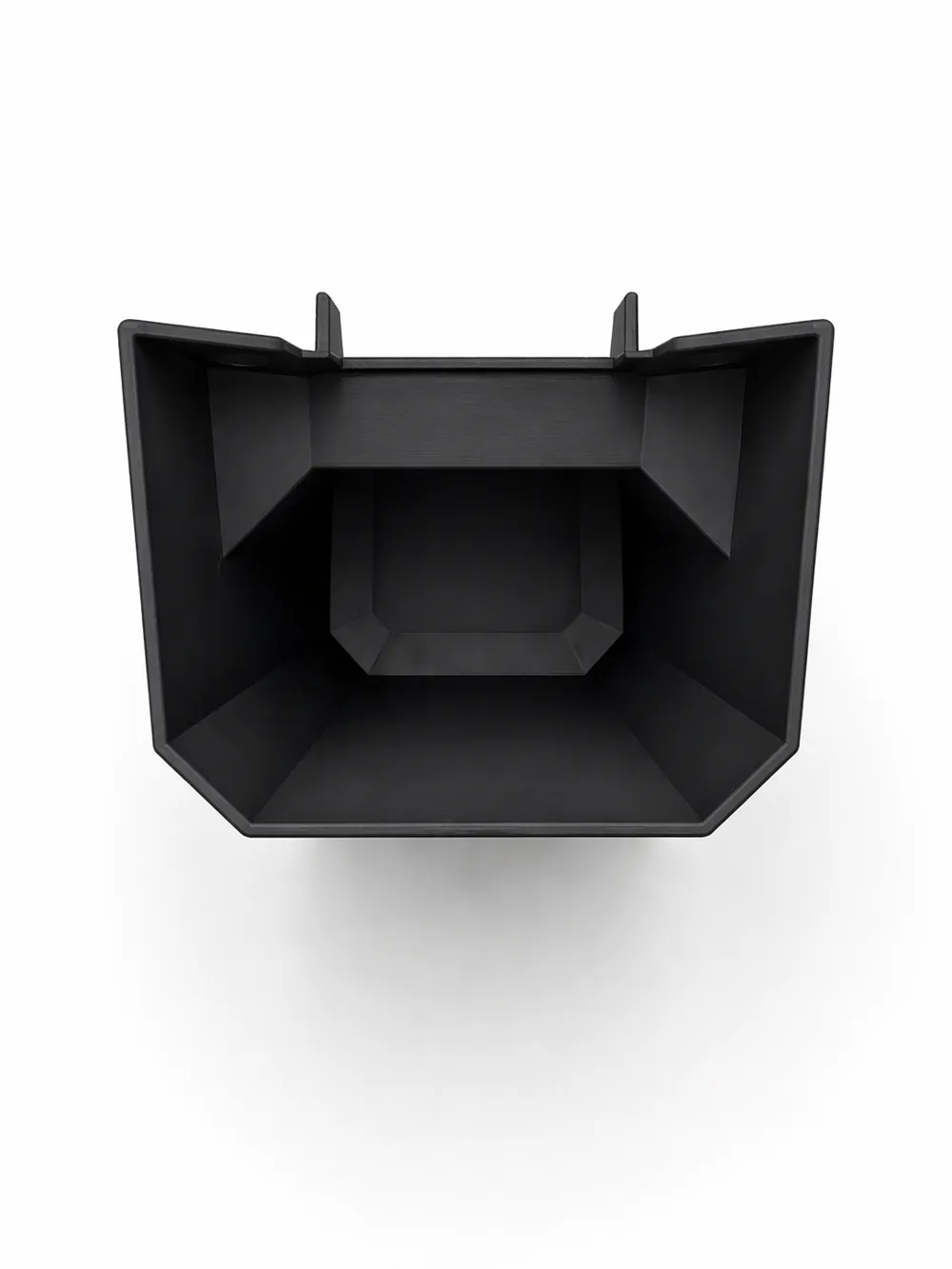

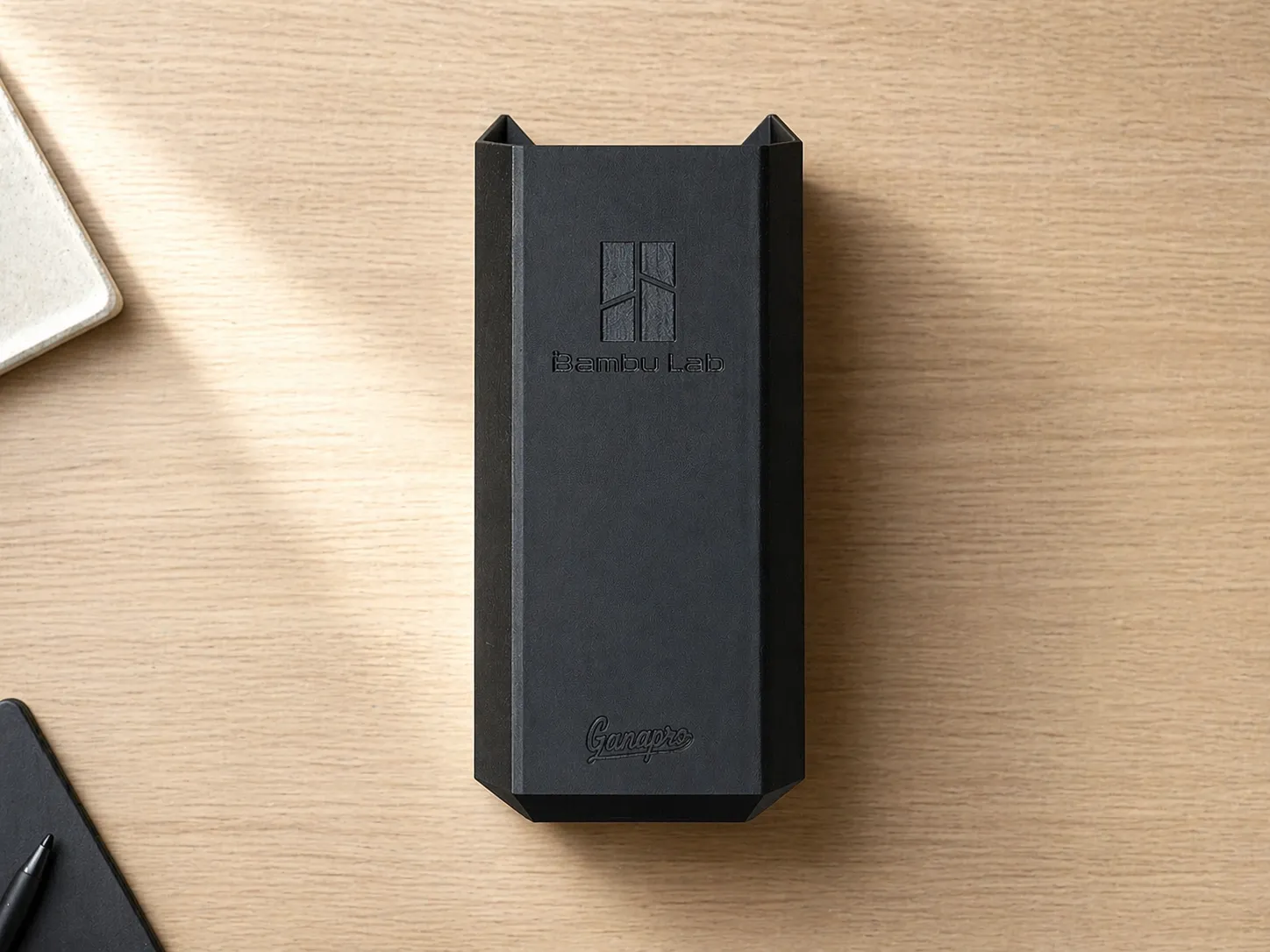

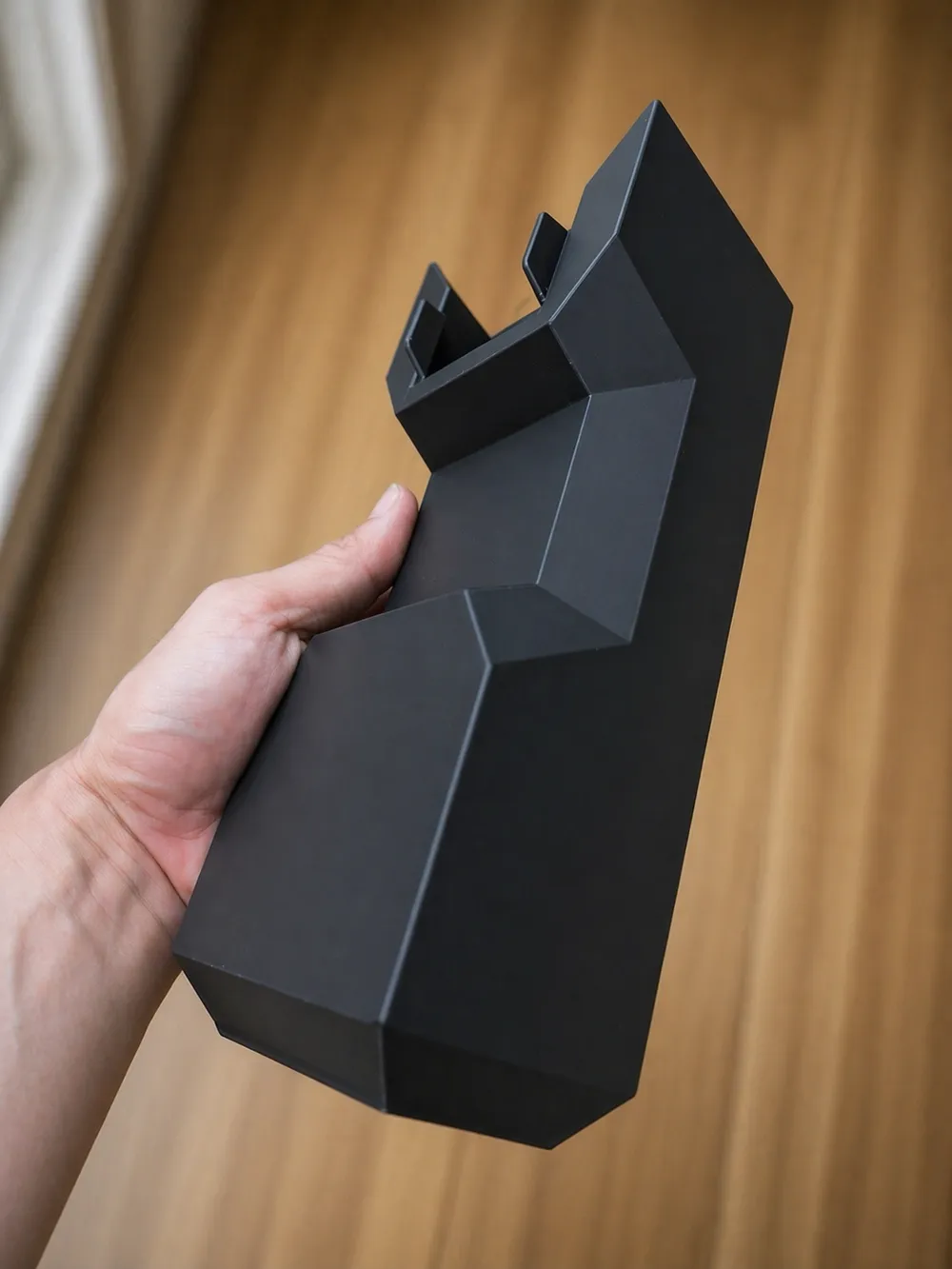

This is a purge (poop💩) bin designed specifically for the H2 series printers.

The goal of this design is simple:

Large capacity to reduce frequent emptying during long prints.

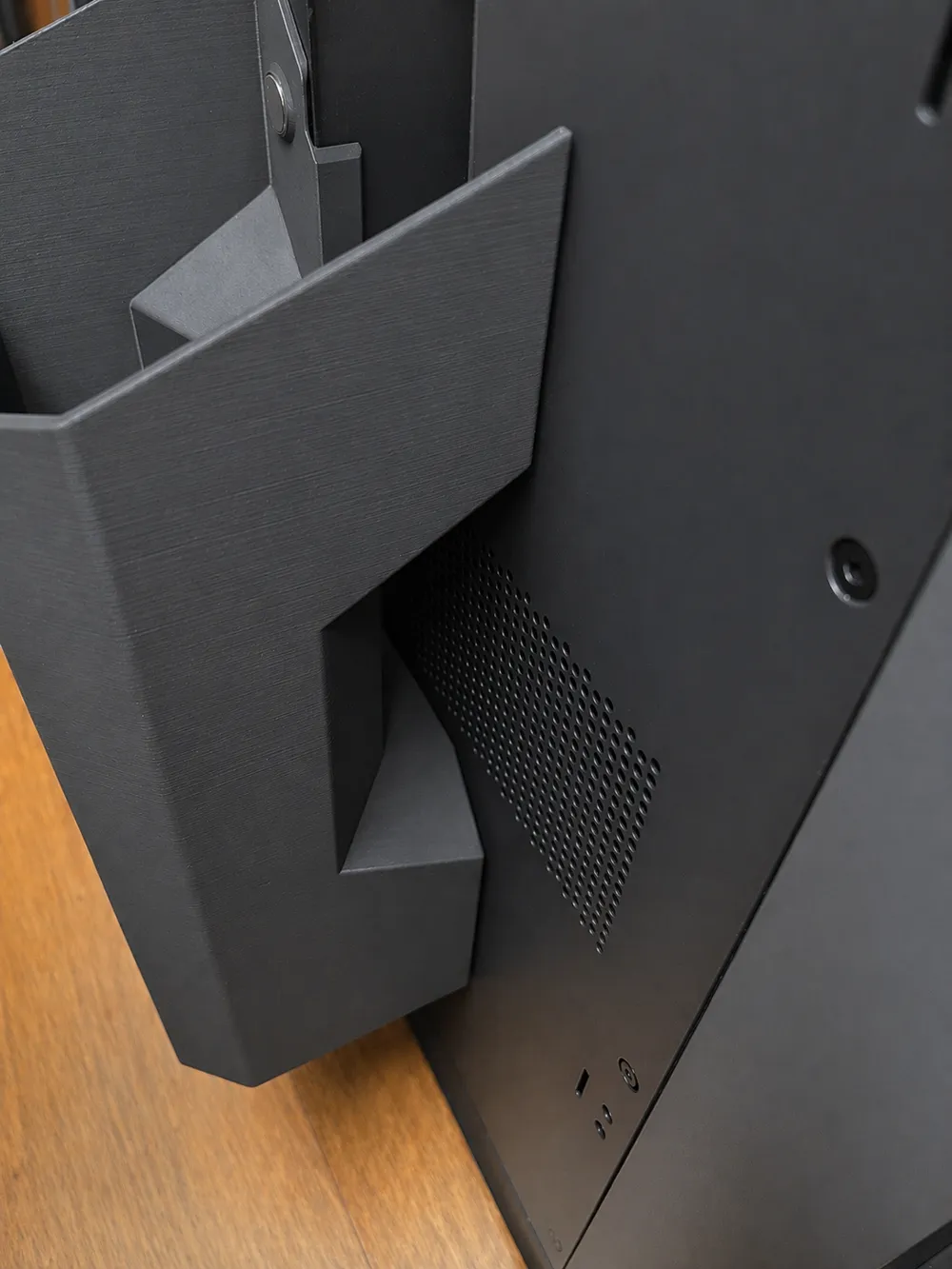

Vent-friendly geometry that avoids blocking the rear panel airflow.
Easy attachment for quick install and removal

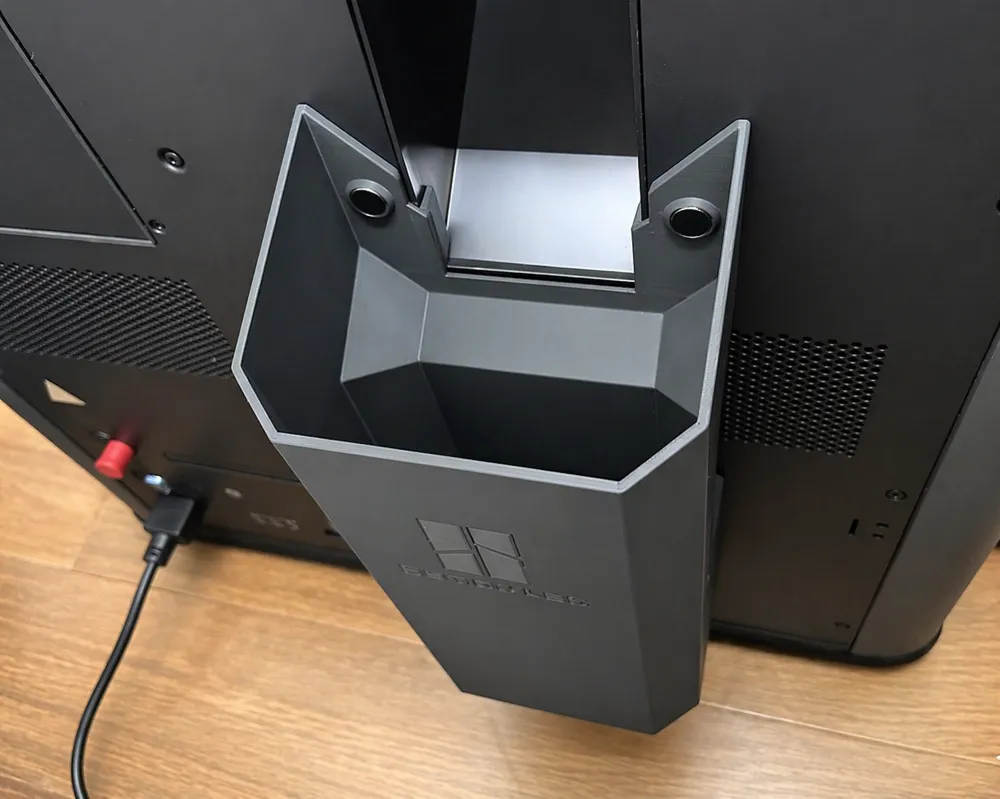

The shape is optimized to sit close to the machine while maintaining proper clearance for the rear vents.

Due to limited filament at the time, I actually mixed ASA (black) with off-brand ABS (gray)

— and it turned out pretty cool 😄

I’d recommend using either ASA or ABS, as they offer better heat resistance compared to PLA or PETG.

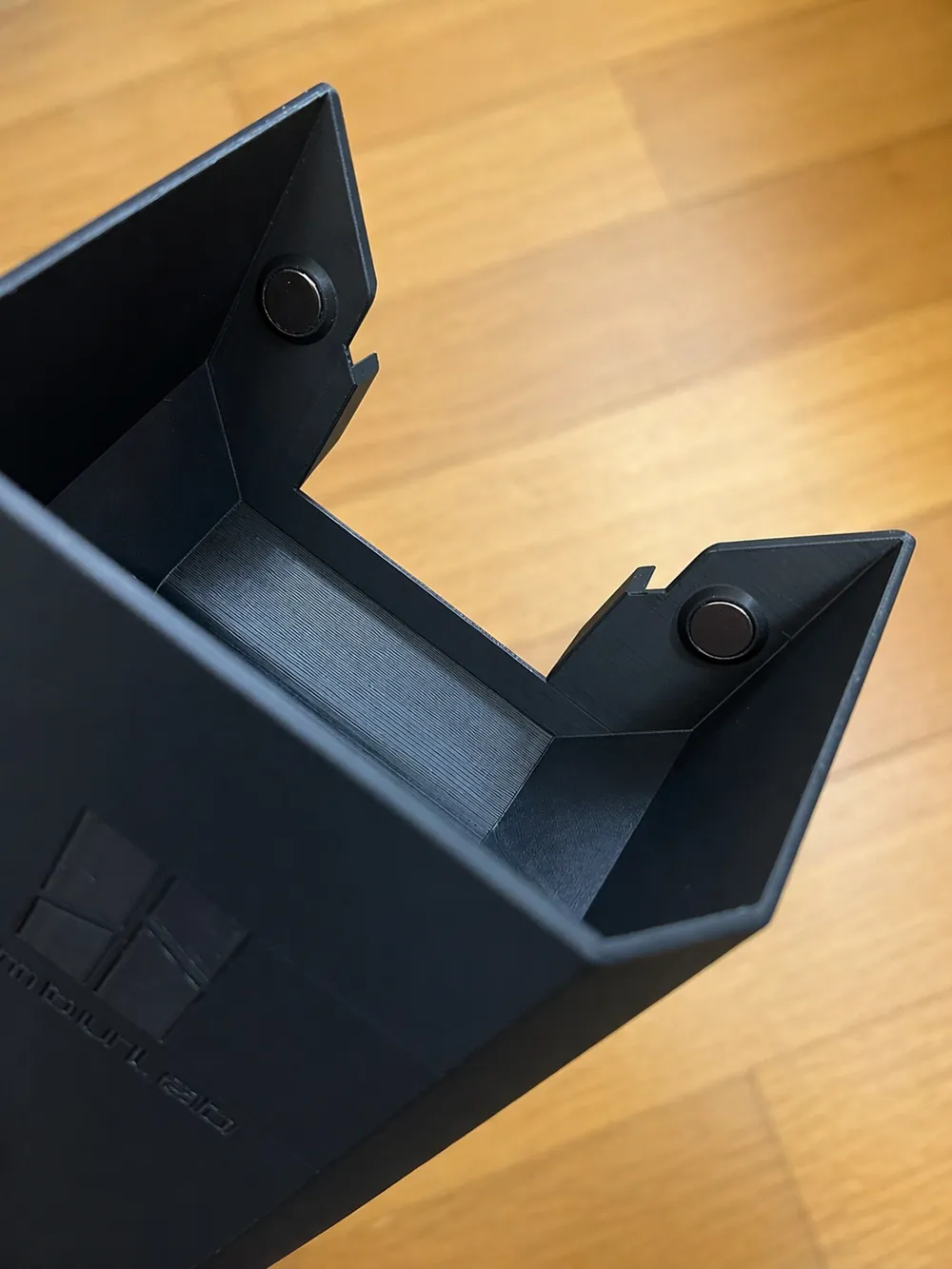

Mounting:

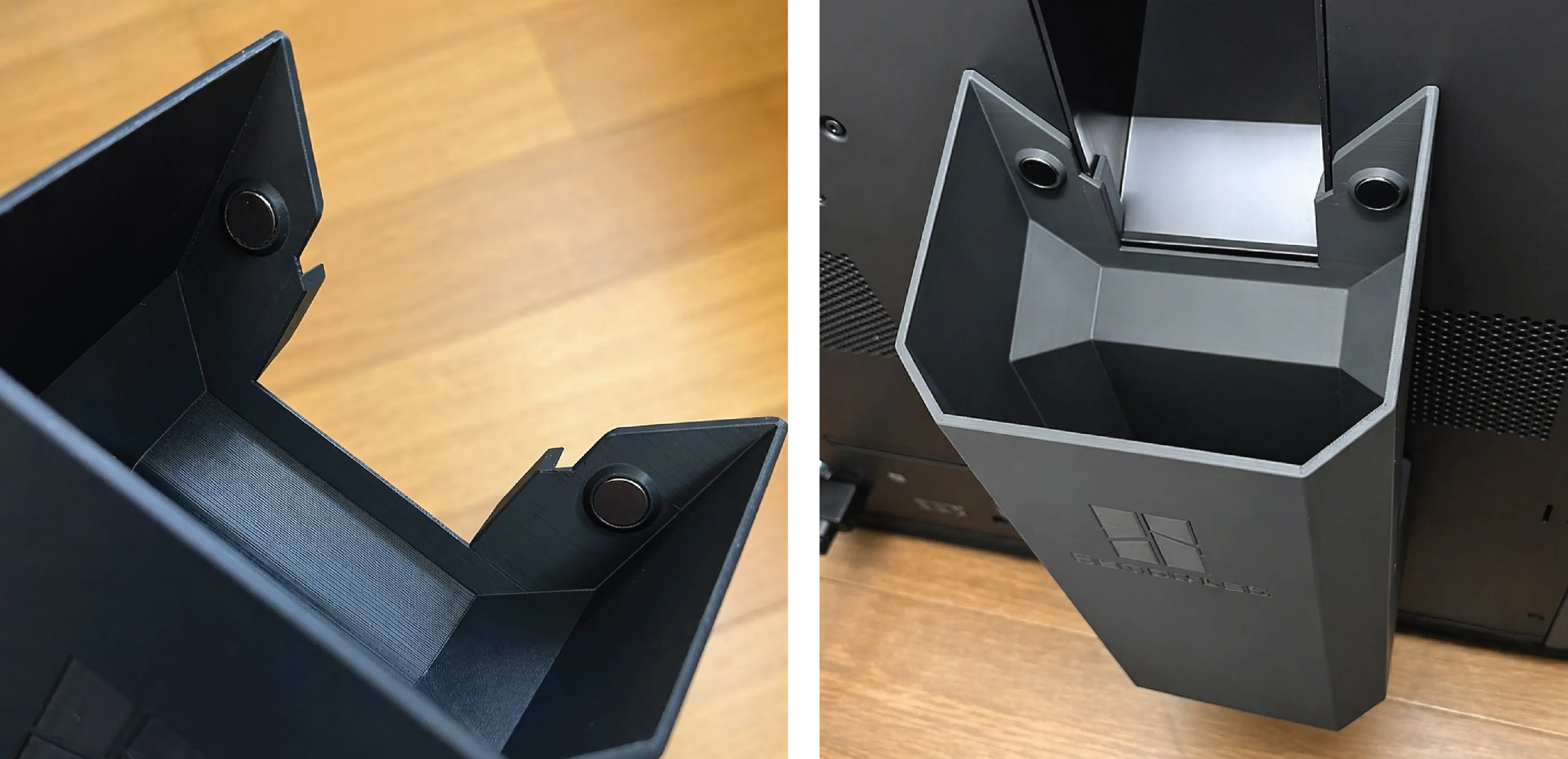

Uses 10×3mm magnets for a secure, tool-free setup
Magnet slots are built inside the wall
→ prevents magnets from falling out (even with weak glue)
→ keeps the back surface clean and scratch-free

There are 6 magnet slots, so you can adjust the holding strength depending on your magnets.
I only used 2× 10×3mm magnets, and it already holds well. The slots also fit 10×2mm magnets.

An 8×3mm / 8×2mm version is also available for those who don’t have 10mm magnets — just adjust the number of magnets used based on your needs.

Happy printing!
