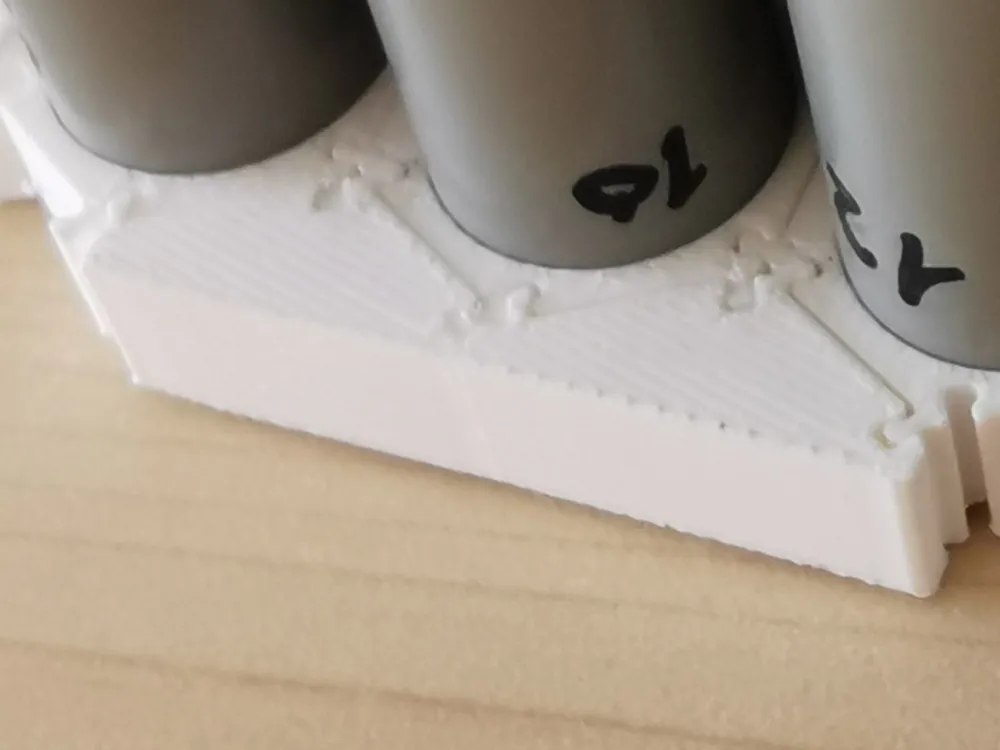

This is the bracket edge for the "ULTIMATE 18650 bracket holder system"
I have found that this bracket system by @Toxvaerd is extremely useful, however I was missing a way to finish the assembly at the edges.
This is why I created these edges in FreeCAD from the provided bracket.stl file provided.
The thickness between the bracket side and the edge side is roughtly 2 mm.
Three variants are included
- A single edge
- A double edge
- A triple edge
I hope someone finds this useful :)
