Resistance Test Box
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 25% infill
Designer
4.4 h
2 plates
Open in Bambu Studio
Boost
18
52
3
0
6
1
Released
Bill of Materials
List other parts
- m3 square nut x 4: https://amzn.to/3QqKv7a
- m3 screw x 4: https://amzn.to/4sPccEh
- wires x 1:
- resistances x 28:
- 3 Position ON Off ON x 28: https://amzn.to/4w0fNlR
- 4MM Banana Plugs Female Jack x 2: https://amzn.to/3ODruhl
Description

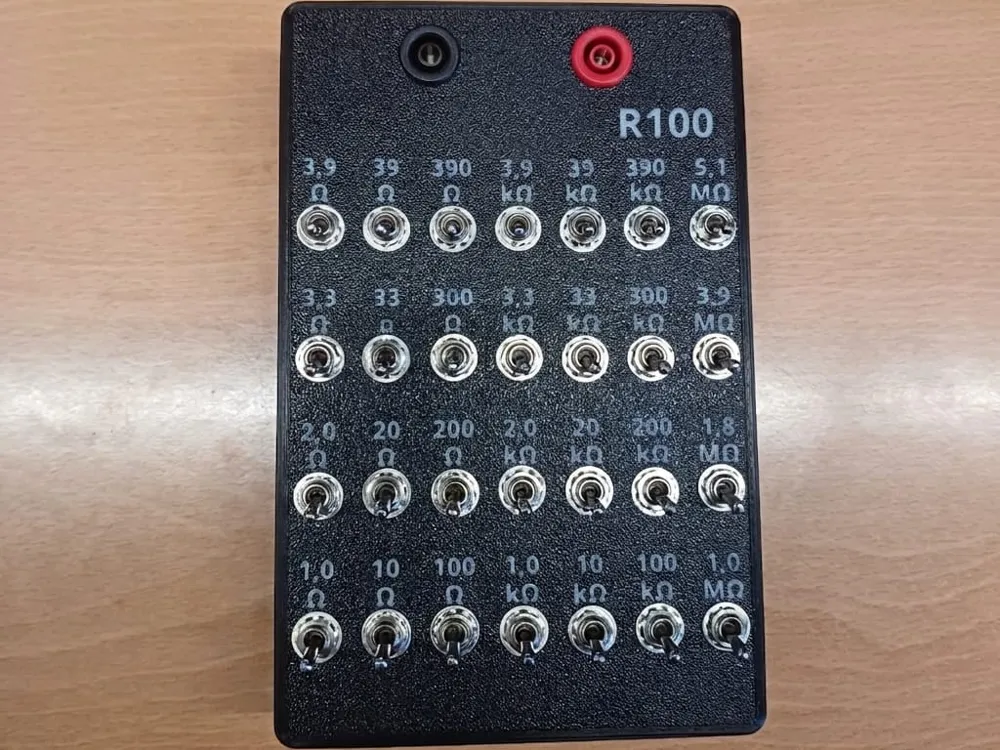

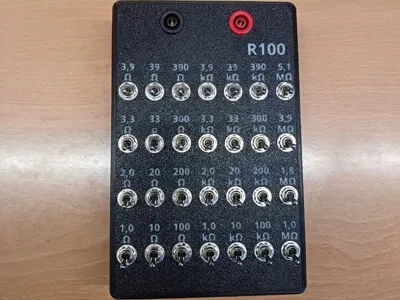

Originally created for adding resistances to a circuit. All connected in series. It makes possible to add an infinite number of resistance combinations. Good for Ground fault detection test. Use Multimeter probes.
