X2D, P2S, X1, P1 Universal PTFE Tube Restraint, Clip, Limiter, Anti-Dislodgement, Anti-Wear
Print Profile(1)
Description
Boost Me (for free)

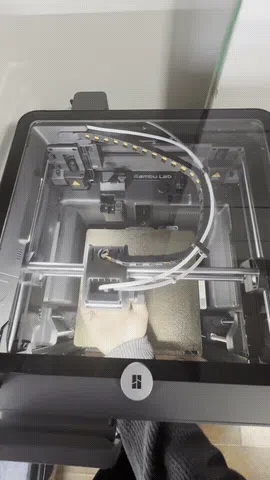

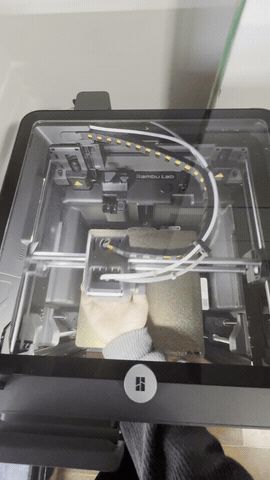

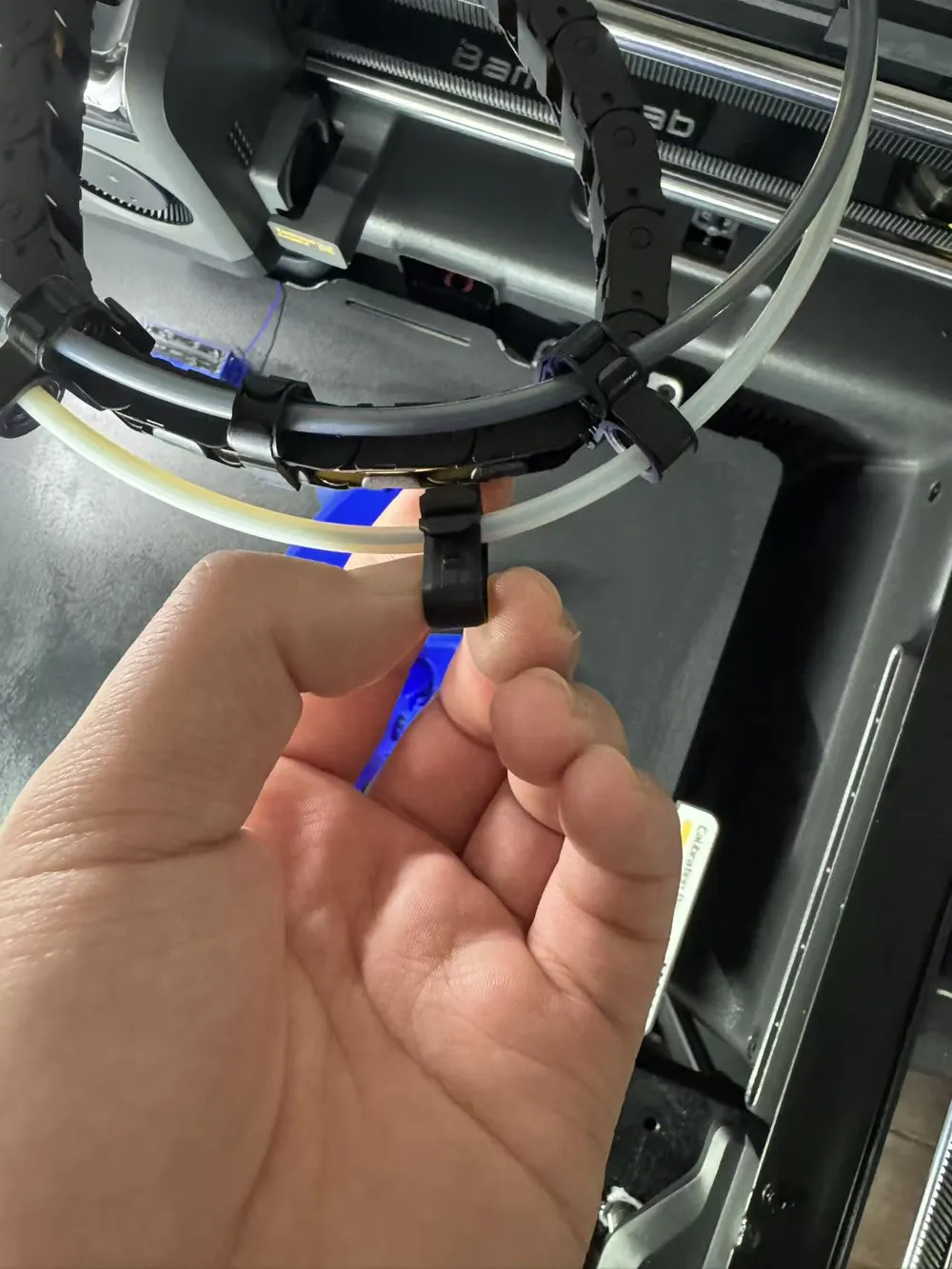

The X2D auxiliary extruder's PTFE tube has high tension, often pulling the tube out of the clip. This small clip can prevent the tube from coming loose. It's easy to print and simple to install: insert it through the cable chain gap and slide it into the middle slot to secure it, effectively preventing the tube from detaching from the clip.
Other printer models with the same cable chain can also use this clip.

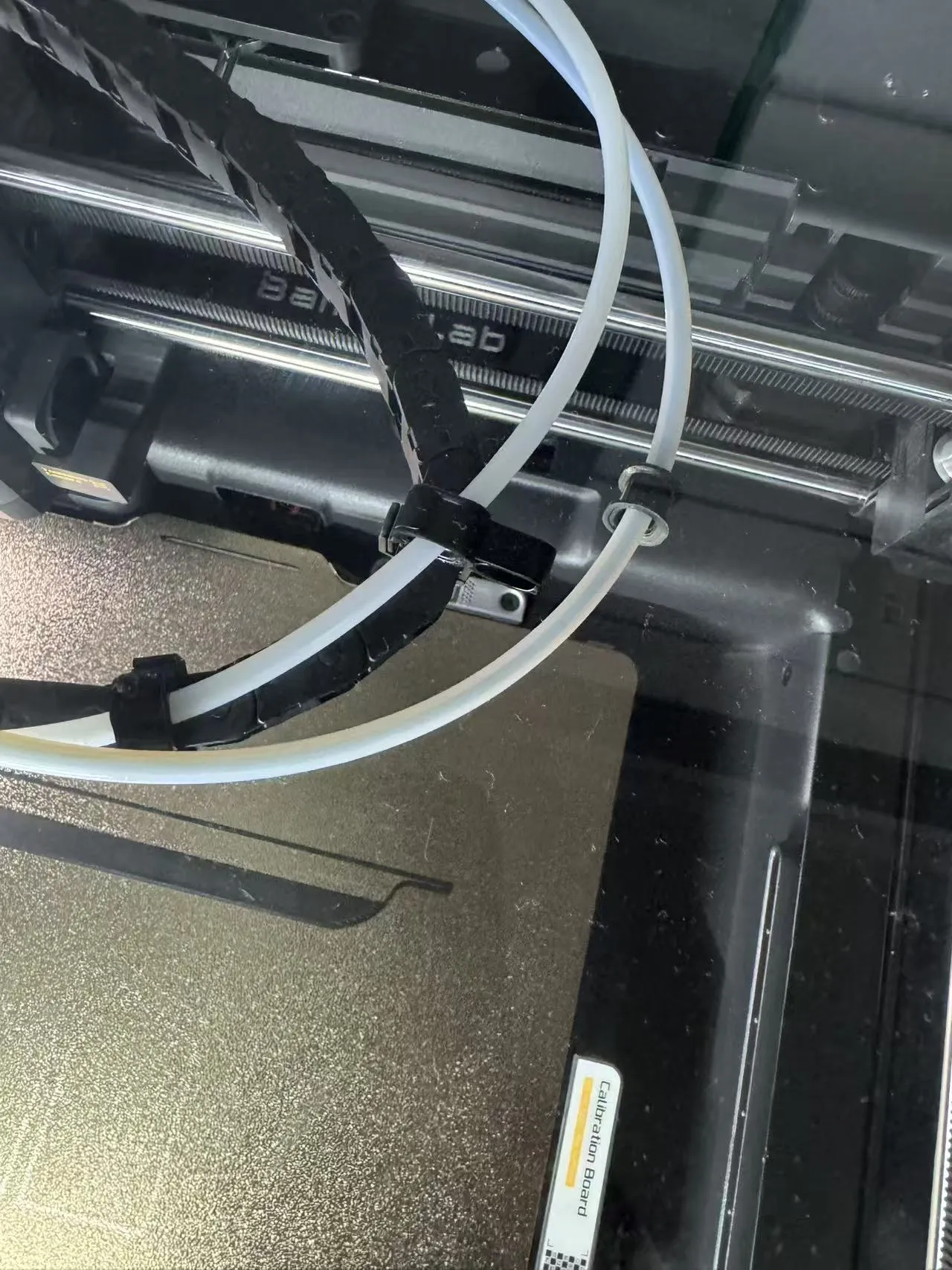

For X2D, only one clip needs to be printed. Install it in the 14th section (counting from the tool head side) of the cable chain. Removing the original limiter can optimize the PTFE tube and cable chain path, preventing issues such as tube snagging or jamming.

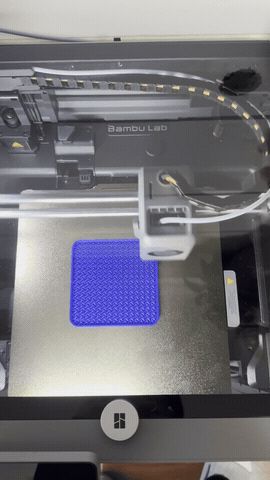

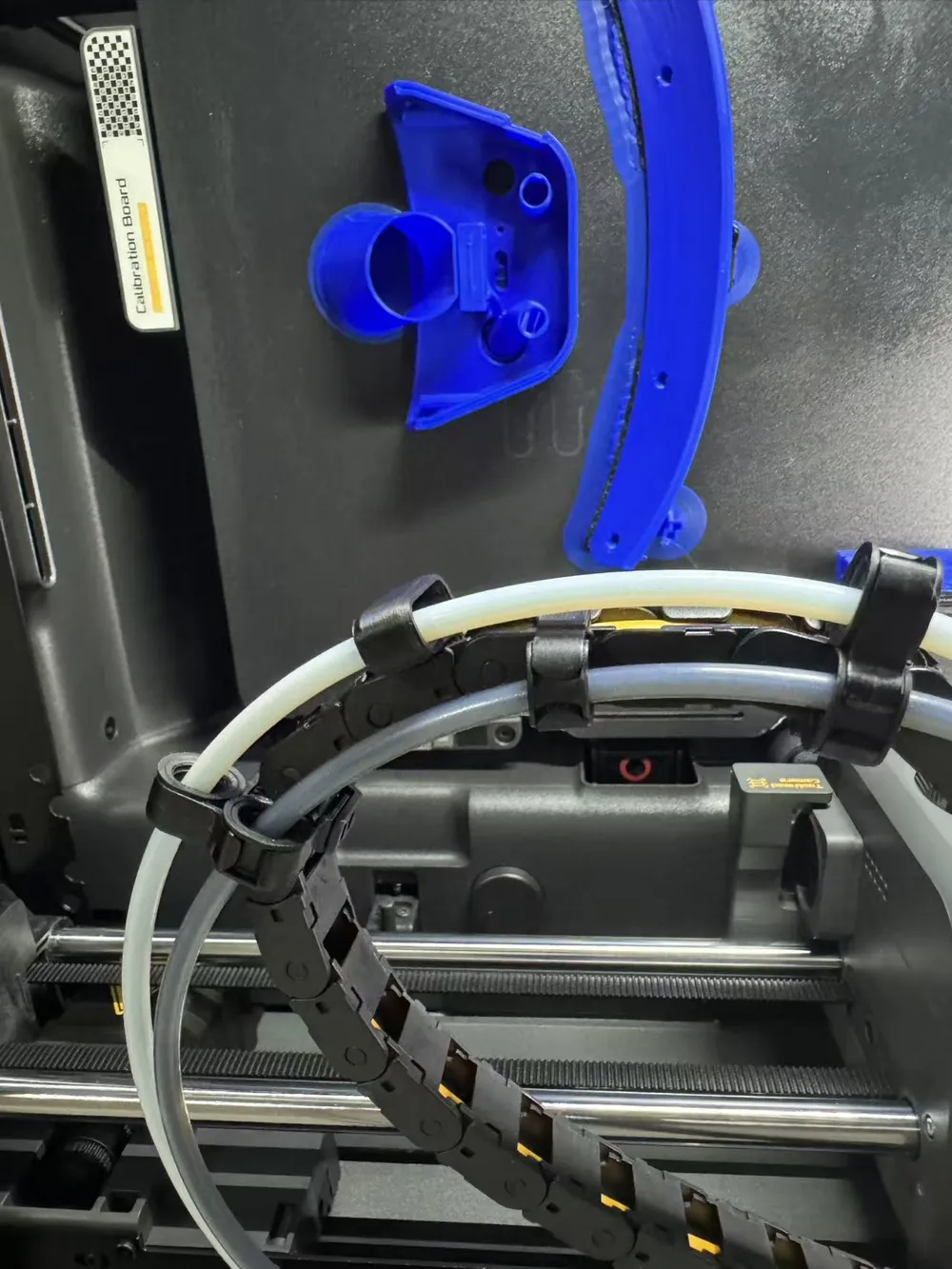

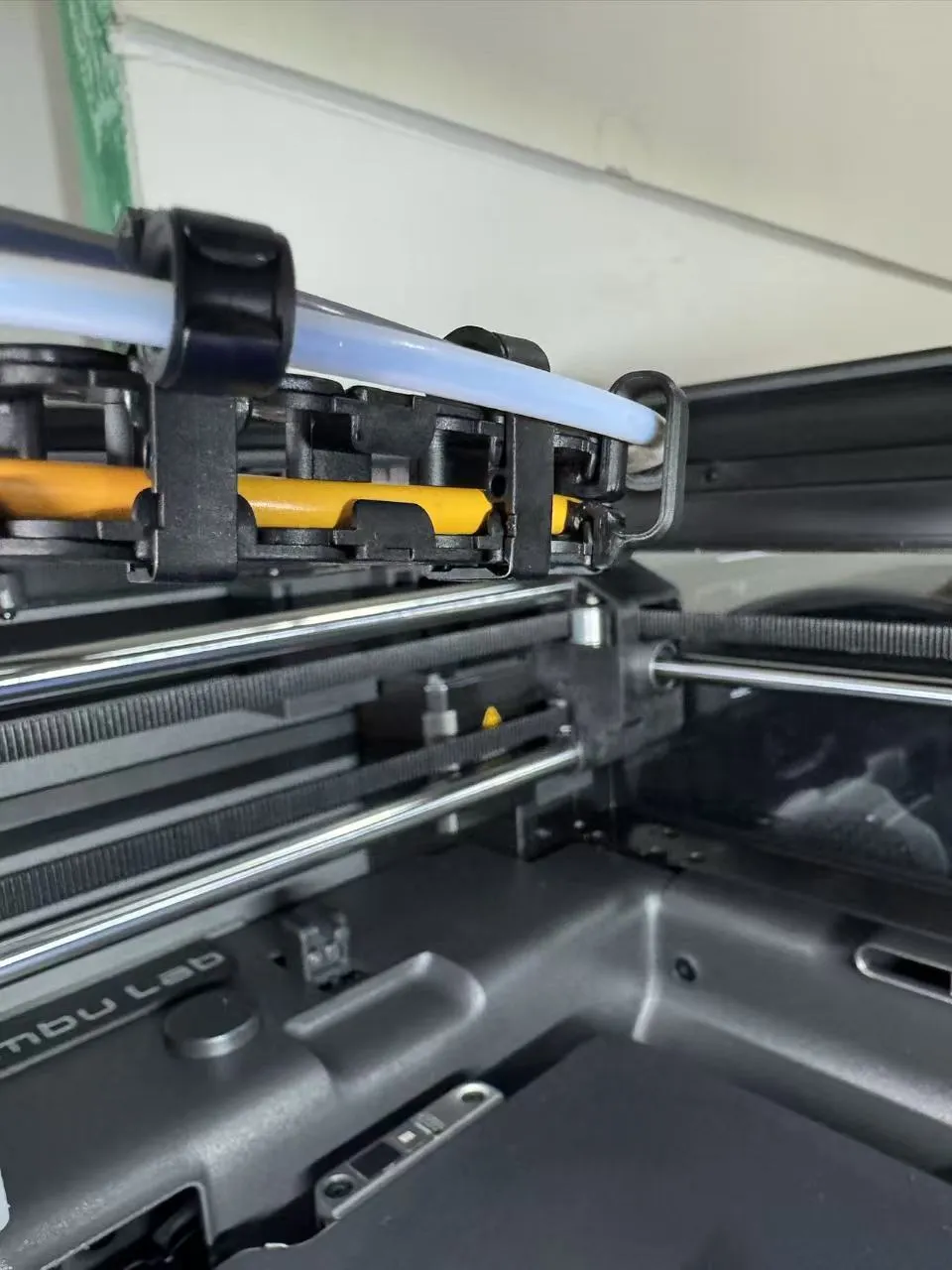

For P2S and similar models, two clips need to be printed. Remove the original clips and install the limiters in the 7th and 14th sections of the cable chain. After moving the tool head to its furthest position and trimming the PTFE tube appropriately, this will optimize the PTFE tube path and prevent it from rubbing against the glass.
