Pocket Hole Jig 2x4 – Twin Set (89mm & 38mm)

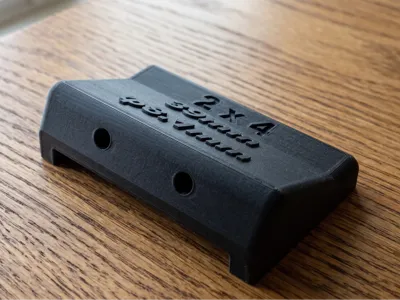

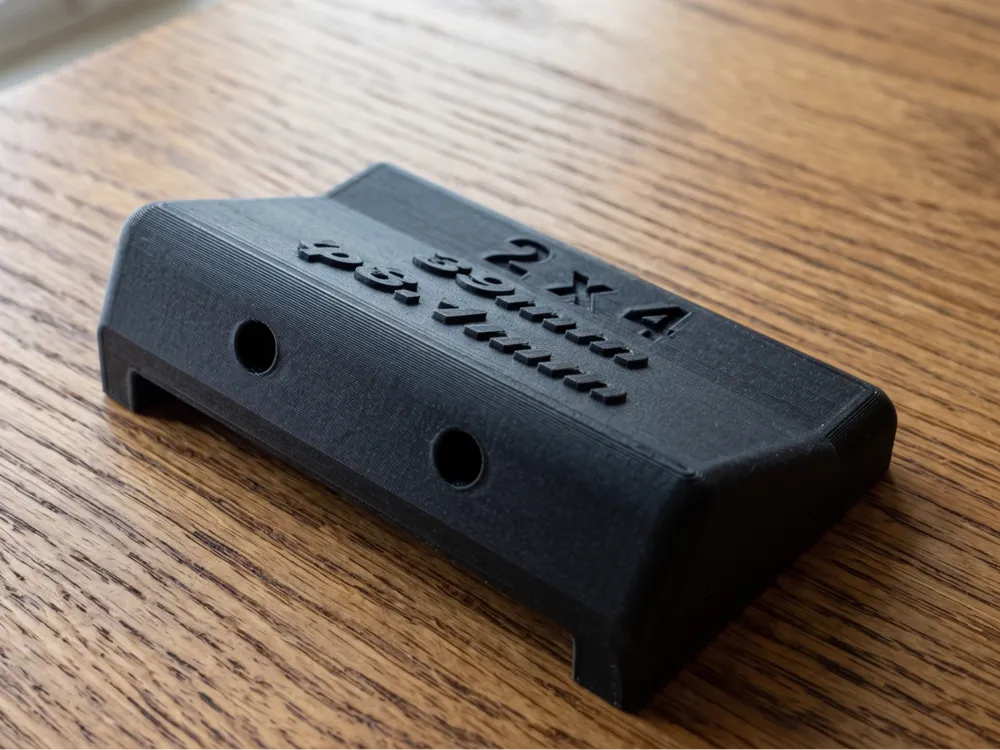

A 3D printed pocket hole jig set designed specifically for 2x4 lumber. Two variations are included to cover both the wide face (89mm) and the narrow face (38mm) of standard 2x4 lumber, giving you accurate, consistent angled pilot holes for wood screw joints every time.
Common Specifications
- Guide hole diameter: φ8.1mm (optimized for standard 8mm drill bits)
- 0.1mm clearance fit for smooth, wobble-free drill insertion
- Hole depth: 30mm
- Angle: 25°
Print Settings
- Material: PLA or PETG recommended
- Infill: 40–50%
- No supports required
How to Use
- Place the jig flush against the end of your 2x4 lumber
- Select the correct jig for your target face (89mm or 38mm)
- Insert your 8mm drill bit into the guide hole
- Drill to the full guide depth (30mm)
- Drive your wood screw through the pocket hole to join your lumber
******************************************************
Pocket Hole Jig 2x4 – ツインセット（89mm & 38mm）
2×4材専用の3Dプリント製ポケットホールジグ、2バージョンセットです。2×4材の幅広面（89mm）と厚み面（38mm）それぞれに対応し、木ネジ接合用の斜め下穴を毎回正確に開けることができます。
共通スペック
- ガイド穴径：φ8.1mm（8mmドリルビット専用）
- 0.1mmクリアランス設計でスムーズな挿入感
- 穴深さ：30mm
- 角度：25°
推奨プリント設定
- フィラメント：PLA または PETG 推奨
- インフィル：40〜50%
- サポート：不要
