Description
Content has been automatically translated.

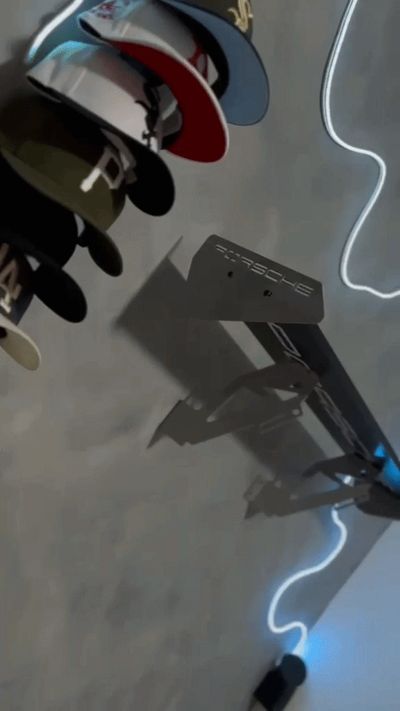

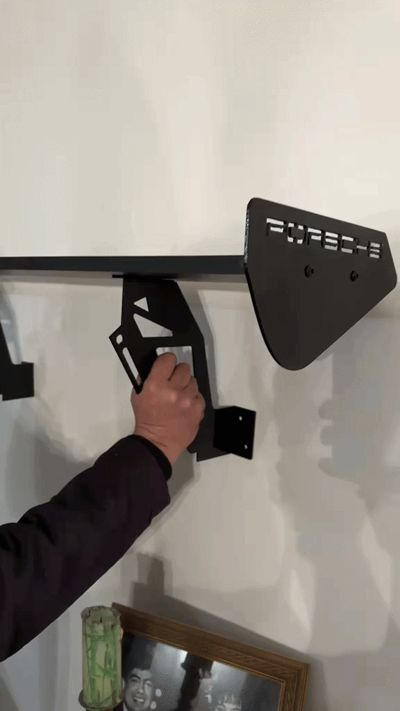

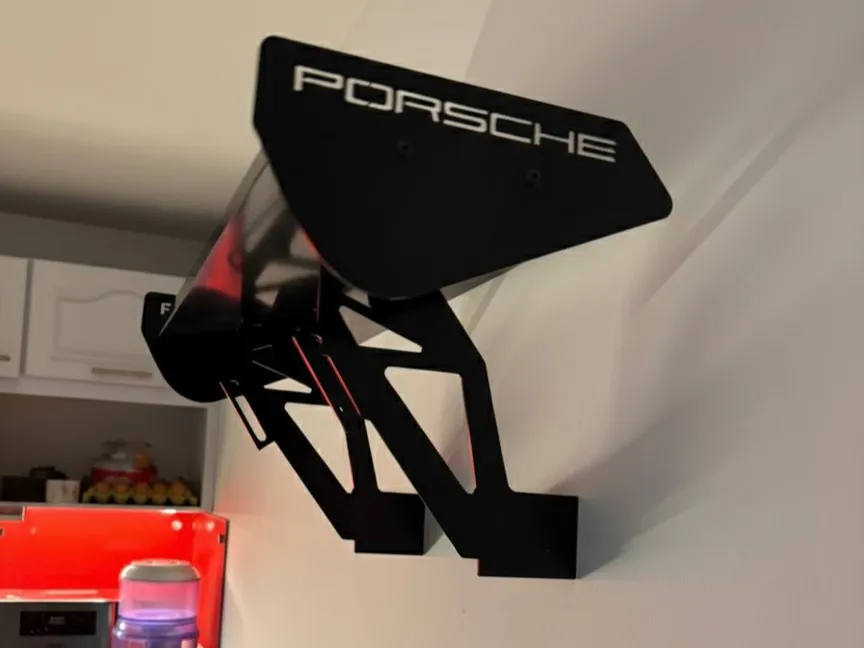

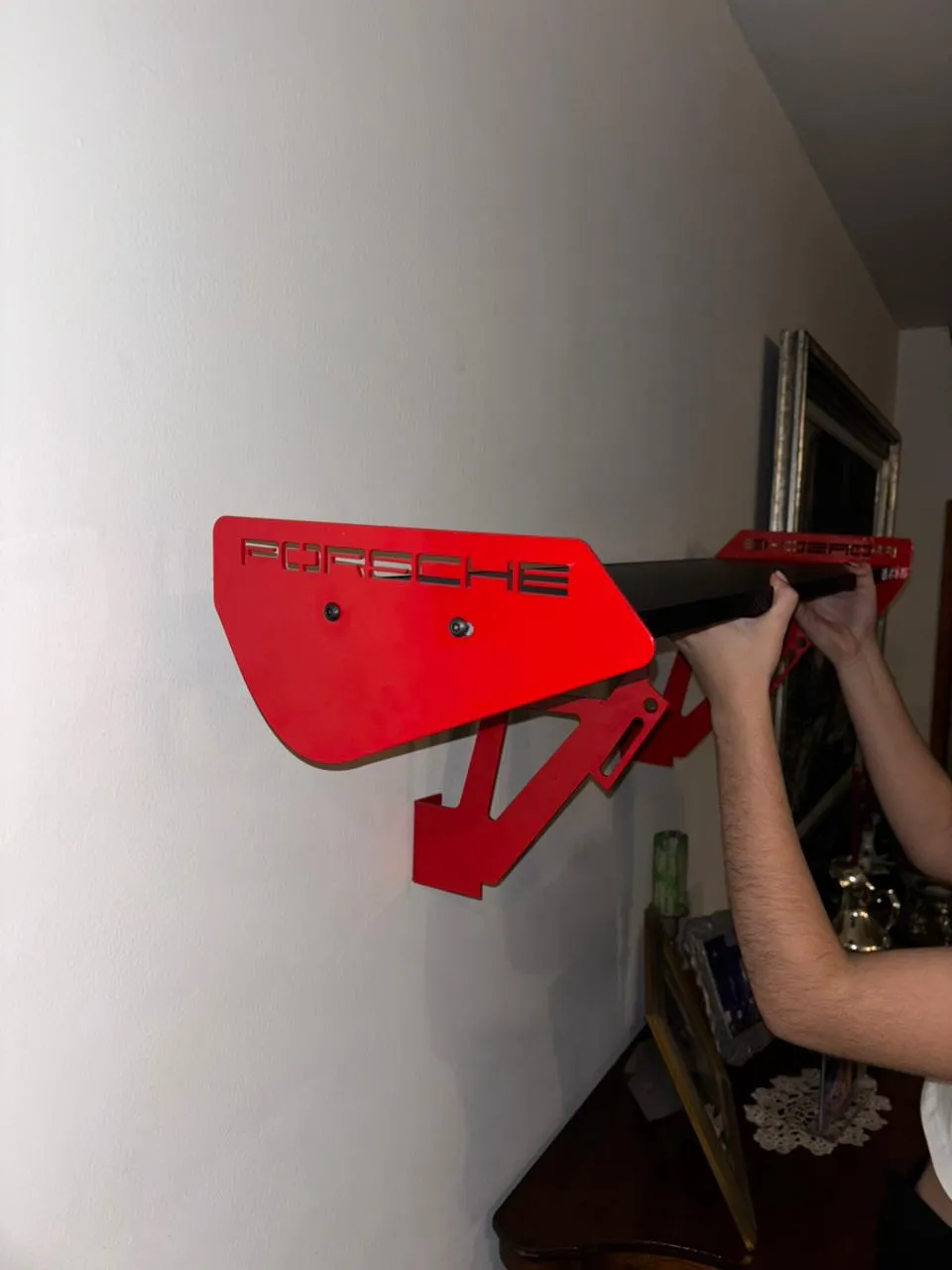

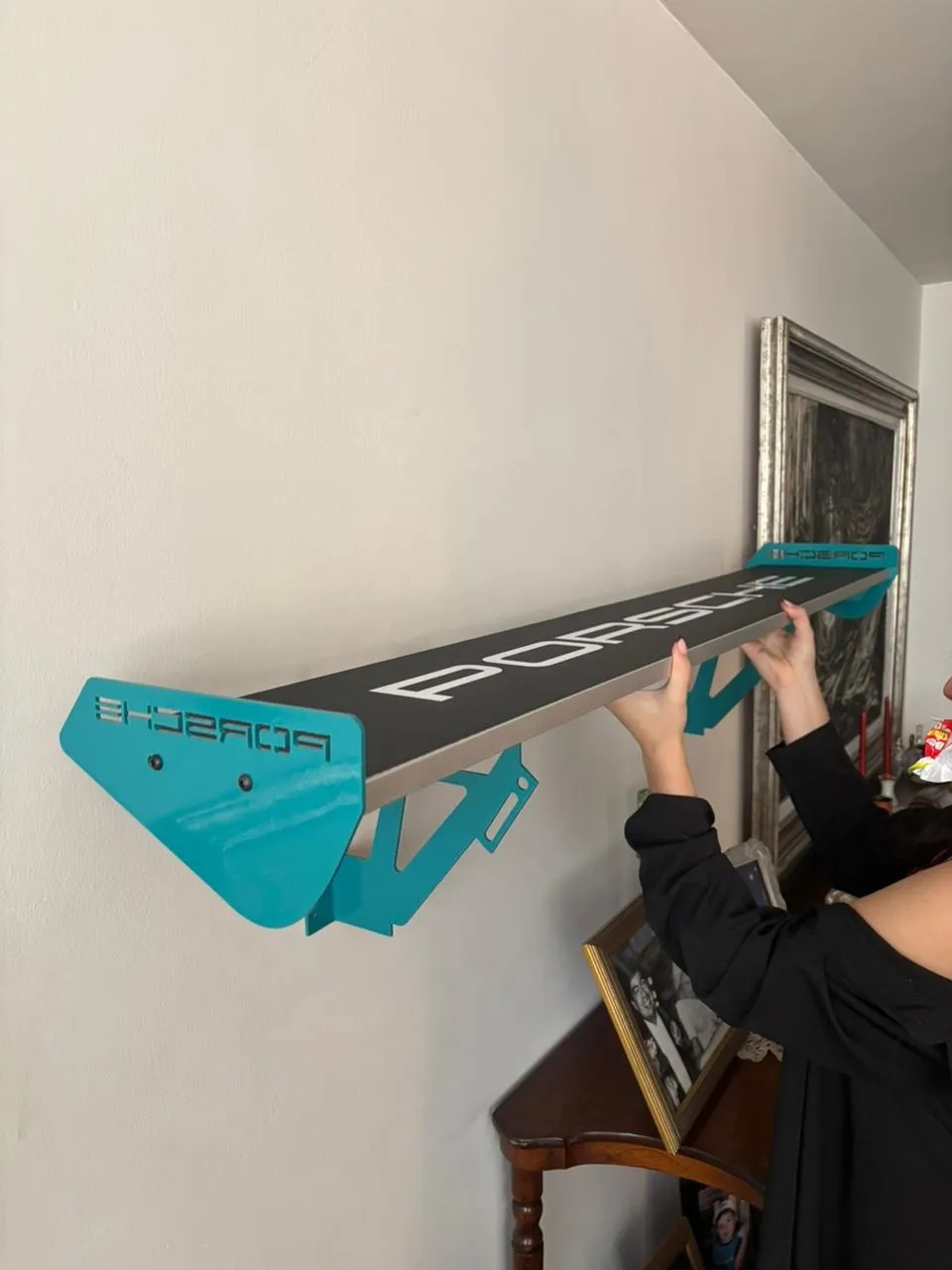

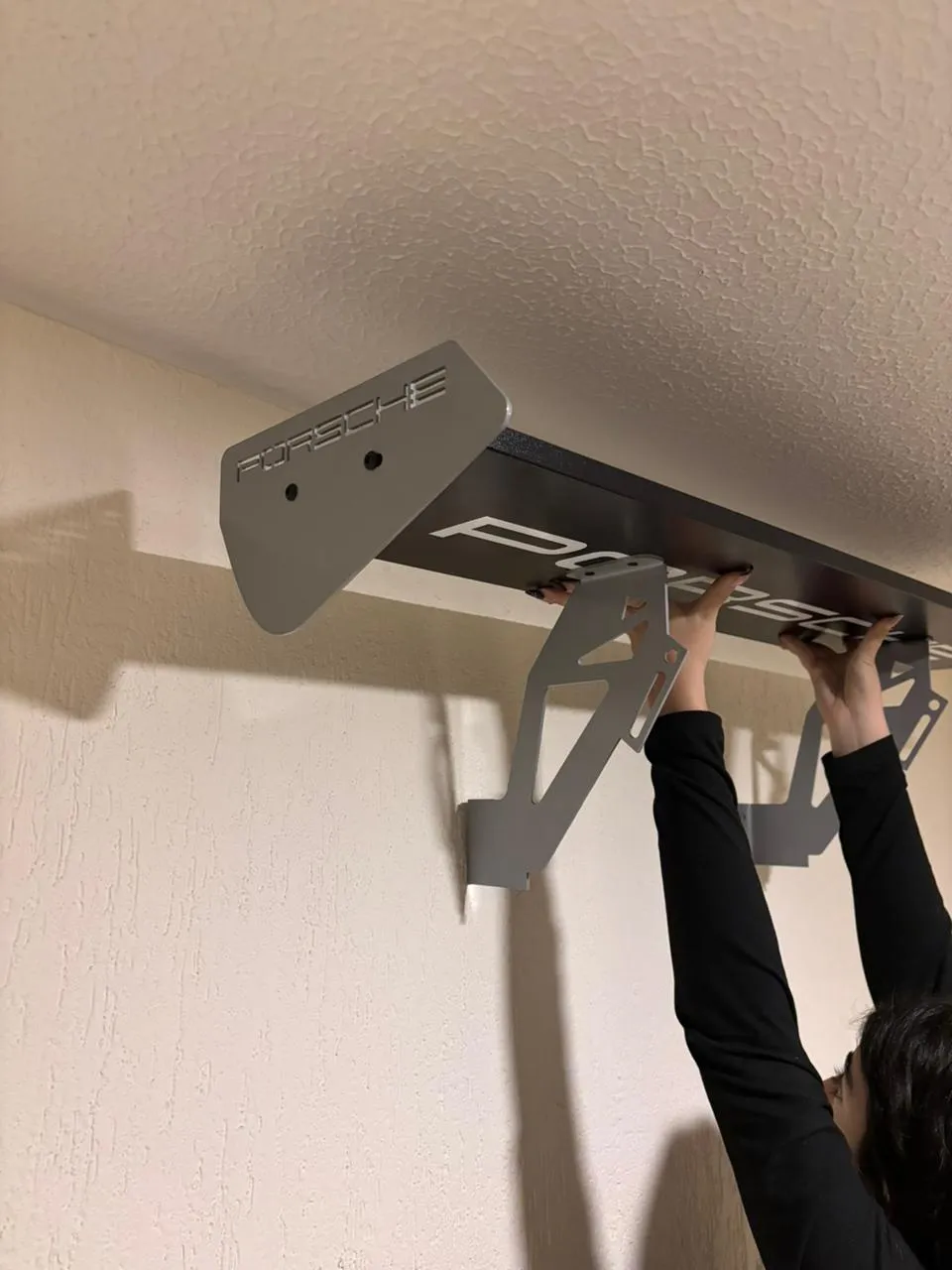

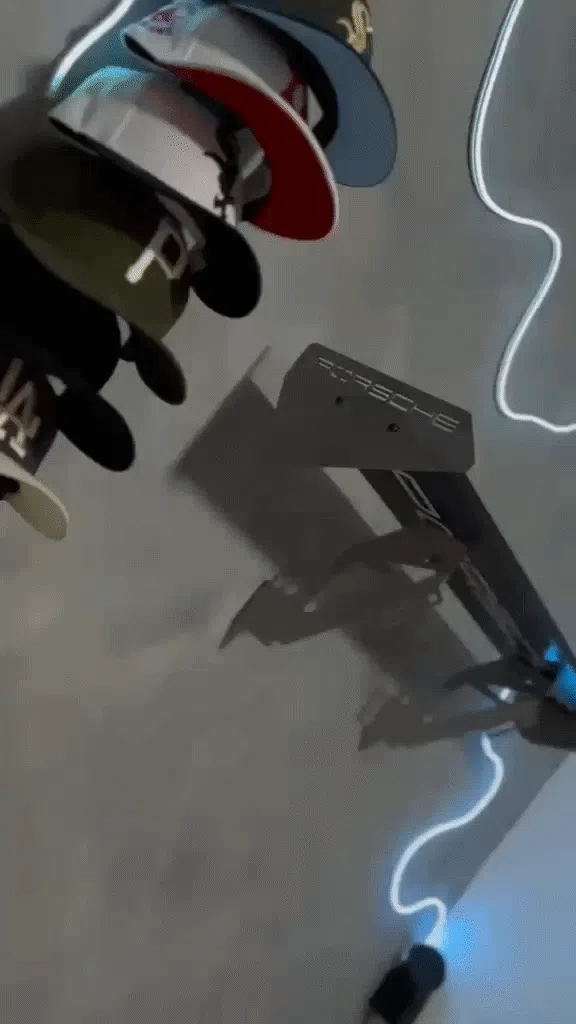

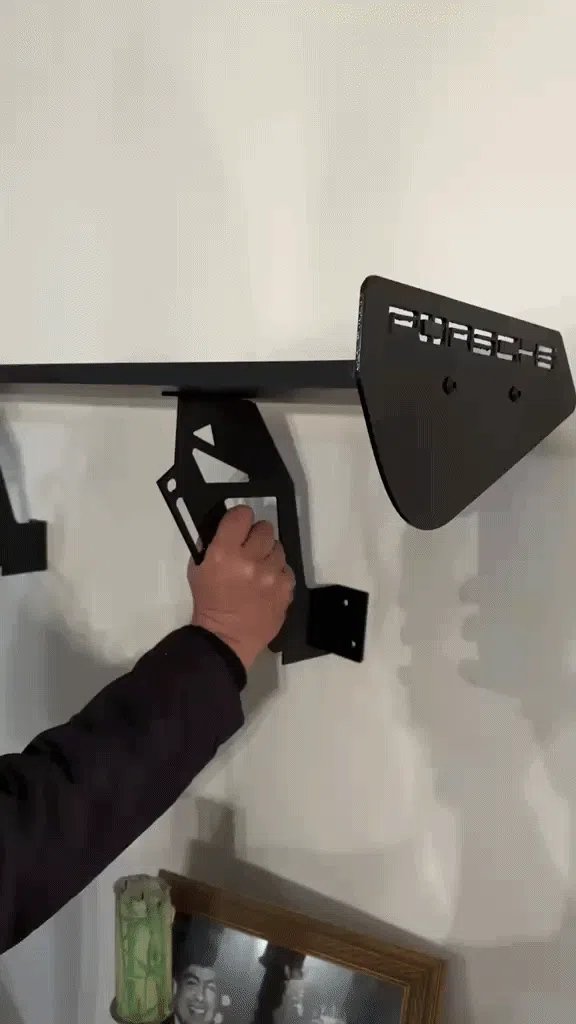

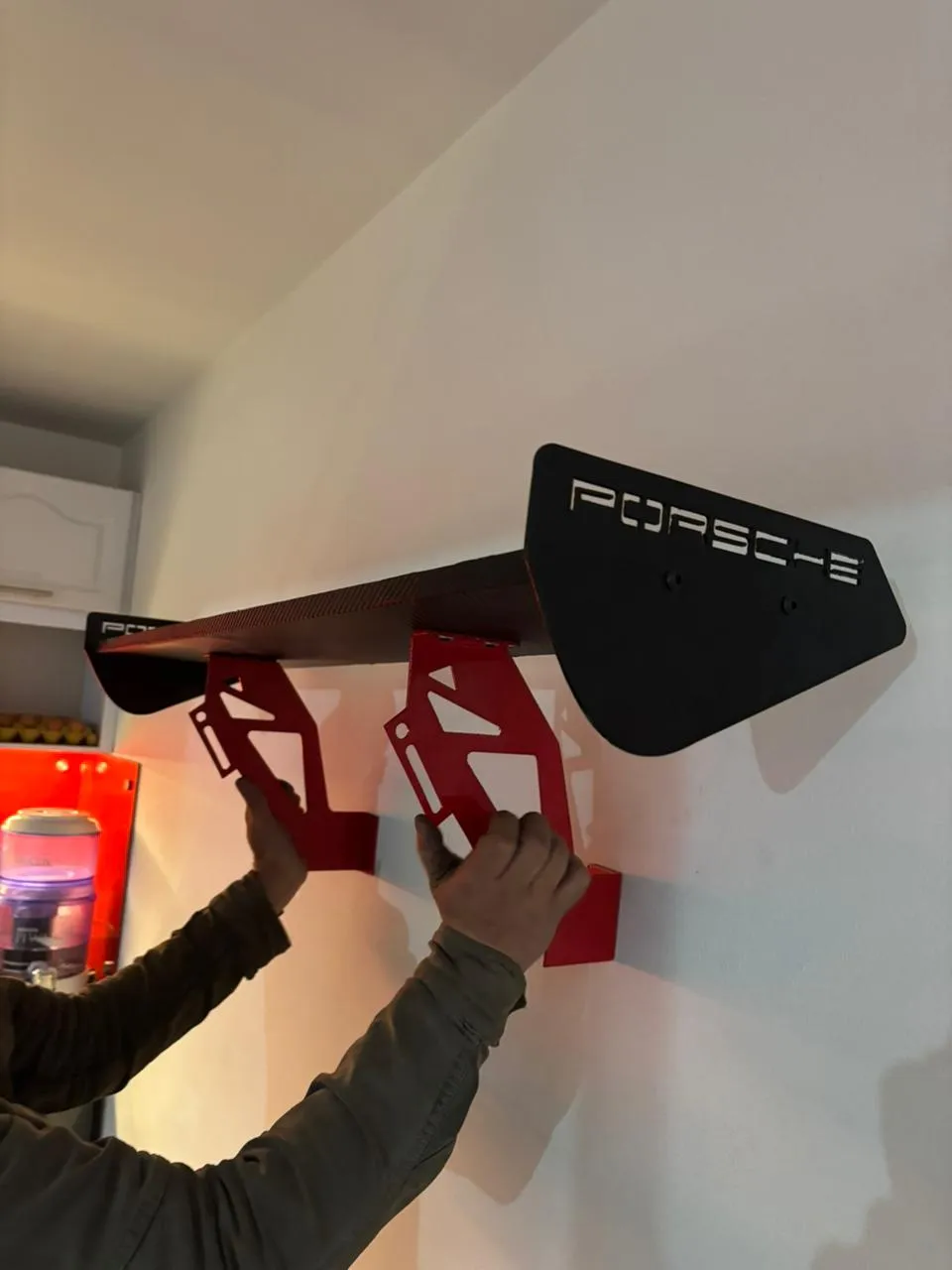

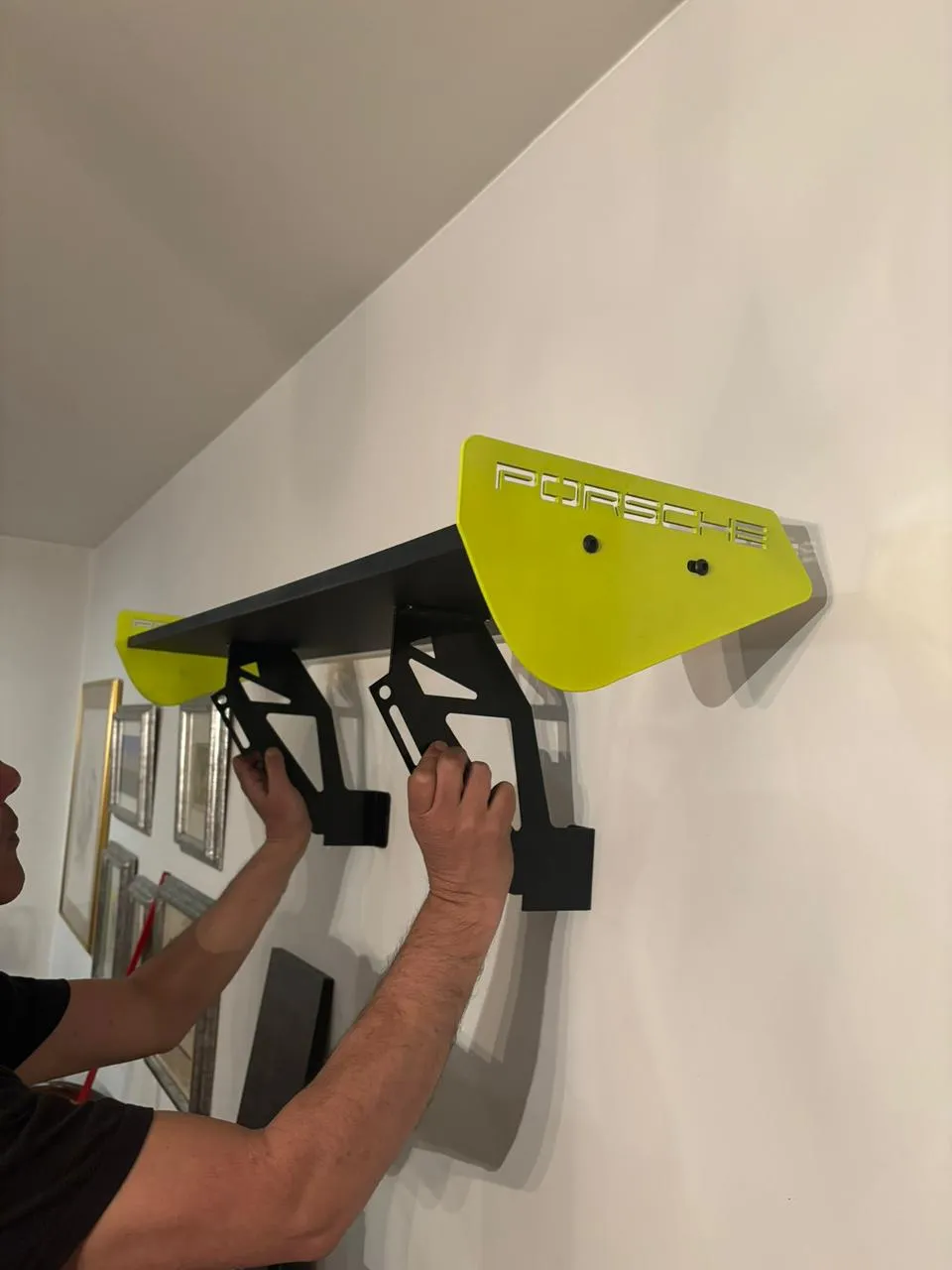

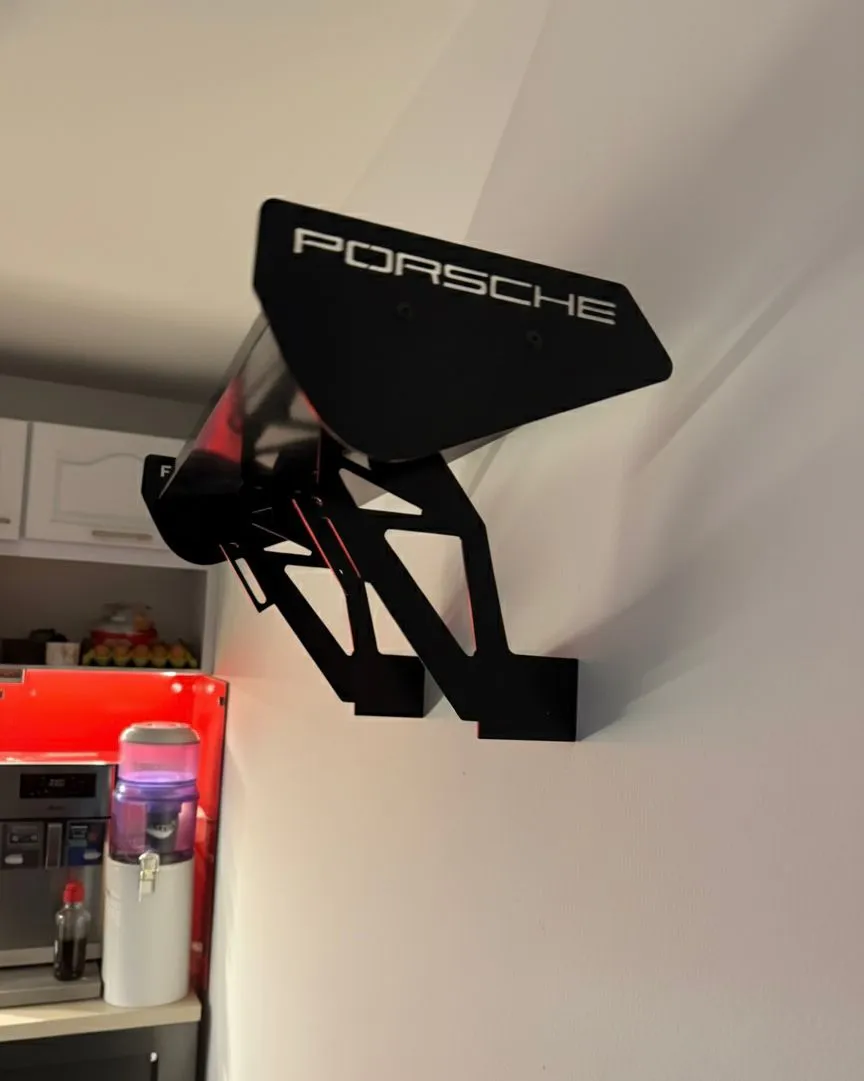

Sides/winglets for a car spoiler-shaped shelf.
To give it a better finish, I painted the pieces with glossy polyurethane paint :)
For the shelf, I used:
- A 15mm thick, 1000x220mm wooden board (melamine).
- The wall-mounted supports are made of 3mm laser-cut and folded aluminum (You can write to me for the cutting and bending plans).
- In some cases, I used plotter-cut vinyl to place on top of the board.
Screws and assembly
- To anchor the sides/winglets to the board, I used 4 M6 wood inserts (I used a 9mm drill bit to make the holes in the sides, but it depends on the size of the insert you purchase).
- 4 M6x20 button head screws.

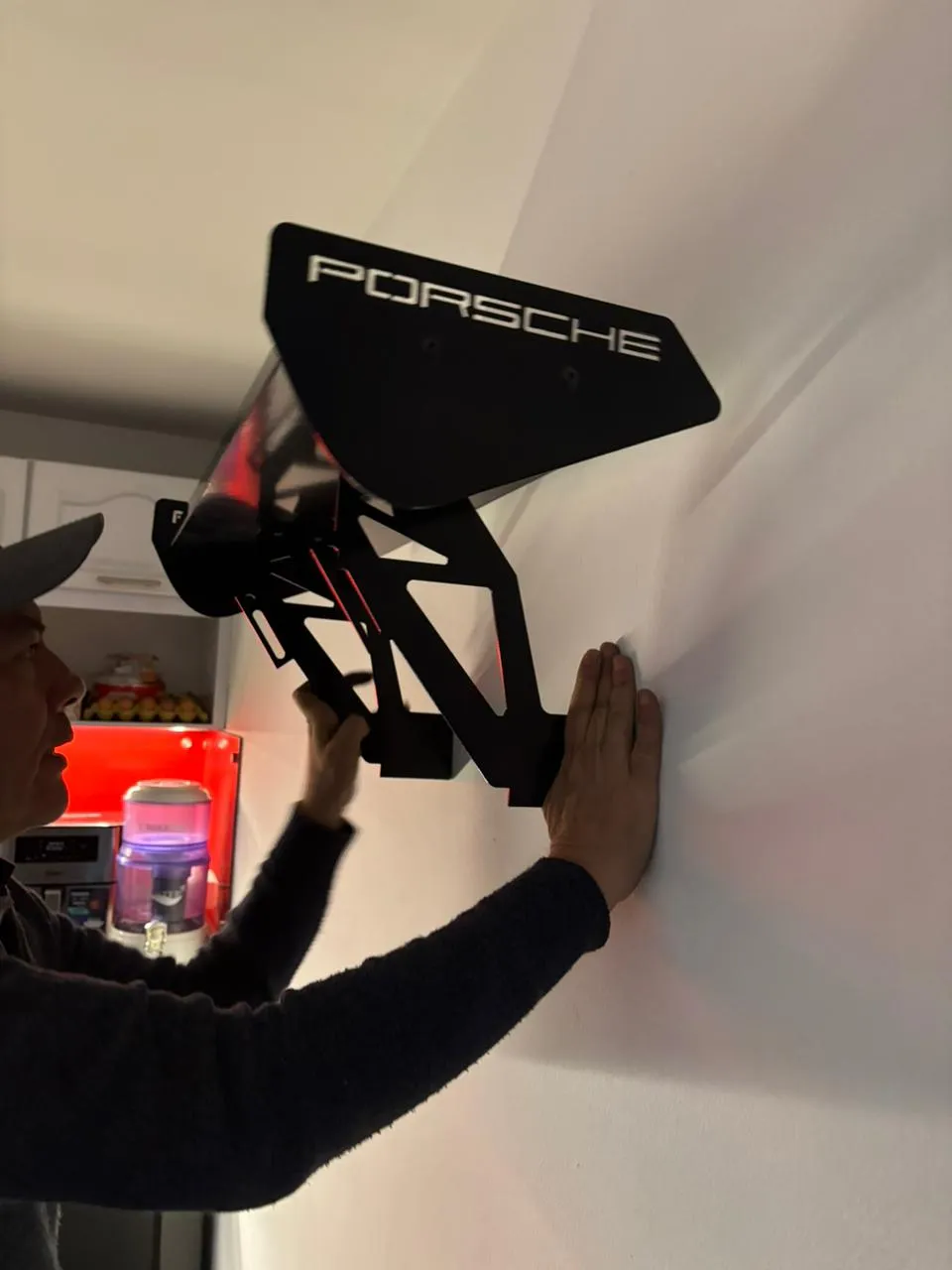

- Wall anchor, 4 N8 X 1¼'' drywall screws.
- Anchoring the supports to the board: 4 N8 x ¾'' drywall screws (Use pliers to remove the tip so it doesn't go through the board).
If you have any questions or are interested in commercializing my product, do not hesitate to write to me!
