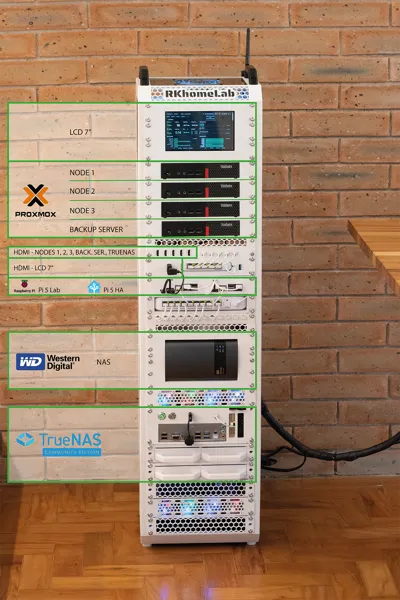

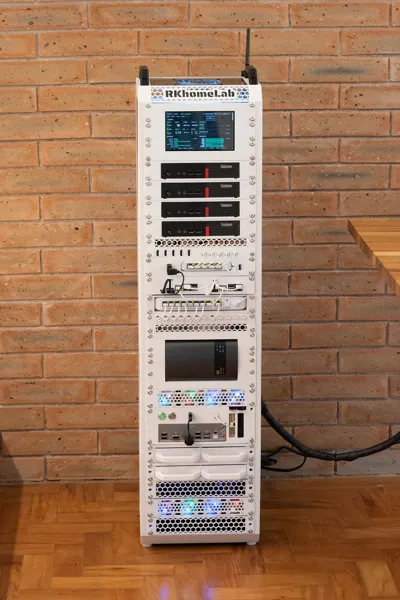

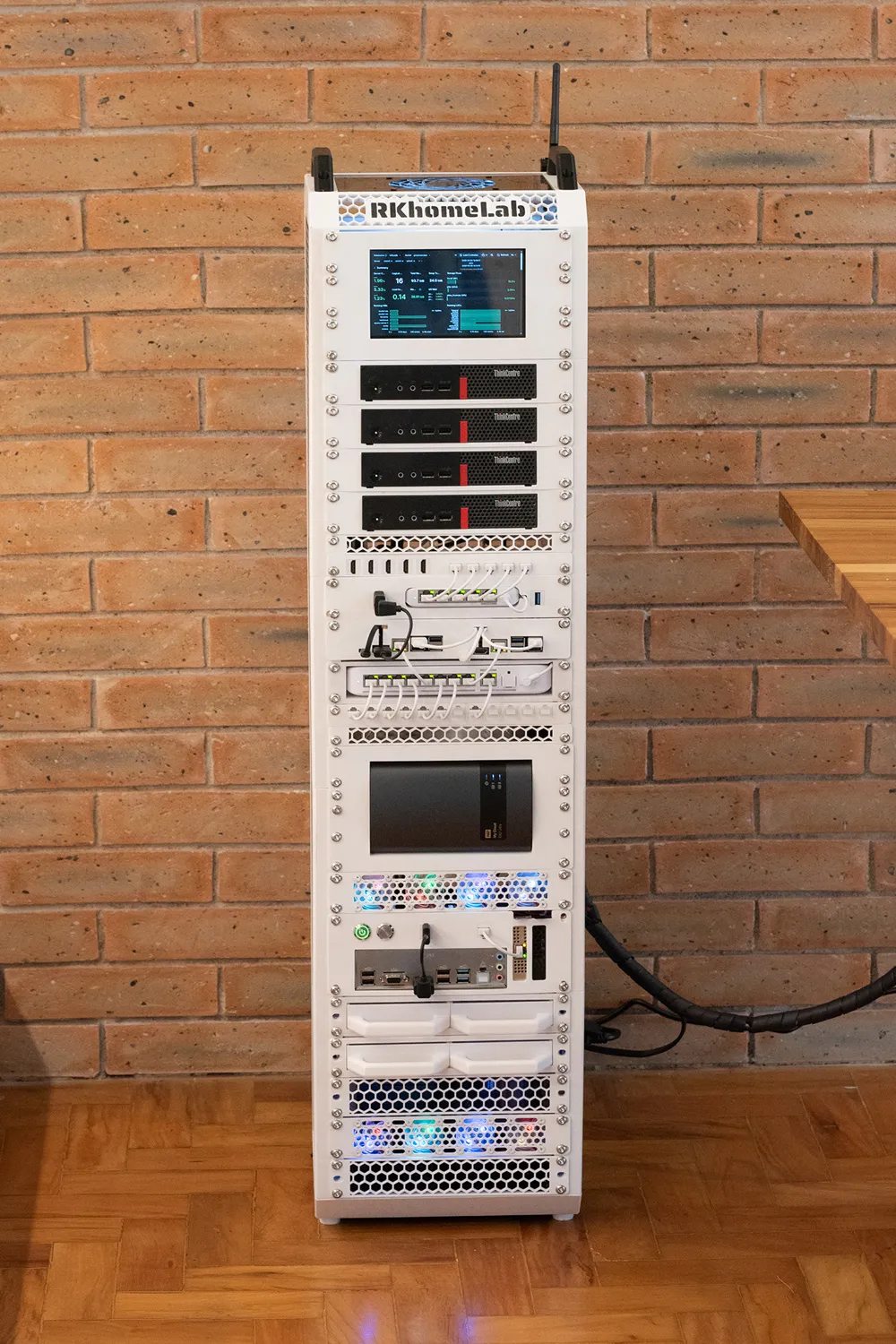

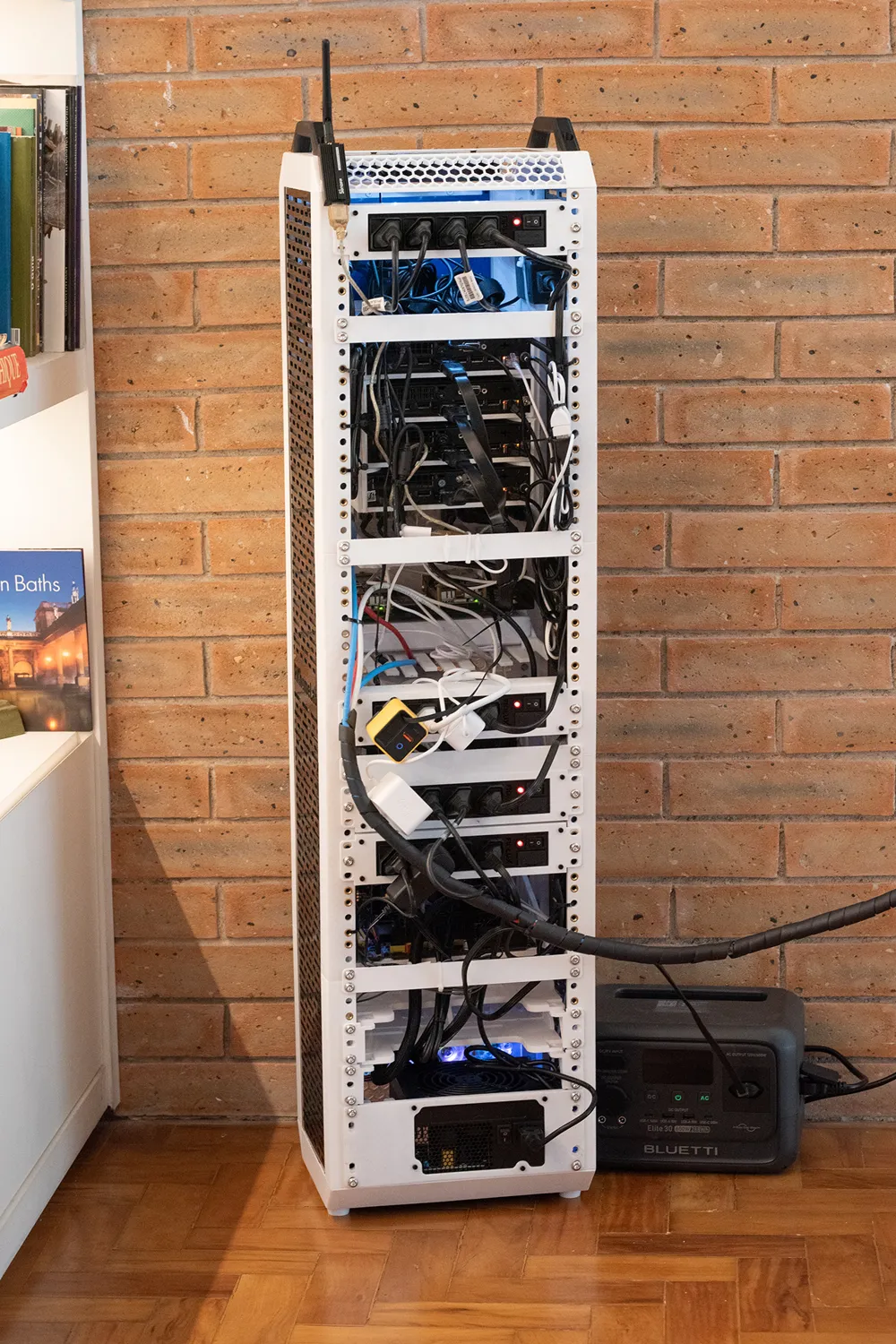

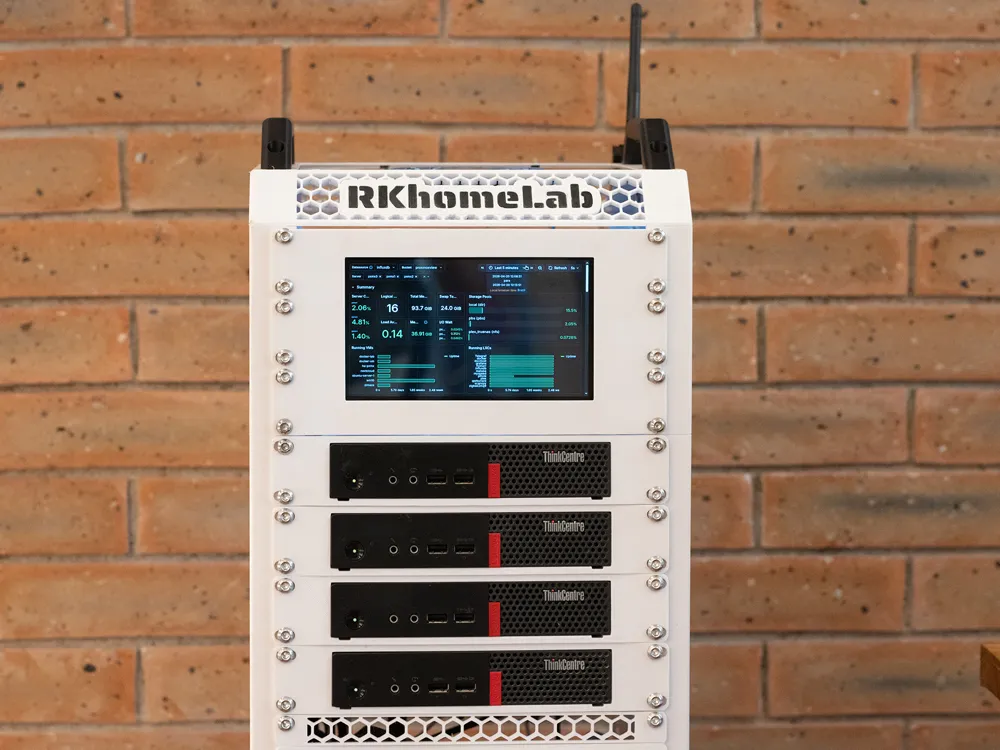

LabRax 23U
I printed the LabRax, following the design by @mklements (https://makerworld.com/pt/models/1294480-lab-rax-10-server-rack-5u#profileId-1325352).

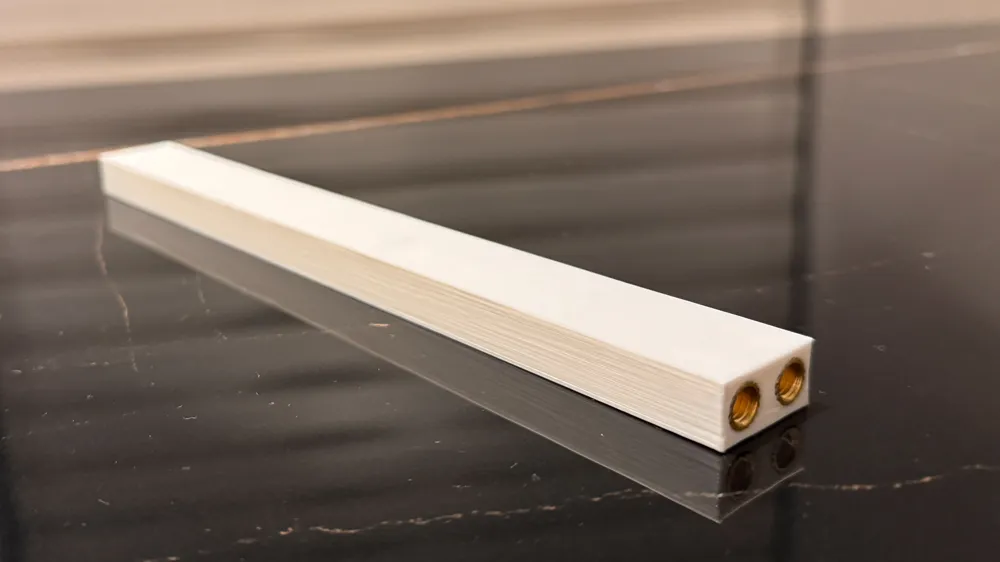

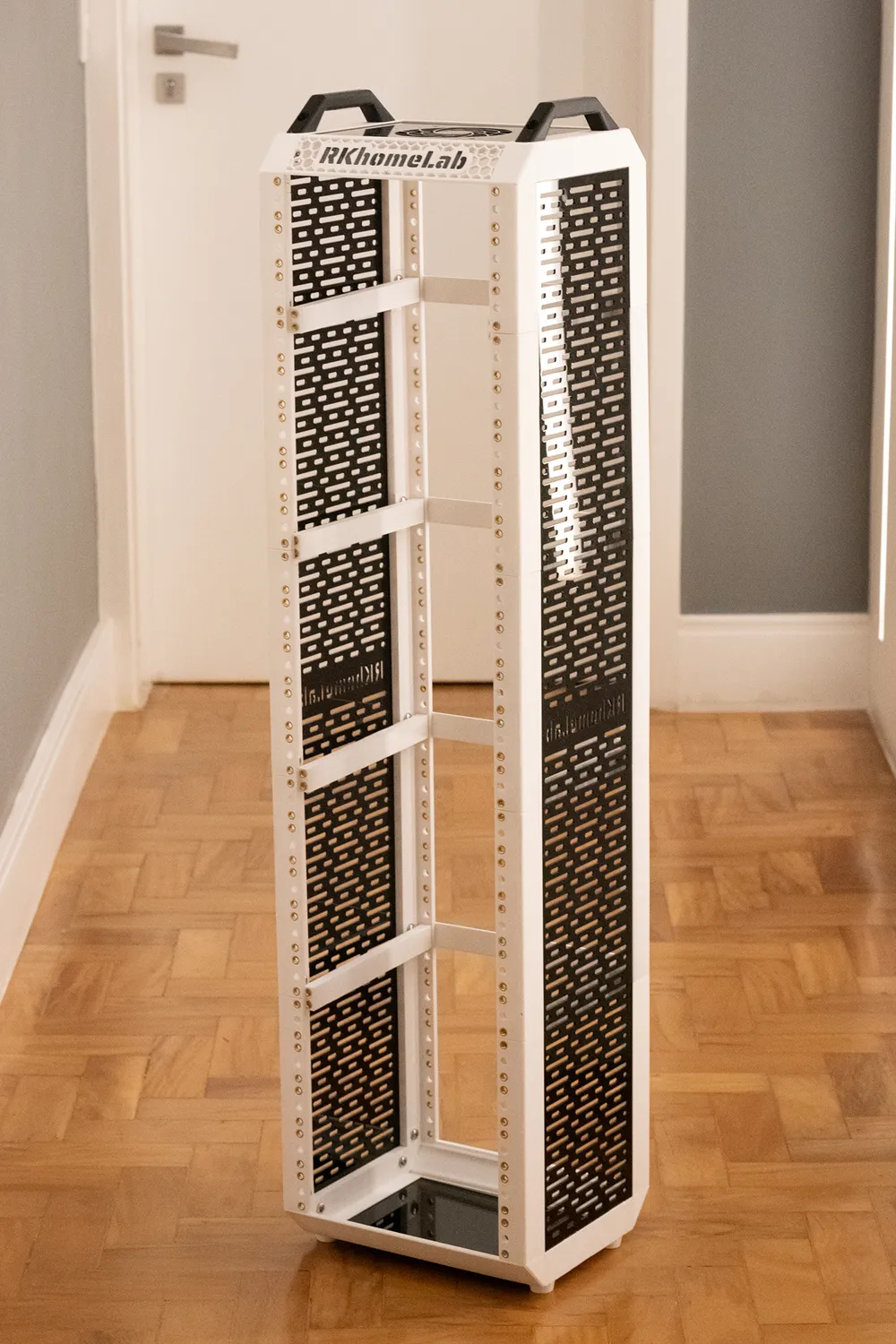

In my first assembly attempt, I noticed that the structure was flexing, as it was not originally designed for this size. To solve this, I added horizontal reinforcements at the joints, which made the structure extremely solid.
I used the same M6x8x4 inserts that are used throughout the project, but with M6X16 screws to attach this support.
