Description
This is a variation of the great model by Once in a Six Side.

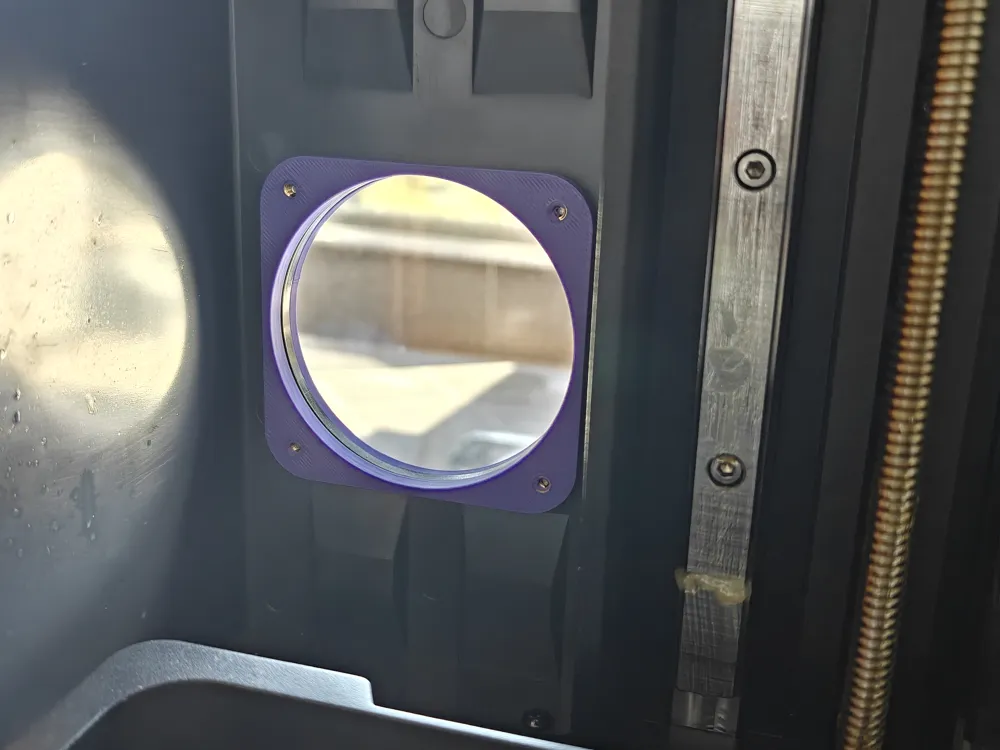

I adepted the base to mount to the Elegoo Saturn 4 Ultra and added a little backing plate with M3x5x5 heat inserts (the holes is 4.6mm)
This should help you with your printing and resin VOC control on the Saturn 4 Ultra and any printer that uses that 64x64 mounting pattern that the Saturn 4 uses.
I have also uploaded the raw F3D file if you want to modify it for your own inserts.

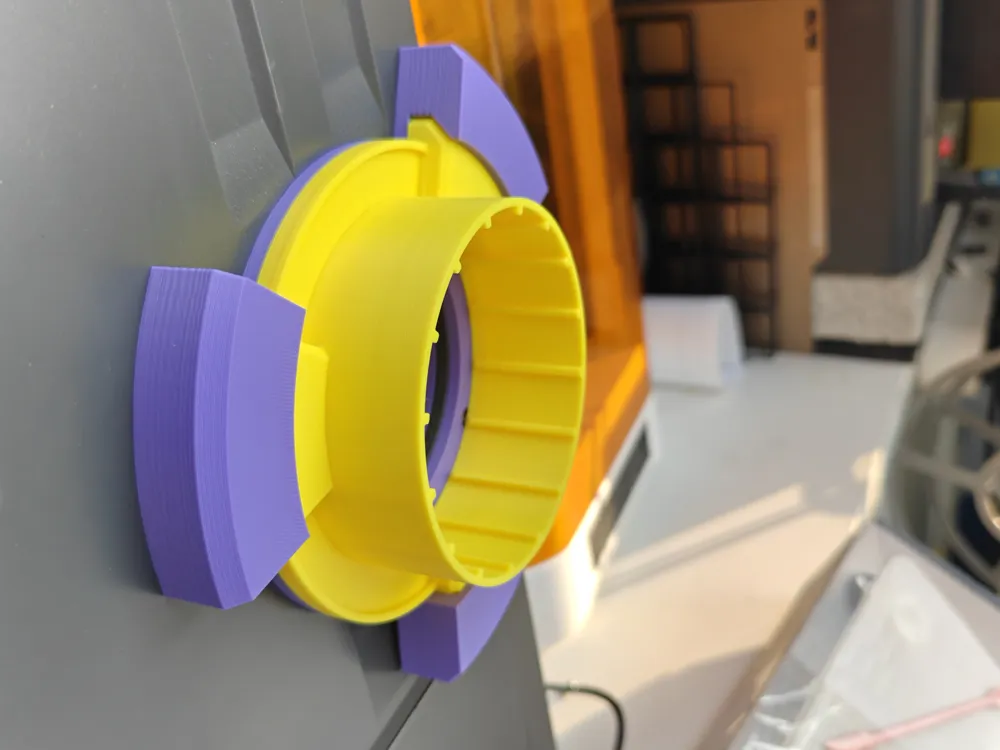

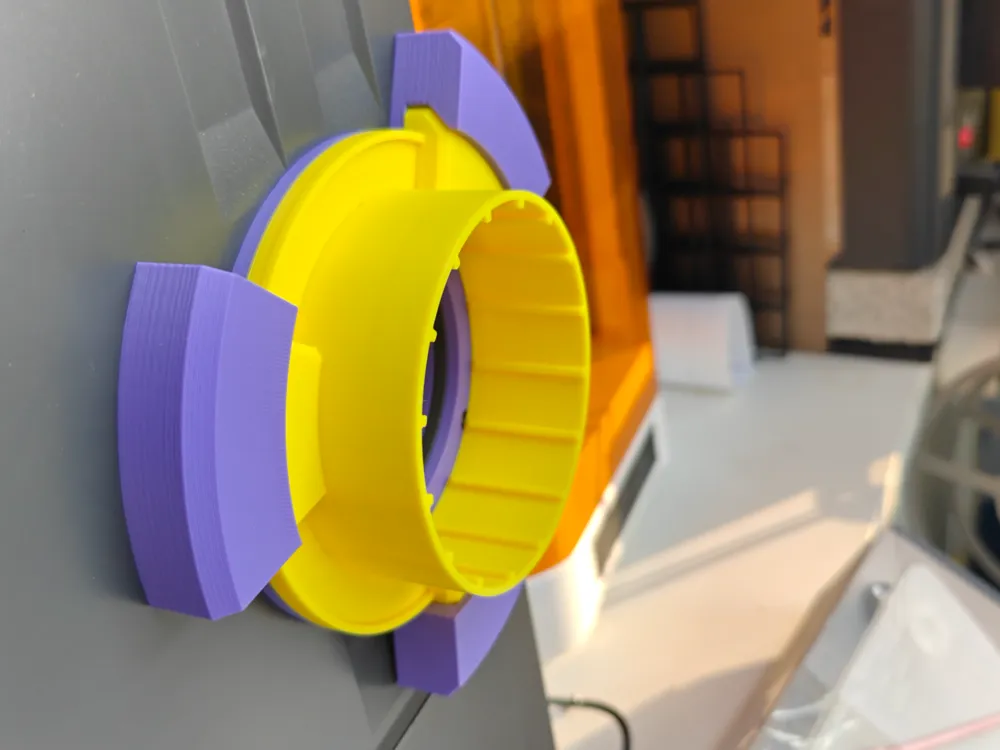

The provided adapter is for a 4" fan (100mm).
Boost Me (for free)
If you like this design and found it useful, feel free to drop a boost!
Thank you!
