SenseCAP P1 Pro – Pole Mount Adapter
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 30% infill
Designer
43 min
1 plate
Open in Bambu Studio
Boost
5
15
1
0
17
14
Released
Bill of Materials
Bambu Filaments
Select all
Description
The Seeed Studio SenseCAP P1 Pro comes with a metal extension mount, but the stock pole clamp only fits poles 70–100mm in diameter. If you're mounting on a standard 1-inch (25.4mm) pipe or mast, this adapter bridges the gap.

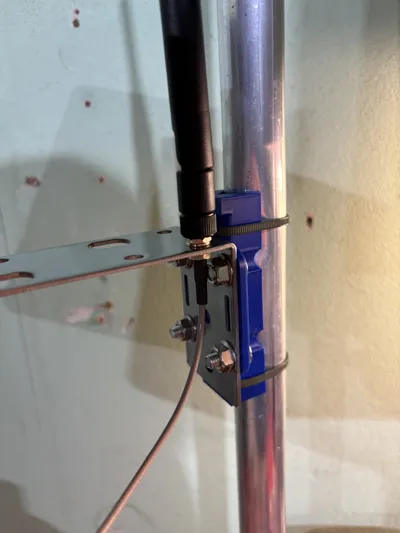

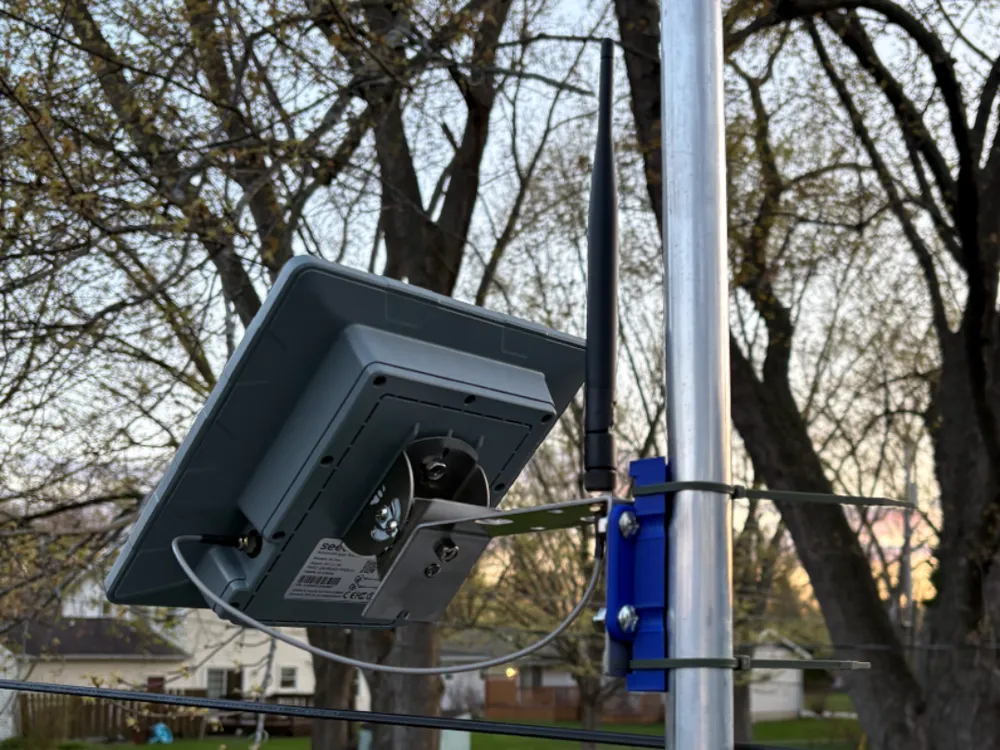

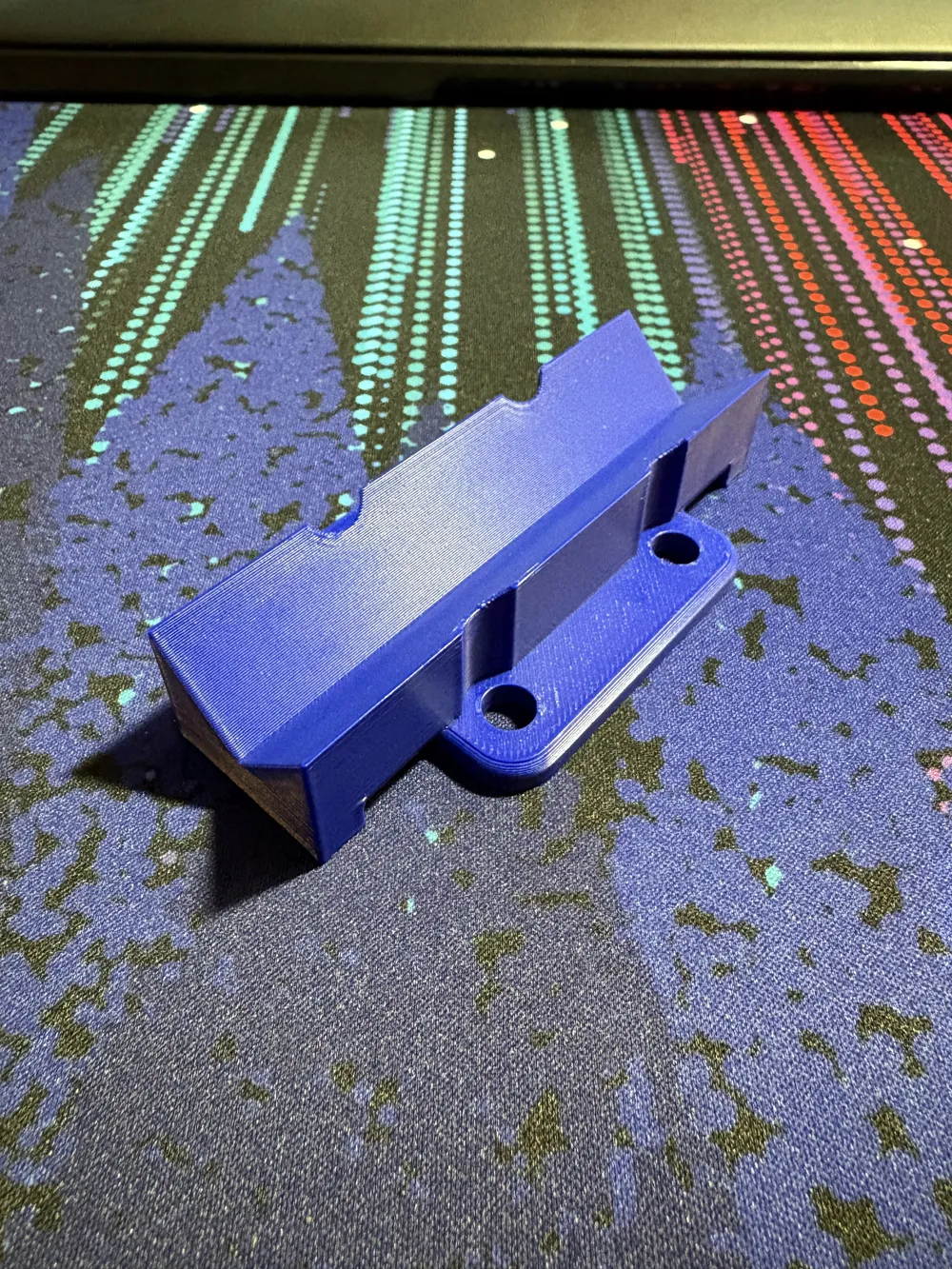

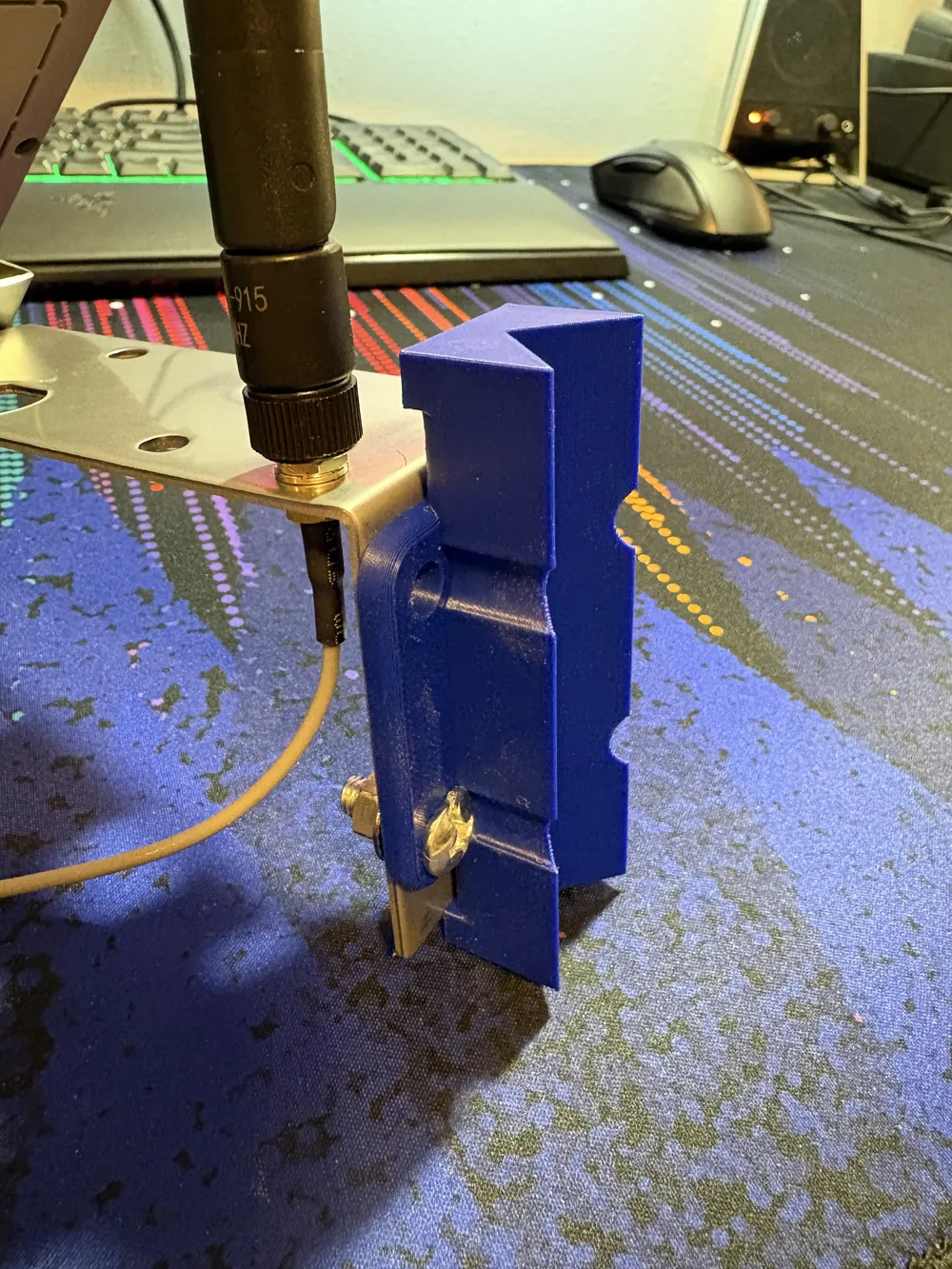

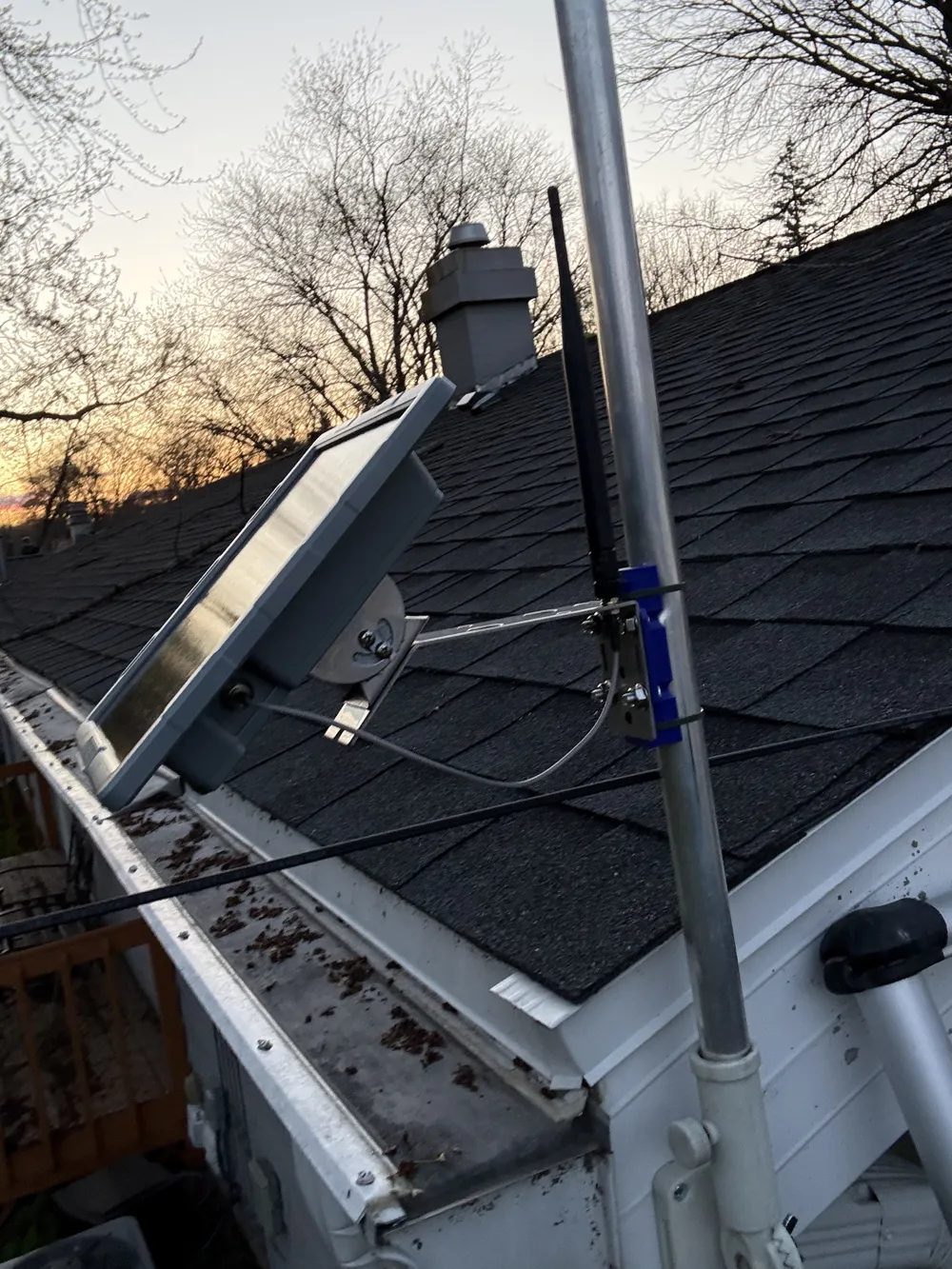

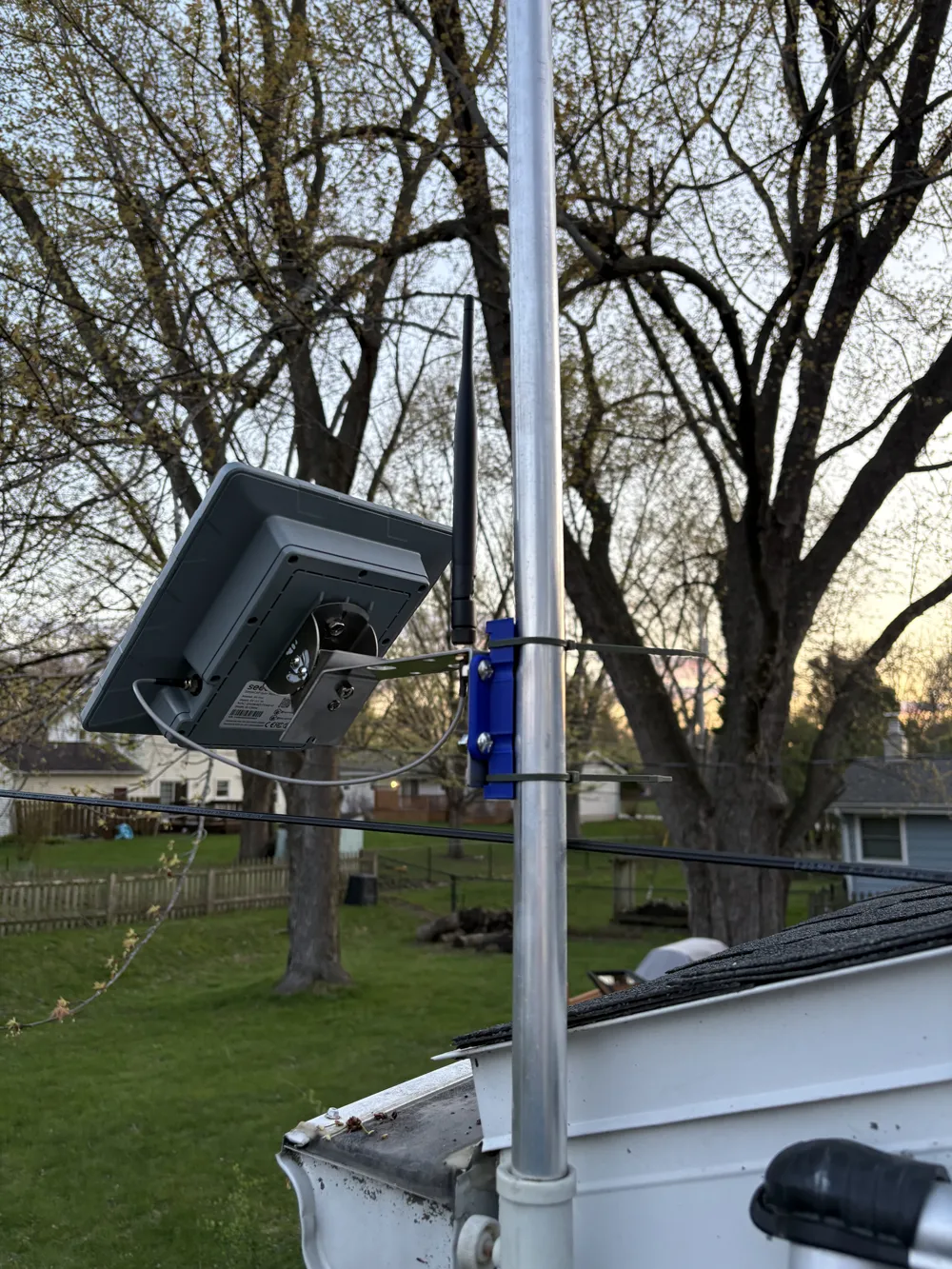

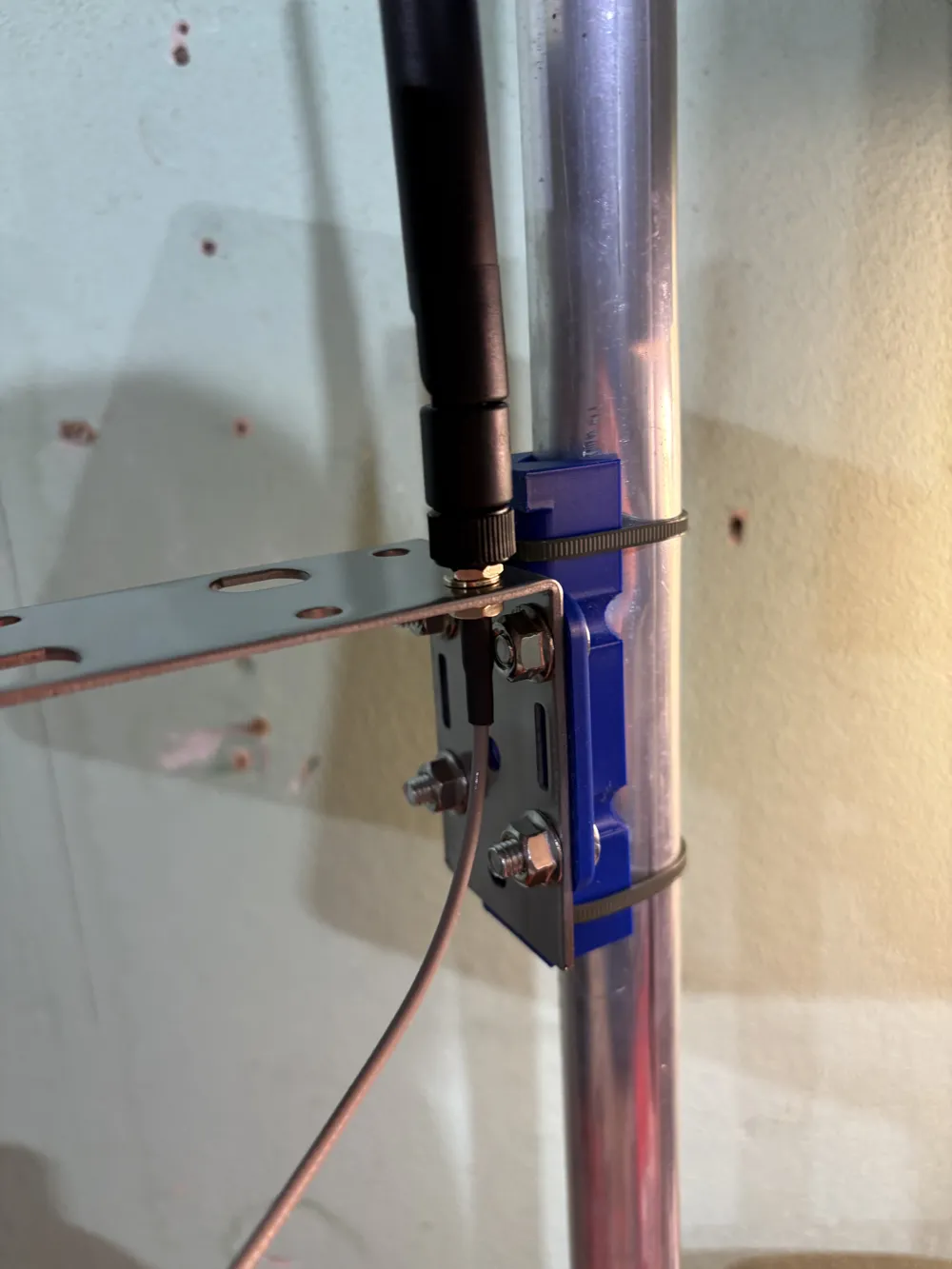

This print replaces the pole-clamping portion of the included extension mount, letting you reuse the rest of the hardware (the extension arm, tilt adjustment, and all original hardware) while clamping securely to a 1-inch pole.
What you need:
- Seeed Studio SenseCAP P1 Pro (stock extension mount hardware retained)
- 1-inch (25.4mm) diameter pole or pipe

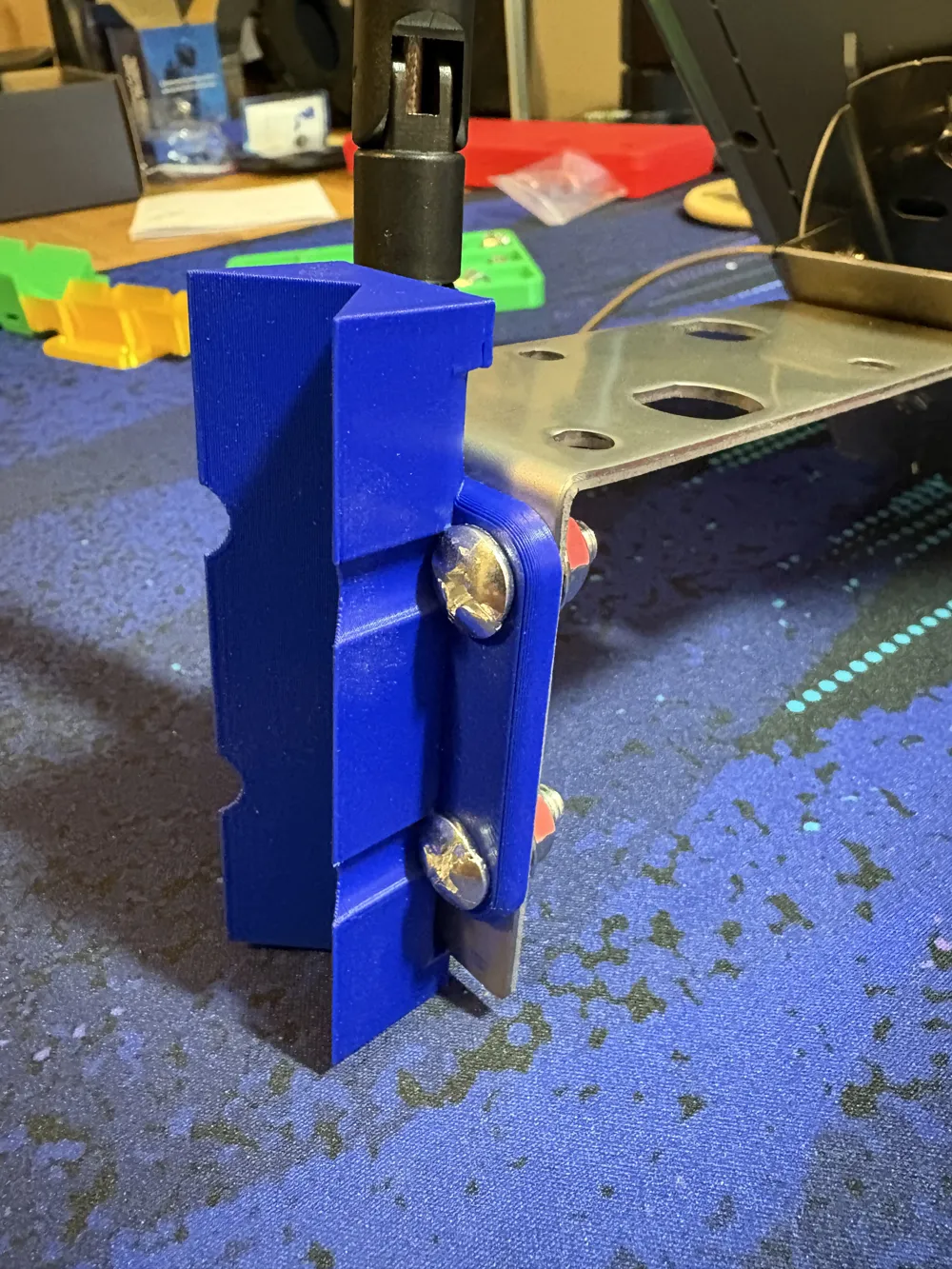

- Existing bolts work fine if you can get the washers off. With the washers on, they are just a little too short to fit through and catch the nut.

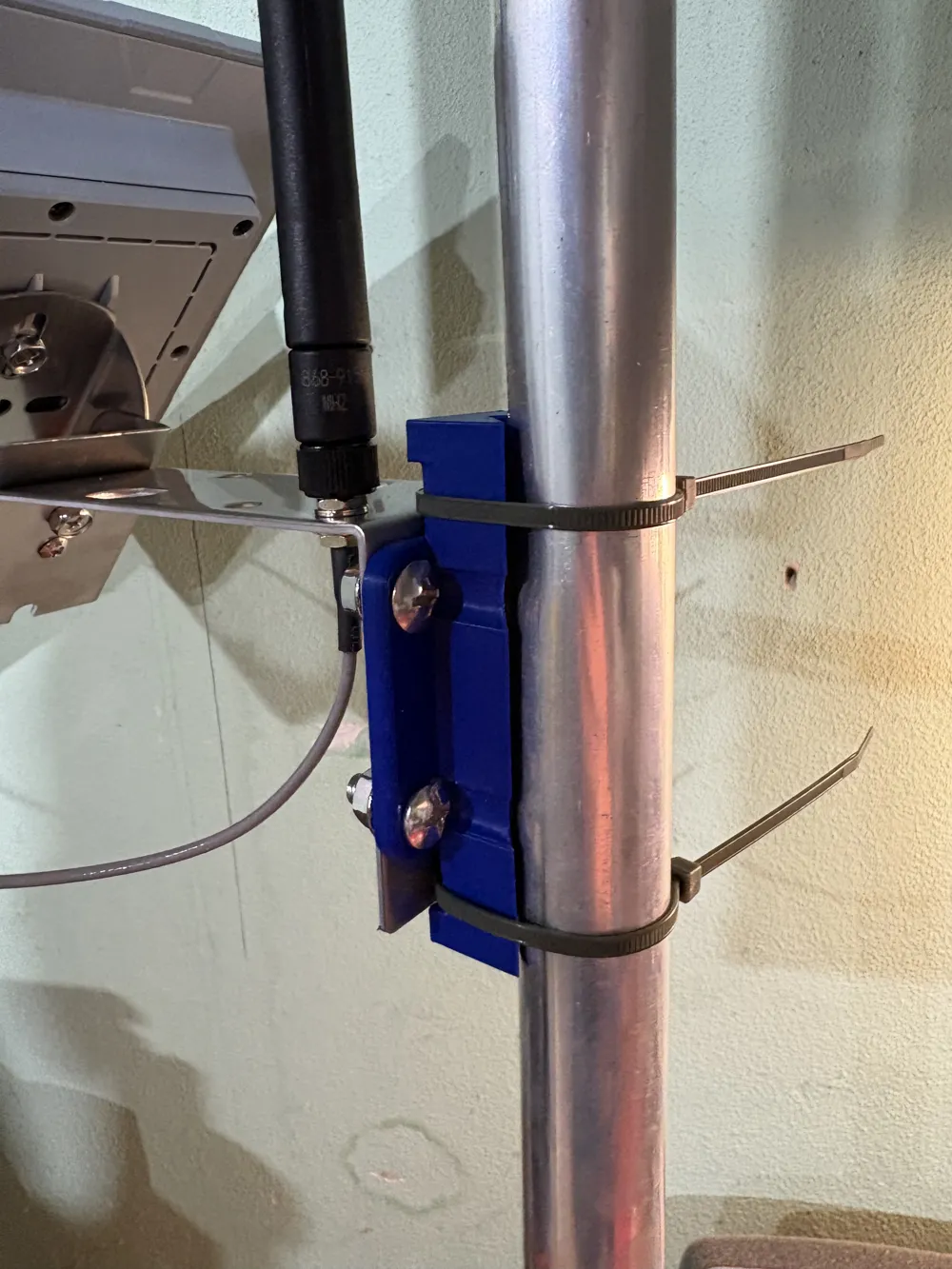

- Zip ties
- Optional: Rubber to prevent slipping on the pole
Also available on Printables: https://www.printables.com/model/1695352-sensecap-p1-pro-pole-mount-adapter
