Parametric Storage Box for Revopoint Inspire 2

This is a large, fully parametric storage box designed in Shapr3D, created specifically to organize and protect your Revopoint Inspire 2 scanner and its accessories. The design focuses on modularity, durability, and efficient space usage, making it suitable both for storage and transport.

Overall Dimensions

Base (without lid):
300 × 315 × 315 mm

Lid:
300 × 315 × 50 mm

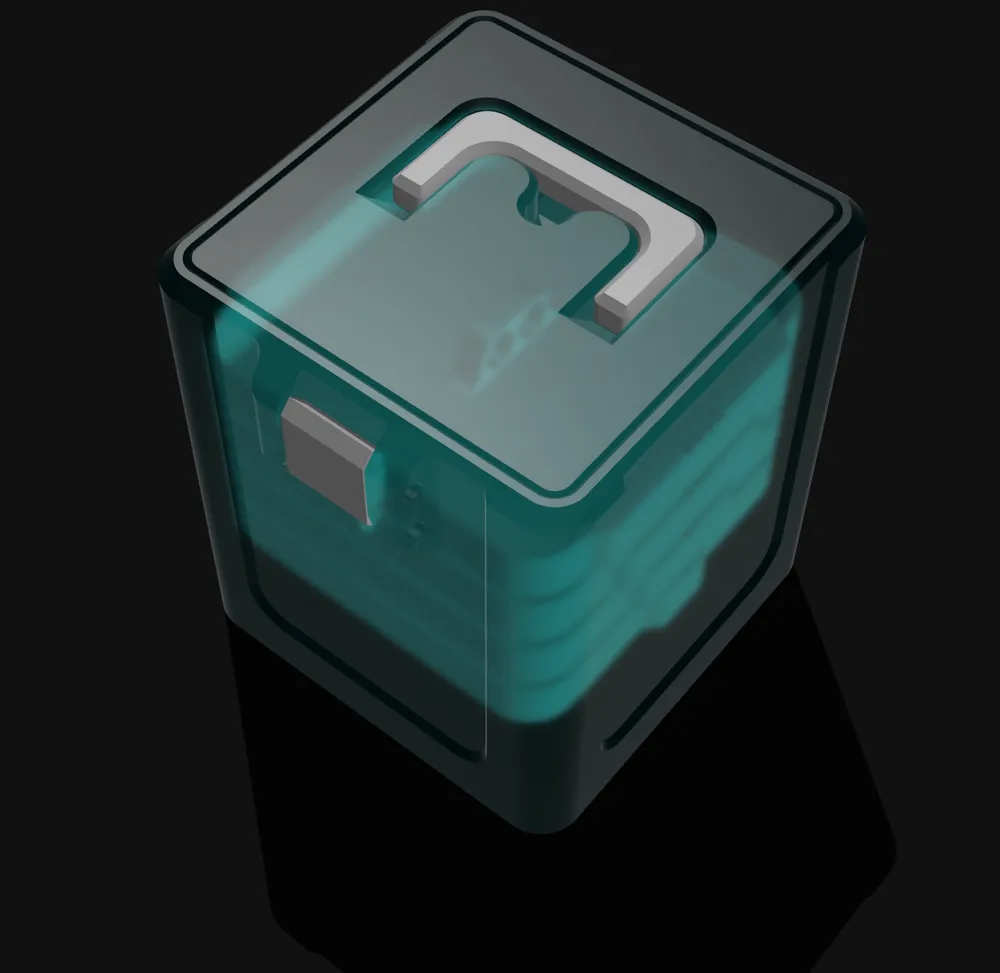

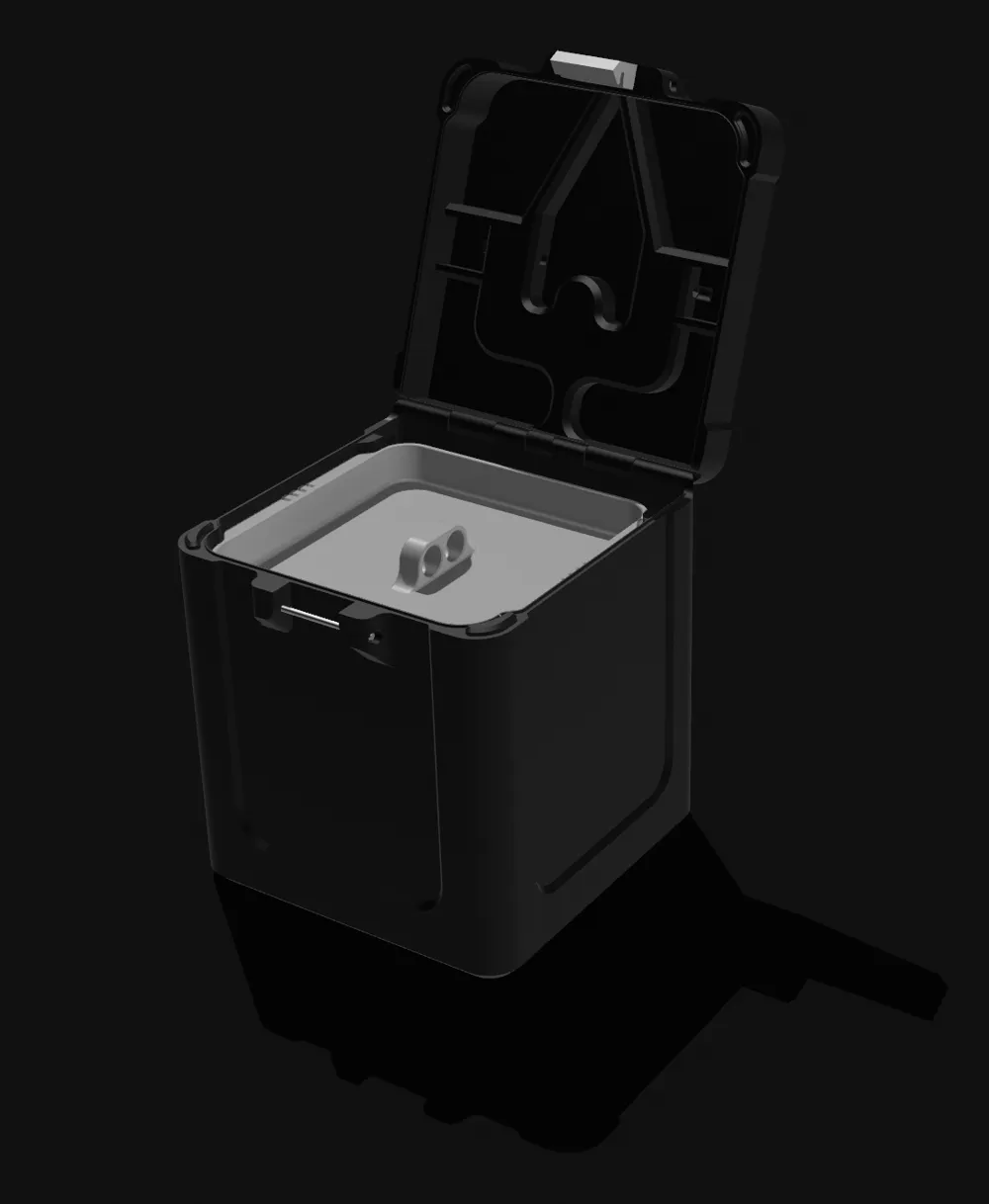

The lid matches the base footprint and features a lip design to help reduce dust and light splashes entering the box (not waterproof).

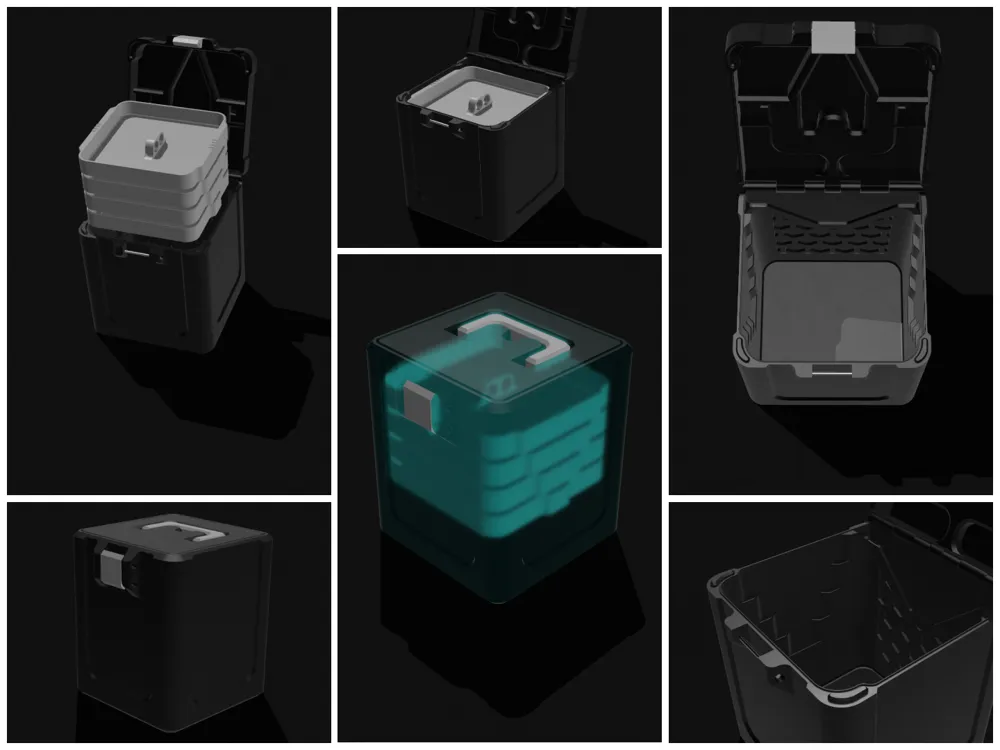

Internal Layout & Functionality

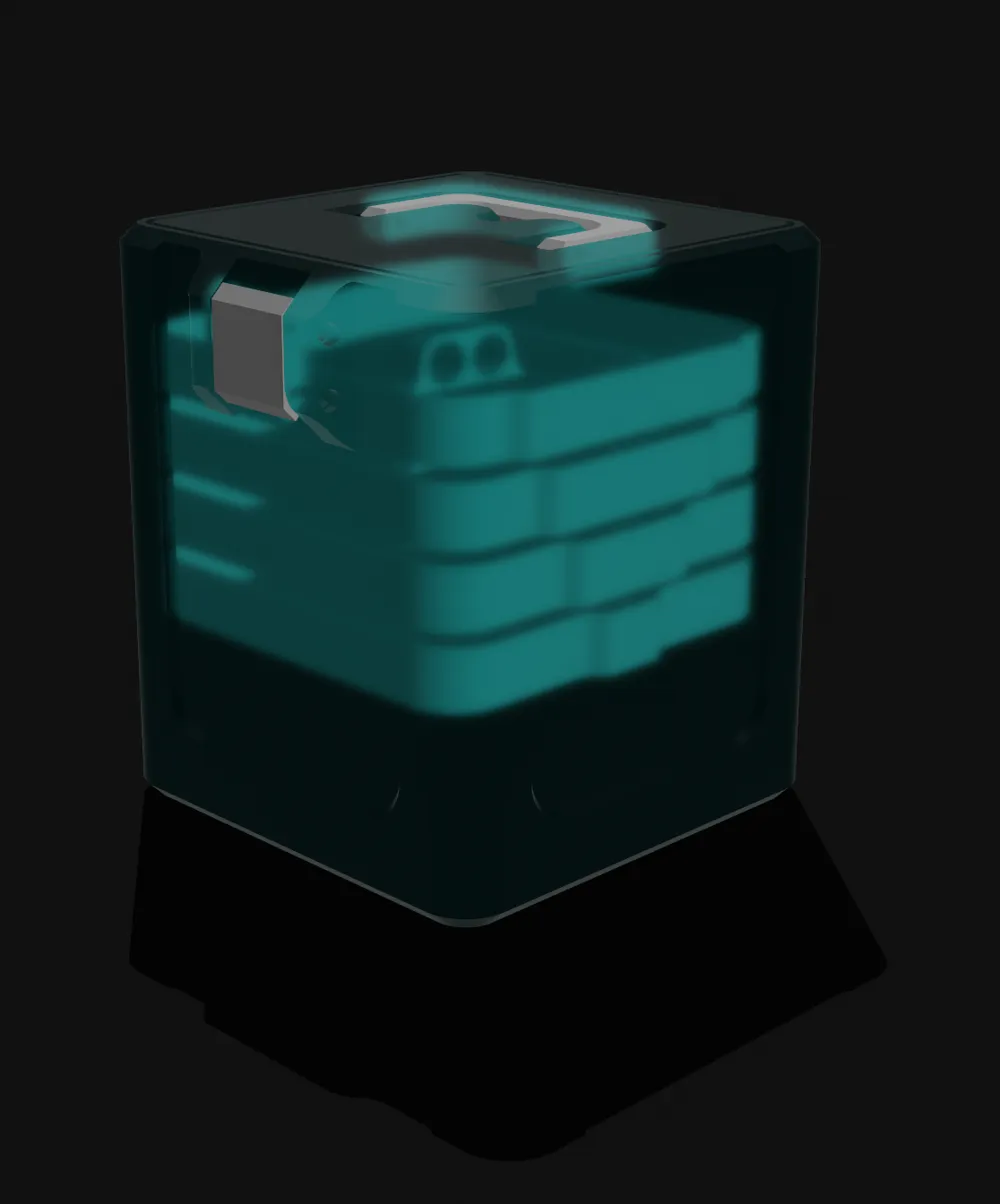

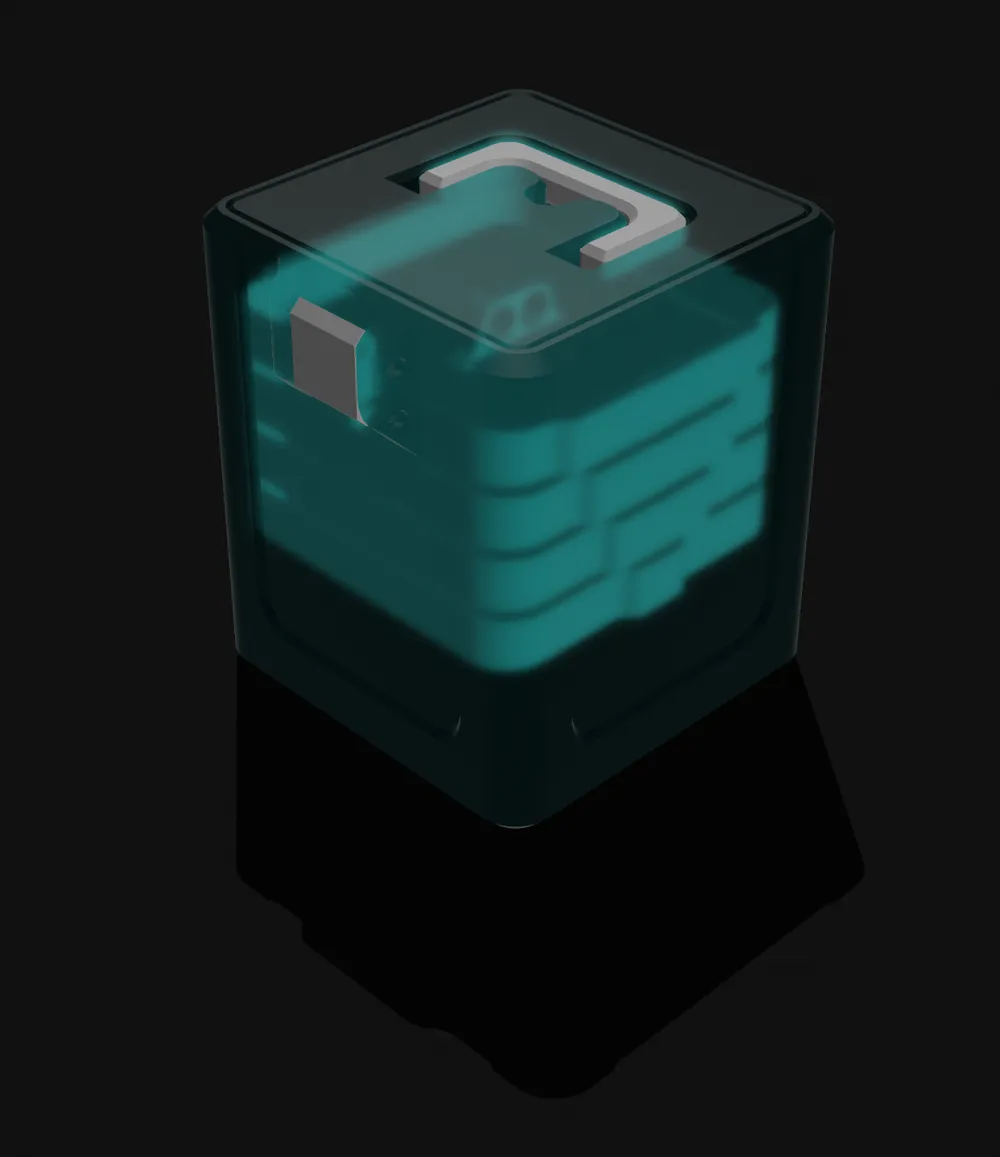

The interior is designed as a modular, multi-level storage system:

• Main inner space: 260 × 260 mm

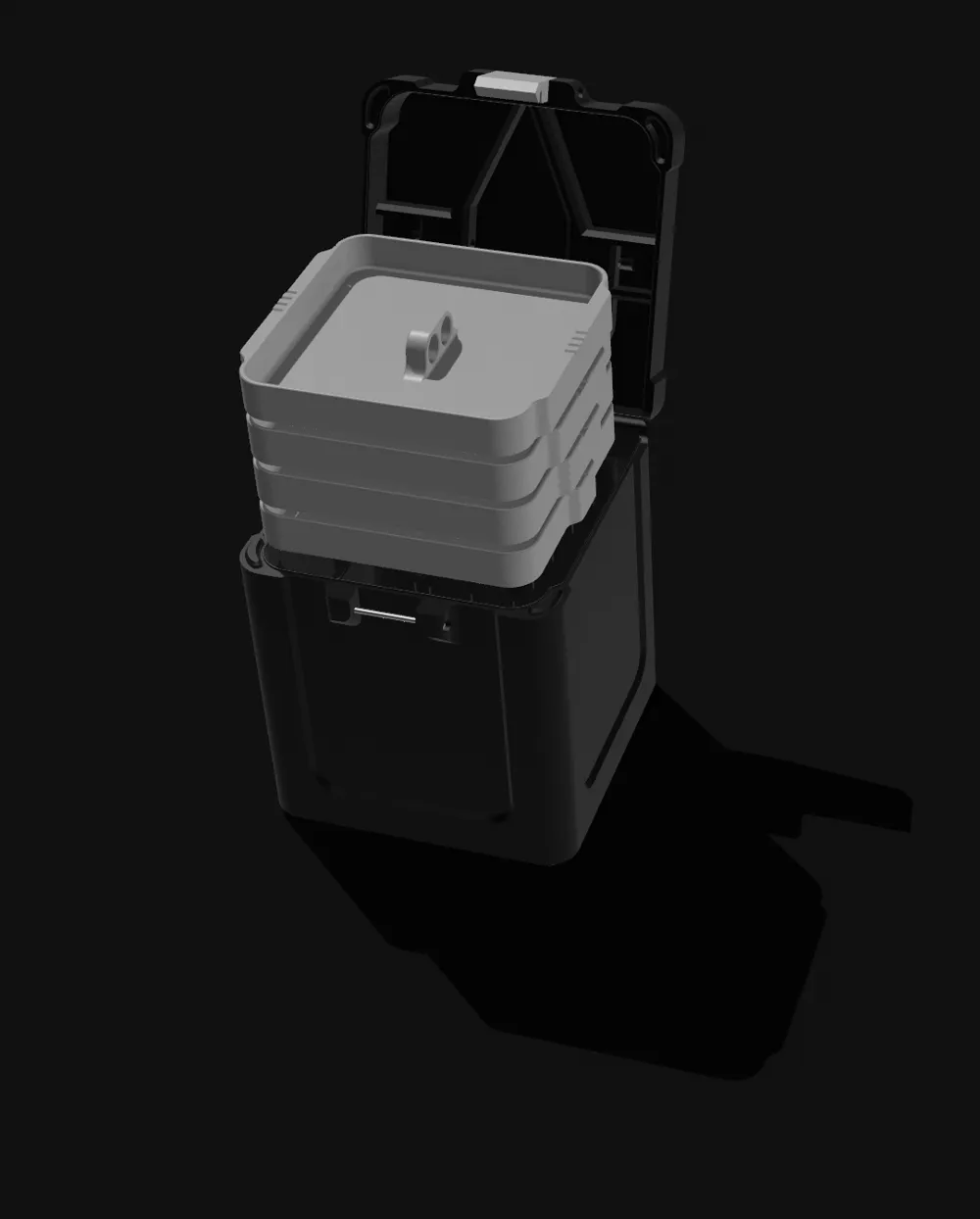

• 4x removable stackable trays:
  • Size: 246 × 246 mm each
  • Standard height: ~40 mm per tray
• Top tray clearance: ~60 mm
• Bottom compartment (below lowest tray): ~105 mm

Concept:

• The bottom compartment is intended for larger or less frequently used items.
• The upper trays are ideal for smaller parts, tools, or frequently accessed components.
• All trays are independent and optional — you can use as many or as few as needed.
• Each level is marked for correct orientation and stacking order, so reassembly is straightforward.

Material & Printing Notes

• Recommended material: PETG
  (chosen for impact resistance, slight flexibility, and durability)
• Estimated filament usage: ~3.5–4 kg (depending on settings)
• Designed with tight tolerances due to parametric construction
• Best suited for well-tuned printers with stable dimensional accuracy

Assembly Hardware

You will need:

• 4× M5 × 100 mm screws + 4× nuts (main structure)
• 2× M5 × 40 mm screws + 2× nuts (lid / handle)

Additional Features

• Splash-resistant lid lip (not airtight or waterproof)
• Optional TPU feet:
  • Can be printed separately and glued to the bottom
  • Improve grip and reduce slipping
  • Completely optional

Design Philosophy

This model was built to be:

• Parametric → easily adjustable if you modify the design
• Modular → adapt internal layout to your needs
• Robust → suitable for real-world use, not just display
• Efficient → maximizes usable storage within a compact footprint

Notes

• You do not need to print all trays — customize based on your use case
• Ensure your printer is calibrated properly for best fit due to tight tolerances
• PETG is strongly recommended over PLA for long-term durability
