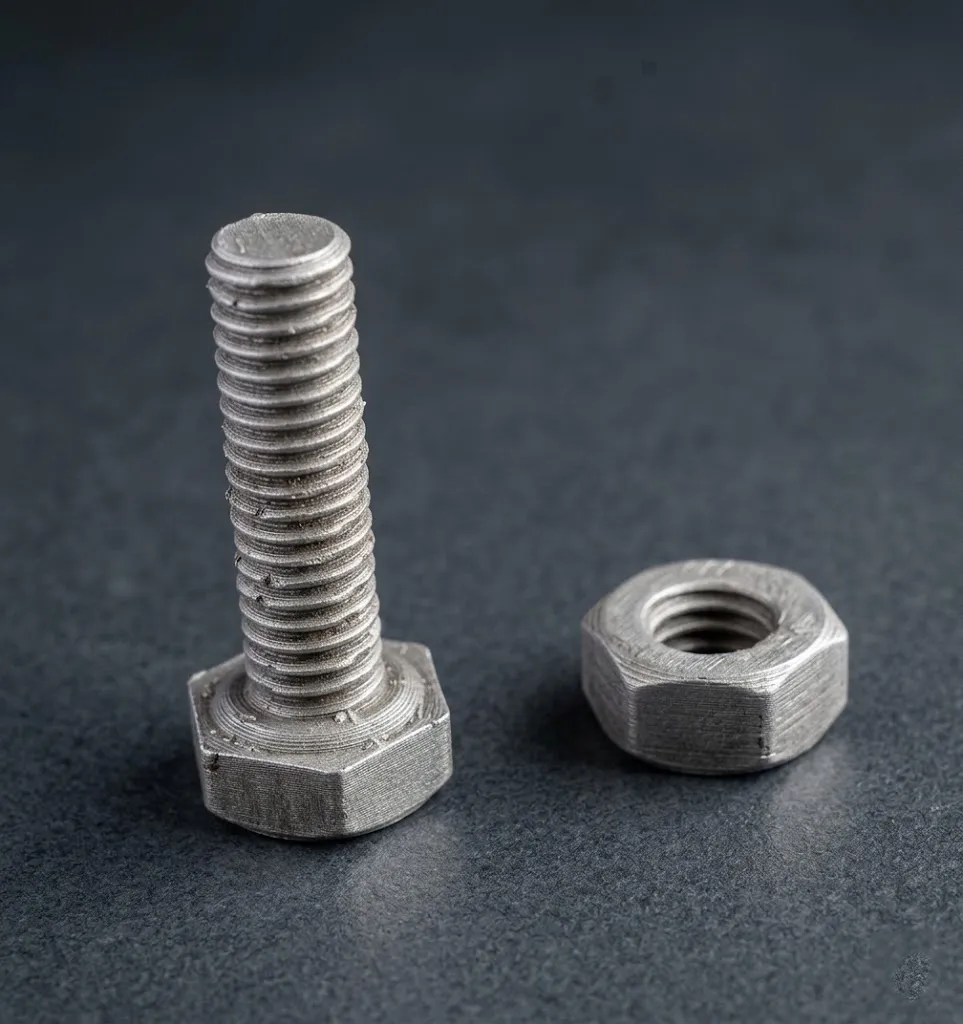

M6 High-Precision Screw & Nut Kit (Multi-Length)

A complete set of M6 screws specifically designed for 3D printing, optimized to ensure precise tolerances and an excellent surface finish. Whether you're building a prototype or a functional project, this kit covers almost every fastening need.

📋 Model Features

This project includes a wide range of lengths to suit any scenario. Each file has been tested to ensure the thread is smooth and strong.

• Thread type: M6 Standard

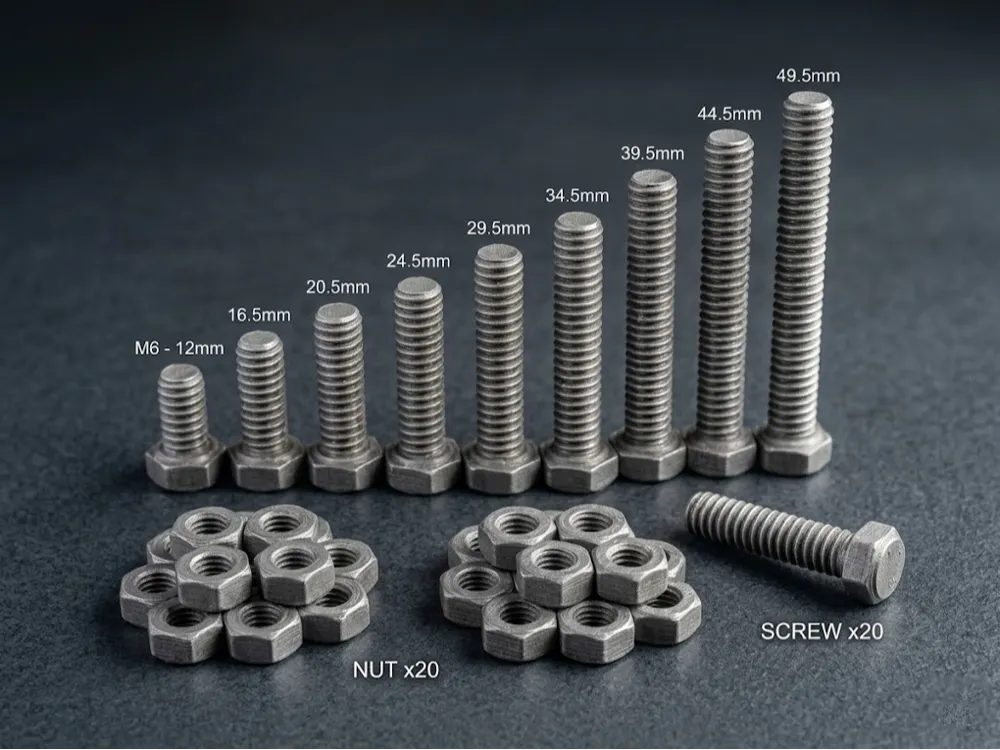

• Lengths included (mm): 12 – 14.5 – 16.5 – 20.5 – 24.5 – 29.5 – 34.5 – 39.5 – 44.5 – 49.5 – 54.5
• Organization: Each print plate is pre-configured for maximum efficiency.

🖨️ Print Plate Organization (Print Plates)

To facilitate mass production, I have organized the plates so you can print exactly what you need without waste:

• Screw Plates: Each plate contains 20 pieces of the same selected length.
• Bolt Plate: A dedicated plate with 20 M6 bolts that are perfectly compatible.

💡 Printing Tips

To achieve the best results, especially with metallic or silver-grey materials:

• Layer Height: 0.12mm or 0.16mm (recommended for thread precision).
• Infill: At least 25-40% (Gyroid) for increased mechanical strength.
• Walls: 3 or 4 walls to prevent breakage under stress.
• Material: Perfect in PLA, PETG, or ABS. For a realistic look, use a Silver/Silk PLA.

📢 Notes

If you need a specific length not included in the kit, leave a comment and I'll see about adding it! Happy printing!
