Golf Swing Trainer Aid

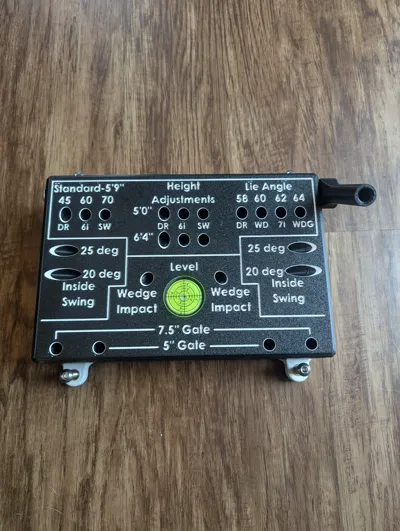

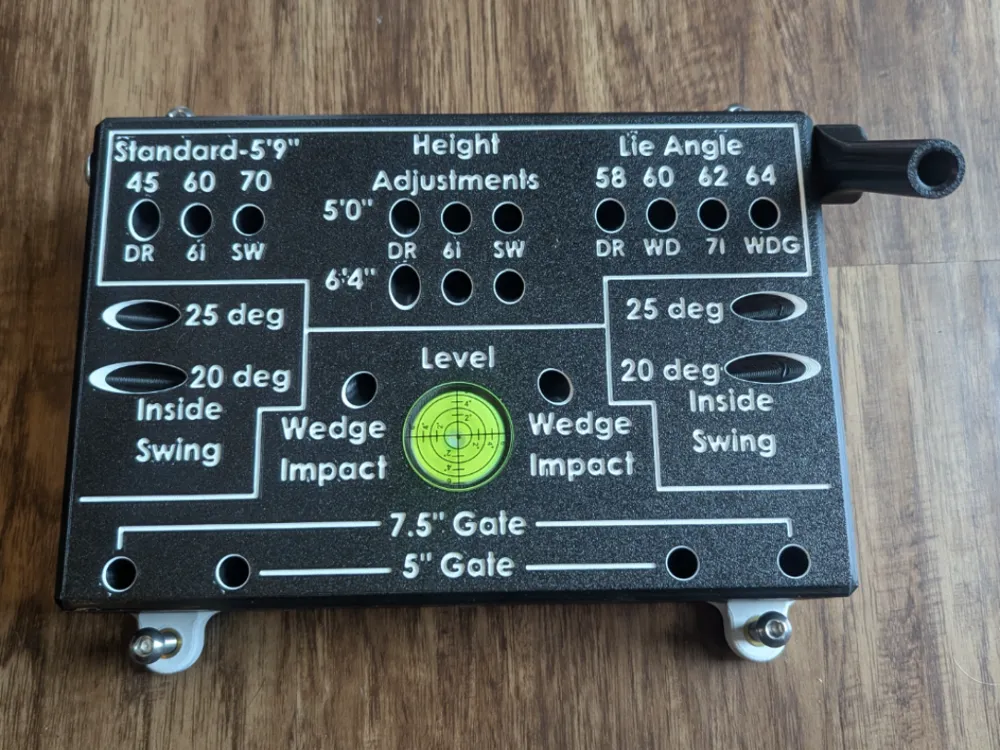

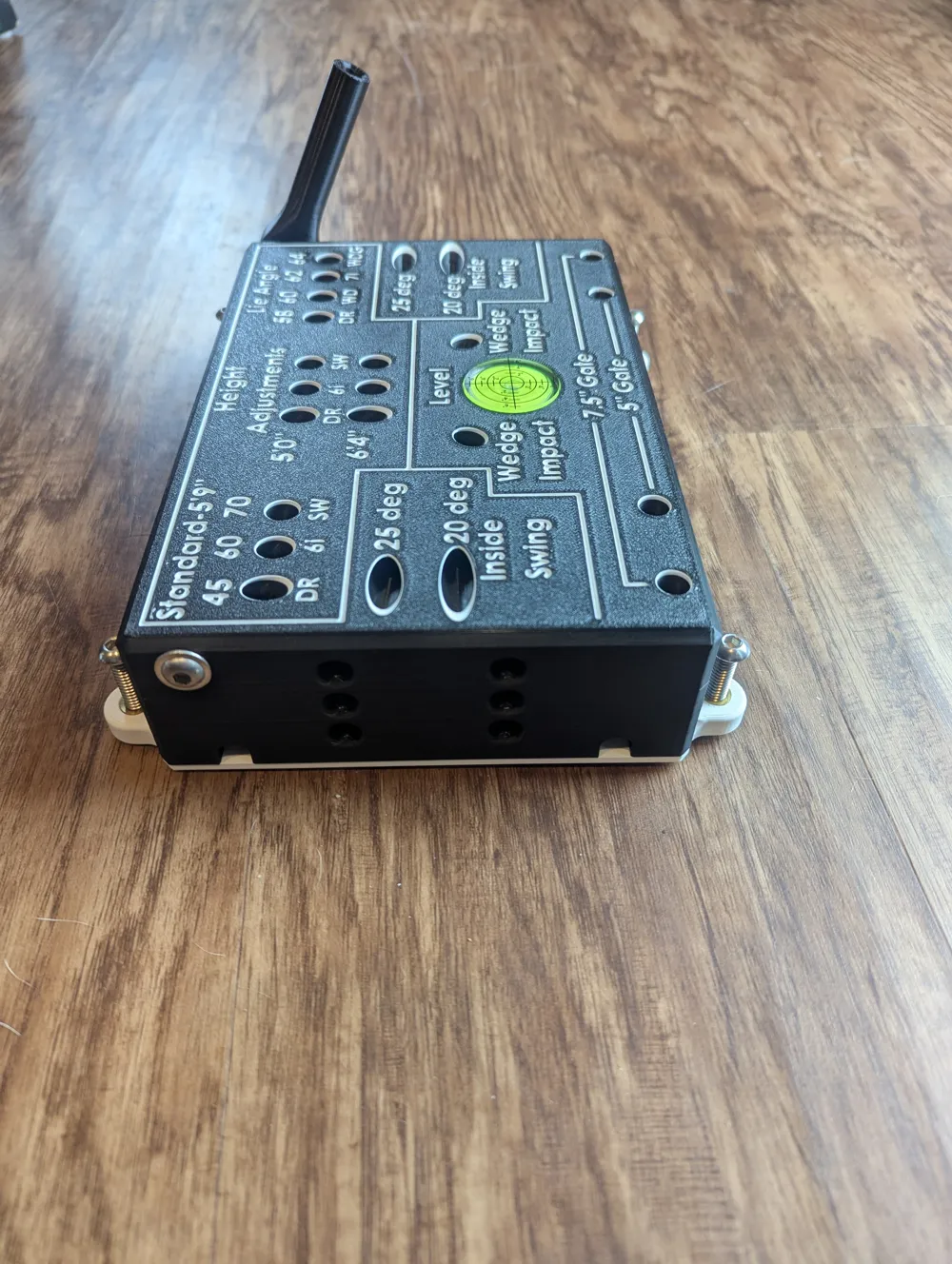

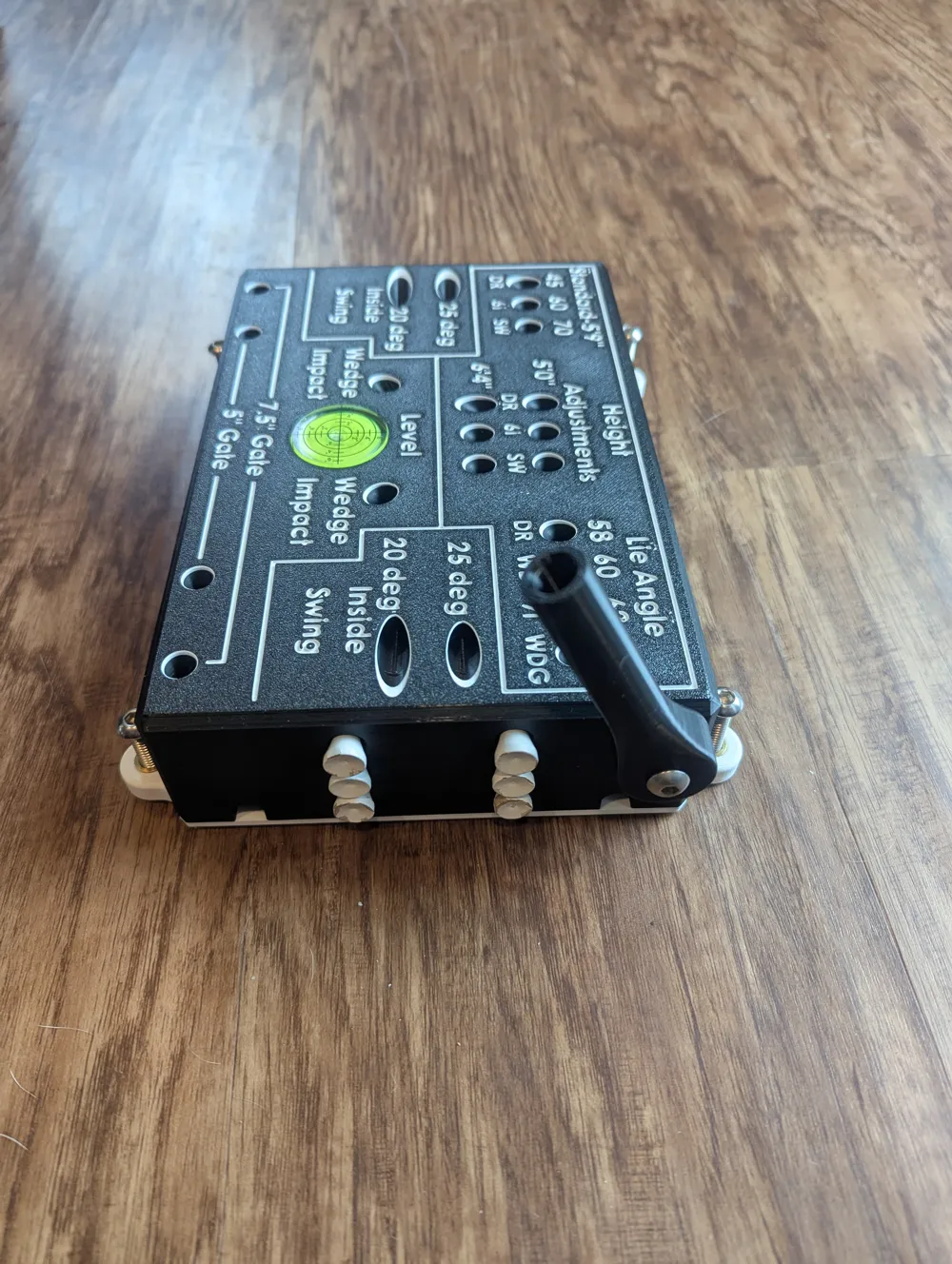

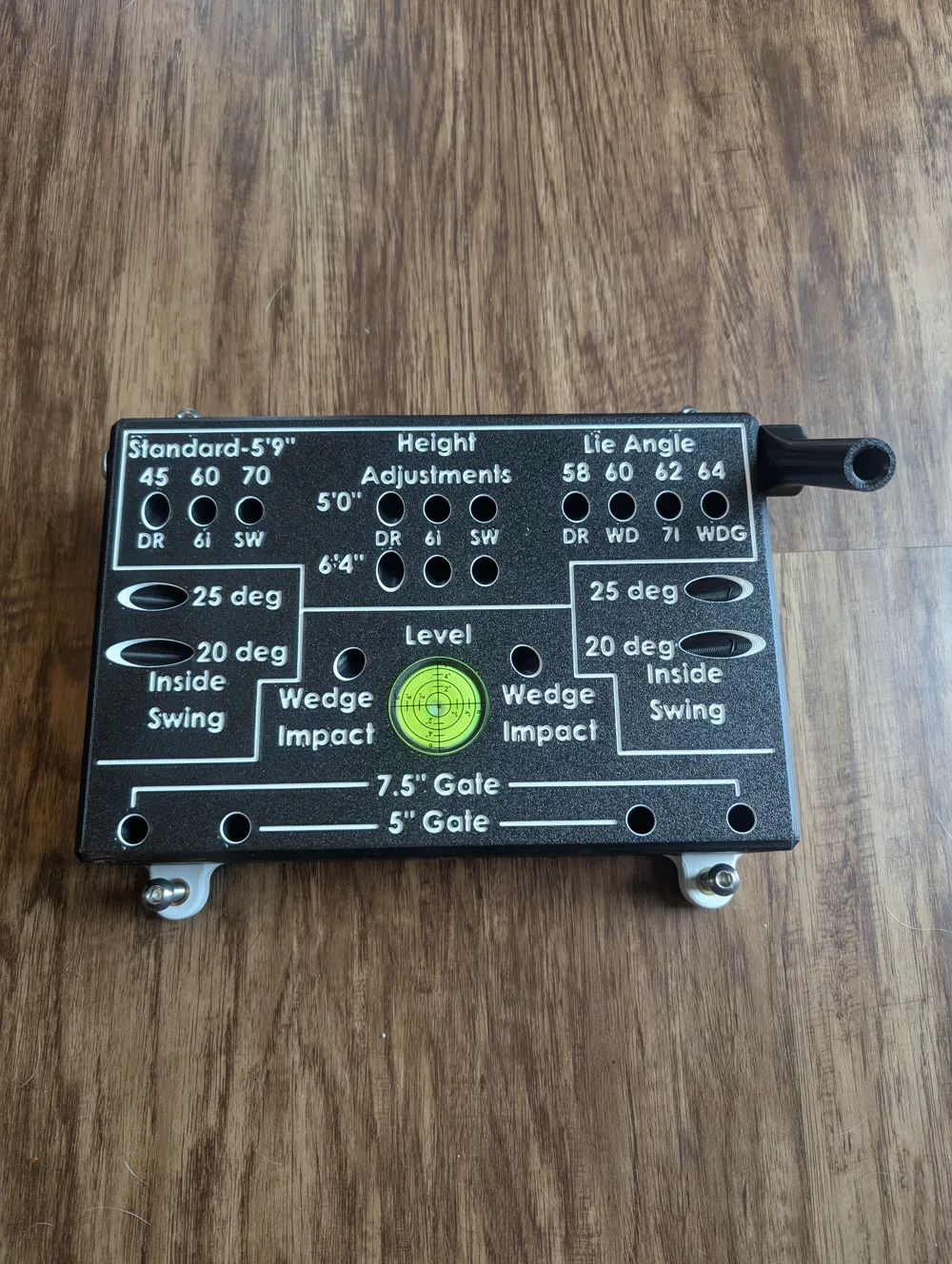

Here is your Next Level Golf Swing Trainer!

I’ve added a lot of additional features into this design to make it a more robust and full featured all in one product to help you improve your game.

This has all the standard features and more.

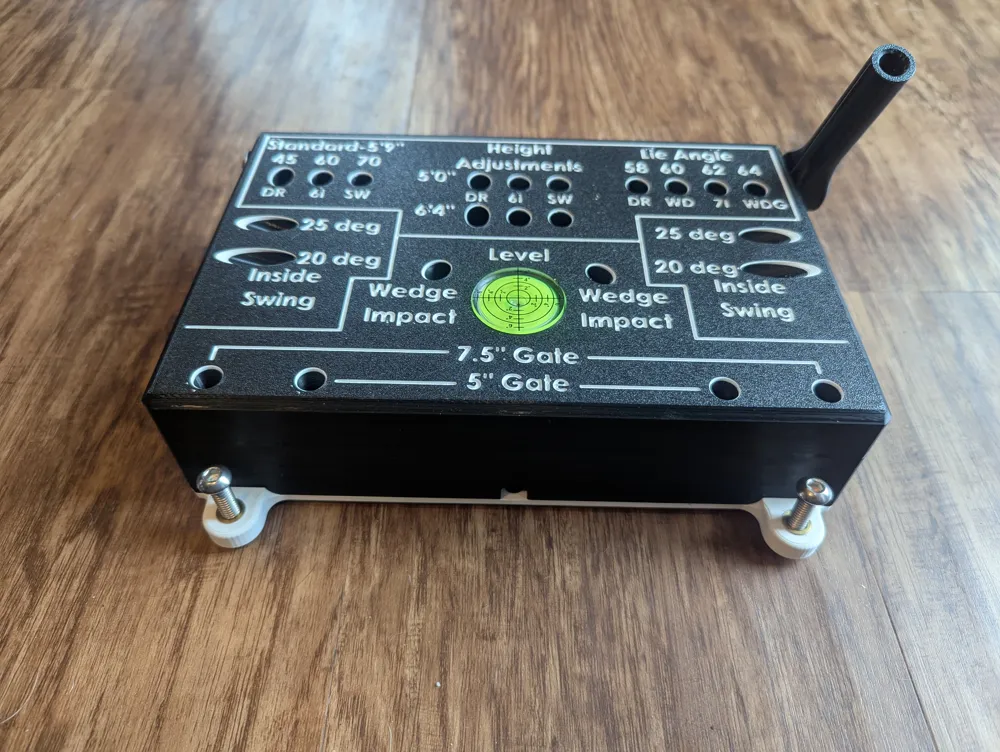

• Leveling feet – so when it is setup on grass the rods will maintain the correct angle.
• Large bubble level (32mm) – to be used in conjunction with the leveling feet.
• Gate drill (alignment rods) – 2 settings for rods to hit between; 7.5” – normal setting, 5” for when you’re feeling good.
• Gate drill (Tee’s) – This holds 12 tees’s to use for your drill. Make a swing lane to help guide your club to the ball.
• Shallow Swing with Height Adjustments – standard setting for the average 5’ 9” height with options for 5” 0” and 6’ 4”.
• True club Lie Angle – Options for you driver (DR), fairway woods, hybrids and 5 Iron (WD), Mid irons 6I – 9I (7I), and wedges (WDG).
• Two Inside Swing Settings – Normal (25), feeling good (20).
• Adjustable Rod holder – Set this to what position will work best for you custom drills.
• All features can be used for right and left hand golfers

Fasteners accessories:

• ¼-20 heat inserts
• ¼-20 screws.
• 32mm bubble level
• 3.5” tee’s

All alignment rod holes are approximately 9mm and will accommodate the driveway markers found at your local hardware store. I printed mine with PLA but will be making another with PETC or ASA.

I used sand in mine for a base weight.

• Add some and shake it around to fill all the voids
• Continue until full

You could also use concrete or mortar. Once filled, secure the base with ¼-20 screws. The holes are not threaded so just drive them in, or thread them first if you wish (the hole are plenty deep).

  Do not try to remove the supports. The internal supports are incorporated into the design.

This is a free model to benefit the people that golf and want to improve their game and also have a 3D printer. Please don’t make these to sell or trade.
