MeshCore solar repeater pole mount
Print Profile(1)
Description

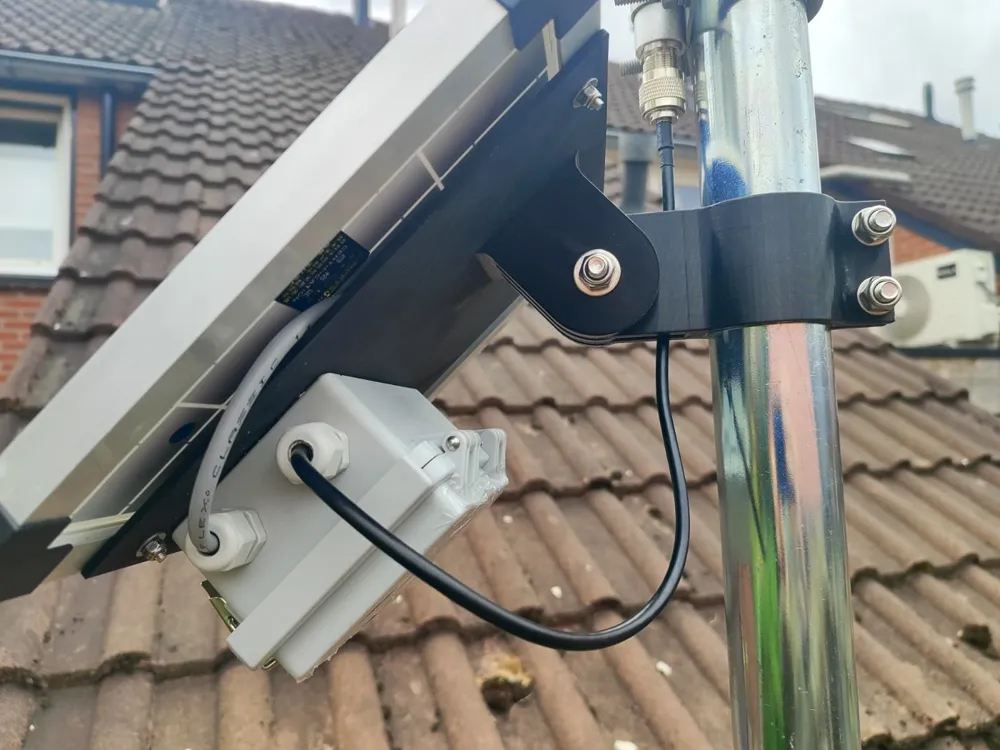

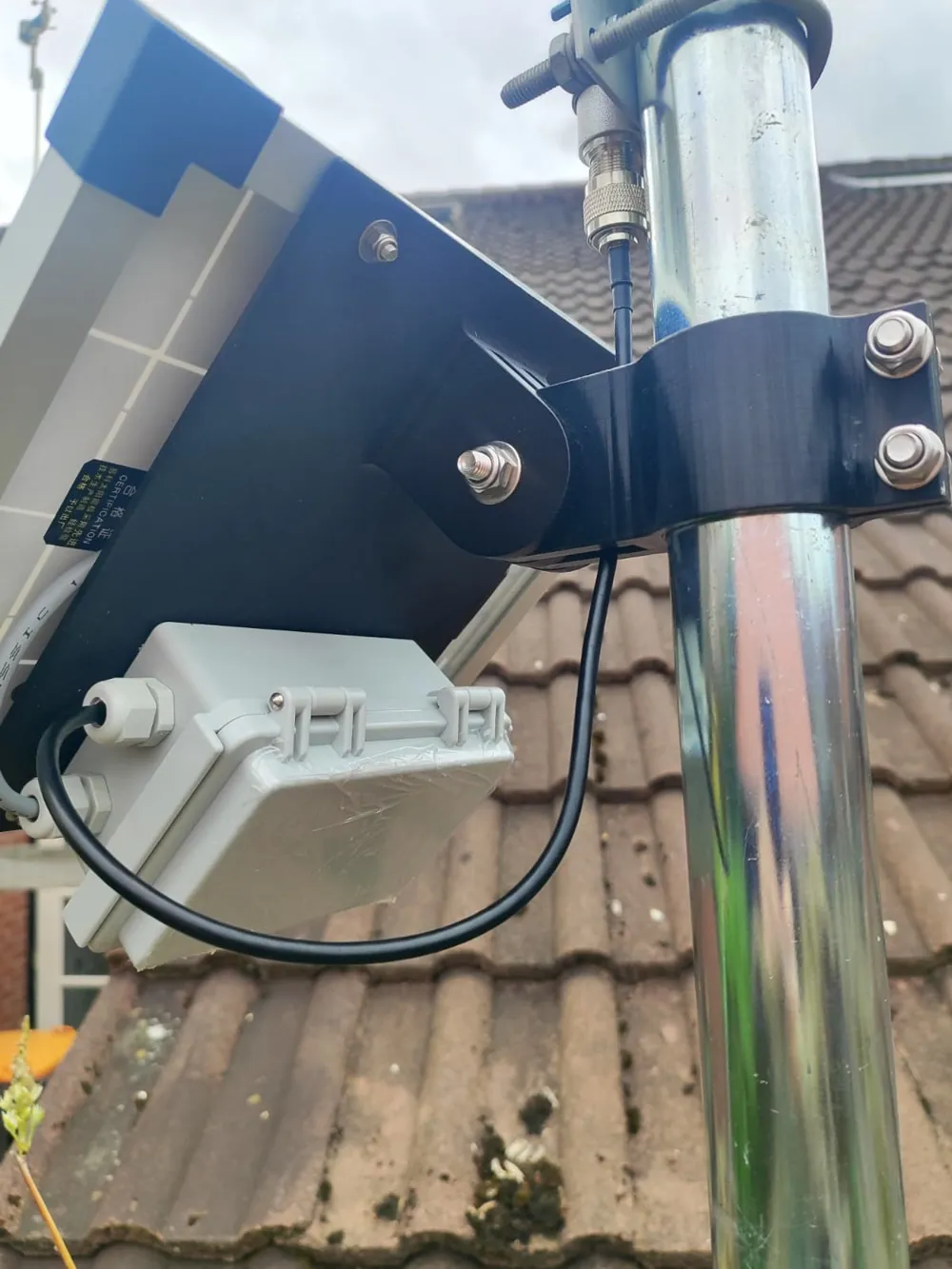

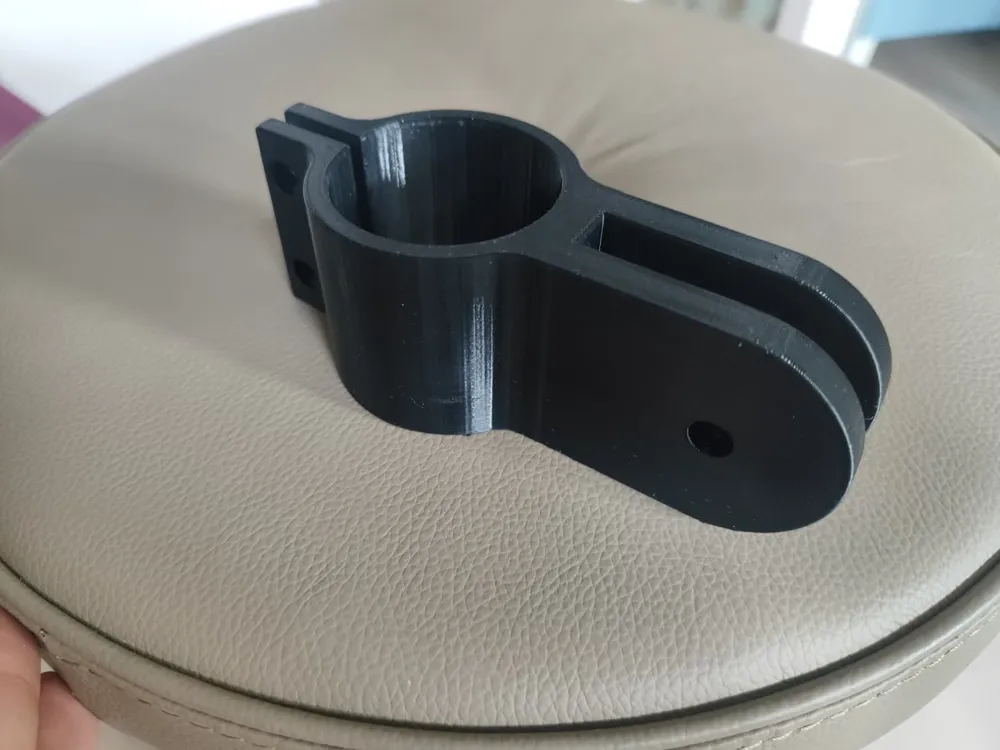

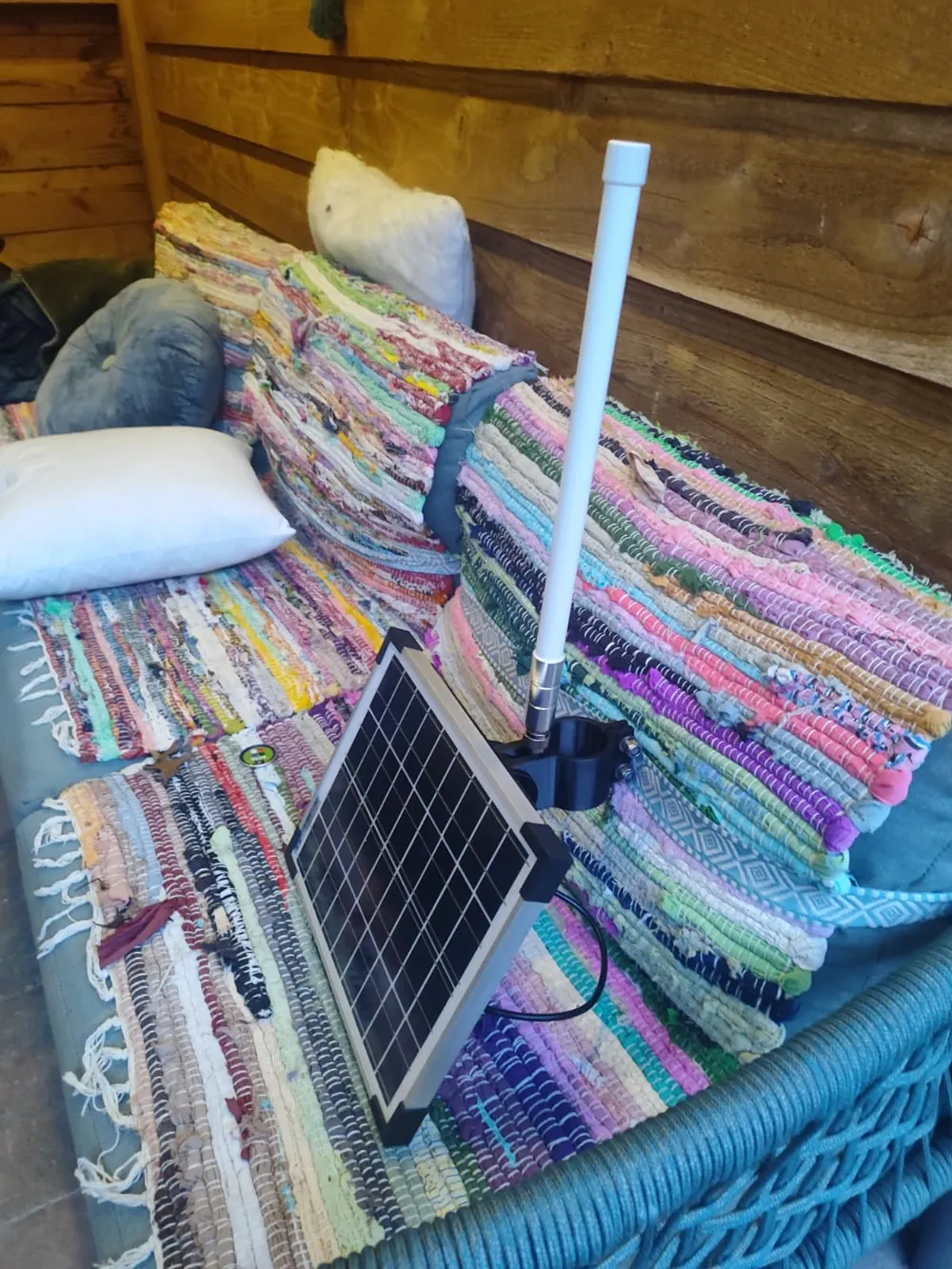

This solar panel pole mount is for an 48mm diameter pole and has the option to mount an junction box beneath it.
(In the part where you can mount the solar panel and jb to, i made the holes just 2mm, because of issues with printing with supports. I later drilled this holes to 8.5mm.)
The solar panel is an 18V panel and the hole patern of the panel: 145x216
https://www.tinytronics.nl/nl/power/zonne-energie/zonnepanelen/zonnepaneel-18v-560ma-290x240x18mm
The dimensions of the JB are 150x100x70 and the hole patern for the junction box: 58x108
The used hardware:
2x M8x30 hexagon head bold
1x M8x60 hexagon head bolt
3x M8 Lock nut
2x M8 fender washer
4x M8 washer
for fixing the solar panel to the mount:
4x M4x12 hexagon head bolt
4x M4 lock nut
4x M4 fender washer
4x M4 washer
