Audi A6 C5 Headlight Leveling Linkage/Rod
Print Profile(1)
Description

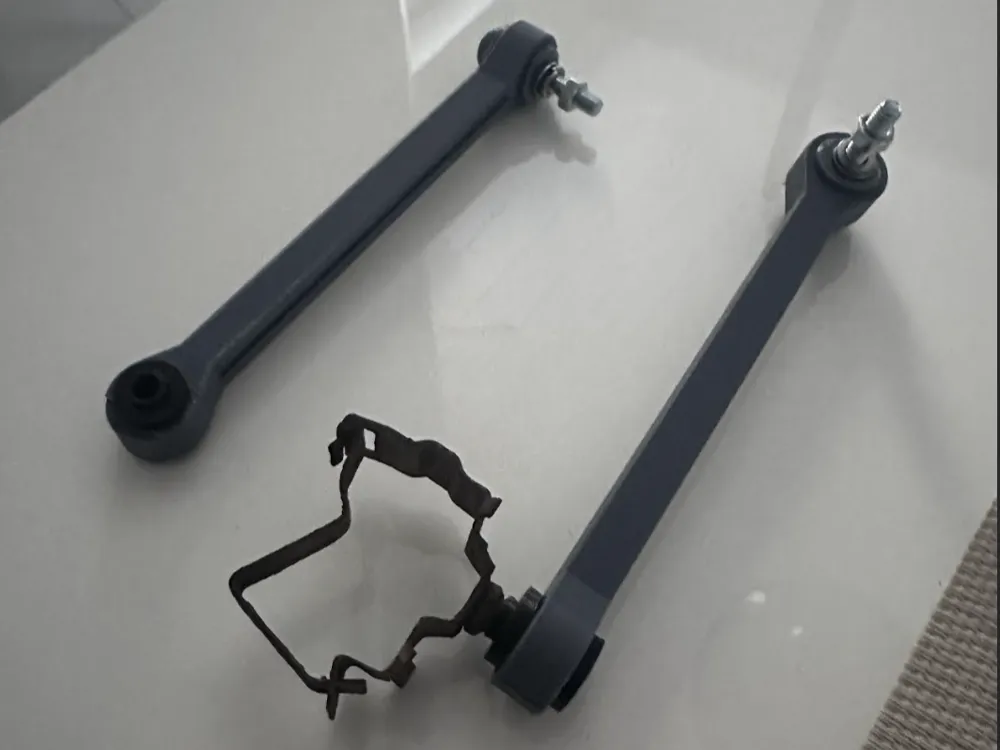

Headlight leveling linkage for an Audi A6 C5
For front and rear axle:
Plate 01 - print 1x in TPU 95 A
Plate 02 - print 2x in PETG CF or ABS
Plate 03 - print 1x in PETG CF or ABS
For further processing, the following is required:
Screws M5x20 - 2x
Washers M5 - 2x
Spring washers M5 - 2x

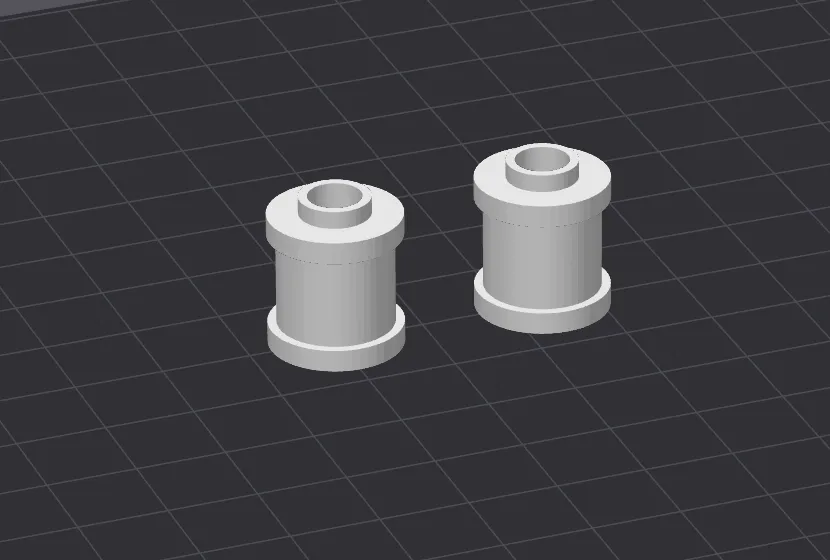

To insert the TPU bushings into the linkage, soak the bushing in 70-90 degree hot water for approx 5 minutes

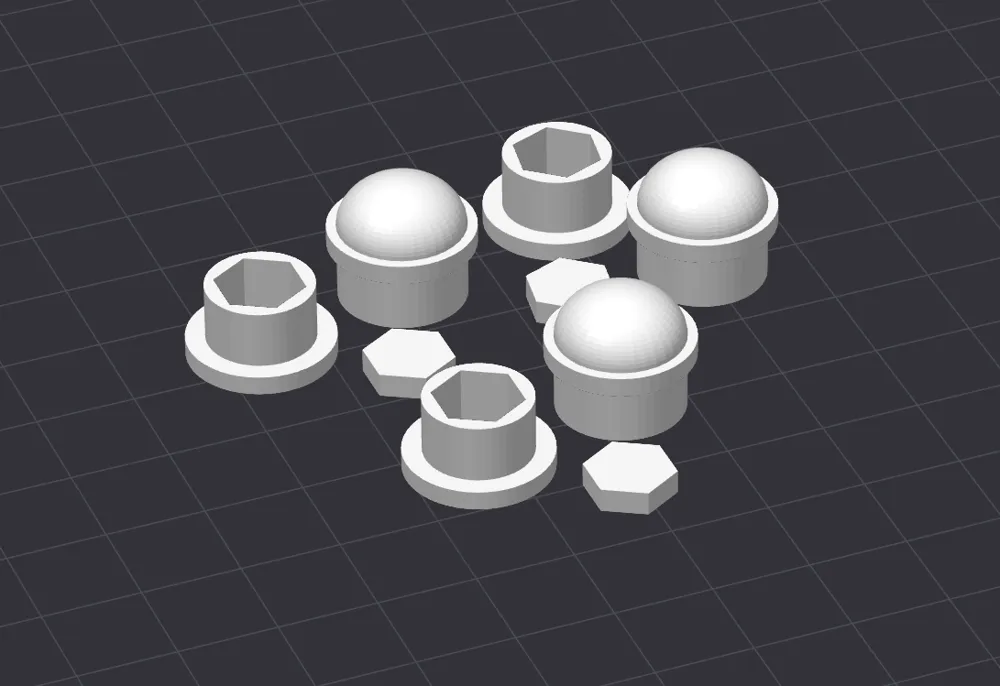

For a better fit of the screws or their holders, some superglue is recommended
