Window Drain Caps / Water Slot Caps
Print Profile(1)
Description
Over the years, old drainage caps on windows become porous or are lost due to weather conditions for example
The problem then is that rainwater can collect in the windows due to the missing cover and the consequences of this should be clear

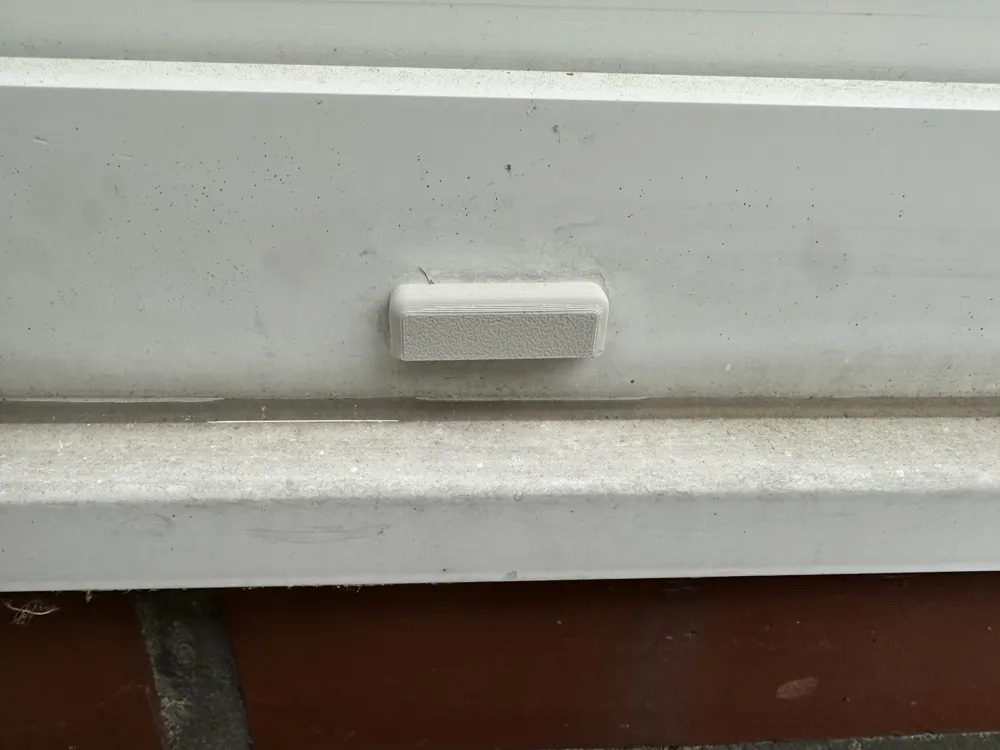

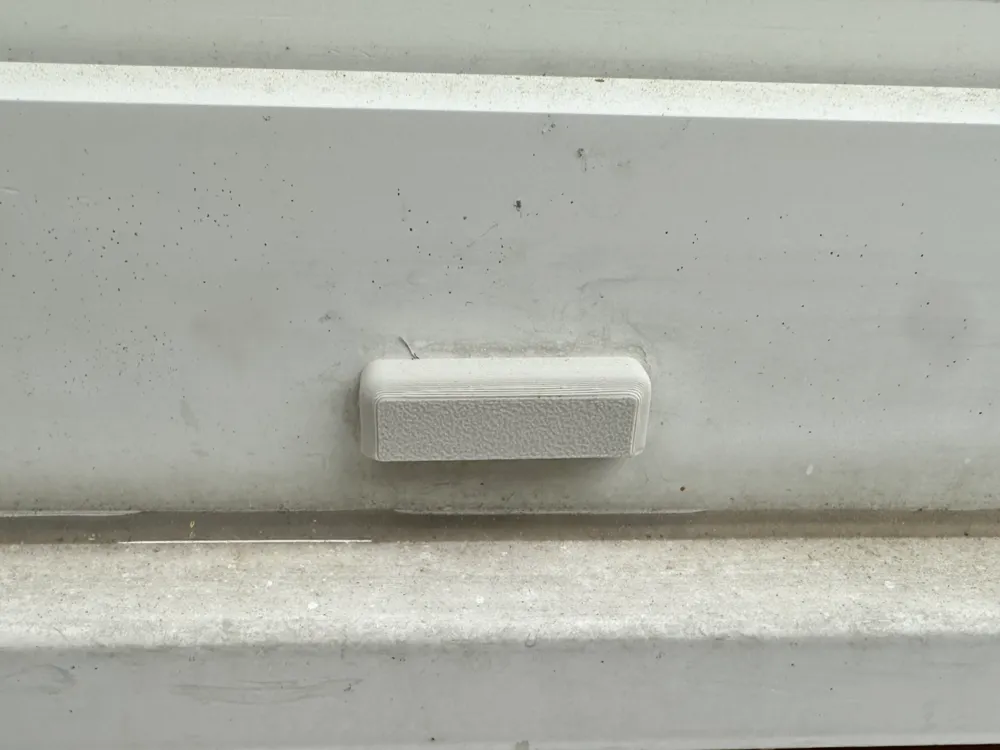

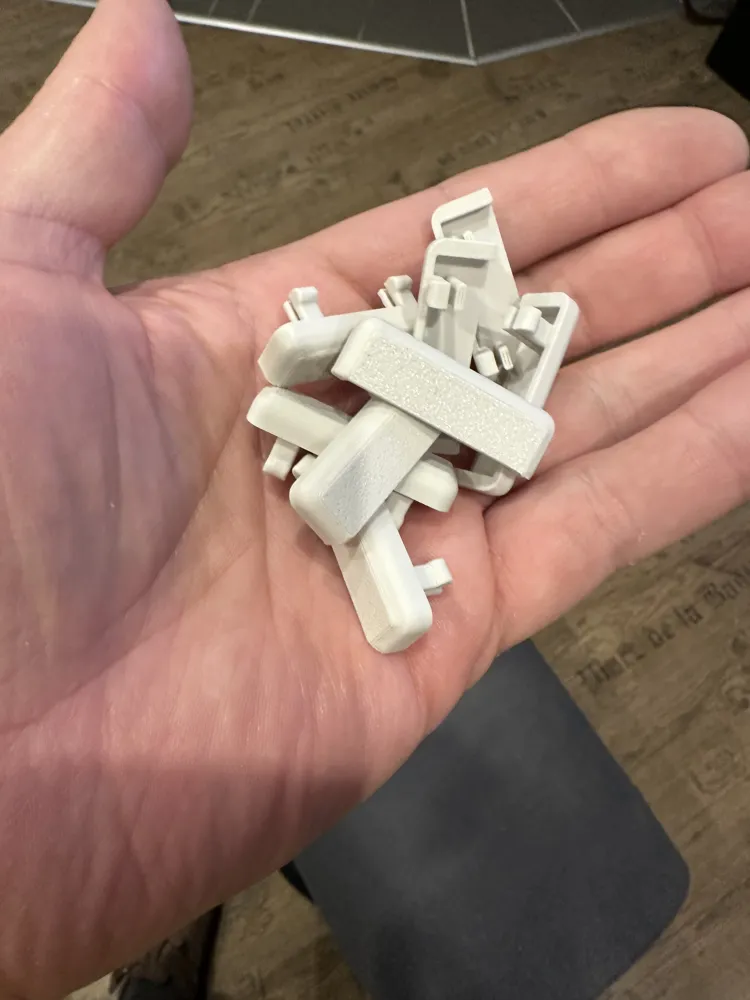

I have designed simple drainage caps here which can be printed quickly easily and cost-effectively
The drainage caps I designed here have a total width of 38mm
The drainage cap itself has the following dimensions
Length: 38mm
Width: 11.5mm
Height: 6.8mm
I use these drainage caps for window slots with dimensions of
Slot length: 27.2mm
Slot width: 5.2mm
My recommendation here for weather resistance is ABS ASA or better
