Creality 3D Scanner Handle | scanbridge Angle Adjustment Bracket

As you can see, 3D scanners can be very tiring to hold

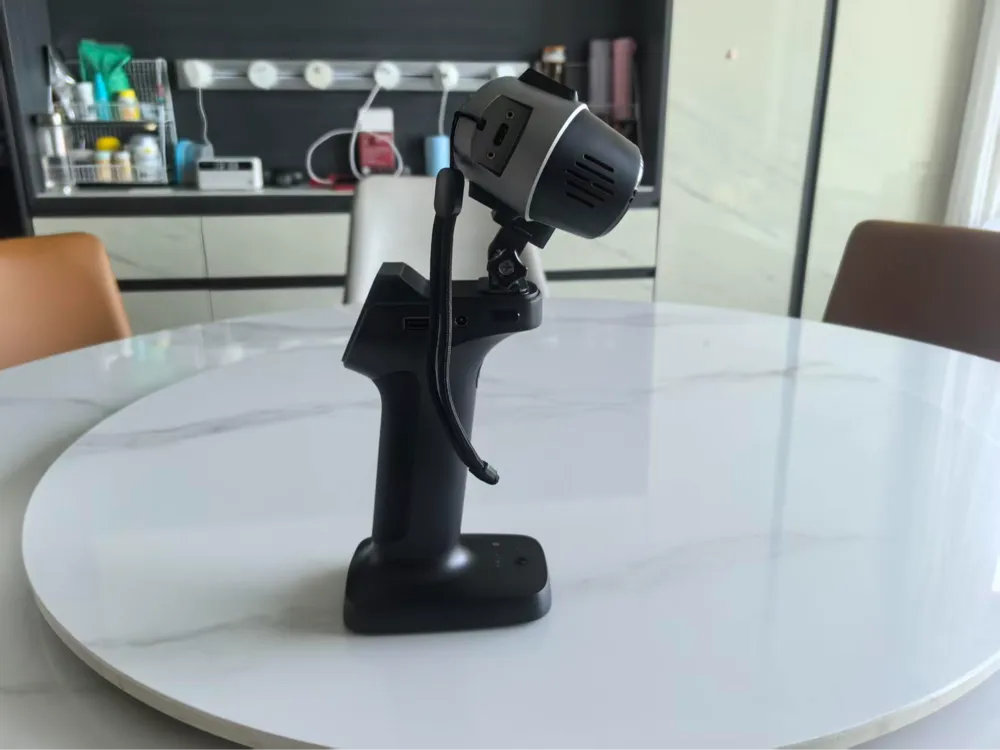

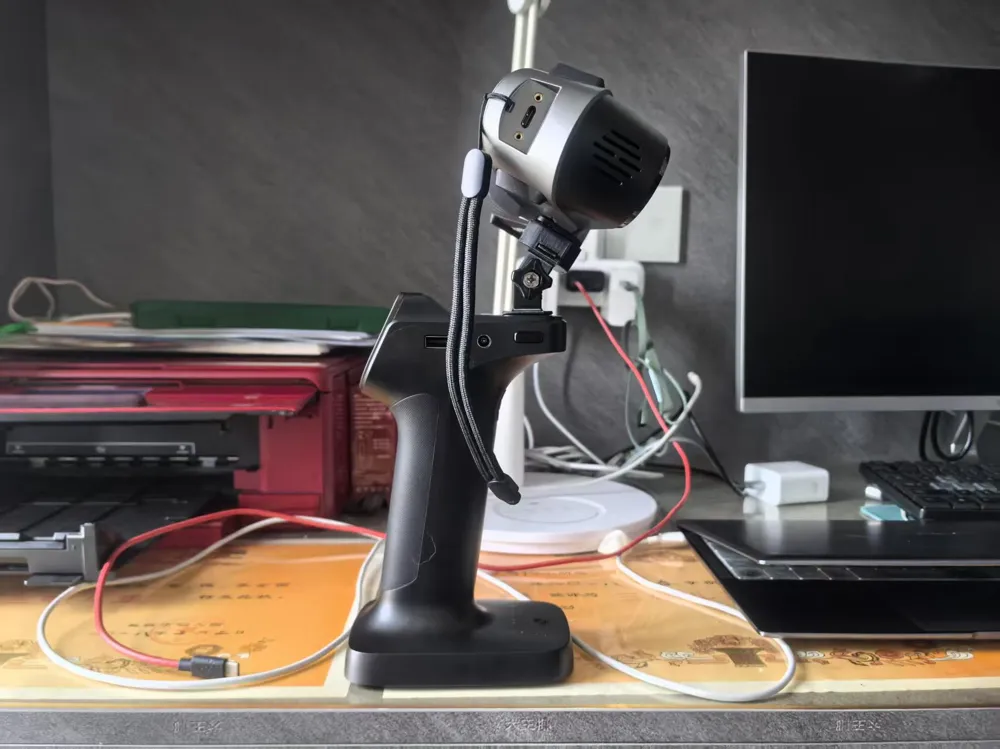

Due to the upward angle when the scanner handle is set down, you have to hold it up for a long time when scanning desktop items, which is very tiring

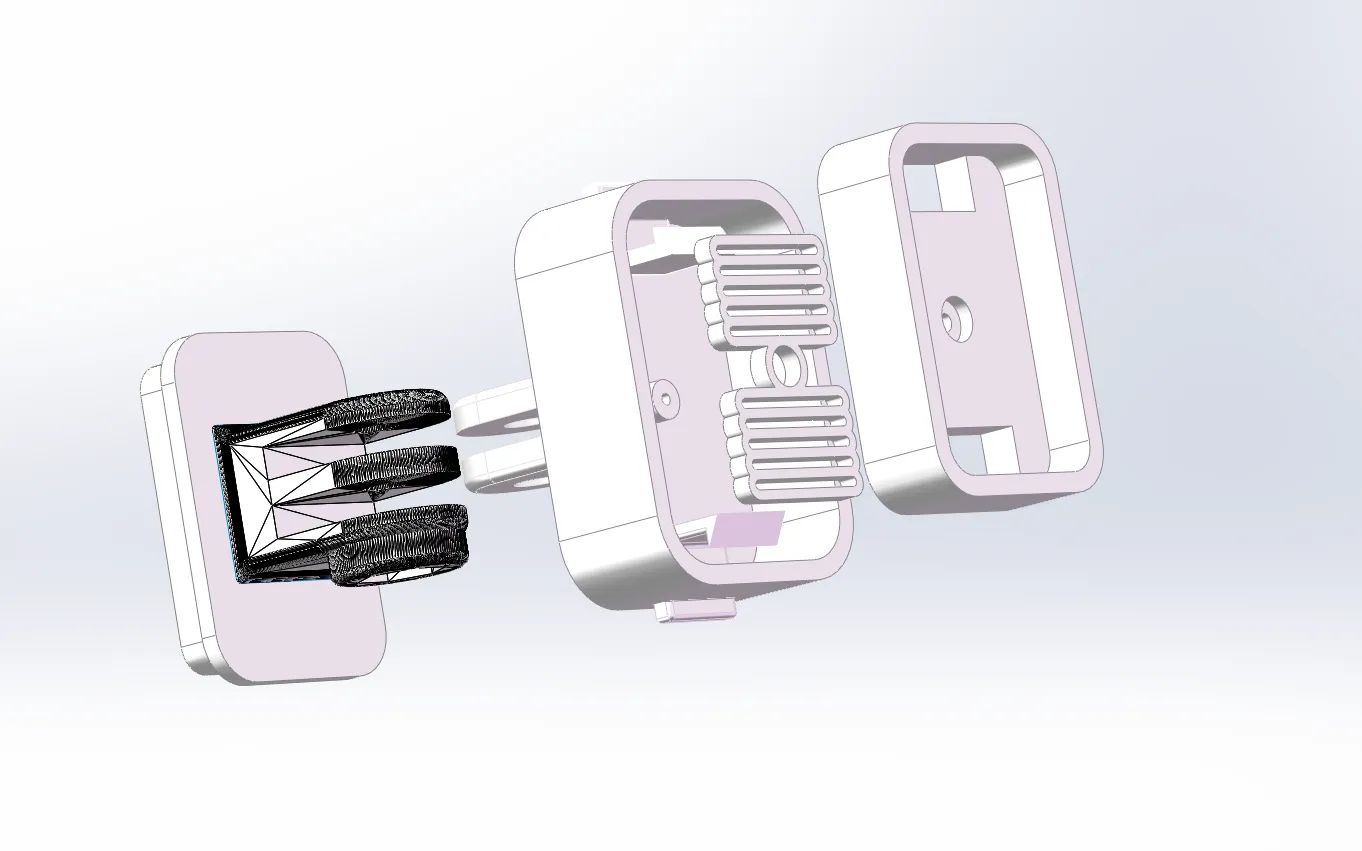

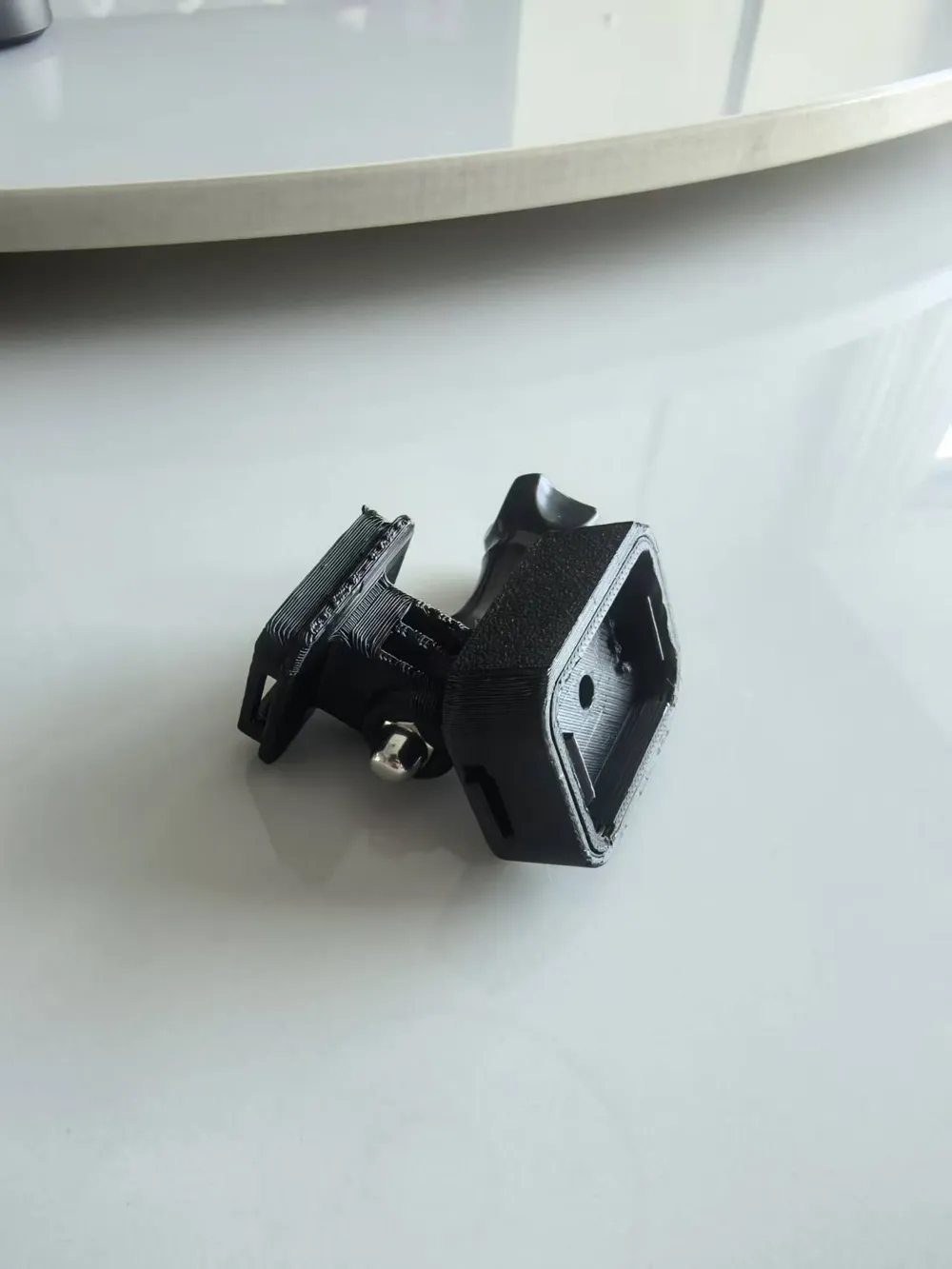

Therefore, I designed this stand, which does not alter the original stand's structure You can choose to use or not use this angled stand at any time

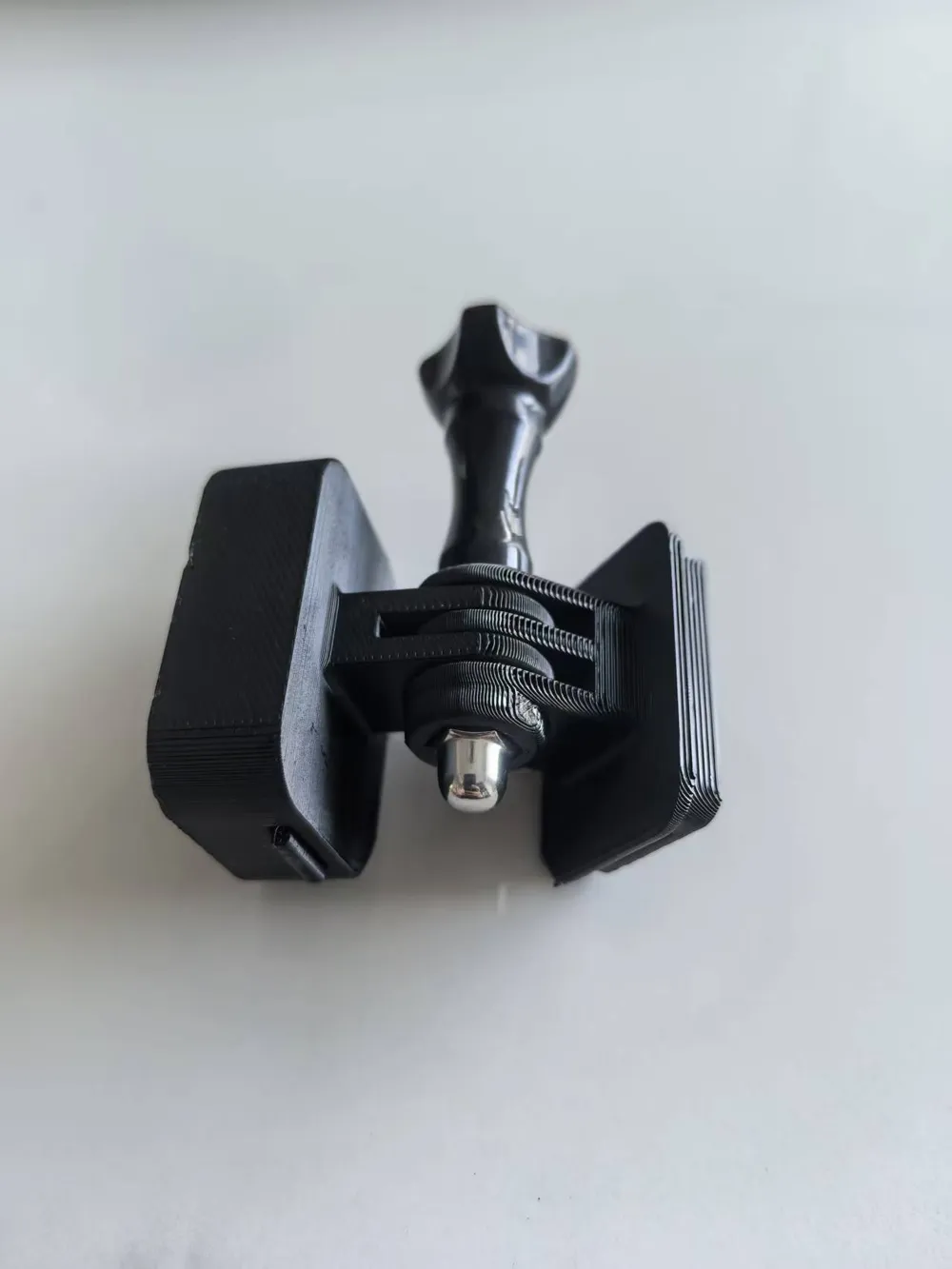

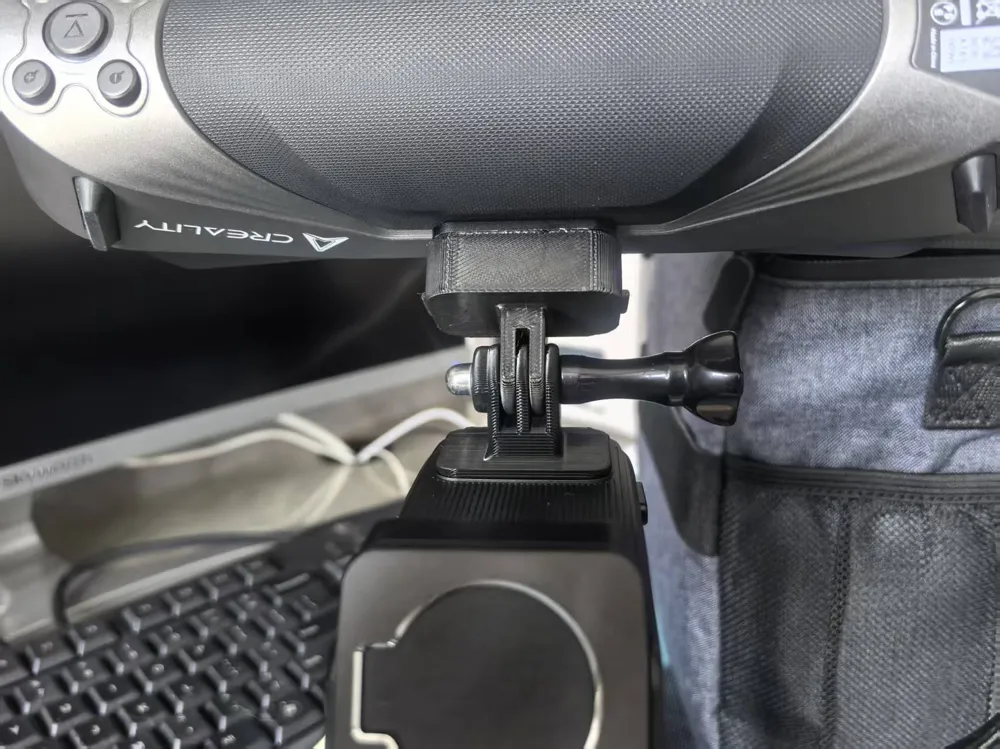

It uses action camera connectors, meaning that as long as your data and power cables are long enough, you can hang or mount your scanner just like an action camera

This greatly frees your hands during the 3D scanning process

Installation only requires one M2x5 self-tapping screw and one action camera mounting screw nut

For durability, the spring mechanism currently requires considerable force When disassembling, you can unclip one side at a time

I will continue to explore ways to optimize the spring, aiming for moderate elasticity while remaining sturdy and durable
