Eternal Decks MAGICAL board game organiser insert

A beautiful and unique insert for the board game Eternal Decks featuring the most magical card storage you've ever printed.

Supports premium sleeves (gamegenic matte tested).

NOTE: AMS users print the “NO PAUSES” profile. Non-AMS use the “WITH PAUSES” profile and it will pause the printer every time you need to change filament. There's only a few. Sorry to those AMS users that got in early and had a few pauses to hold them up briefly!

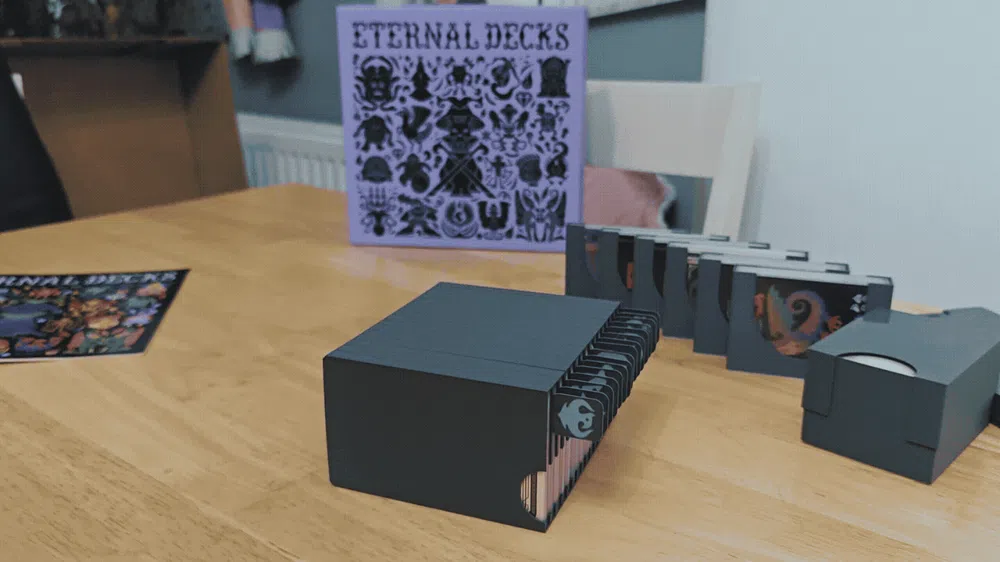

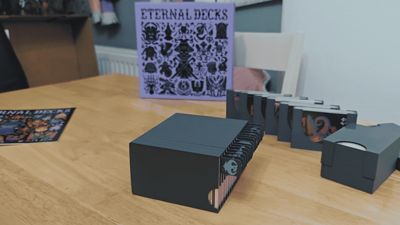

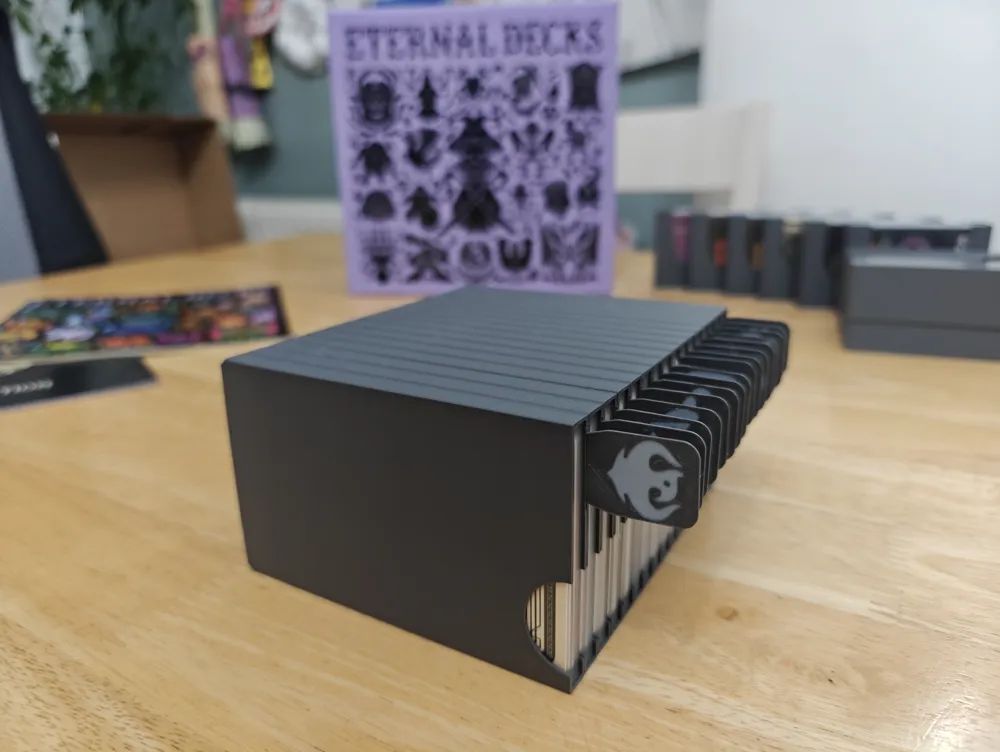

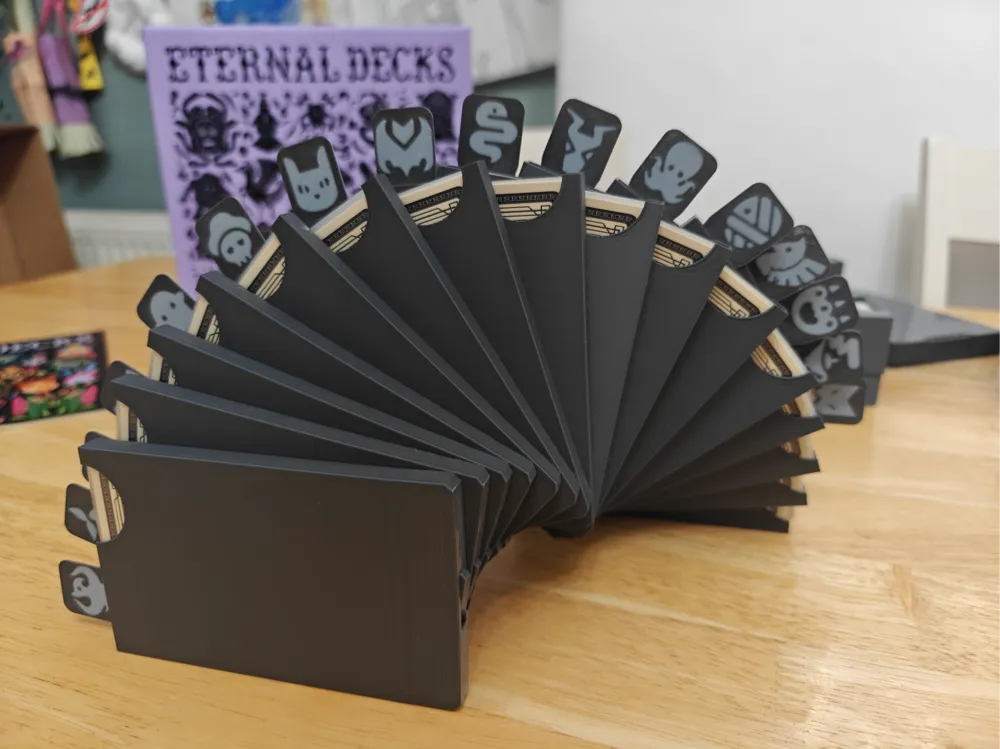

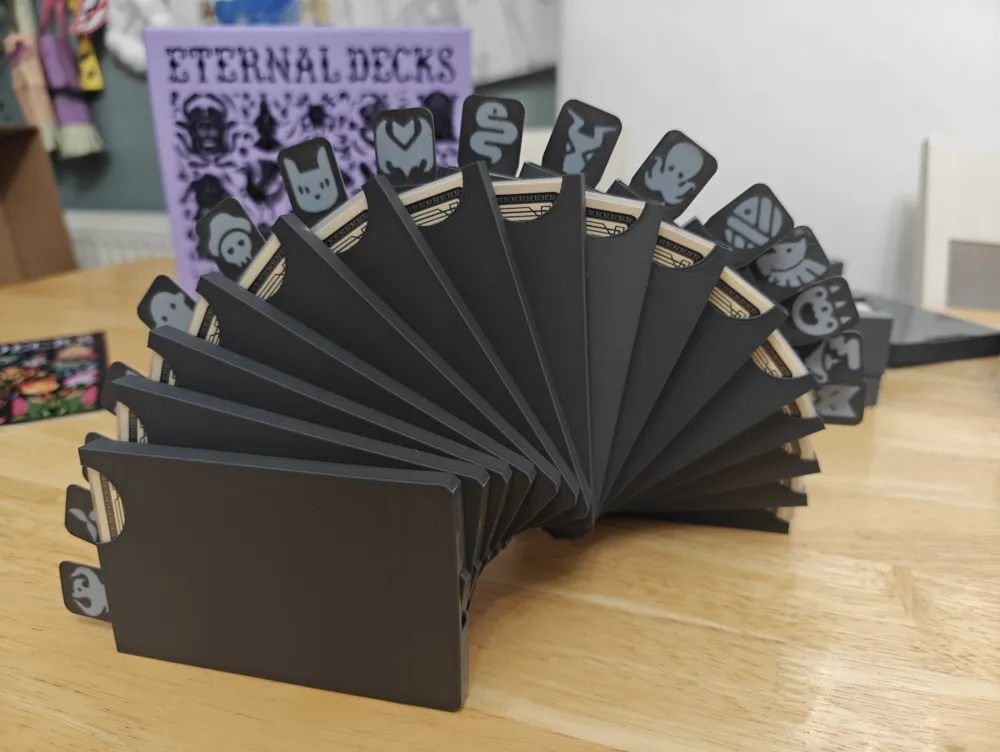

Just watch the gif of the card holders for the eternals' decks and then download the 3mf. It's as satisfying as it looks. You'll be please to hear that the hinged tray is print in place and requires zero assembly. DO NOT AUTO ARRANGE THE PLATE WITH THE HINGED TRAY! When the full assembly is printed you can “unstick” each hinge with a small twist - as long as you're twisting the right way it won't take too much force.

I printed the hinge with 15° movement on each tray and it opens a little far. I've edited this down to 14° for you (though I've included the original 15° as an extra plate if you want it - they should all be labelled clearly).

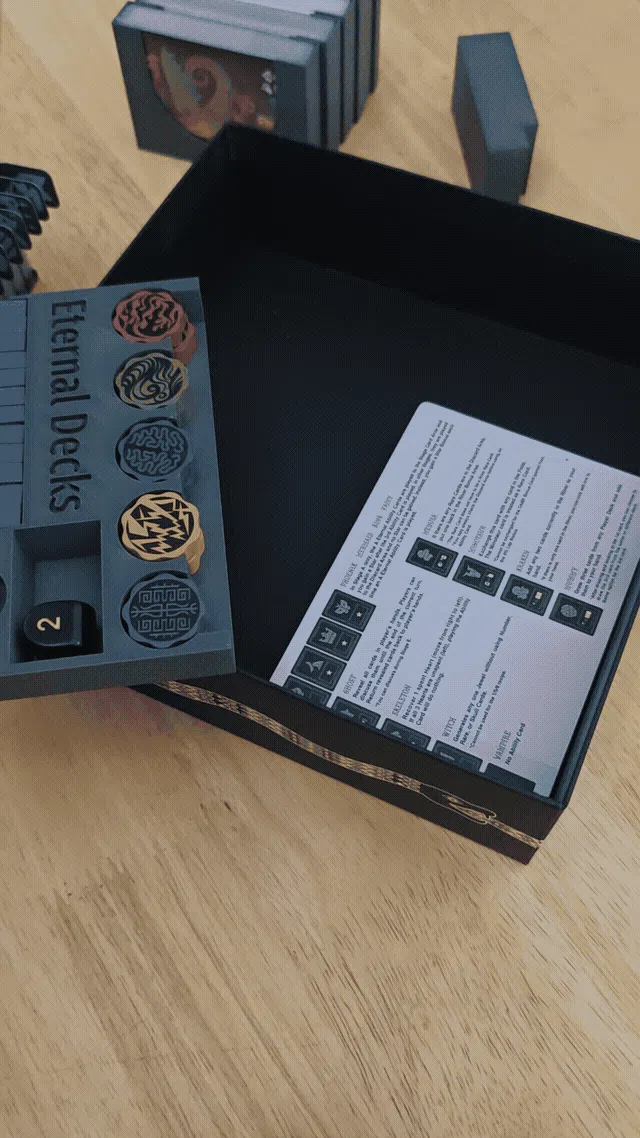

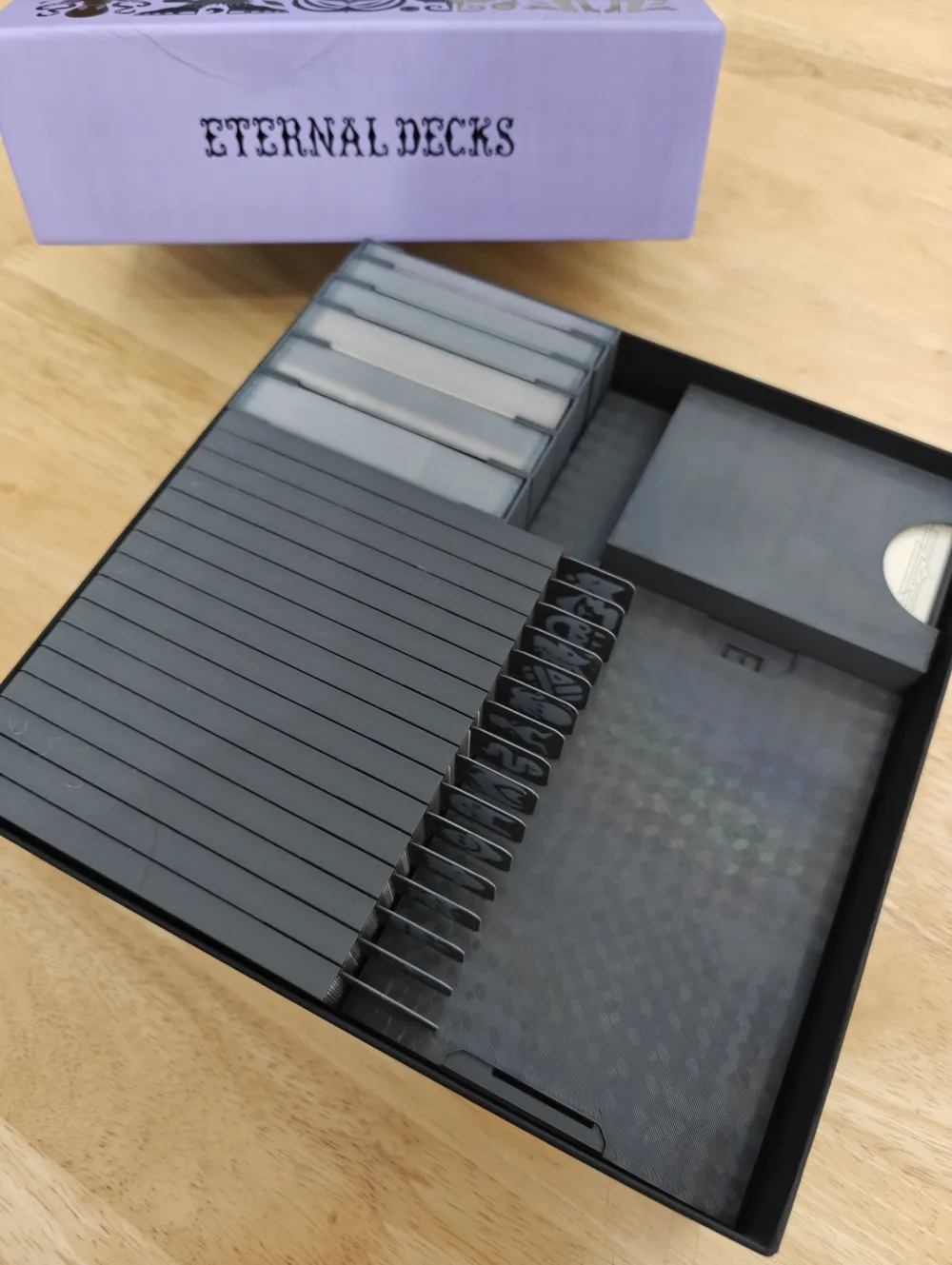

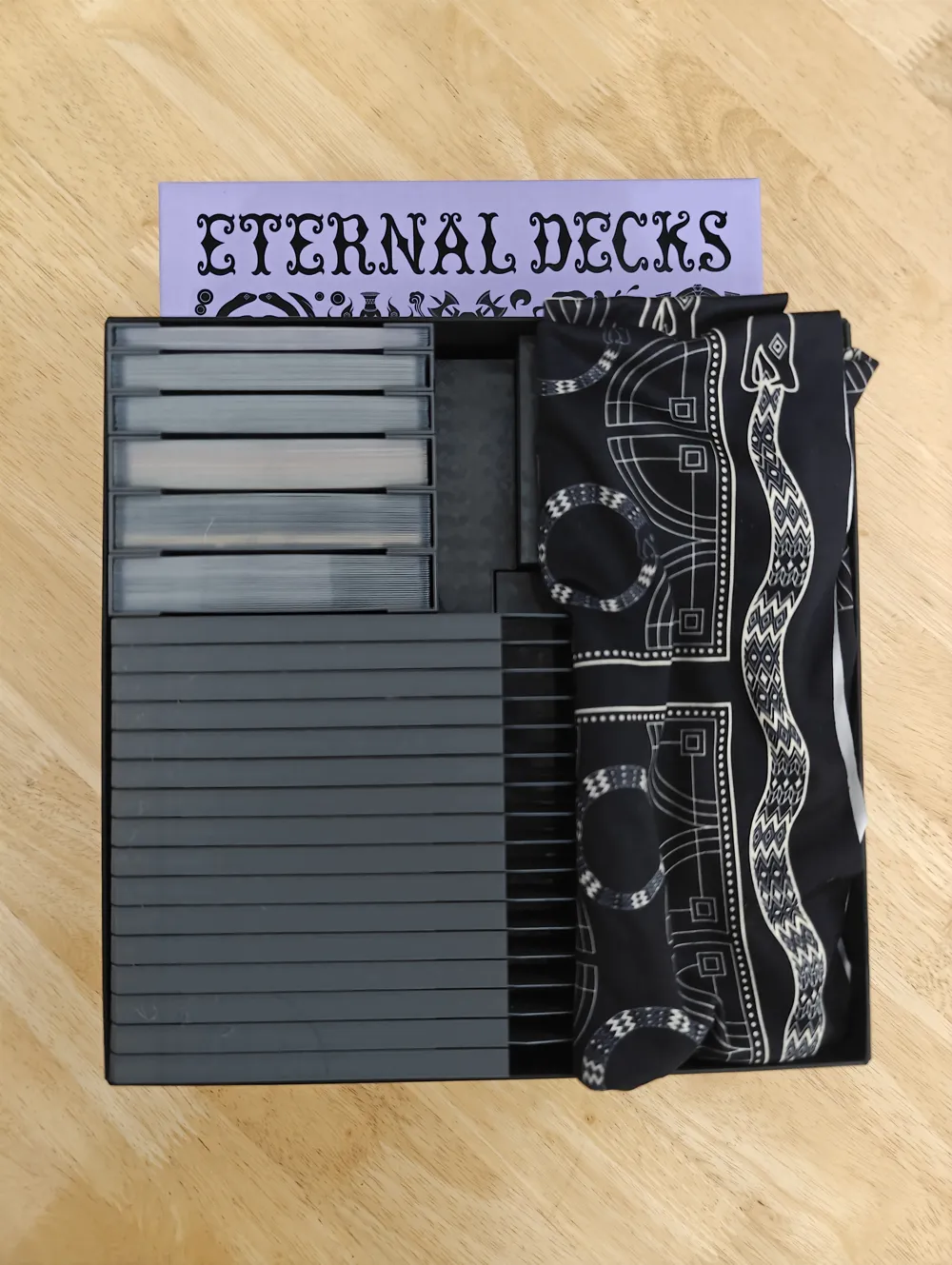

The other gif should show you everything you need to fit this into the box.

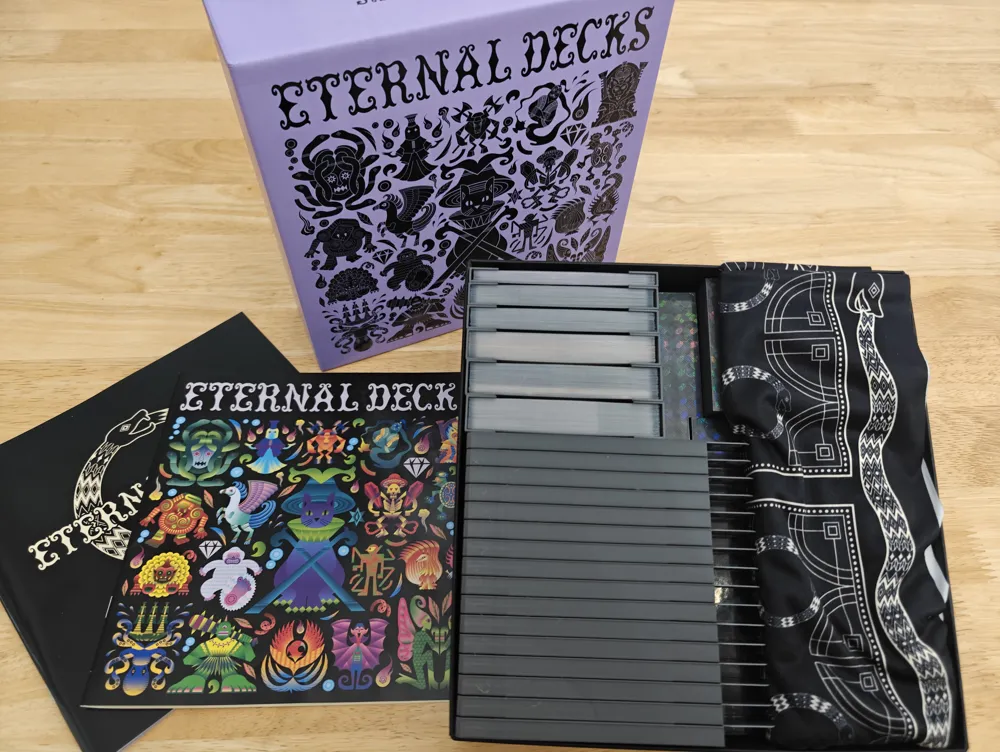

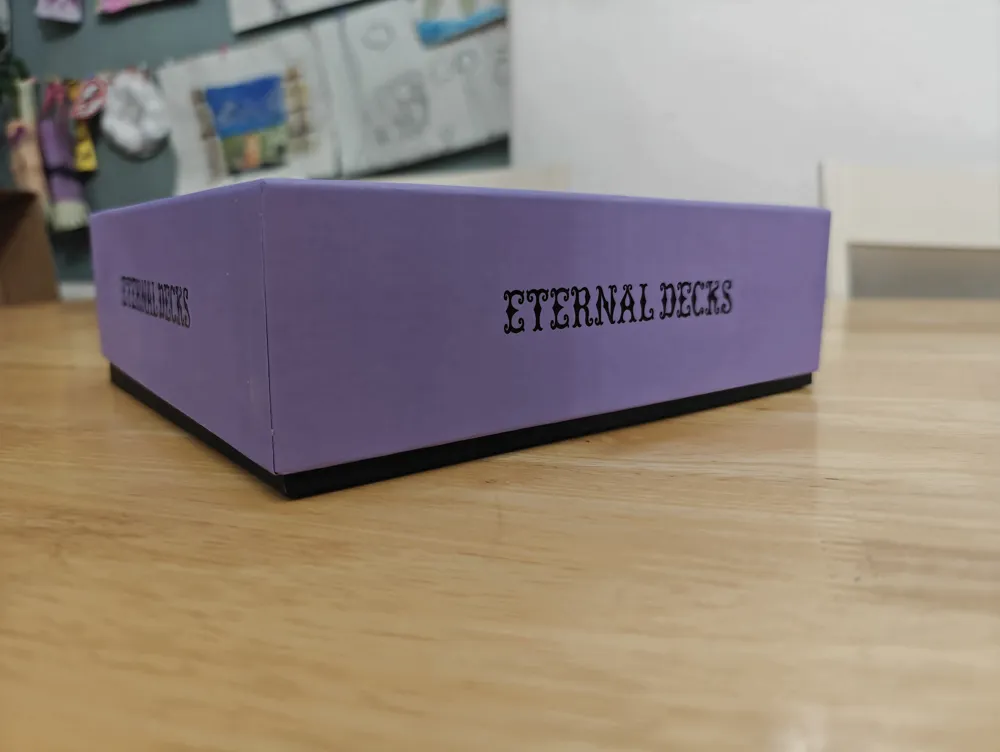

There will be a few mm of lid lift to fit the card trays in (see last image).

All colour changes are for whole layers so you can do this in 2 colour without an AMS by just pausing and swapping the filament. That's how I did it!

N.B. when pausing for swaps in the first few layers sometimes the printer will hang on the unload screen - you can start the load procedure through the bambu handy app (feed the filament in first) and then resume the print through the app too.

~~~V3 UPDATE: slots for gems and keys widened even further to address wooden component variability~~~

~~~V2 UPDATE: Slot for diamond/gem tokens widened by a little over 1mm to address wooden component variability~~~

 ~~I've updated the main print profile and posted an alternate profile with just the replacement tray. ~~

 ~~This should be an improvement for those with larger tokens without changing the functionality for those with slimmer tokens. ~~

~~~Dragons Sleeves Update~~~

 ~~Print profile 3 features a modified insert for the gargantuan dragon sleeves.~~

 ~~This giant version won't be needed for most people, but if you do need it now it is there :)~~

Please comment or message me if you need anything tweaking. I'm happy to help. Also don't forget to give some stars to the print profile that you used!

Note that there are also experimental 13 degree and 12 degree versions of the fanning card holder for those whose print tolerances are more different to mine. Let me know how they go and I can review which version should be the default if needed (though many have printed the current default with no concerns - so don't worry!).
