Infity Car Box 1:64
Print Profile(4)
Description
Important: This is a digital product. You are purchasing the high-precision 3D design files (STL) to 3D print and build your own infinity mirror display. Physical components, mirrors, and cars are not included.

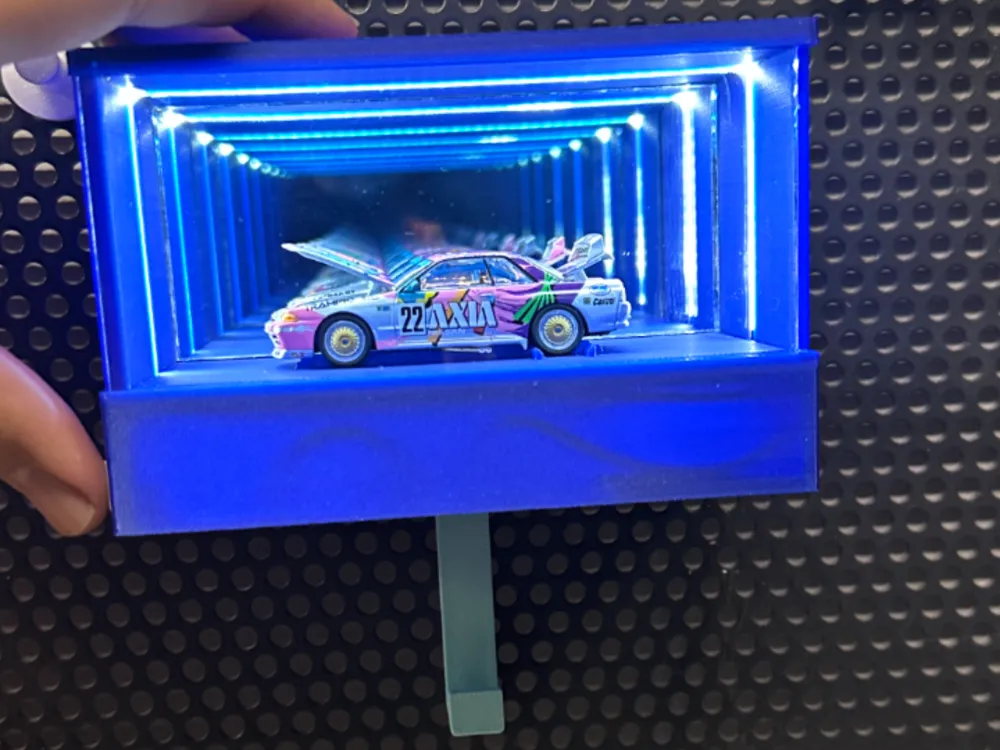

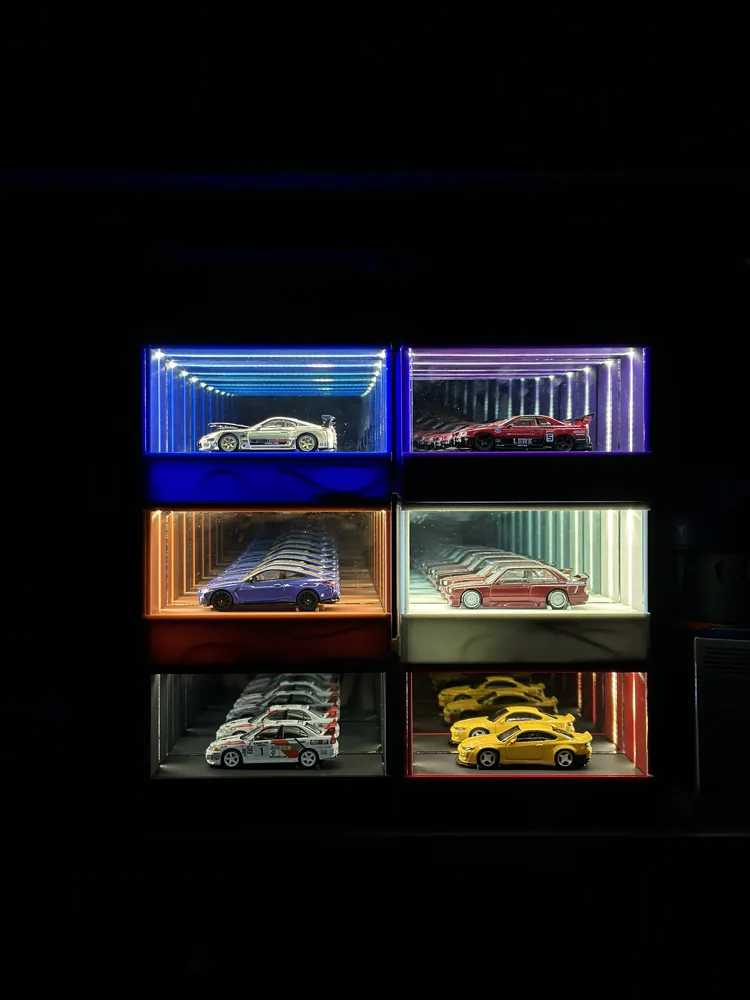

Elevate your collection (STH, RLC, or Premium models) from a static shelf to a masterpiece. The Infinity Drive Pro uses advanced optical illusions to place your 1:64 scale vehicles in the center of a seamless, infinite neon tunnel.
Bill of Materials (BOM) - Required Parts
The chassis is engineered specifically for the following components. Please ensure you have these to complete the build:

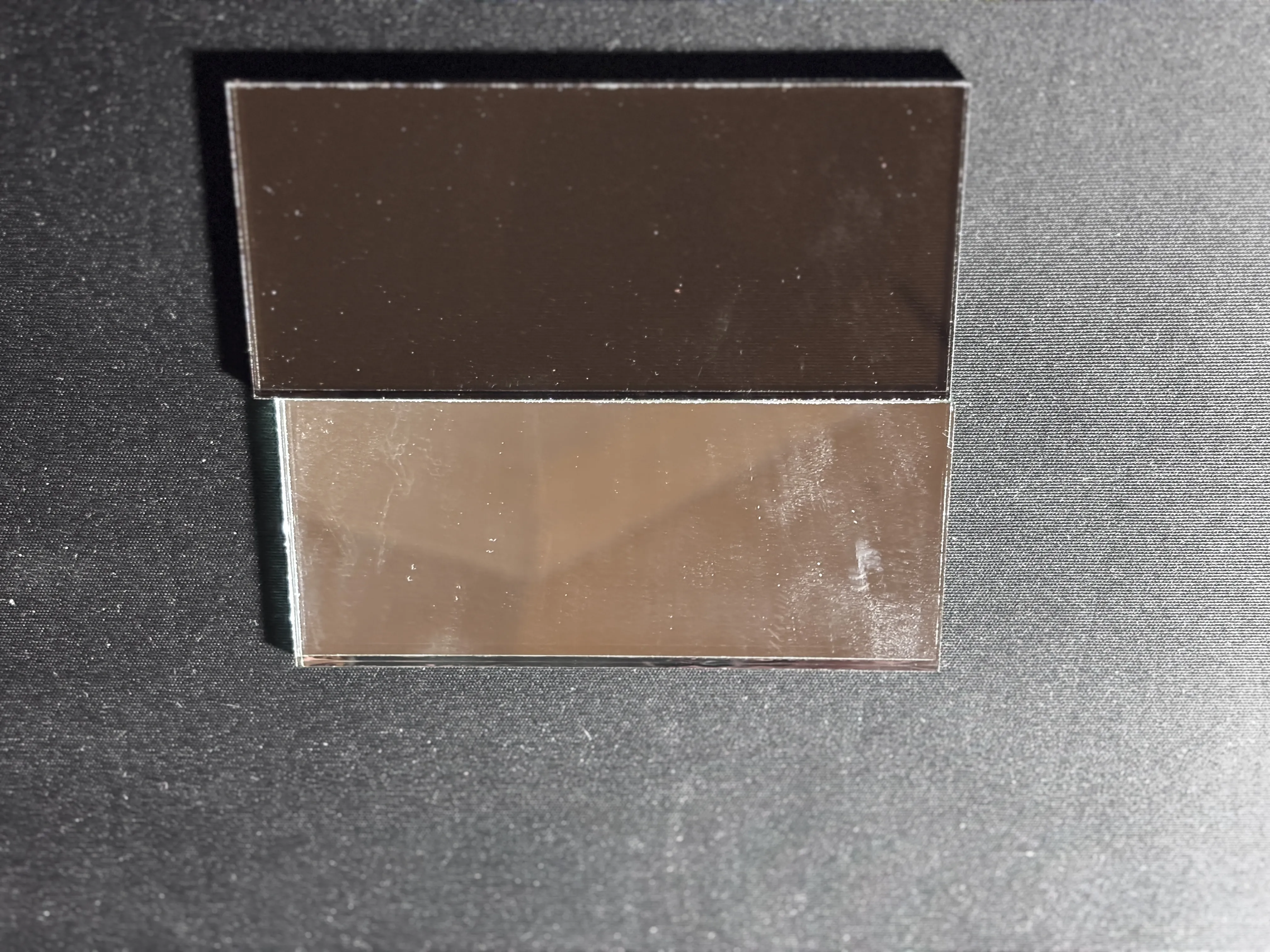

- Optical Panels (Exact Dimensions) The slots in the 3D design are millimetric. You will need:
Rear Panel (Standard Mirror): 117 x 52 x 4 mm (Glass or acrylic mirror).
Front Panel (One-Way / Coated Glass): 123 x 54 x 4 mm (Half-silvered mirror or glass with 1-way film).
- Lighting & Electronics For that "pro-grade" seamless look and safe operation:

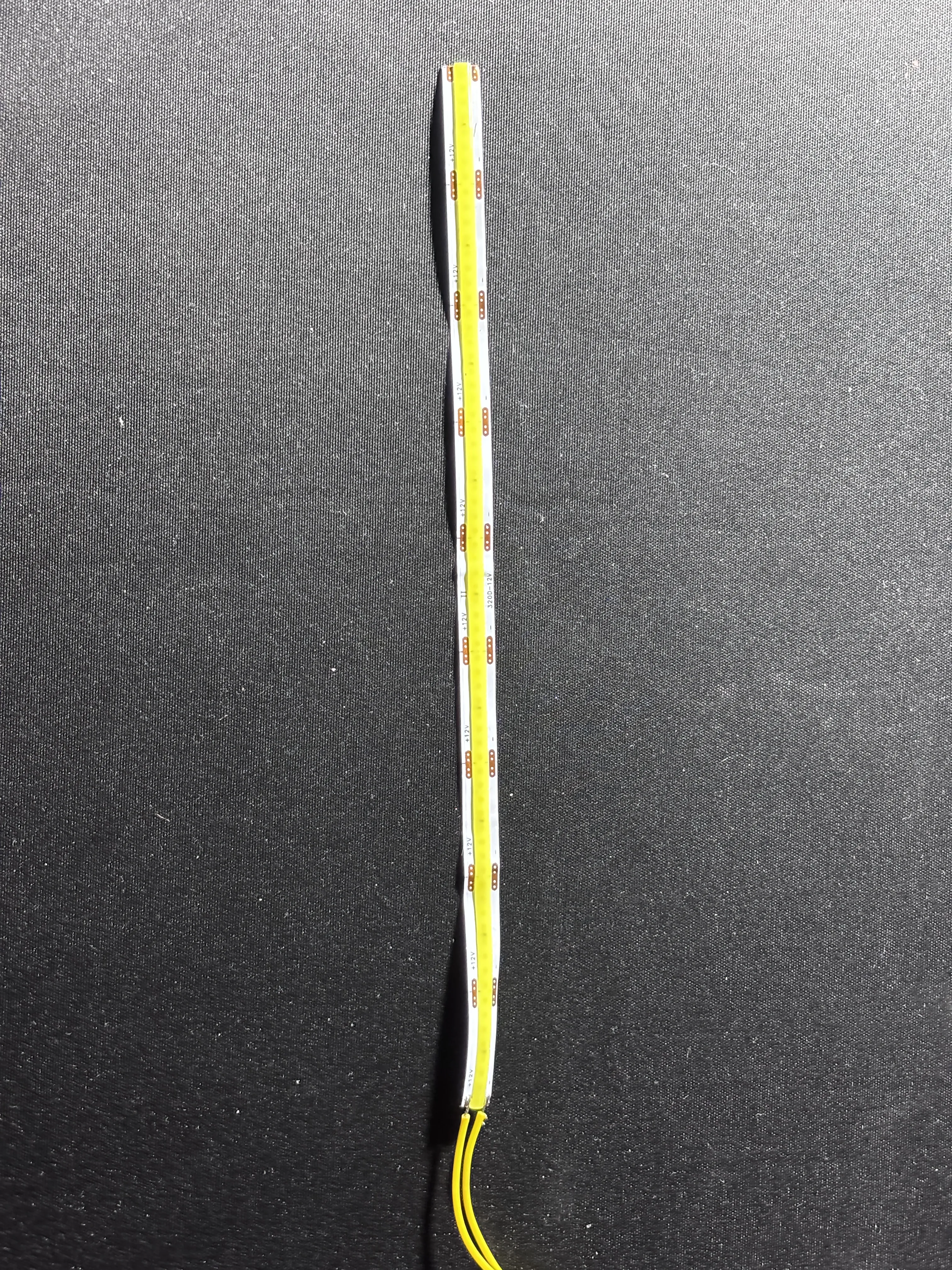

COB LED Strip: High-density COB LED is required for a continuous light line (no visible dots).

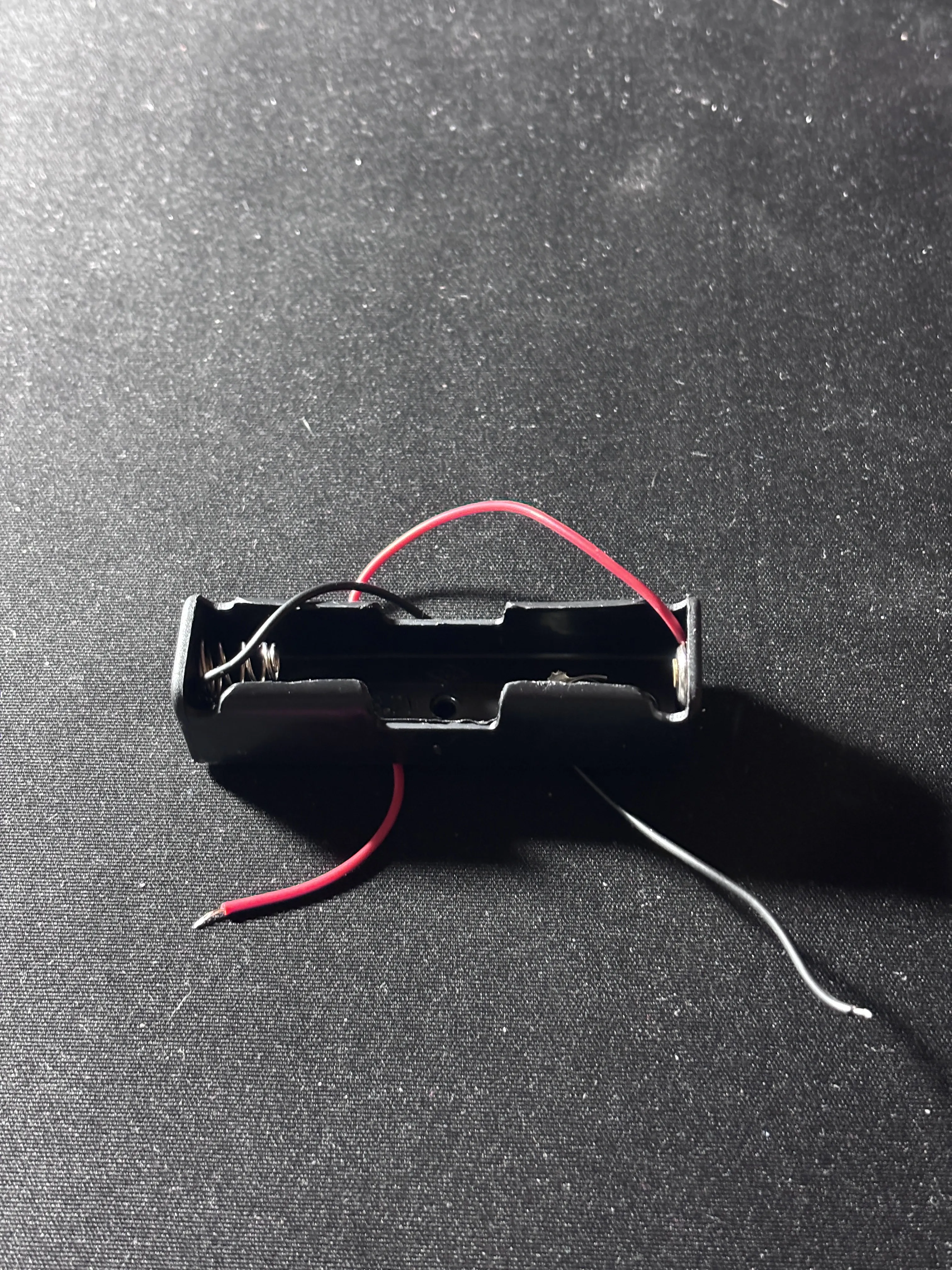

18650 Battery Holder: Fits 1x 18650 Li-ion cell for portable power.

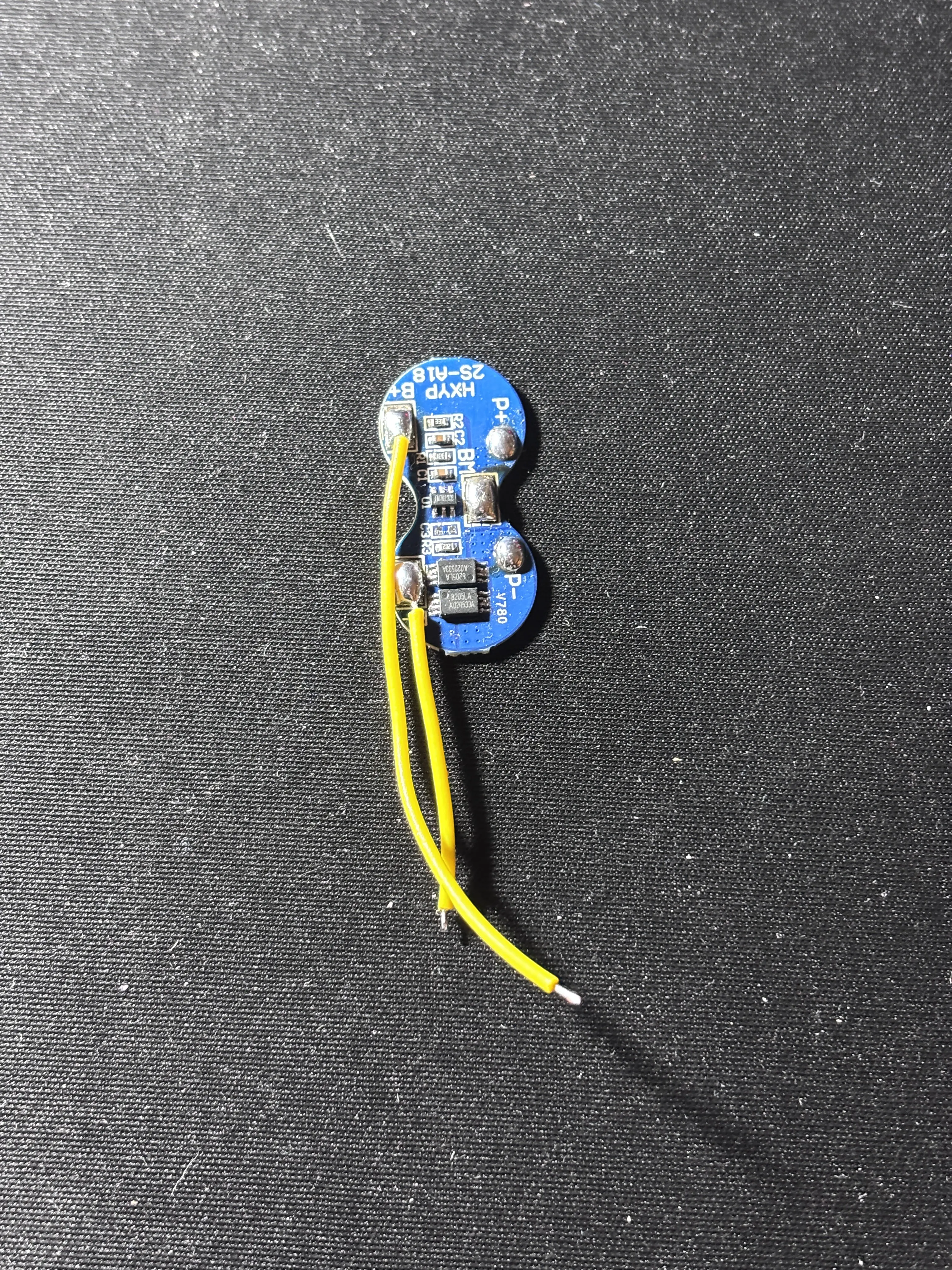

2S BMS (Battery Management System): Integrated protection for safe charging and discharging.

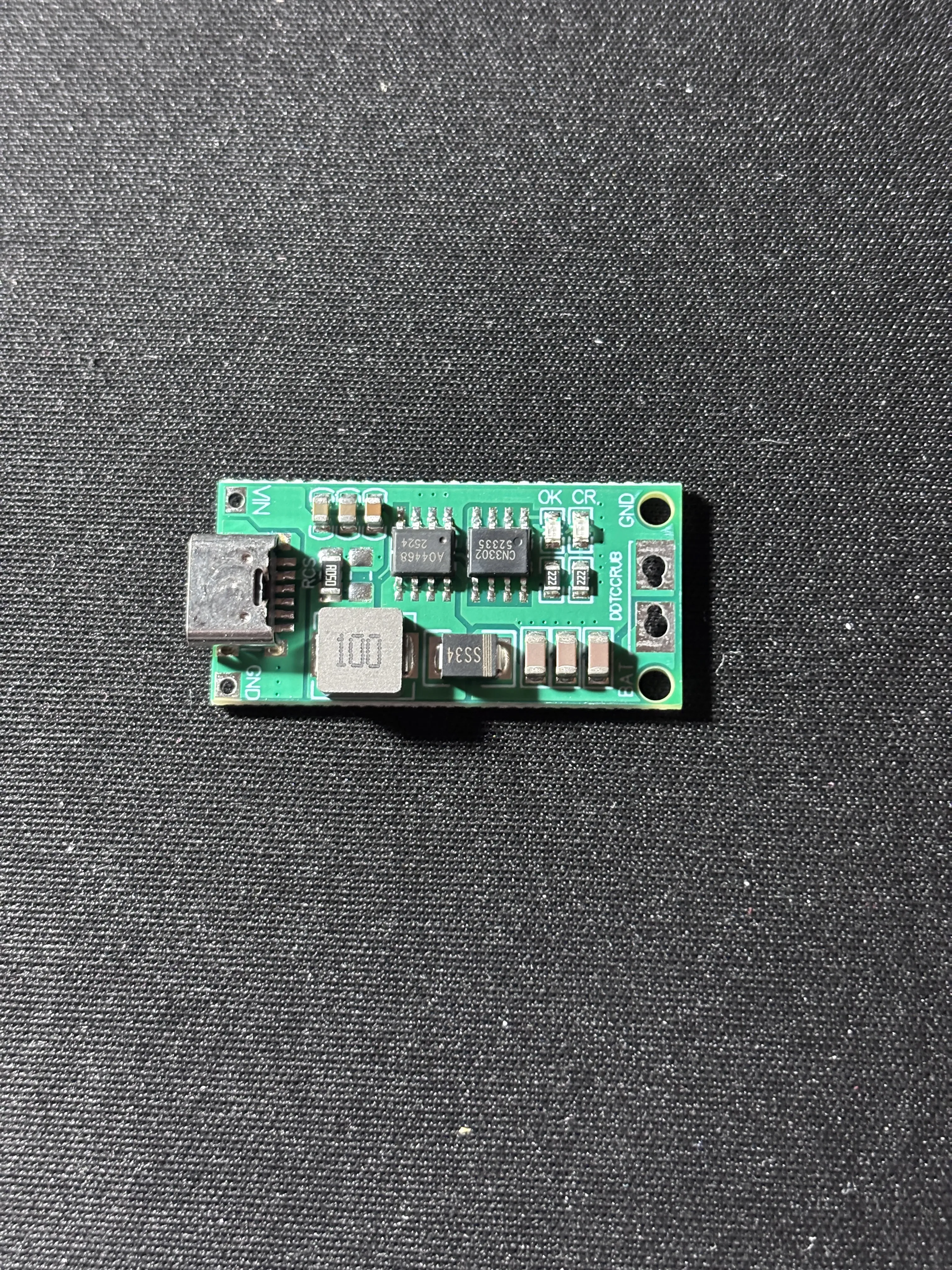

USB-C Charging & Step-Up Module: For Type-C charging and maintaining a stable voltage for the LEDs.

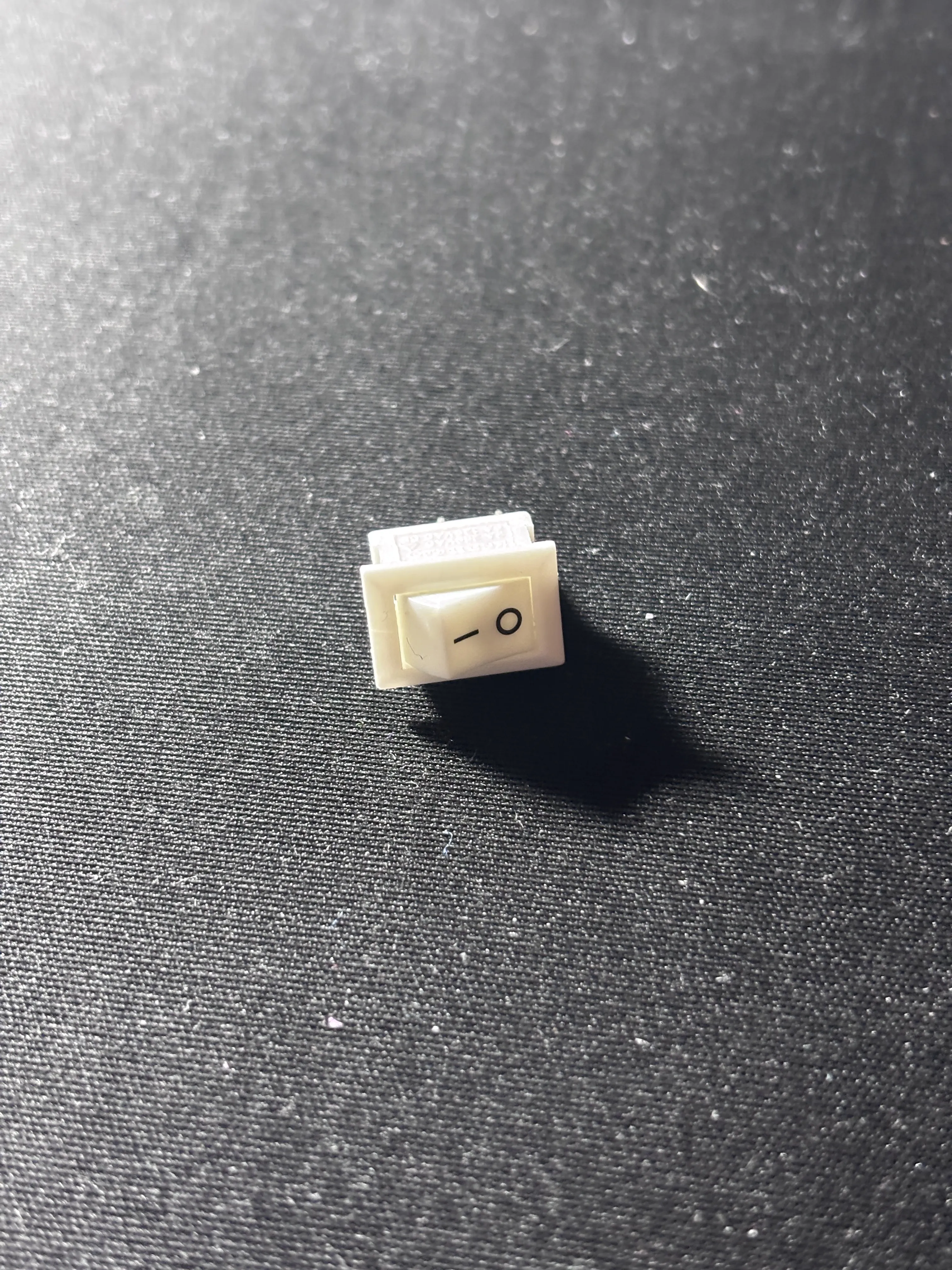

Mini Rocker Switch: Physical I/O switch for power control.
Design Features

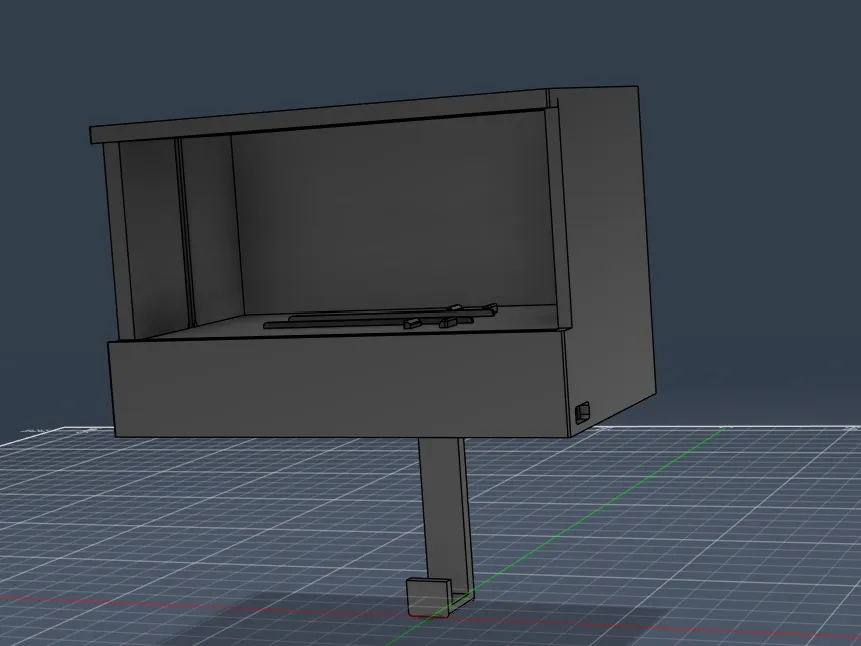

Engineering Precision: Designed with a background in Power Electronics; the internal housing includes cable management channels to hide all wiring.
Optimized Optics: The distance between the 117mm and 123mm panels is mathematically calculated to maximize the "depth" effect for 1:64 scale perspective.
Printability: Optimized for both FDM and Resin printers. Minimal supports are needed for a clean finish.

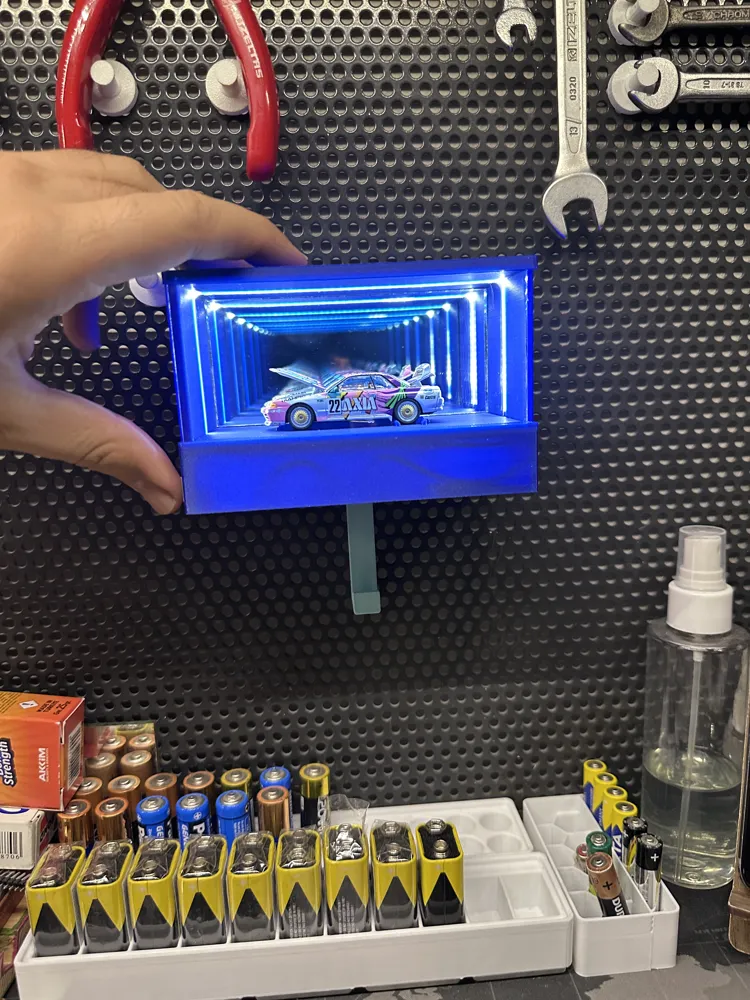

Toolbox-Ready: The base is sturdy and fits perfectly on workbenches, shelves, or desks.
What’s Included in the Download?
High-resolution STL Files (Main Body, Cover, and Internal Brackets).
Component Placement Guide.
Recommended Slicing Settings (Infill, Walls, and Layer Height).
Note to Collectors: This design is a "labor of love" for the die-cast community. Whether you're showcasing a rare Super Treasure Hunt or a custom build, the Infinity Case ensures it’s the most eye-catching piece in your room.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
