Sunderland EPL Football LED Light Box

IMPORTANT

Before printing, you will need to resize the faceplate to 95% (dimensions should be 245.1 x 245.1 x 4.75)
When you resize, your first slice may result in the purge tower overlaying the faceplate. Go back to the prepare tab, then move the tower into the bottom right and slice again to ensure a clean print.

All soccer team boxes were printed with faceplate @ 95%, rear plate at 100% (245.1 x 245.1 x 39.69)

I design light boxes to be as large as possible on X, P and A series. MakerWorld's recent update regarding lesser margin of errors means that some of my lightboxes with tighter dimensions cannot be uploaded in their native dimensions.

Description

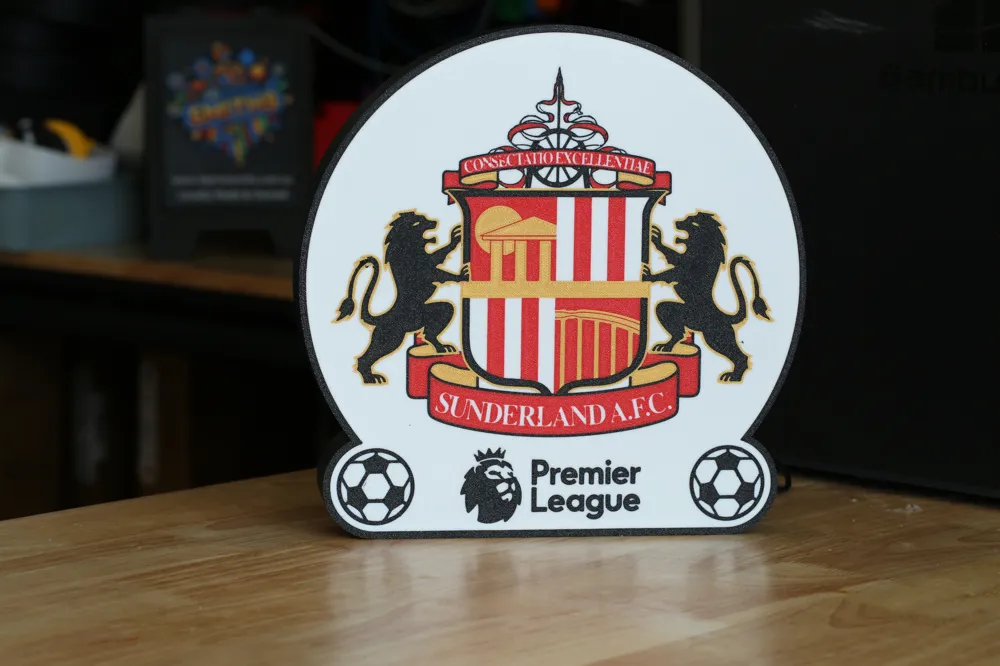

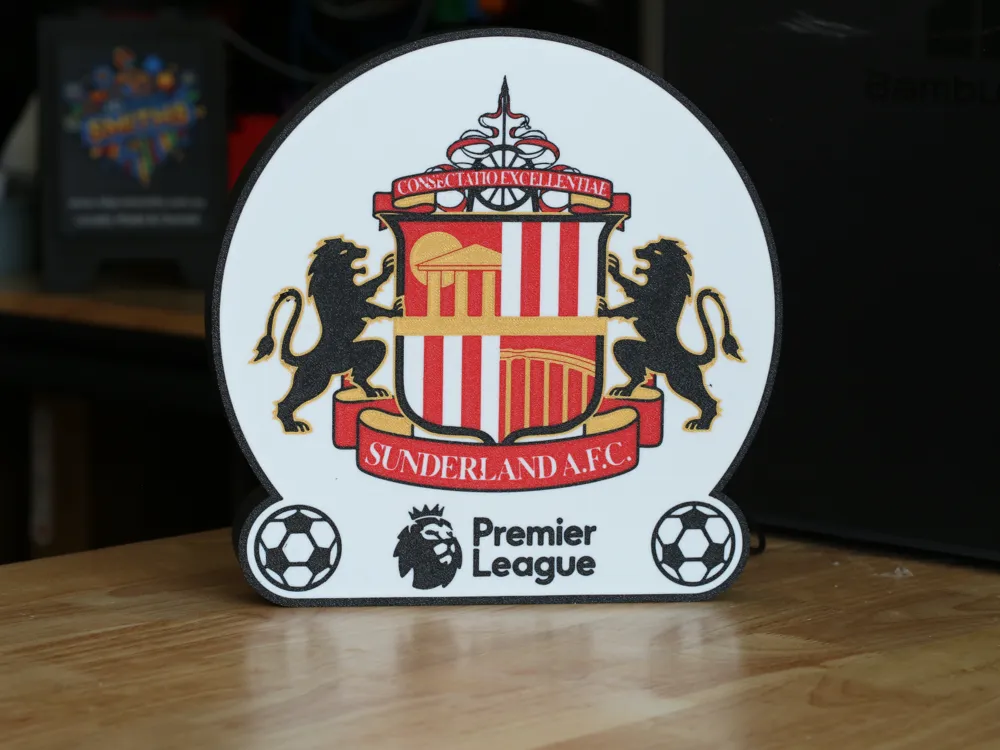

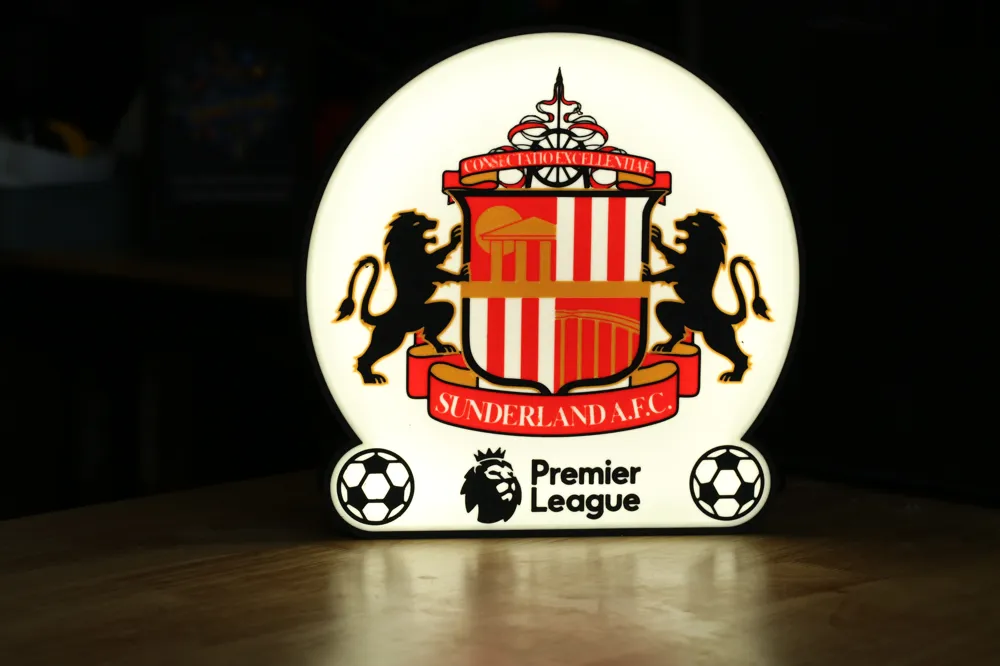

Bring the Sunderland A.F.C. badge to life with this clean, high-contrast LED light box. Designed for display in a home setup, office, or fan space, it delivers sharp detail with an even glow across the front plate.

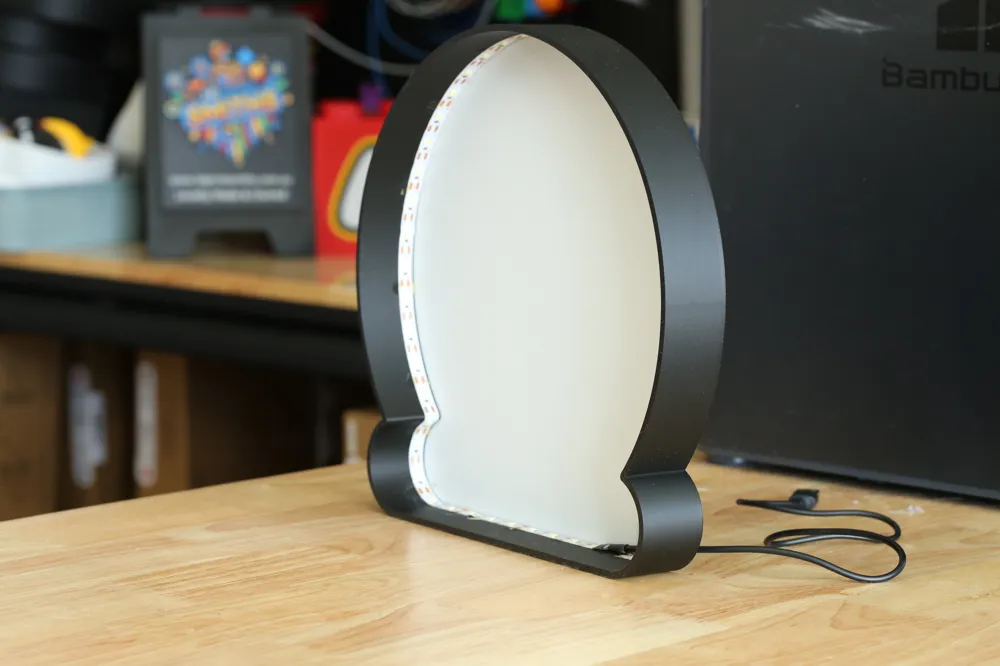

A dedicated channel is built in to suit a standard LED strip, with the internal layout designed for simple wiring and hassle-free installation. The backplate is designed to eliminate pinch points, making assembly as straightforward as possible. For best results, position your LED strip close to the rear panel to improve light diffusion and reduce hotspots.

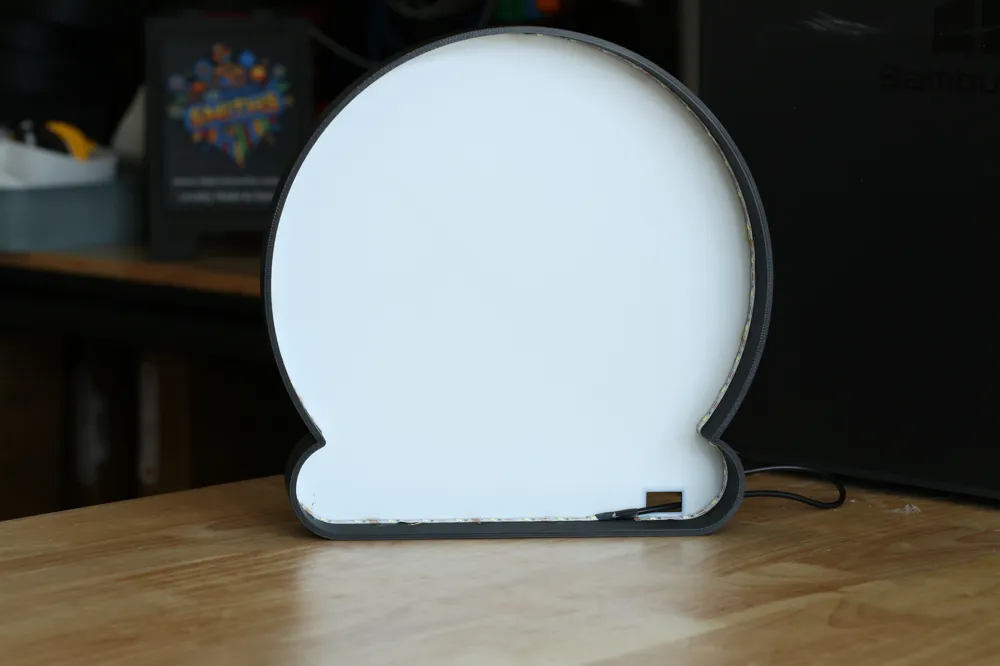

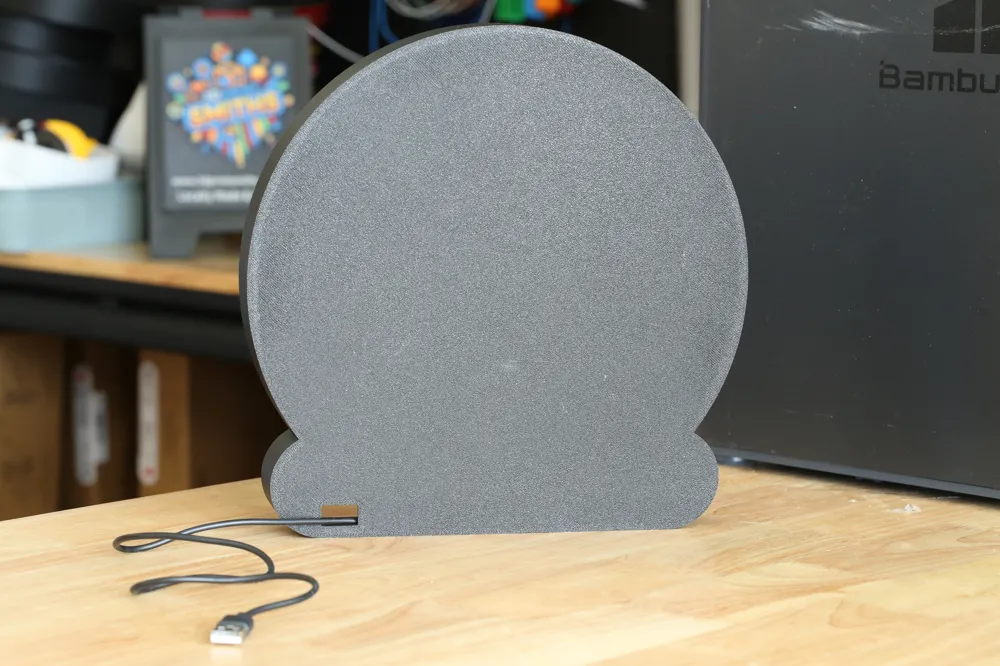

The rear plate is 2mm thick for added strength, while the internal surfaces are white to maximise brightness and consistency across the design. If you prefer a single-colour rear plate, select the backplate in Bambu Studio, press “N” to enter painting mode, and use “Erase All Painting” to reset it.

These light boxes were designed in Fusion and broken into individual components rather than colour layers, allowing for maximum customisation and flexibility when printing.

This model is designed to make the most of the available build volume on Bambu Lab X1 and P series printers, giving you the largest possible display without needing to scale.

All EPL light boxes in this series use the same rear box and stand design, as requested by my Patreon members. This allows you to print multiple front plates and swap them out without reprinting the back. See the Patreon link below for more details.

All EPL Lightboxes:
https://makerworld.com/en/collections/16577692-english-premier-league

Details:
• Sunderland badge design
• Standard LED strip channel built in
• Internal layout designed for easy wiring
• Reinforced 2mm rear plate
• White internal surfaces for improved light diffusion
• Optimised print profile for clean colour transitions

Design Notes
All files are uploaded exactly as printed unless specified otherwise in project description (normally under a bold, red IMPORTANT). Some designs use different scaling (e.g. drinks lightbox series: front plate 90%, back plate 100%). If resizing, double-check your scale before printing.

All designs are created in Autodesk Fusion. Colours are separated in the Objects tab of Bambu Studio, so you can easily recolour if needed (e.g. single AMS setups).
