Summary

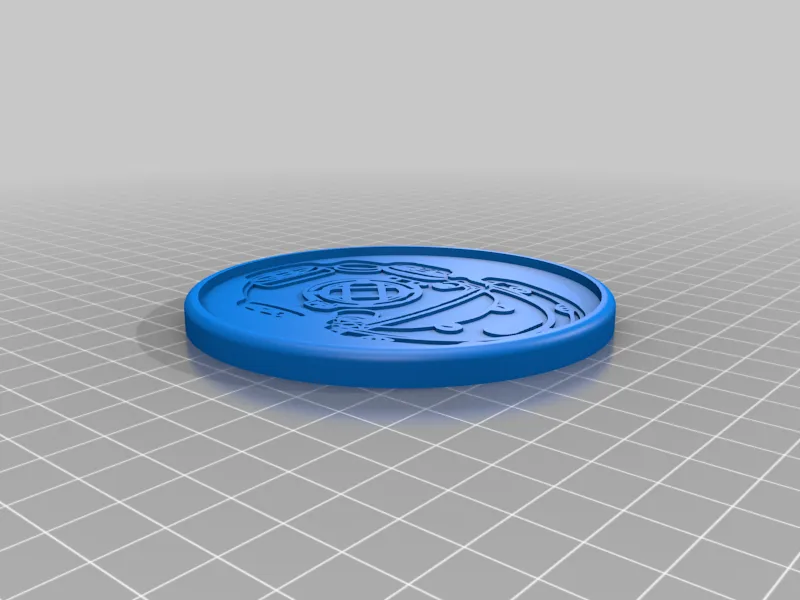

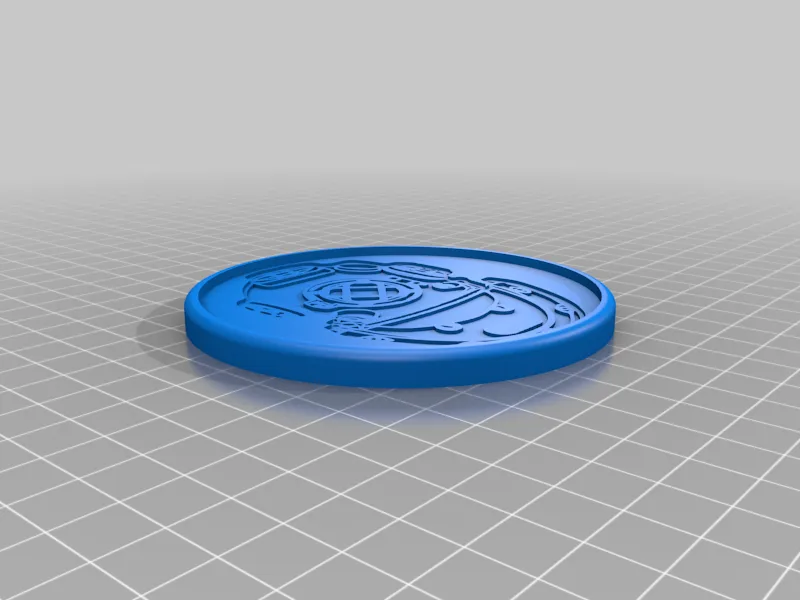

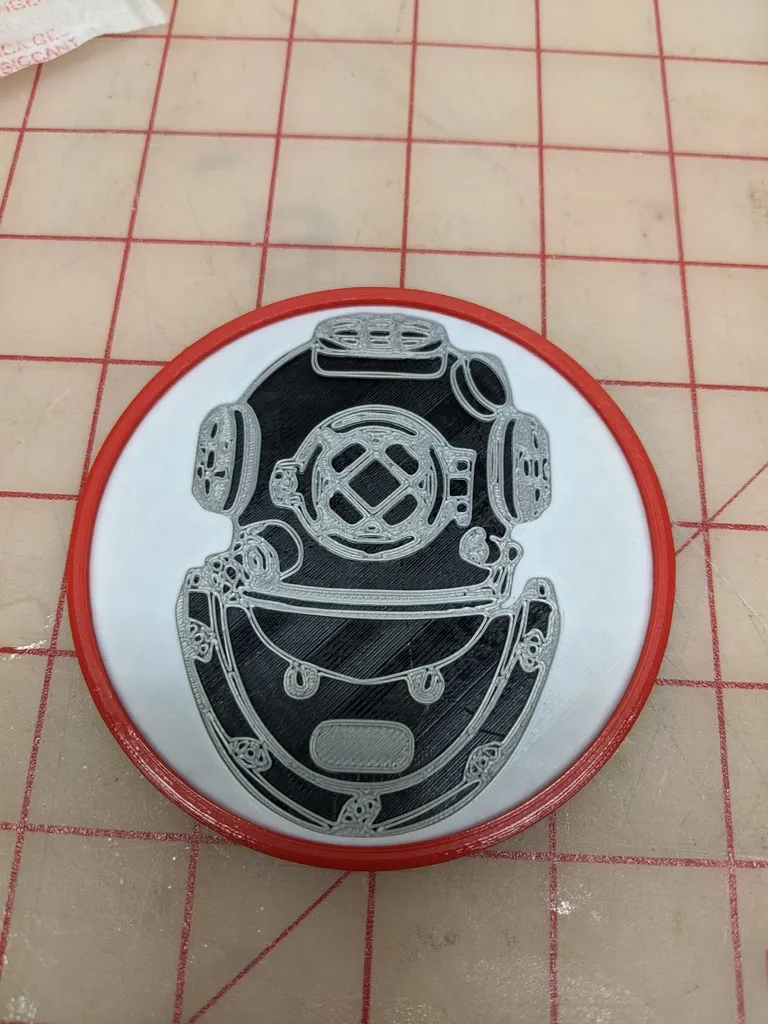

Drink coaster featuring a stylized image of the vintage Mark 5 dive helmet. Made these for our little dive club in Southern Saskatchewan. Can't drink from your genuine Saskatchewan Seal Skin coffee mugs without a coaster. That would be uncivilized.

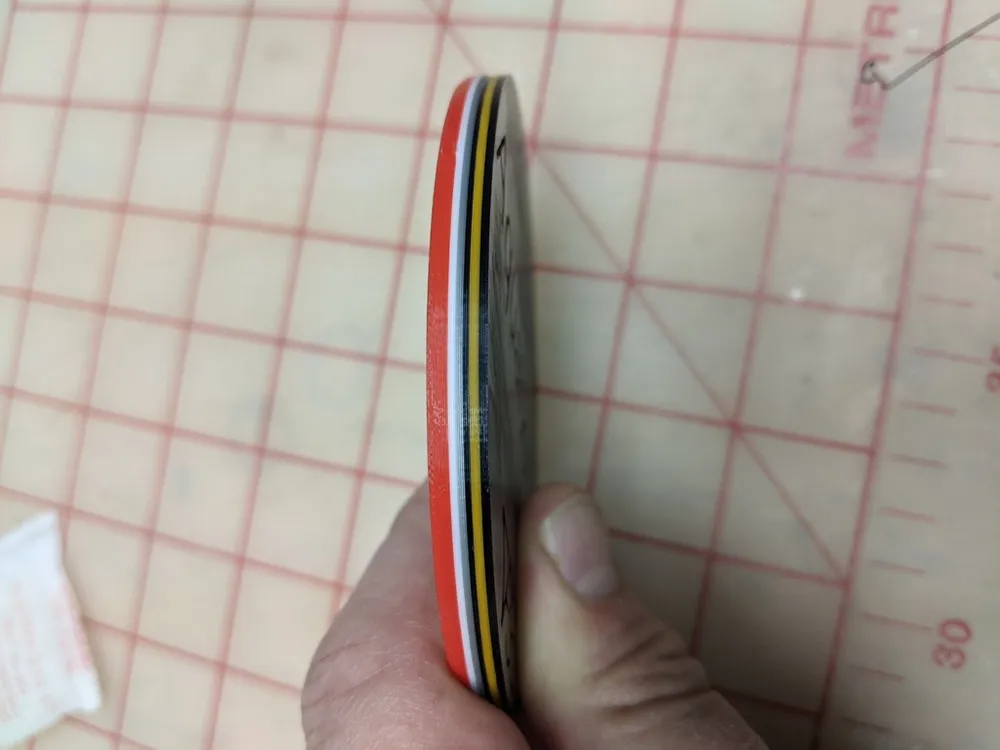

I am using the same color change methodology as every other coaster I have put together.

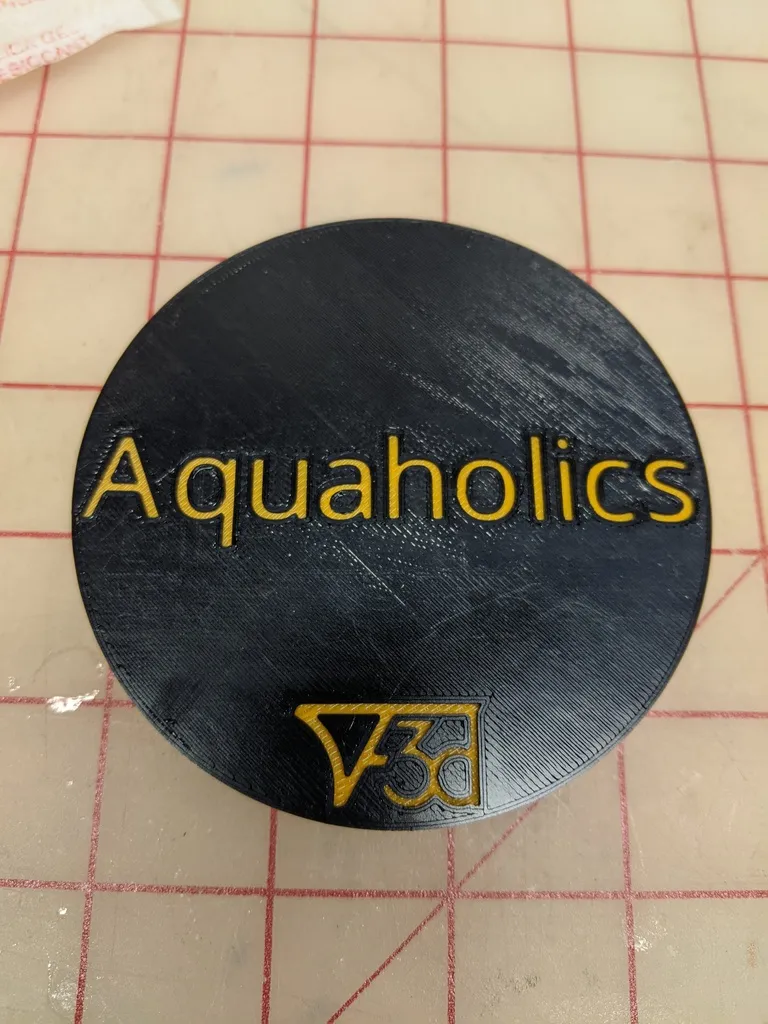

V1.1 has the aquaholics text removed.

Print Settings

Printer Brand:

Prusa

                                            Printer:
i3 MK3
                                                                                Rafts:
No
                                                                                Supports:
No
                                                                                Resolution:
.2
                                                                                Infill:
20% Triangular
                                                    Filament: Filaments.ca ecofil PLA                Red, orange,black, silver and white
                        Notes:
Sliced with simplify3d making sure first layer height was set to .2 mm and then edited the gcode with notepad++ to add m600 colour change codes at 1.2 mm, 2.0 mm, 2,8 mm, 3.6 mm and 4.4 mm.  If you don't want the logo a different colour you can omit the first two changes.
Search the gcode for ; layer 6, Z = 1.200; feature inner perimeterG1 Z1.200 F1000
Then add this right after.; colour changeM600
Of course not all machines will recognize an m600 code so ymmv.  And yes, I know Prusa slicer automates the process but frankly, I get better results with simplify. Dunno why.
