Honda Econo C90 "Toy Style"

This project is a celebration of the legendary Honda Econo C90, recreated with a charming and simplified toy-like style, optimized for 3D printing (FDM and Resin) manufacturing. The design was created with robustness and ease of printing in mind, featuring "print-in-place" or self-supporting parts, which minimizes or eliminates the need for complex and tedious-to-remove supports. It's perfect as a display model or a gift

What makes this model special:

• Toy-like Style: The design features simplified and exaggerated proportions, with thicker parts and rounded edges, giving it a unique and adorable look
• Ease of Printing: The model is optimized to print without complex supports. This means less material waste and a cleaner surface finish on the underside
• Scale Versatility: The robust design works well even when scaled down, so you can create a keychain miniature or a larger desktop model
• Color Options: The model can be printed with filament color changes or easily painted to match the classic Econo C90 colors

Design and Creation Step-by-Step:

Upload the following information to MakerWorld to guide users through the creation process:

1. Concept Definition:

The project began with the idea of creating a Honda Econo C90 model, but with a twist. The goal was not photorealism, but rather an adorable and robust "toy-like" style that would be easy to print on a wide range of 3D printers. Key features to include were the characteristic front shield, the long seat, and the covered engine, but with thicker parts to prevent breakage during printing and handling

2. Design Generation (AI):

To visualize and refine the concept, I used an AI image generation tool. This allowed me to quickly explore different proportions and levels of detail to find the perfect balance between model recognition and toy aesthetic. The generated images showed the model from multiple angles, providing clear visual reference and helping to identify potential printing challenges before moving to 3D modeling

3. 3D Modeling:

Based on the reference images and the defined concept, I modeled the motorcycle using 3D modeling software. During this stage, I focused on optimizing the geometry for support-free 3D printing. This involved:

• Rounding edges: To prevent sharp corners that cause adhesion problems and improve the finish
• Thickening fragile parts: Such as the handlebars, mirror mounts, and wheel spokes, to ensure their strength
• Creating self-supporting parts: Designing the engine, exhaust, and fender to print with an angle that does not require external supports
• Optimizing the base: Ensuring a large, flat contact surface with the print bed

4. Print Preparation (Slicing):

• Orientation: The model is designed to be printed vertically, with the wheels resting on the print bed
• Parameters: I recommend a layer height of 0.16mm or lower for fine details, with 20% infill for a display model. For a heavier toy, you can increase the infill

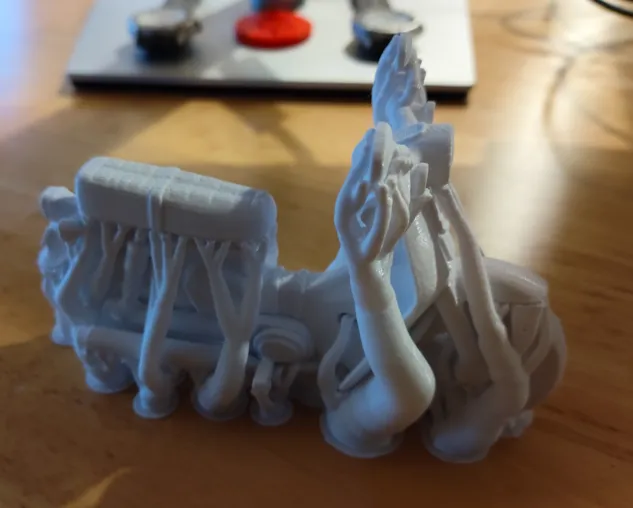

• Supports (Optional): Although the model is largely designed to print without supports, some small points under the seat or handlebars may benefit from minimal tree supports to ensure impeccable surface quality, depending on your printer

5. Printing and Post-Processing:

• Materials: PLA is recommended for its ease of printing and finish, but PETG or resin will also work well
• Post-Processing: Remove any minimal supports if used, and light sanding if necessary. The model is perfect for painting with acrylic paints or for applying the "filament color change" technique for vibrant results

Included Files:

• [Econo C90 STL file name]

Print Instructions:

• Material: PLA, PETG or Resin
• Layer Height: 0.16mm or lower
• Infill: 20% (adjust to your preferences)
• Supports: Recommended (minimal tree supports) for better surface quality, but the model is largely self-supporting
• Orientation: Vertical, with the wheels on the bed

Additional Tips:

• Print the model at a larger scale for more detail and robustness
• For a professional finish, print it in resin or paint it with an airbrush

Enjoy printing and sharing your creations with the community
