Customizable Offset Window Exhaust Vent w/ Bracket
Print Profile(5)
Description
Boost Me (for free)
If you like this model or find it helpful, please consider giving it a boost. Thank you!

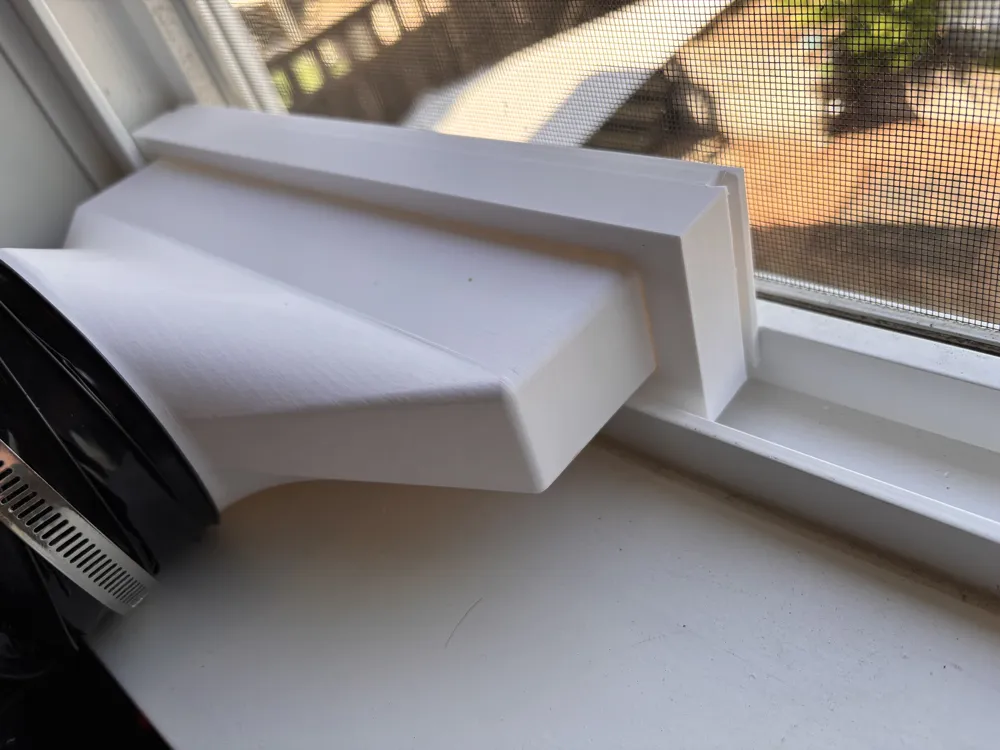

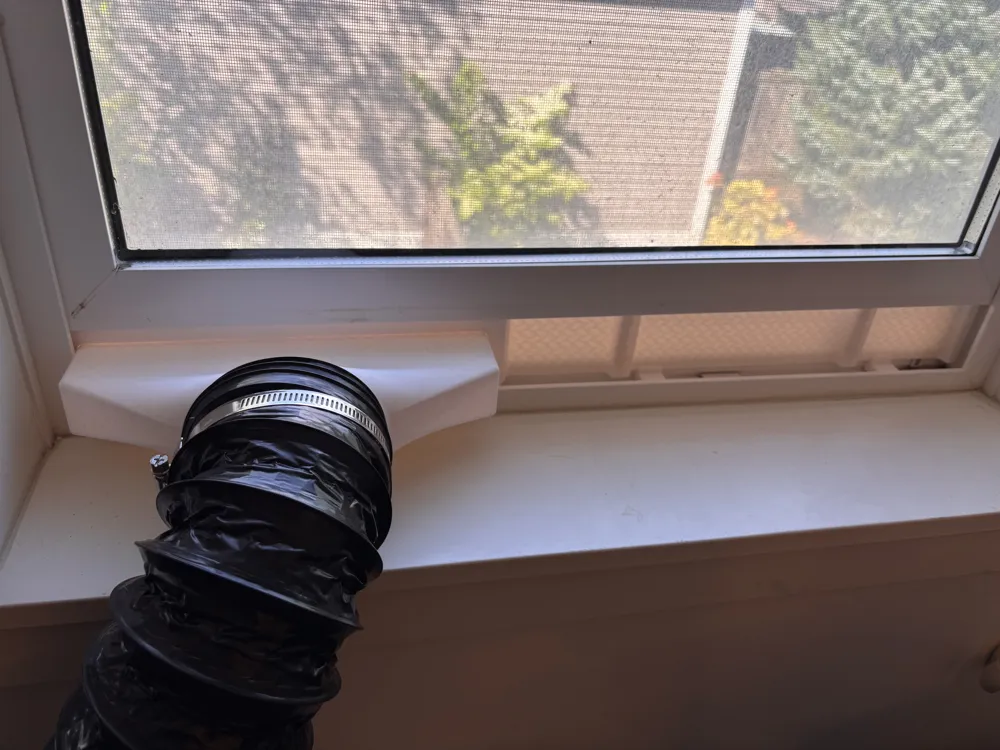

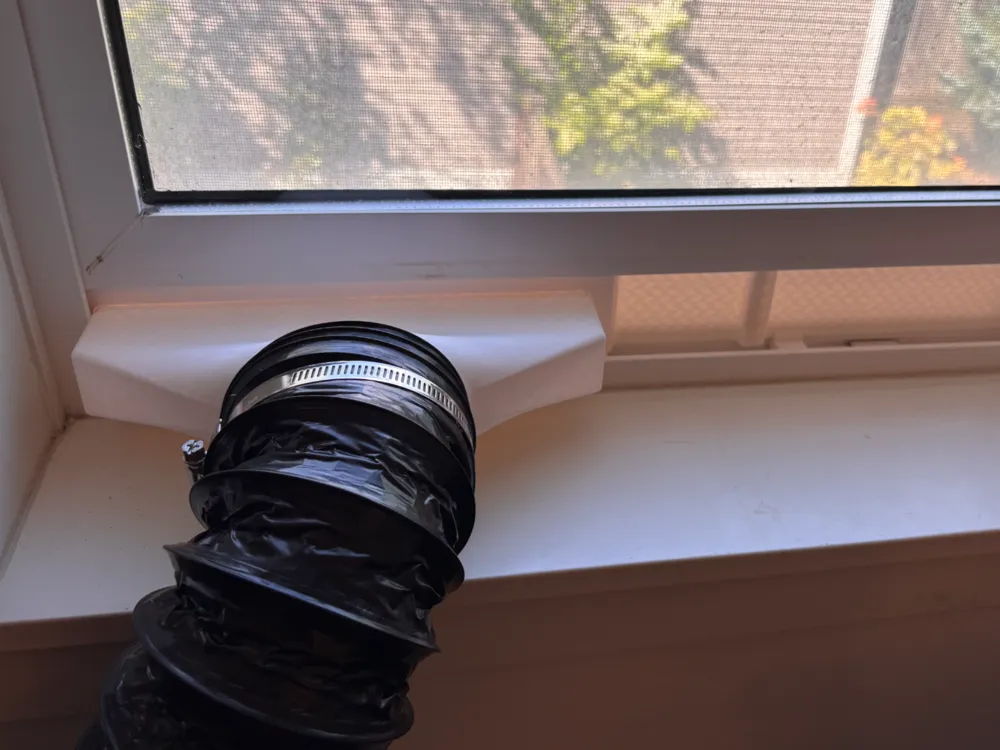

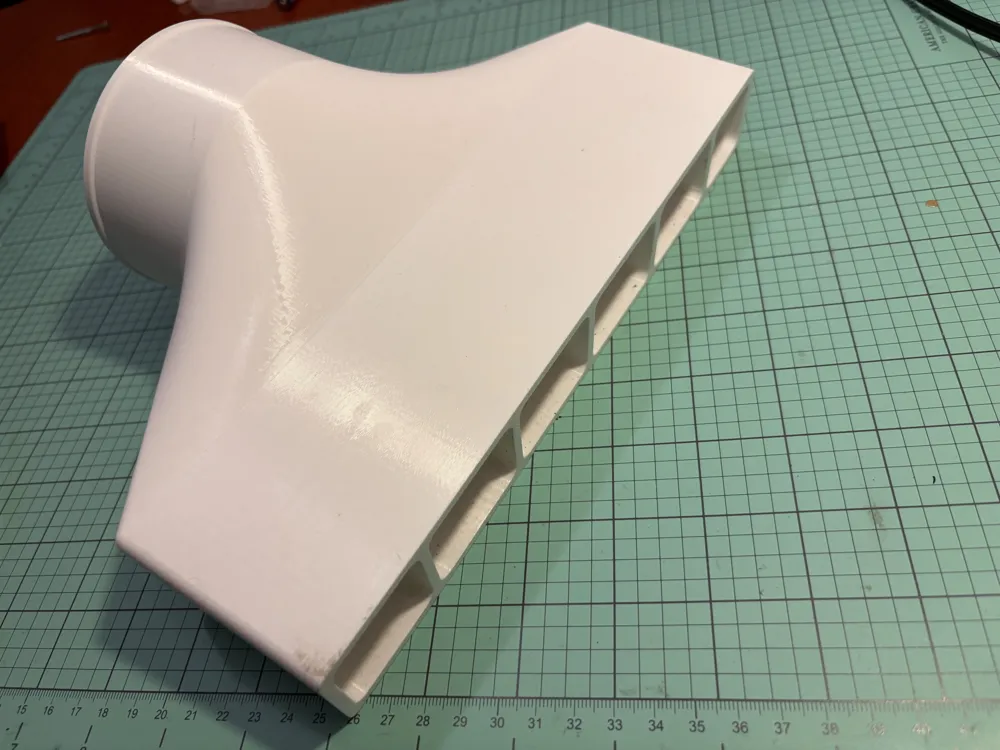

A window vent adaptor to connect a flexible exhaust pipe to a window that opens vertically (sash style). The exhaust outlet is modelled as a flat rectangle, to help minimize the amount the window needs to open.

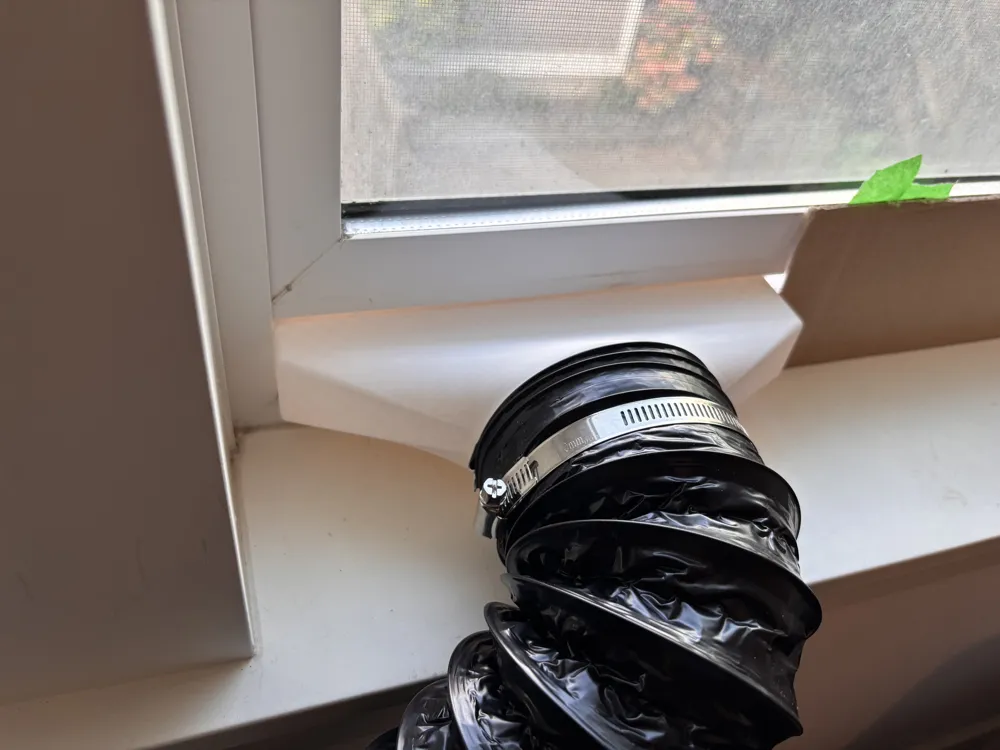

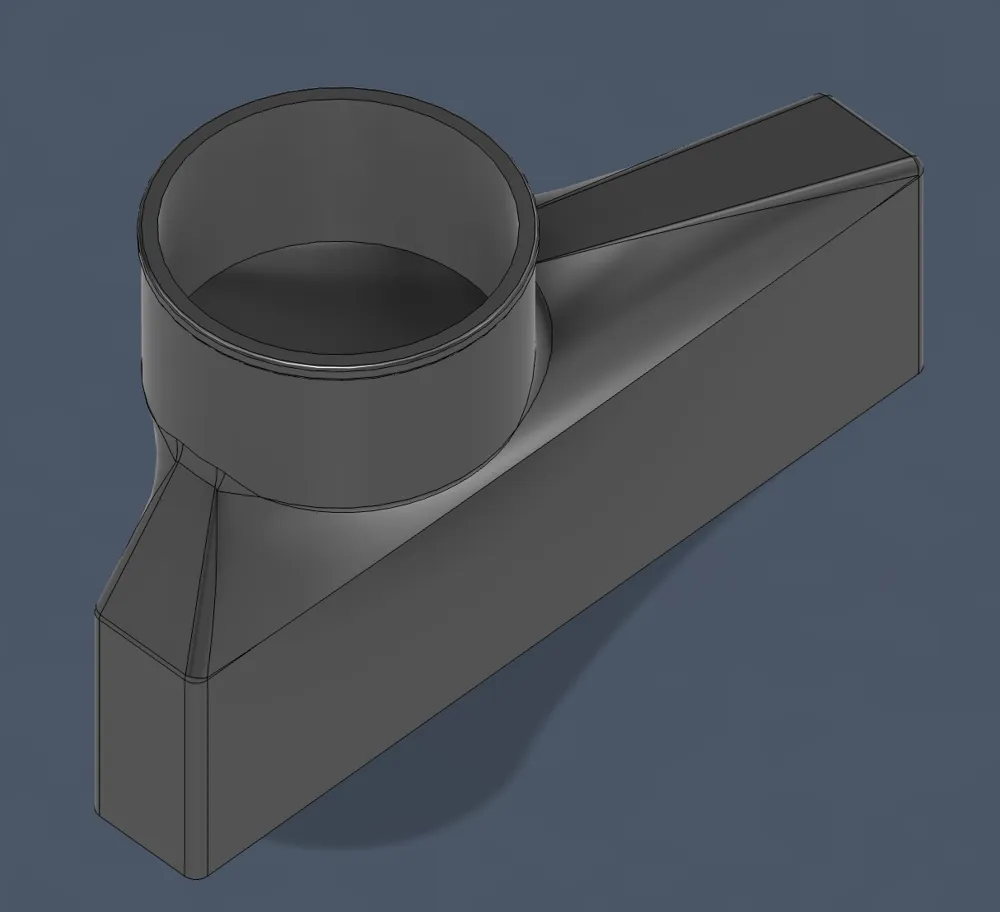

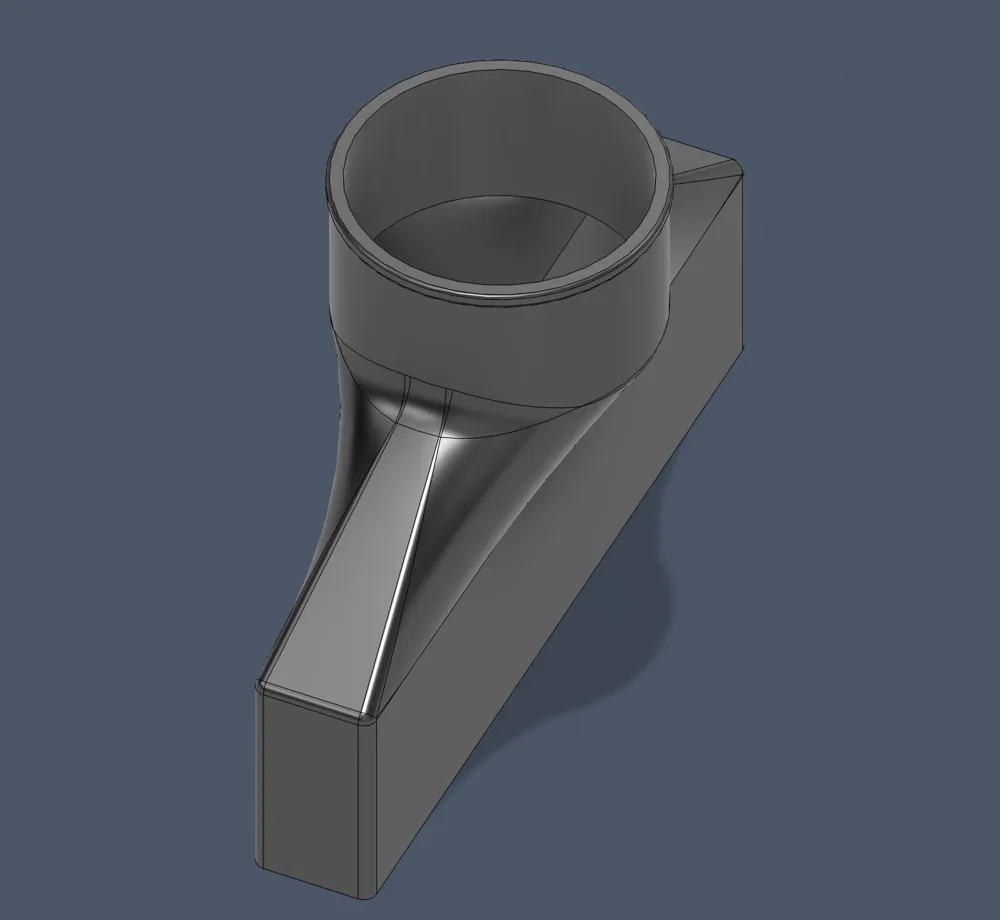

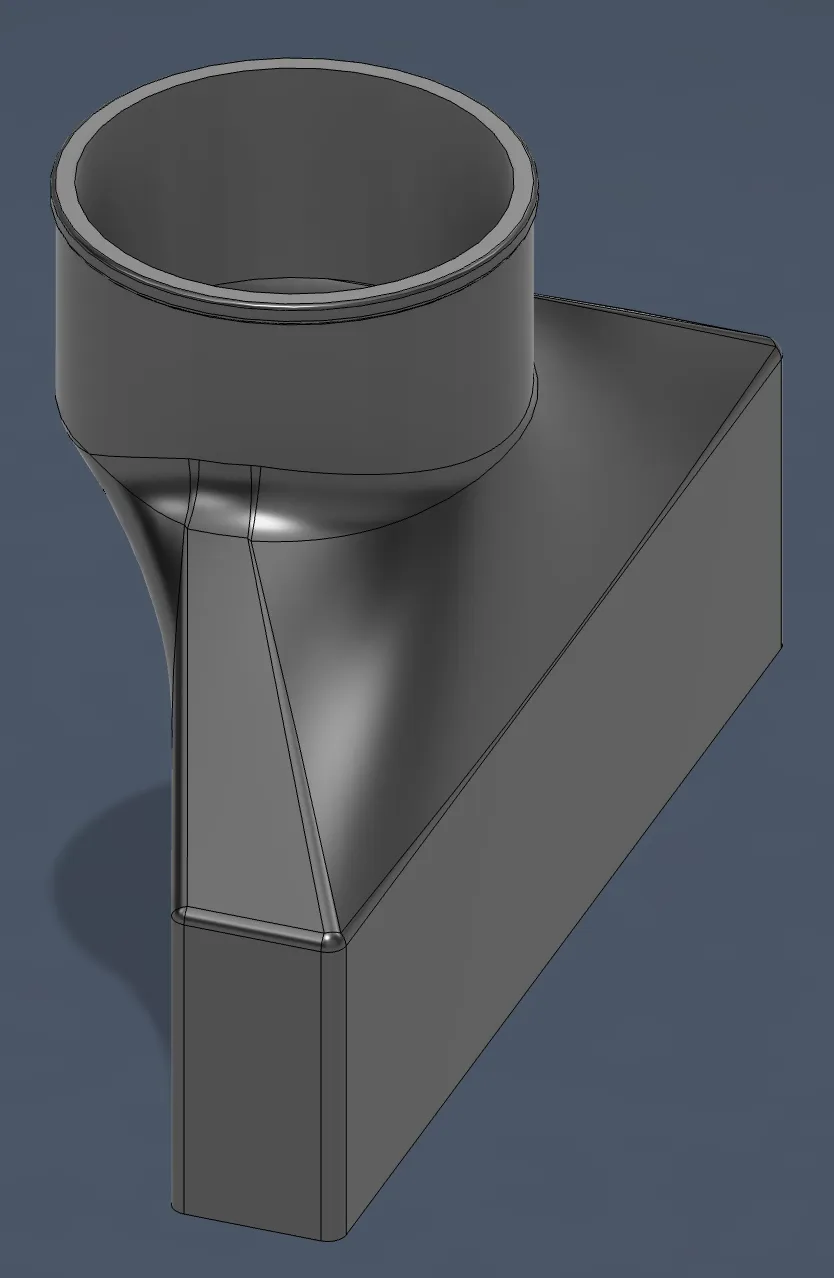

The default profile is sized for a 4 inch / 100mm pipe, but if you have a different sized exhaust, use the “Customize” function to change as needed. Also included are additional profiles to offset the vent connection vertically or horizontally, but you can also customize the horizontal and vertical offsets as needed to fit your own window layout.

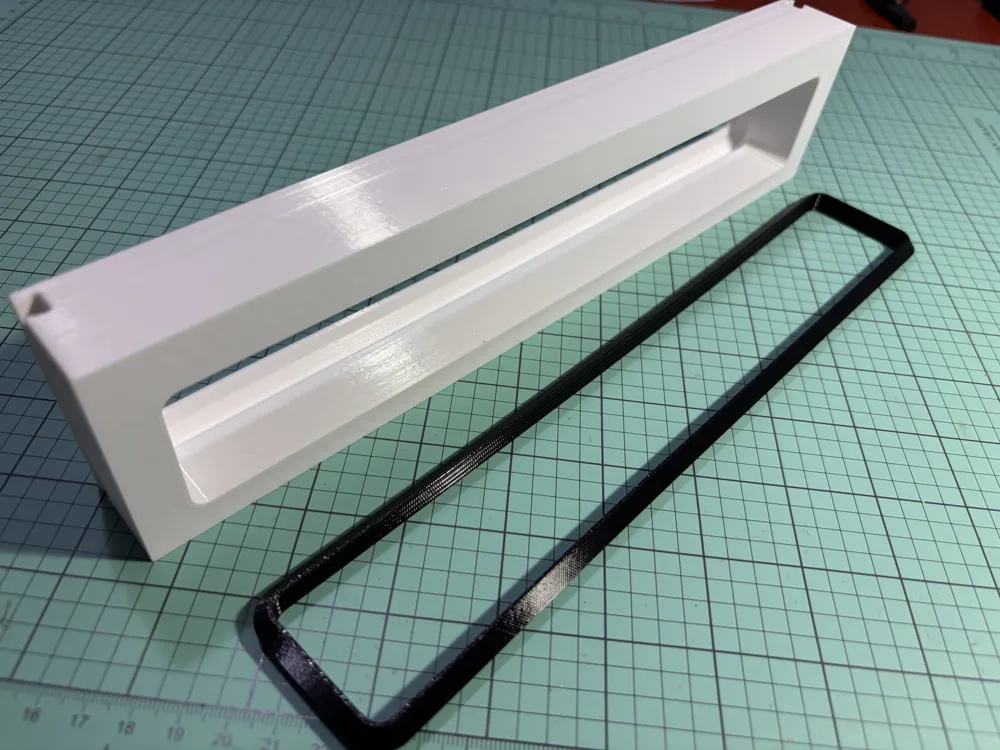

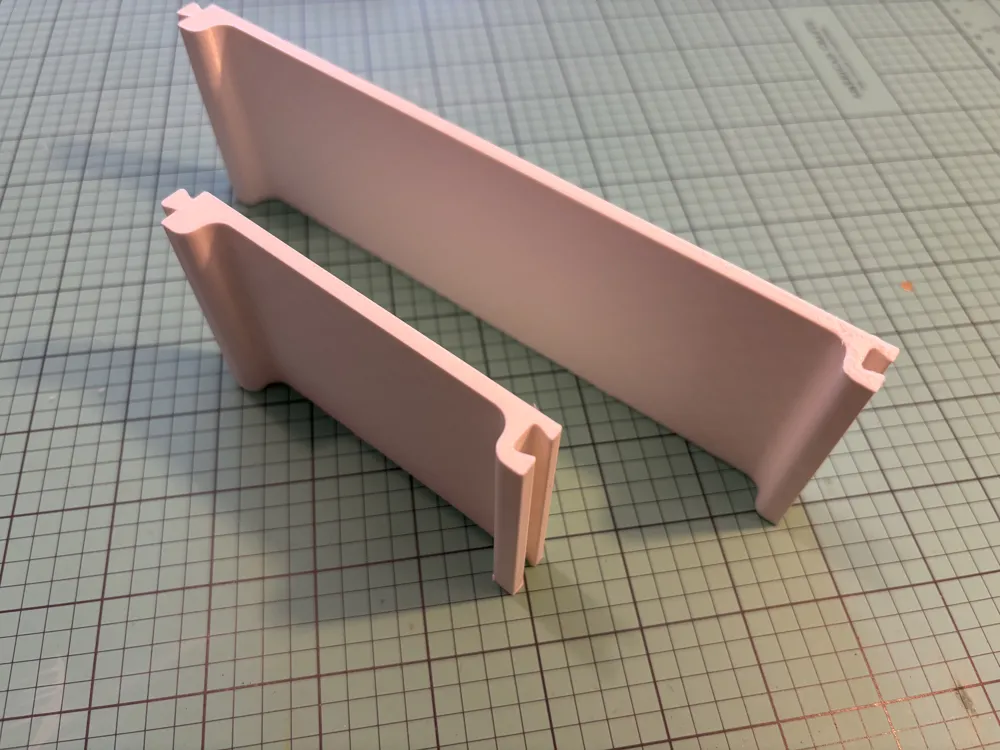

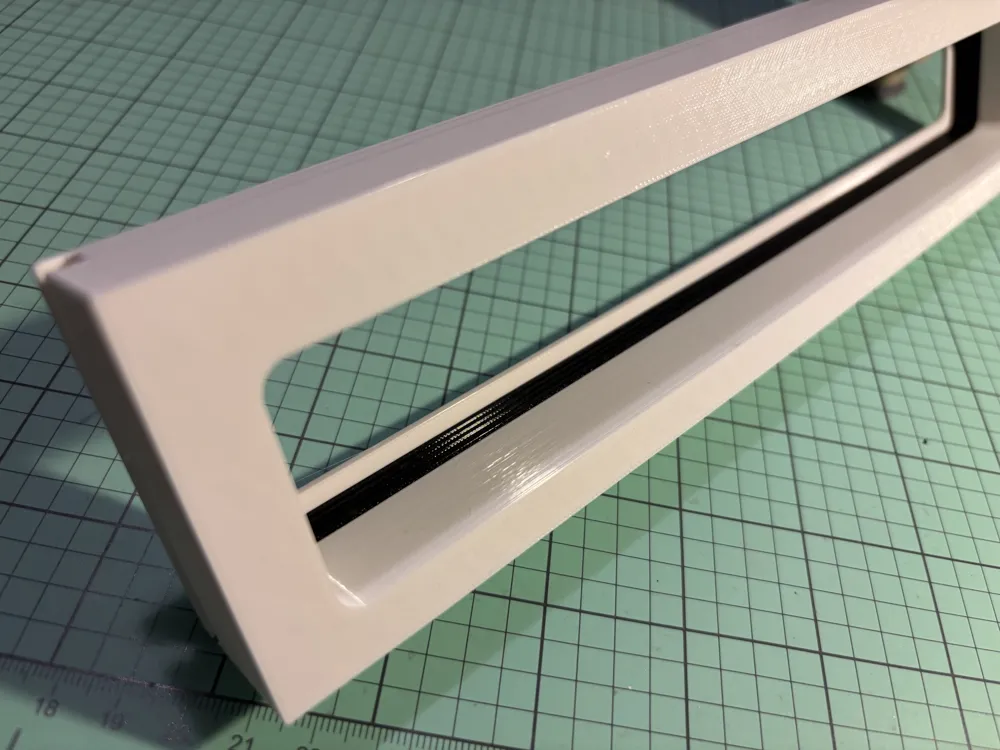

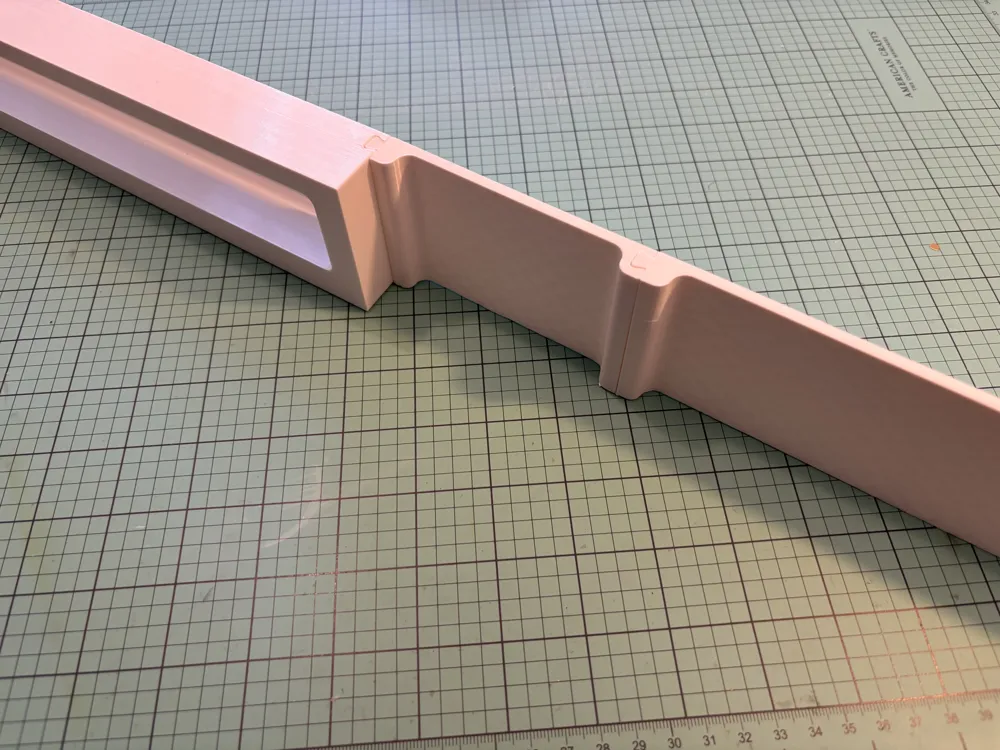

There is also a print profile for a bracket to help secure the window vent to your window frame. Includes modular extension panels to seal up the window opening. I modelled the bracket to fit my own window frame, but if you need something slightly adjusted, you can use the “Customize” function to fit it to your own window frame.
If you need to use two or more vent brackets in the same window, download and print the “Bracket Coupler” to join them together.
