Sambar KS4 Taillight Housings

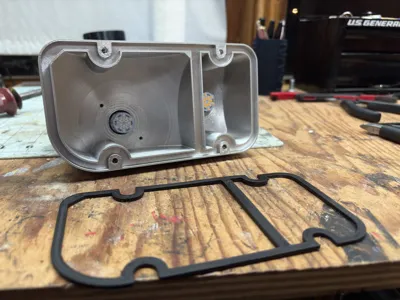

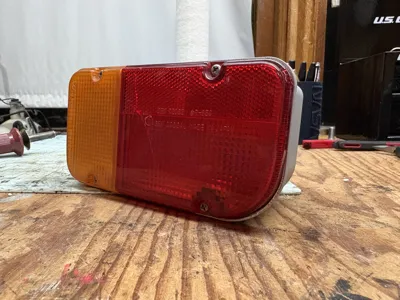

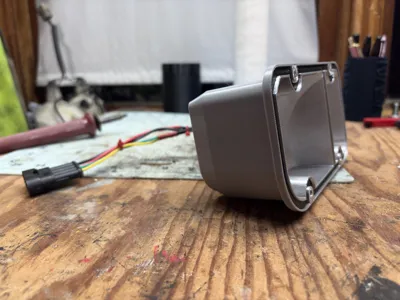

When working on my truck I had to take the taillights out. but instead of the 30 year old connectors just unclipping, they broke… So i just redesigned them to fit the same space and use the OEM lenses.

You can print this model in either PETG, ASA, or even PEEK if you have it!?

I just wouldn't recommend PLA

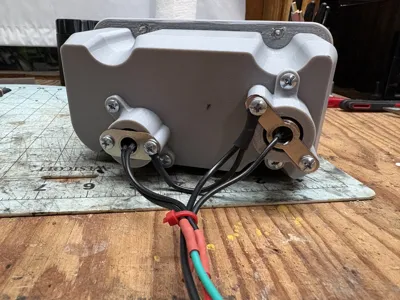

You will need a few things to get this working. I designed it to use cheap amazon bulb sockets. And all the screw holes are designed for #8 1/2inch pan head screws which should be easy to find at your local hardware store or on amazon.

Bill of materials:

1156 Bulb Sockets (for the blinkers)

1157 Bulb Sockets (for the brake lights)

Screws to screw in the light housings (will need 16)

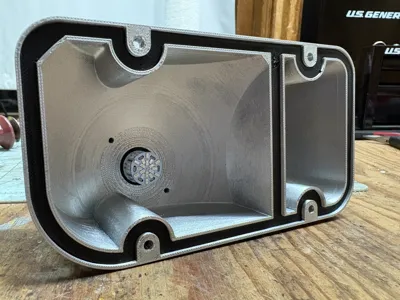

Additionaly, I sprayed some metalic spray paint on the inside of the housings to make them more reflective, and hopefully brighter, to mimic OEM.

if you have any feed back or need anything changed feel free to ask!
