Overwatch: Vendetta's Sword

Overwatch: Vendetta's Palatine Fang

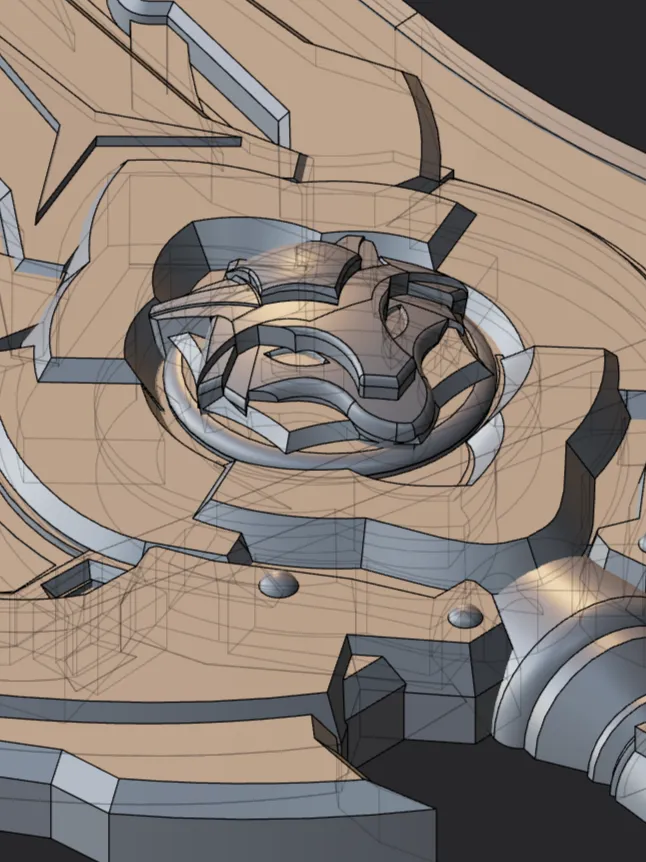

Hello! This is my first ever solo-project, designed in Plasticity! After nine variations and plenty of trial and error, I decided to share my replica of Vendetta's hard-light sword. This model was built with stability and color customization in mind.

Design and Assembly

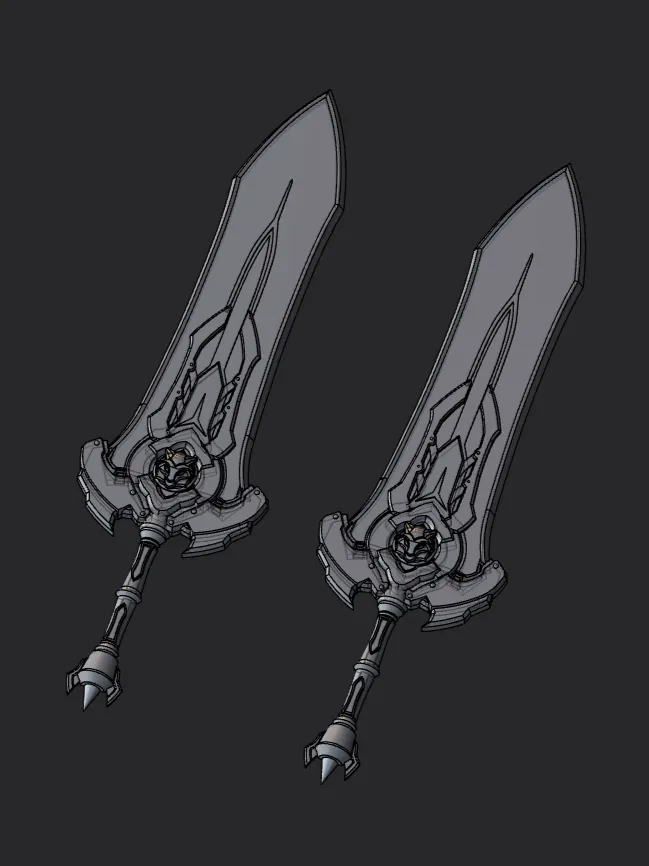

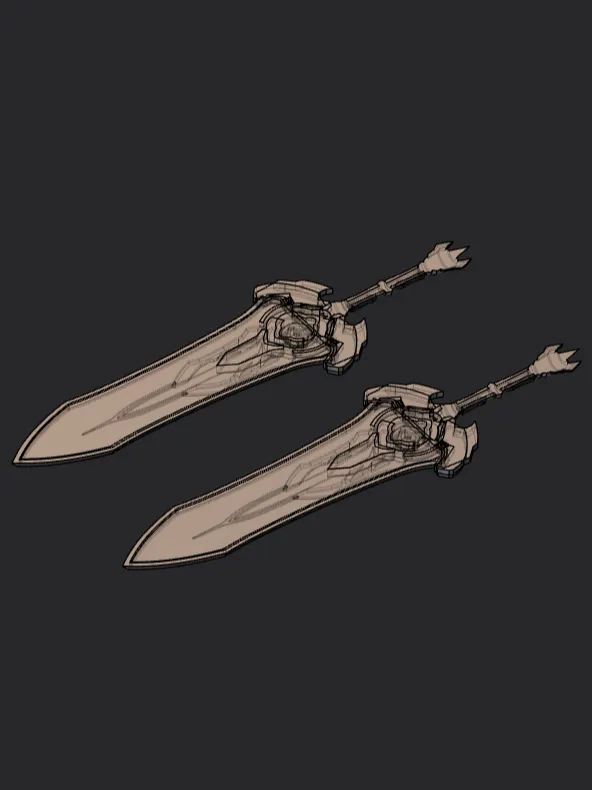

2 Piece Build: The sword is split into two halves for easier printing and assembly. Just align the halves and superglue them together.

Stability Upgrades: I redesigned the gold pommel as one continuous piece attached to the blade section to prevent it from snapping off.

Color Ready: While it prints in two halves, most parts are kept as separate digital objects to make multi-color printing easy.

Print Settings and Tips

To get the best results and avoid unwanted edges or missing sections, I used these specific settings:

G-code Output - Disabled Reduce infill retraction (under Others tab).

Ironing - Enabled for all top surfaces.

Detect Thin Walls - Enabled (crucial for the handle design).

Orientation - I printed this as two halves because the original model was taking 13hours. Splitting it in half and simply gluing it together reduced the print time to appx 2~3 hours.

Filaments Used

White Tough+ PLA

Generic Grey PLA

Generic Red PLA

Silk Gold PLA

(Optional: Swapped the grey for silk silver PLA for a metallic look).

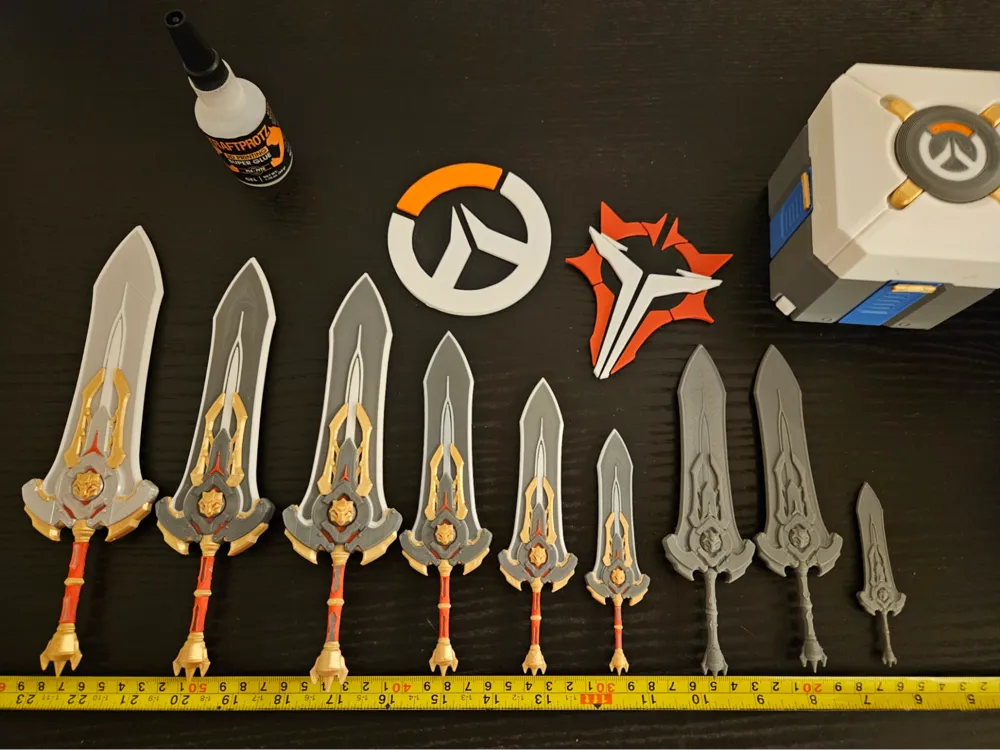

I recommend printing a single-color version first to check the fit and finish before committing to a full multi-color print. I've also uploaded the STEP file and .3mf file in case anyone would like to edit this. Plasticity offers a free 30-day trial.

IDEA BOARD!

-Create a hollowed out version, add a battery pack, button, and LED's and replace the white filament with clear filament.

-Either drill a hole or design a keychain version.

-Design a stand for desk displaying or a picture frame for wall displaying.

DISCLAIMER:

This is a fan-made replica and is not an official product. The Vendetta character and Overwatch are trademarks and copyrights of Blizzard Entertainment. I do not own the rights to the original design; this model is a transformative work created for the maker community and fans of the game. <3
