Moto Guzzi V100 Mandello Frame Caps

🏍️ Moto Guzzi V100 Mandello S – Frame Gap Caps

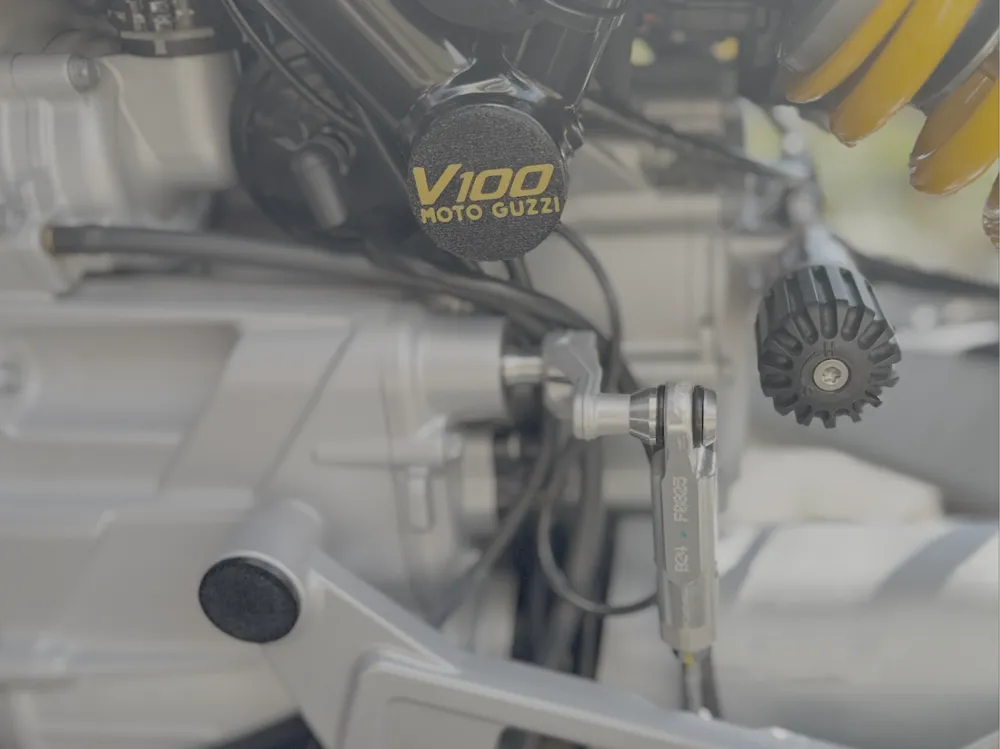

Clean up the exposed frame openings on your Moto Guzzi V100 Mandello S with these custom-designed 3D printable caps.

Designed for a perfect press-fit, these caps improve both aesthetics and protection—giving your Mandello a more finished, premium look.

🔧 Versions Included

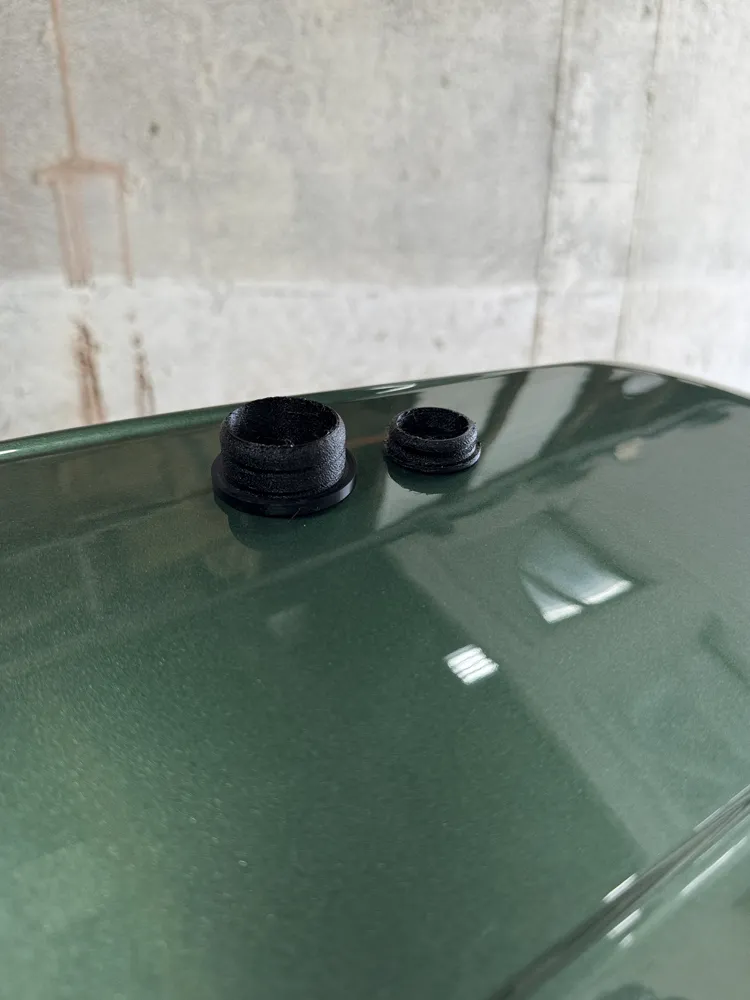

✔ Standard Caps (Large + Small)

• Clean, minimal design
• Best printed in PETG & TPU for flexibility and durability

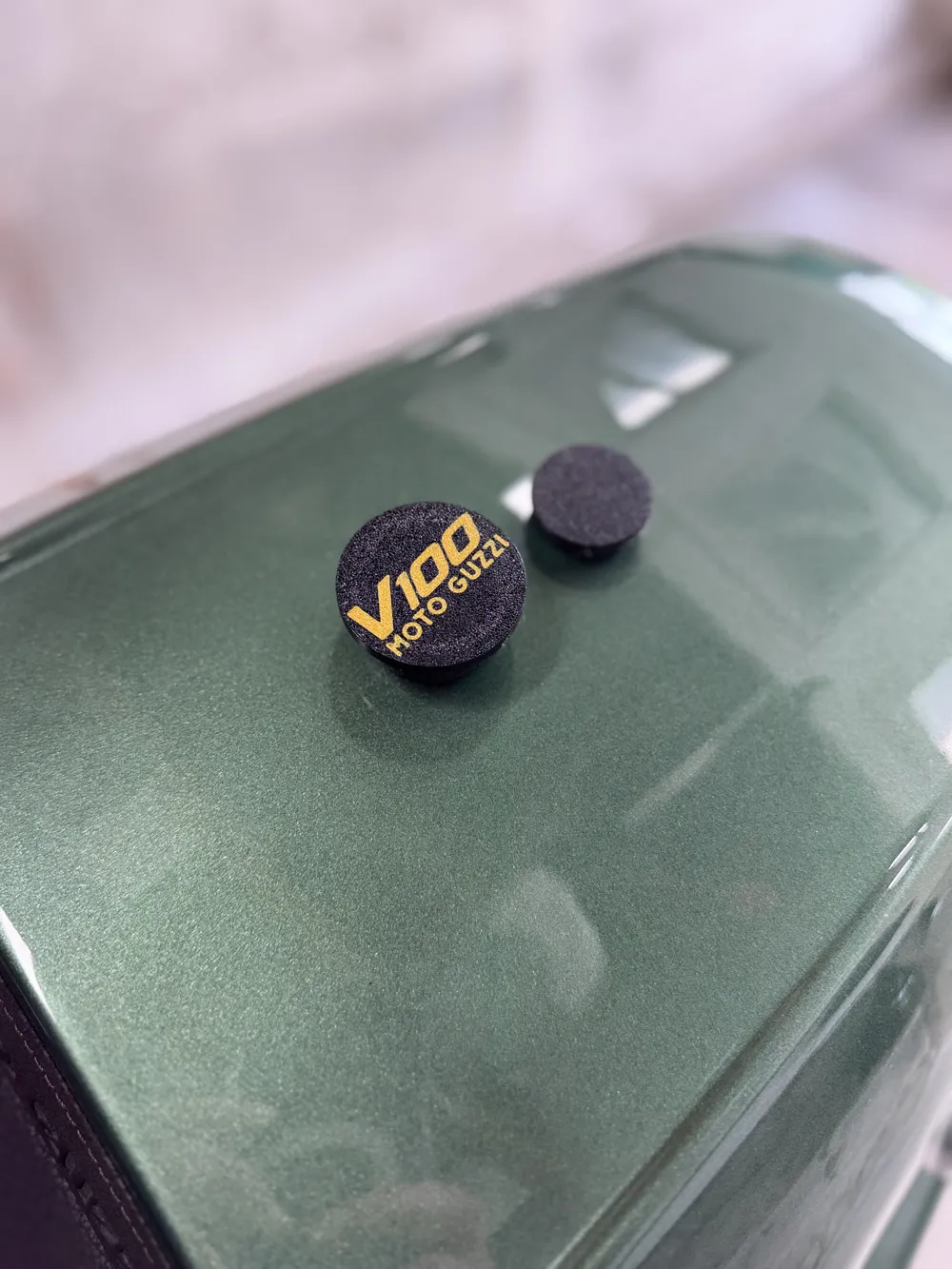

✔ Logo Caps (Large)

• Embedded V100 logo
• Optimized for rigid materials (PLA or PETG)

✔ Hybrid Caps (Multi-Material)

• PLA/PETG for base and logo and TPU for Shaft
• Perfect for AMS users

🧵 Material Guide

• PETG & TPU (Recommended)
  • Best overall fit and function
  • Flexible, vibration-resistant, easy to install/remove
  • More heat-resistant than PLA
  • Better durability while still holding good detail
• PLA & TPU
  • Great for sharp logo detail
  • Best for cosmetic builds

🖨️ Print Settings (Starting Point)

• Layer Height: 0.16–0.20 mm
• Infill: 15–25% (Gyroid recommended)
• Walls: 3–4
• Supports: Not required
• Orientation: Flat side down

TPU Tips:

• Slow print speeds
• Direct drive preferred
• Avoid excessive retraction

⚙️ Installation

• Simple press-fit (no tools required)
• TPU versions flex slightly for a secure hold
• Fully removable and non-destructive

💡 Why Install These?

• Cleans up visible frame holes
• Helps block dirt, debris, and moisture
• Enhances overall bike aesthetics
• Easy, reversible upgrade

⚠️ Disclaimer

Aftermarket design, not affiliated with Moto Guzzi. Fitment is optimized for the V100 platform but may vary slightly depending on printer calibration and material choice.

🦅 GuzziPadre Approved

Built by a rider, for riders. Because details matter—especially on a machine like this.
