Description

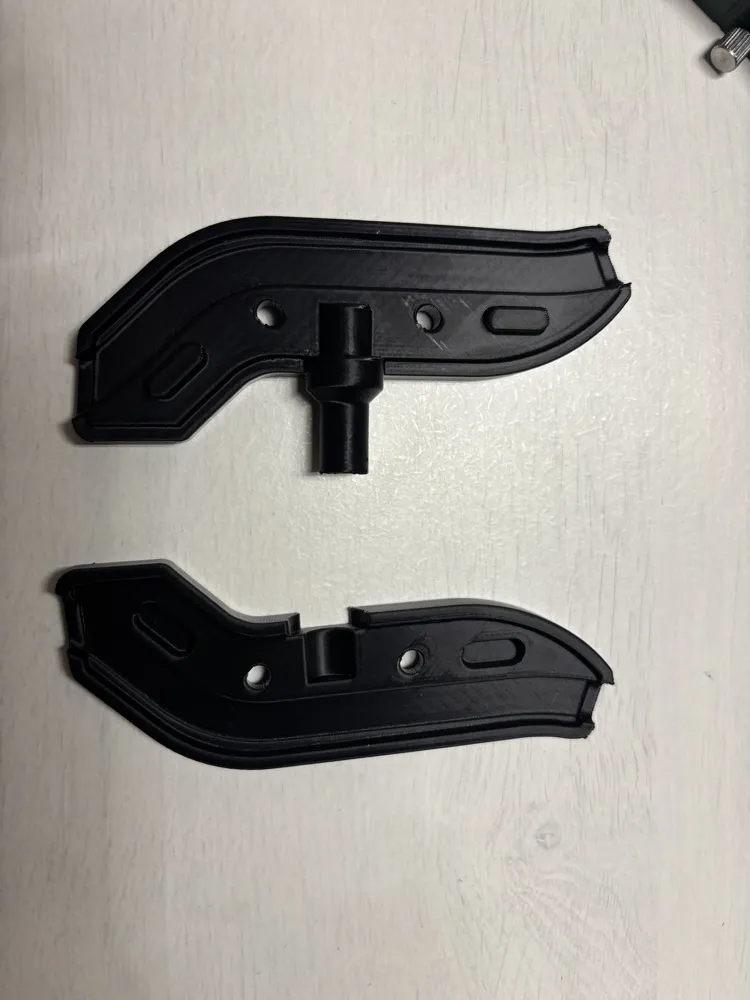

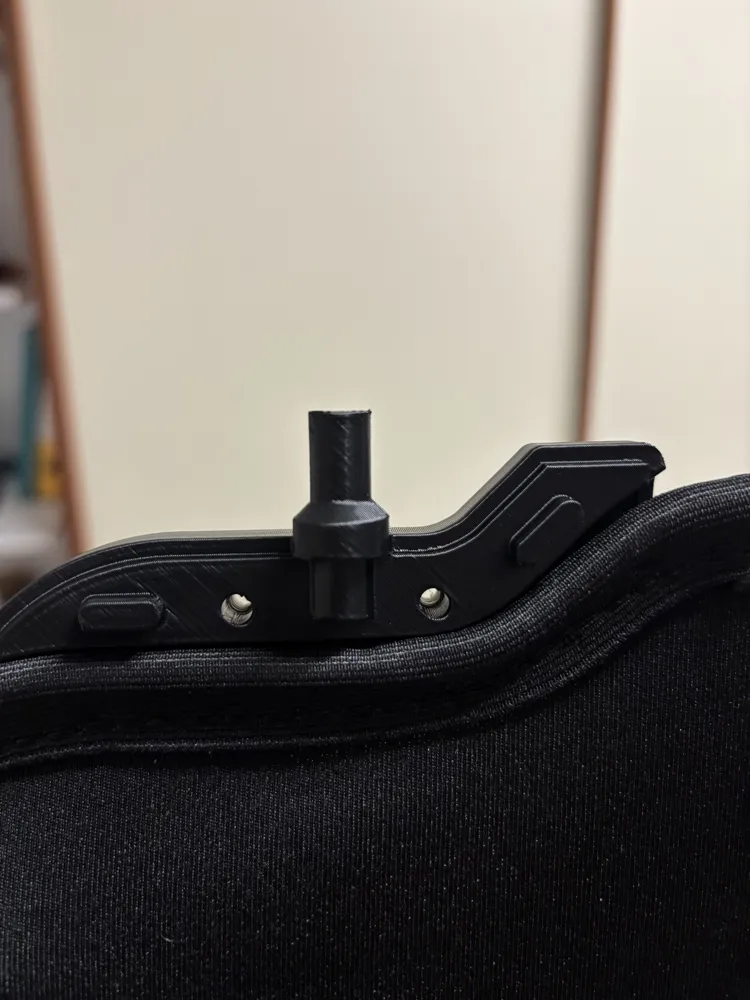

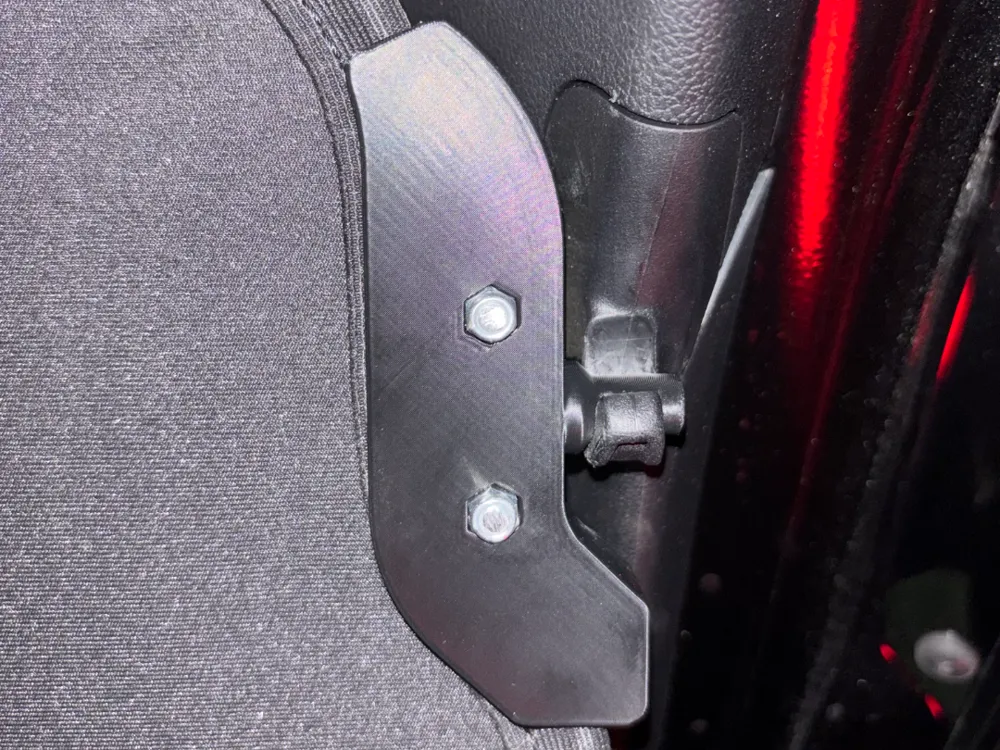

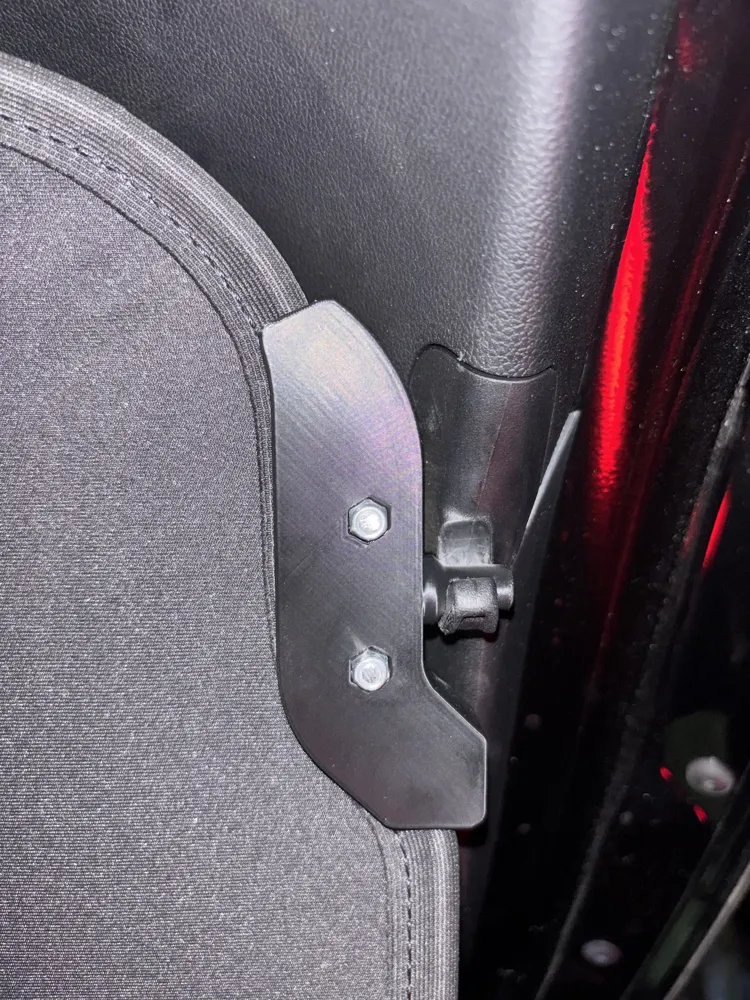

Spare parts for the parcel shelf of the Ford Puma. The component has been improved and reinforced. The fastening pin has been thickened to prevent the parcel shelf from falling. Tested.

Original component codes:

2447115X
2447119X
2316524X
2447073X

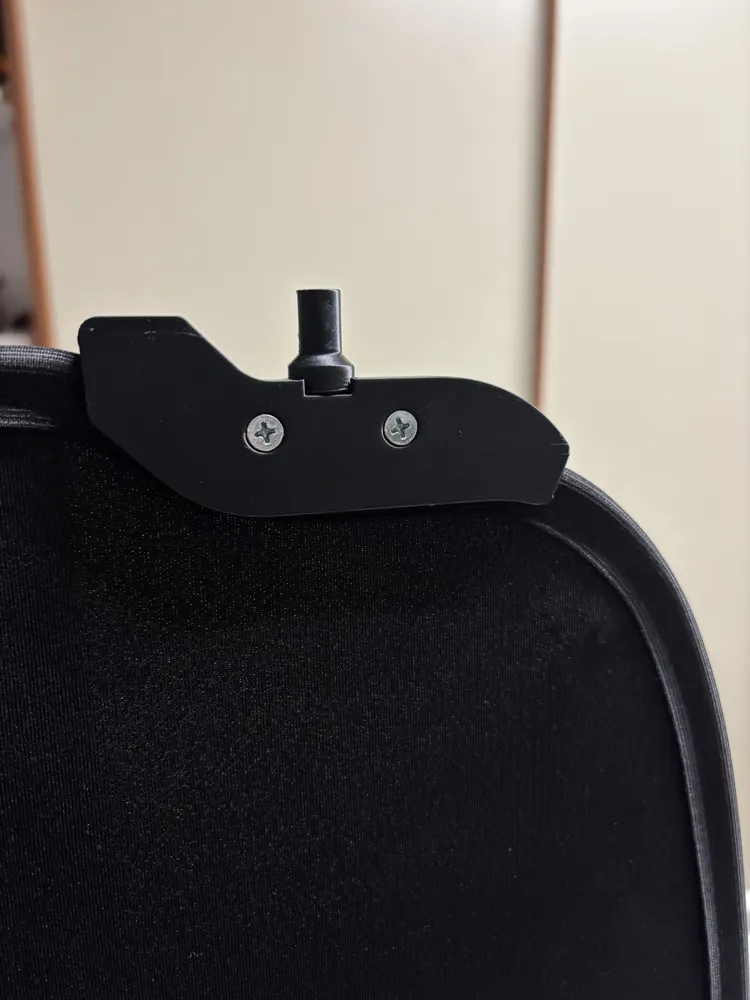

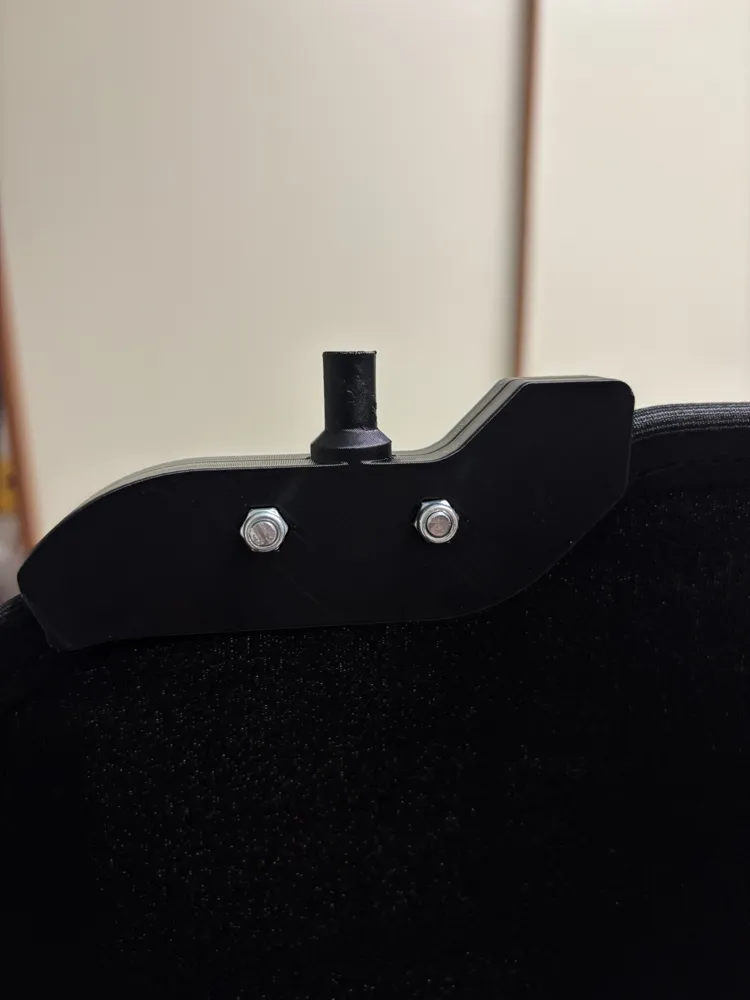

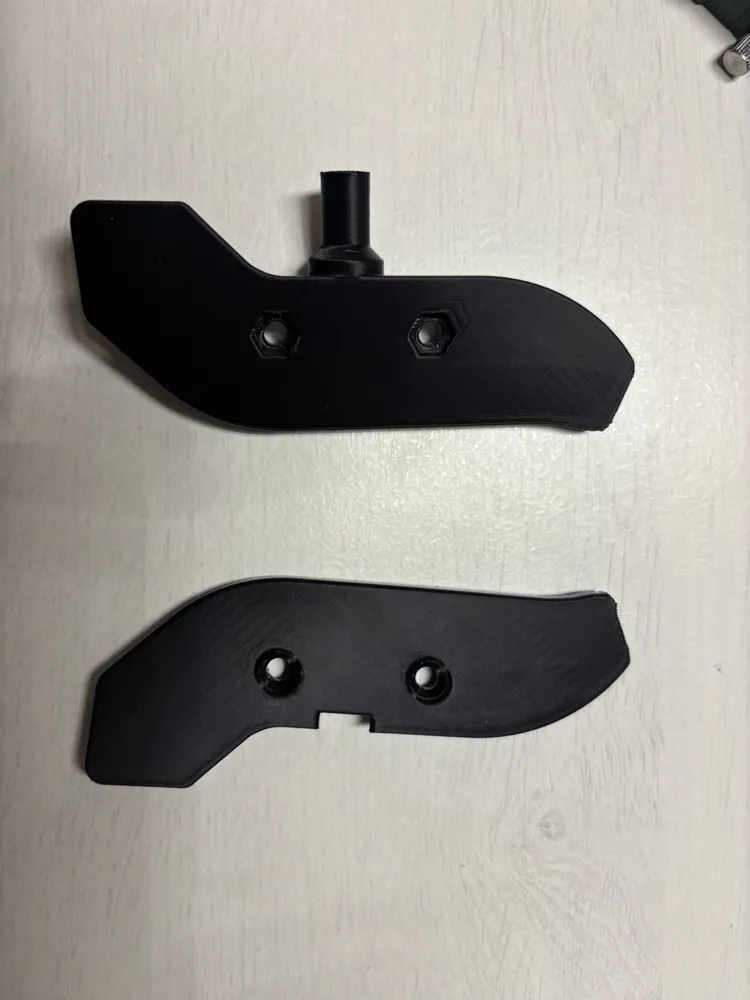

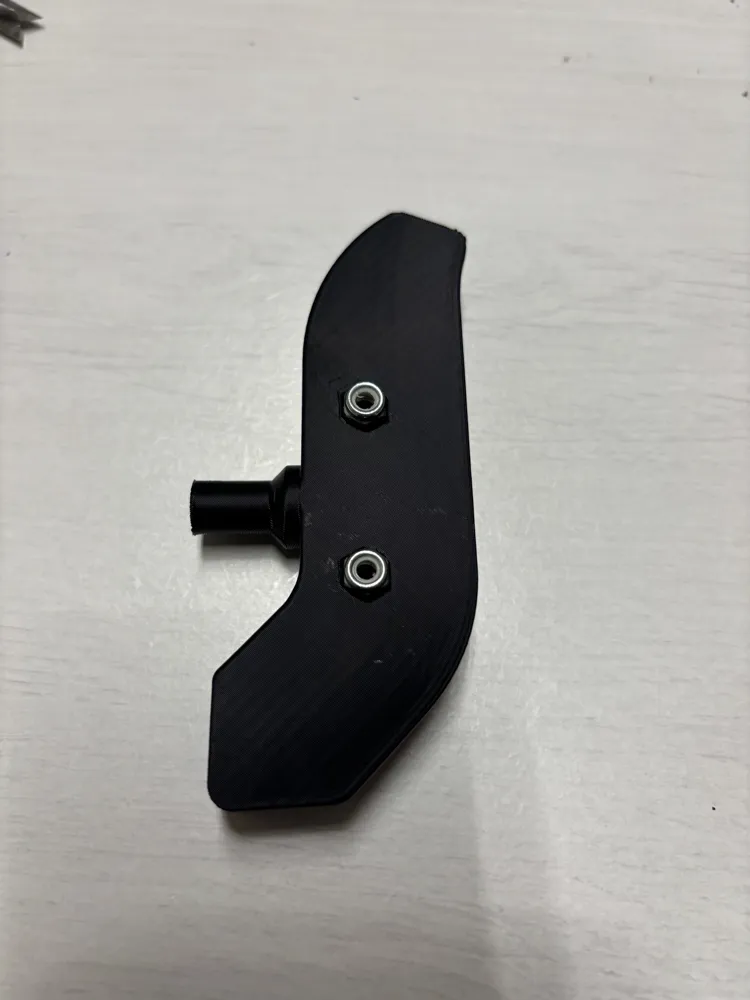

For assembly, 2 flat countersunk head screws with M4 thread and 16 mm length are required, paired with M4 self-locking nuts.

Manufactured with a 0.2 mm layer height and 35% infill for enhanced strength and durability.

Comment & Rating (5)

@user_2666312481

hi, can u find or design hook?

The designer has replied

@Alessandro996

what kind of hook?

@user_2666312481

Replying to @Alessandro996 :

I need the hook that this 3D model is attached to. The left side.

@user_2666312481

Replying to @Alessandro996 :

this one.
