Description

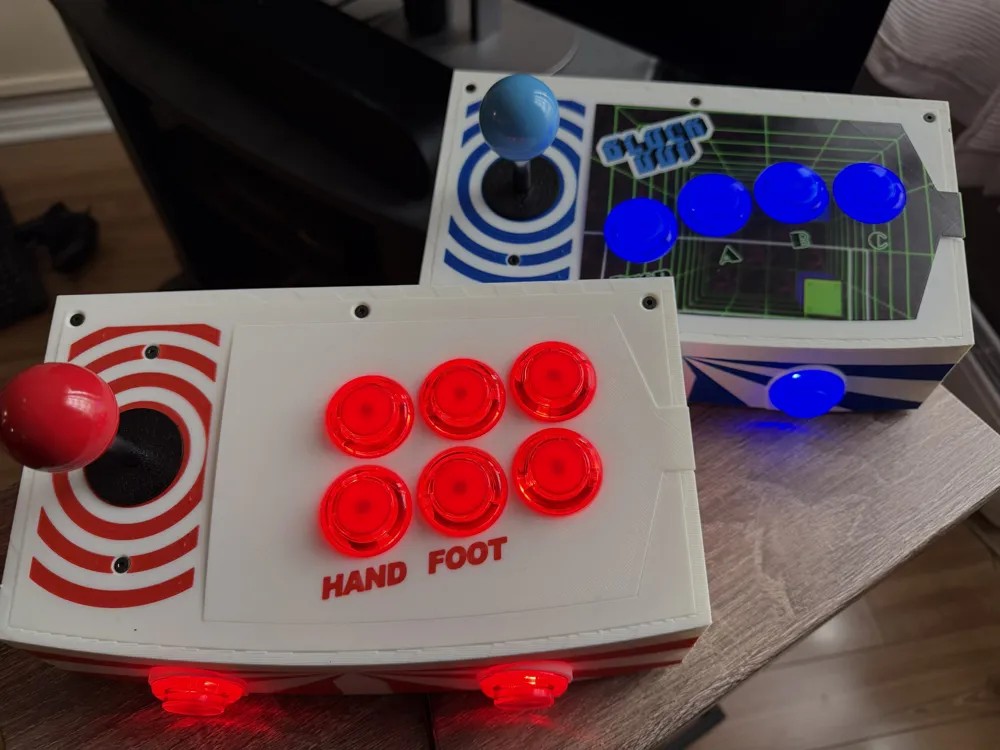

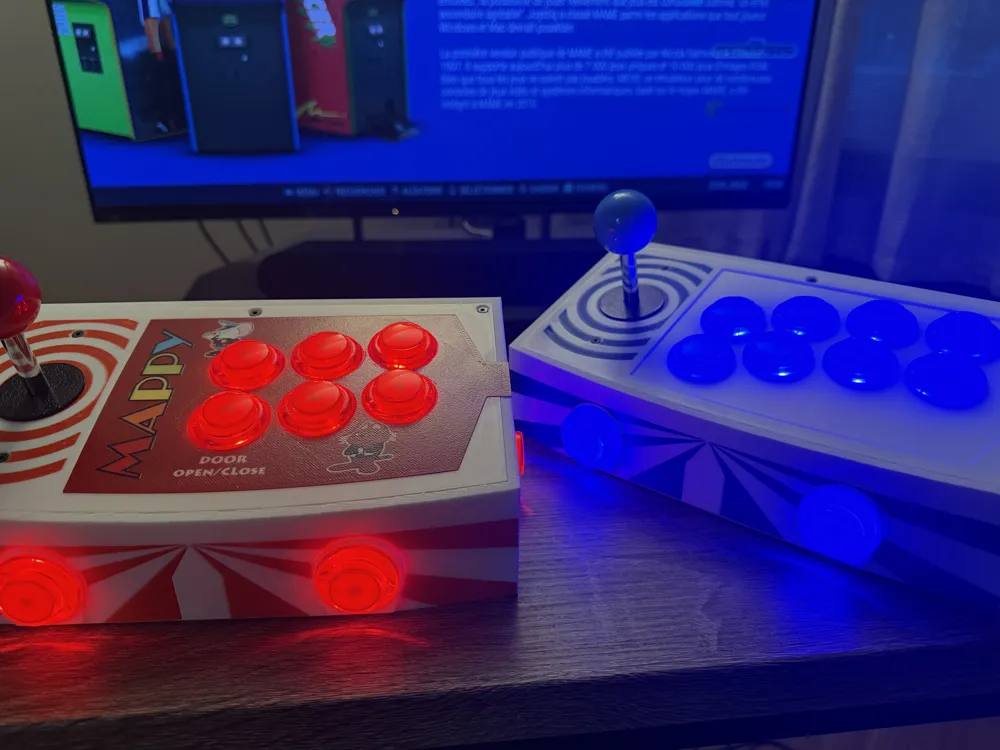

Build your own arcade fightstick with this fully modular design! The system is built around three interchangeable layers: a Main Body, a Button Top Panel (available in 4, 6, or 8-button configurations), and an Art Cover that snaps right on top for a clean, personalized finish.
Whether you're going for a classic 6-button Street Fighter layout or a minimal 4-button setup, just swap the top panel — no reprinting the whole enclosure. Unused side ports are covered with included Knockout Plugs to keep everything looking sharp.

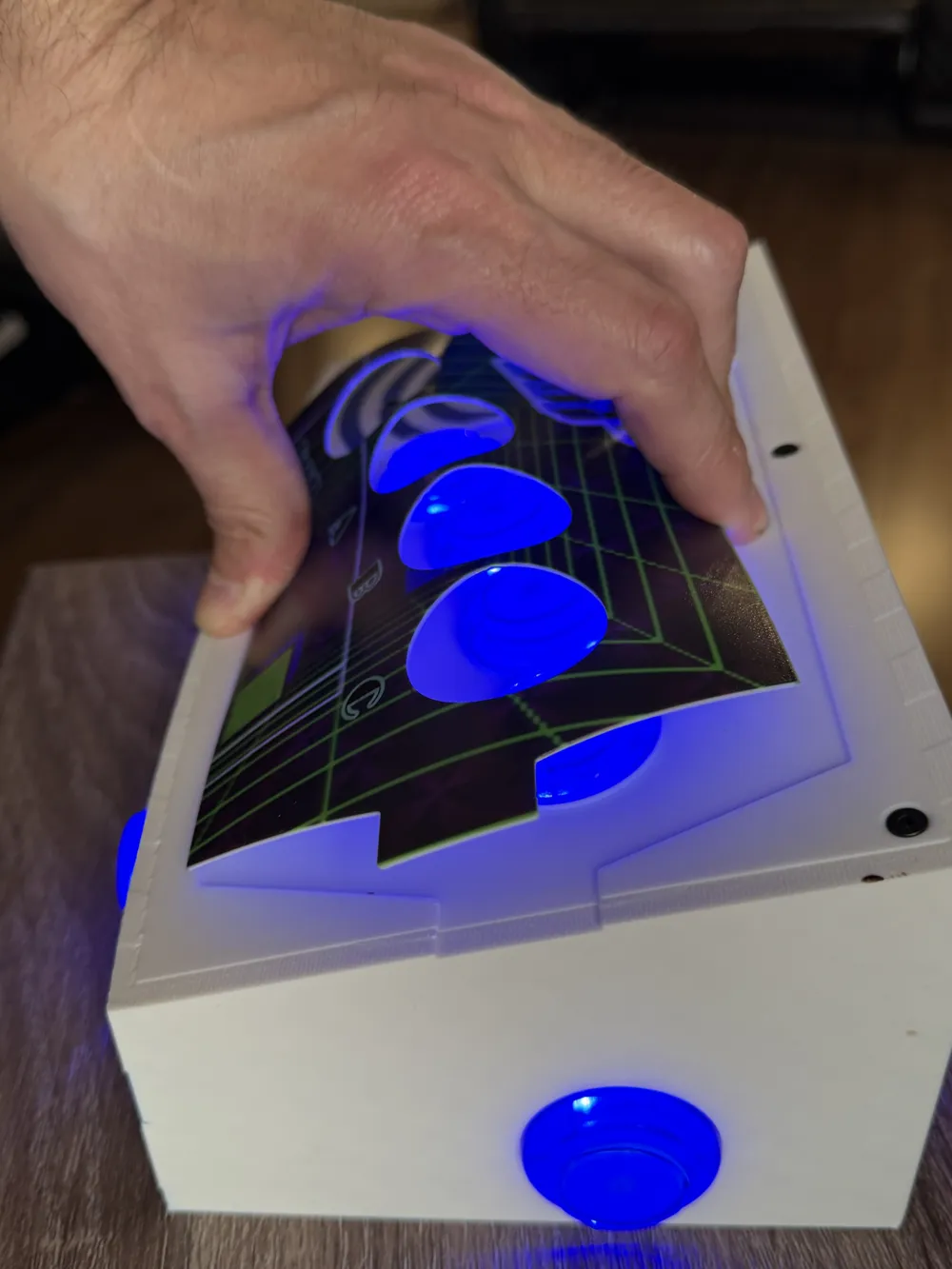

The Art Cover is designed to be printed with a UV printer for full-color artwork (such as the EufyMake E1), but a plain cover with some added text made in Bambu Lab Studio can also look great. HueForge lithophanes could be another excellent option. Share your results if you give it a try!
All hardware uses standard M3 screws and heat-set inserts. Compatible with Zero Delay USB encoder boards.
Use standard M3 screws and heat-set inserts.

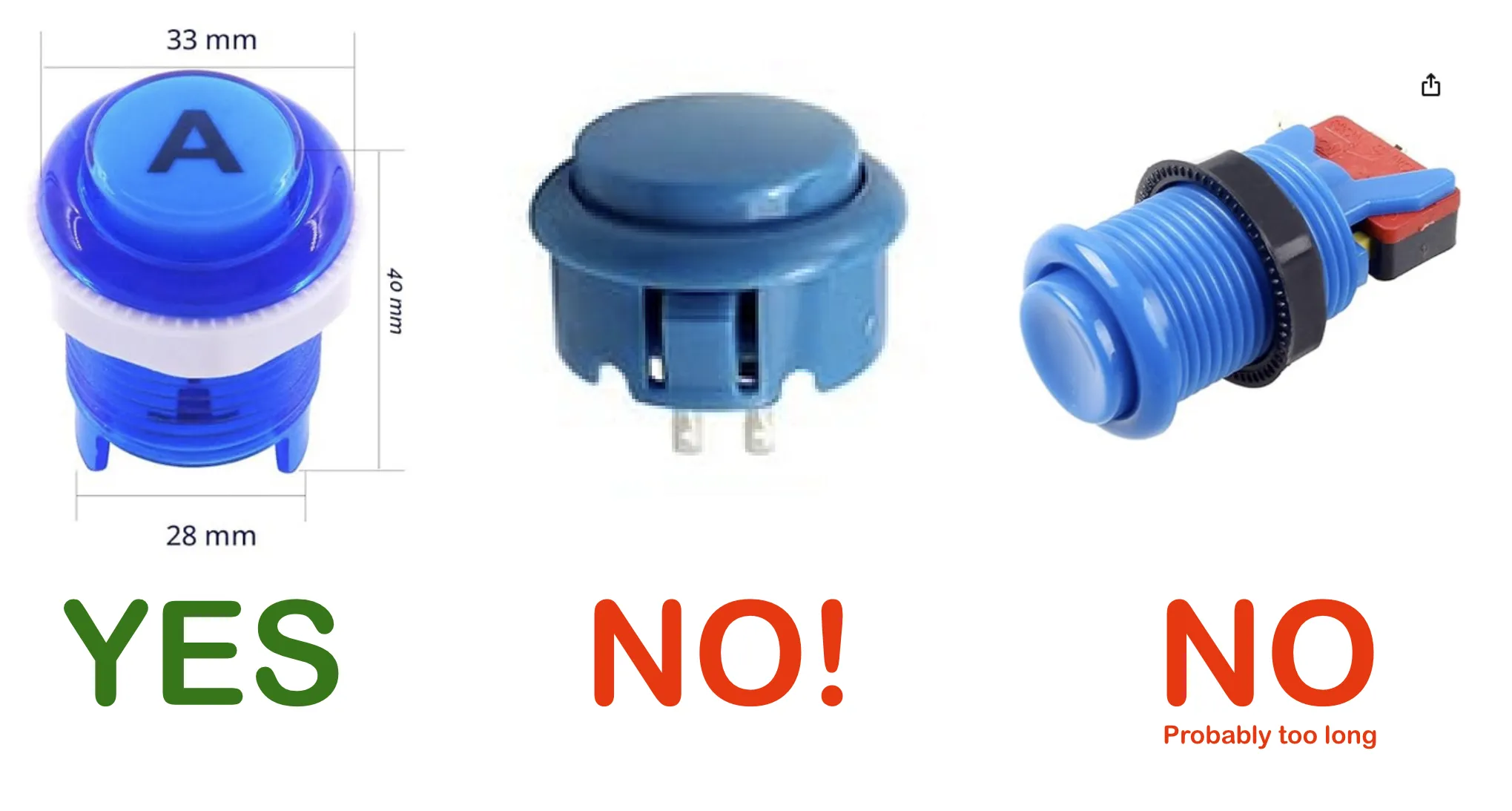

Compatible with the SJ@JX or Hikig Button/Controller (https://a.co/d/0eoNf3zY). Use screw-in arcade buttons only. The threaded shaft must not exceed 28mm in length. Snap-in buttons will not secure properly, and long-shaft screw-in buttons (with external microswitches) are too deep to fit.
What you need to print
• Main Body — including the cable guide and cable lock bracket.
• If you want to use Art Covers, print a Top Panel and at least one Art Cover. Choose the version that matches your desired button count (4, 6, or 8 buttons).
• Alternatively, a flat Top Panel is available — also available in 4, 6, or 8-button configurations.
• If using a 6 or 8-button Top Panel, you will likely need Knockout Plugs to fill unused side or rear holes. Print the required quantity.

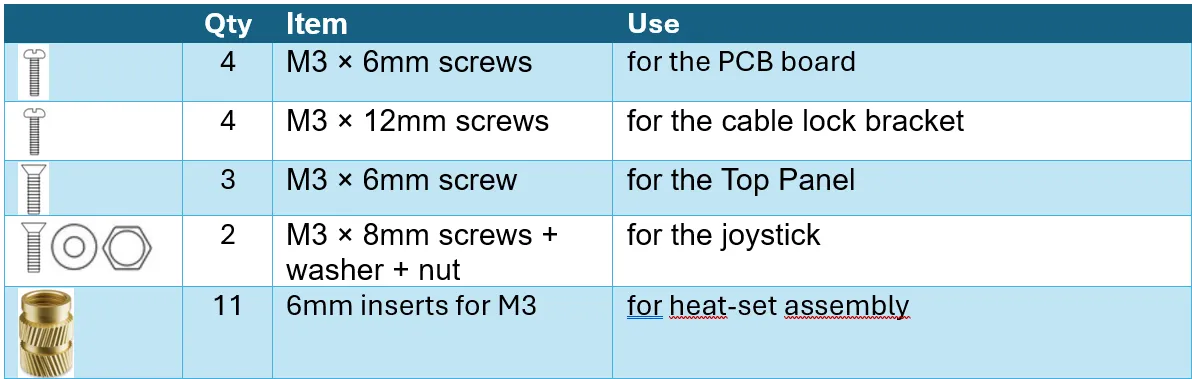

Required Hardware
See instruction for more instructions.
