X2D Cablemanagement, AMS + Filament track switch
Print Profile(4)
Bill of Materials
Description

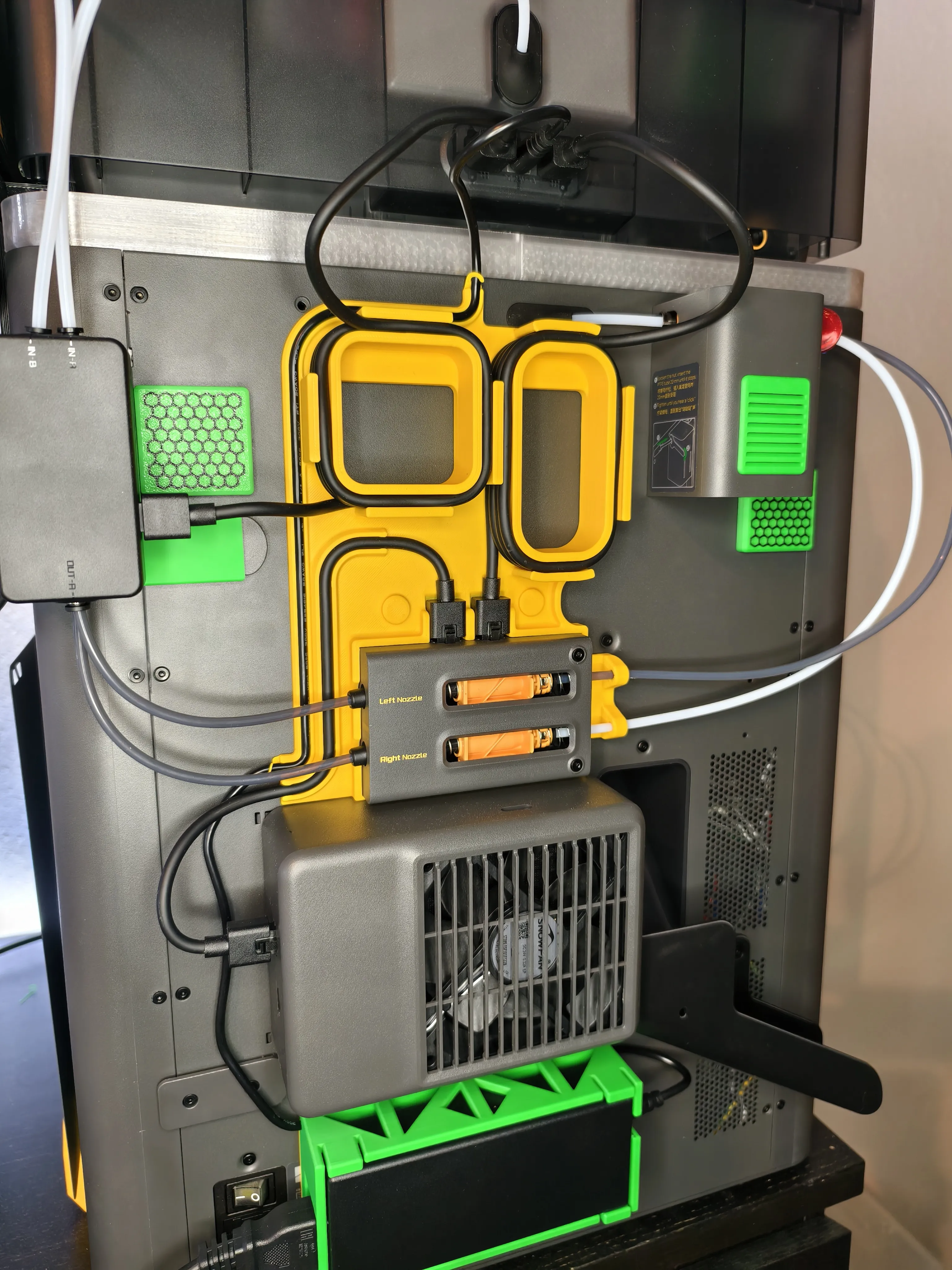

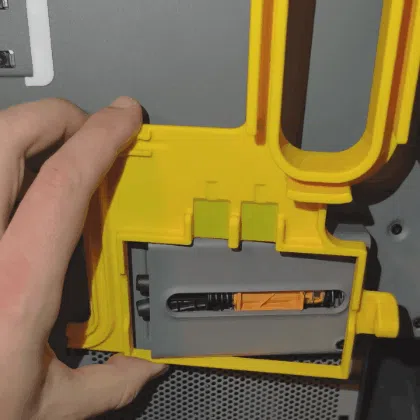

Simple cable management for the cable that connects the hub and the exhaust fan, ams 2 pro and the filament track switch on the new X2D.
The cable has still enough length for a riser.
Boost Me (for free)
If you like my work, i would appreciate a boost!
Update:

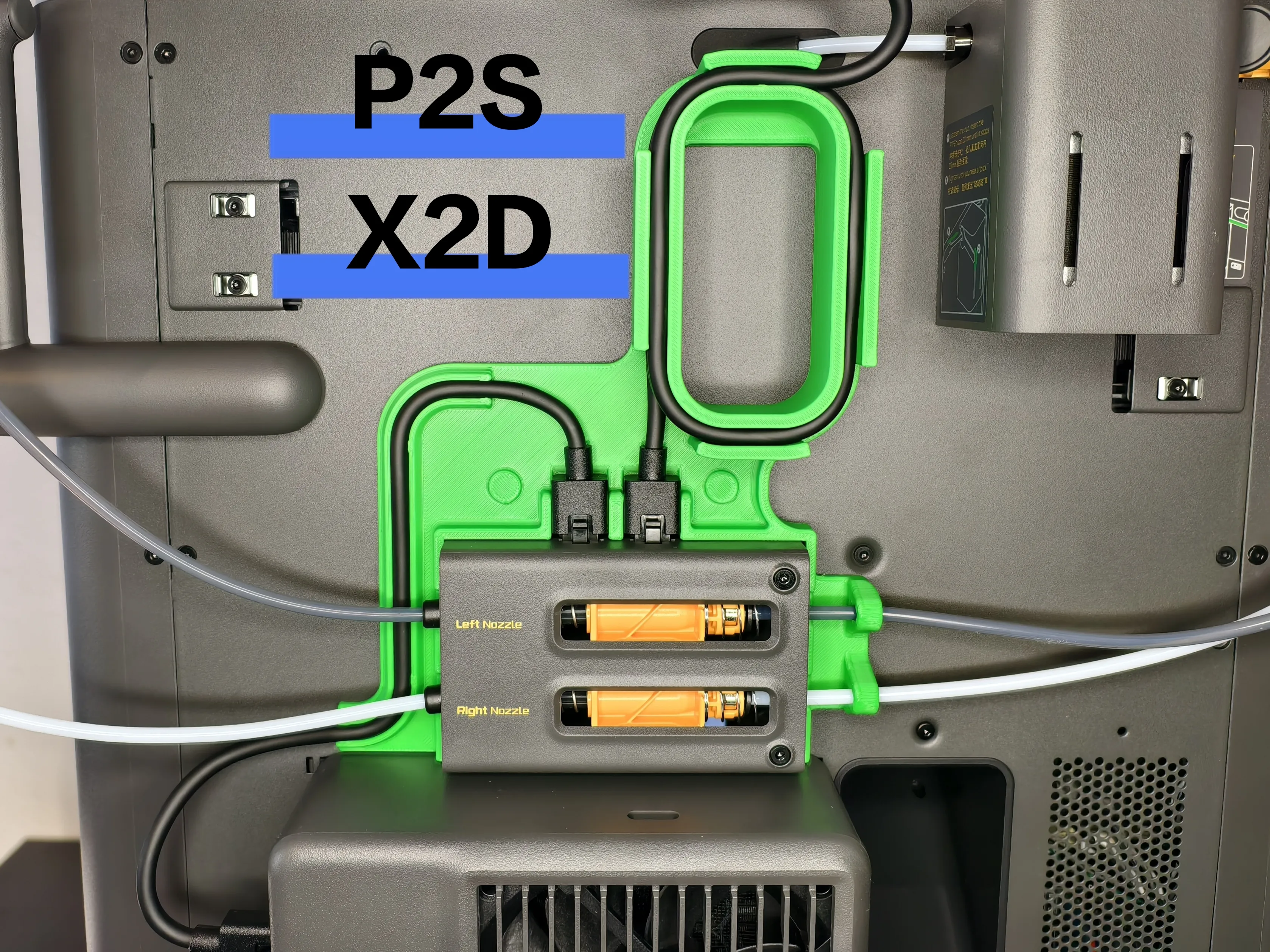

-I uploaded a version fot the P2S. Not sure if you can use the Filament track switch with the P2S. But it can also be used for 2 AMS on top of the Printer.

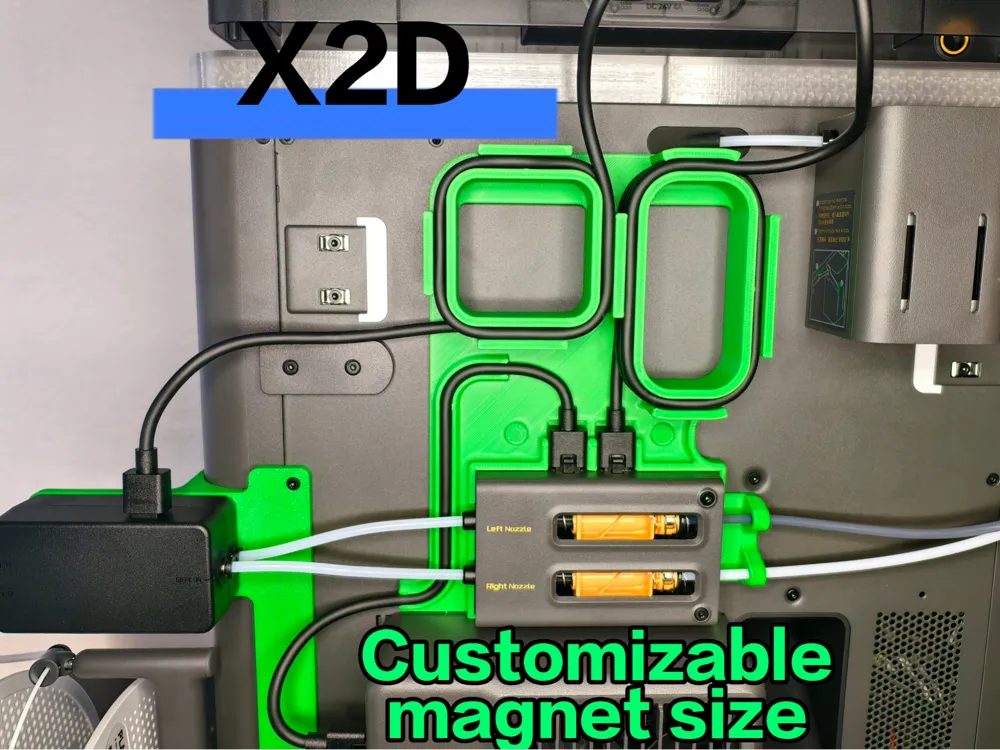

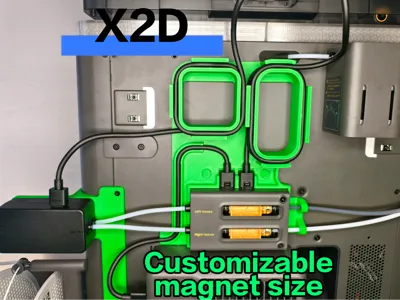

-I uploaded a customizable file for the magnet size. The range is 3-10mm diameter and 1-4mm height. Allways add 0.3mm to your magnets diameter and 0.4mm to its height. Then slice with a pause at the last layer before the magnet slots get closed.
-NO screws or glue needed!
-can be used with or without magnets!
-The print profile pauses at 3.8mm height, so you can add six 6x3mm magnets

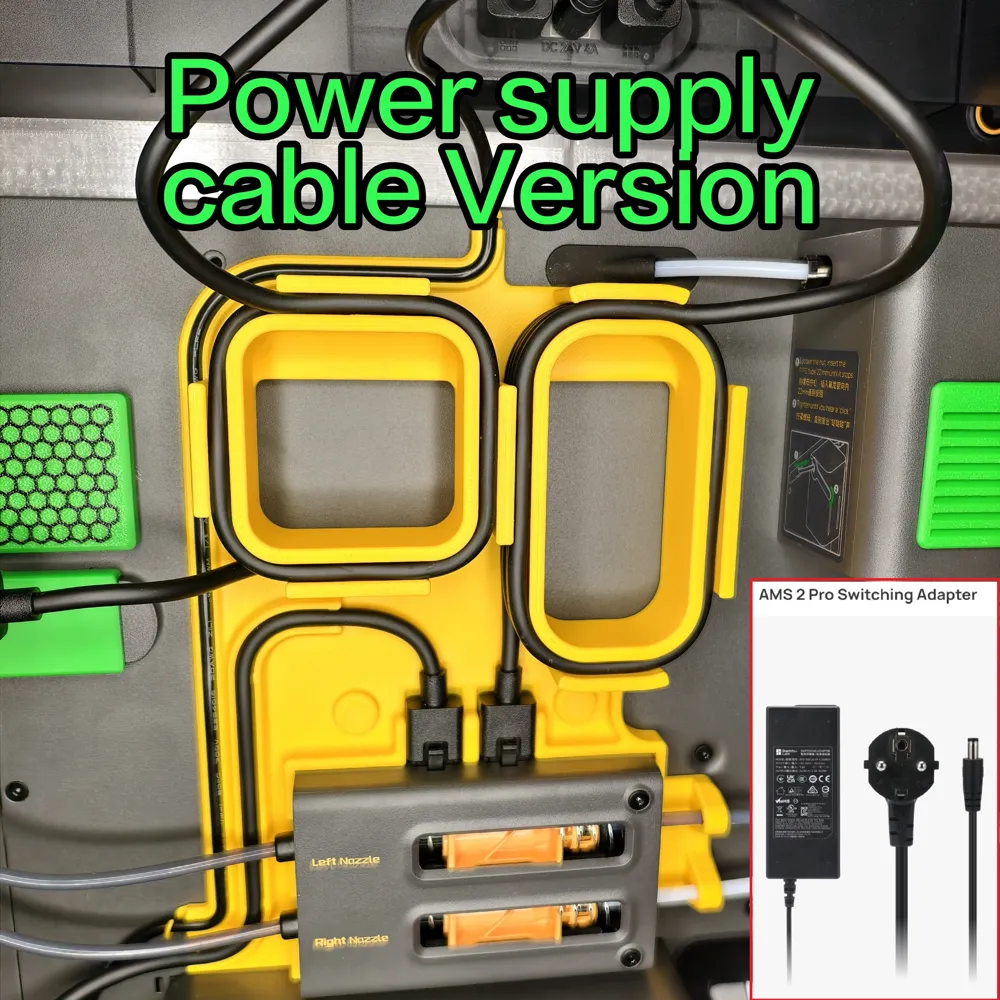

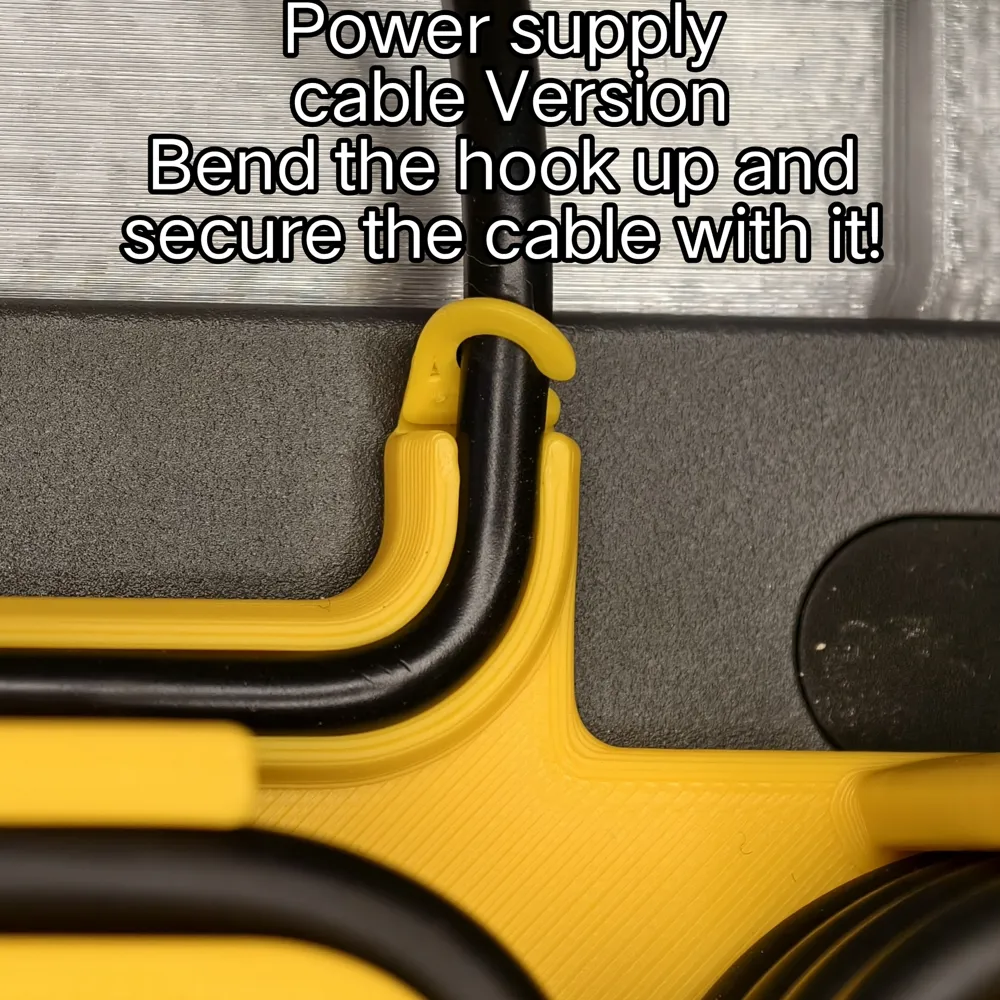

The “Power supply cable” Version is a perfect fit with my Magnetic AMS 2 Pro Power Adapter mount:
X2D Cable management without filament track switch:
My other X2D mods:

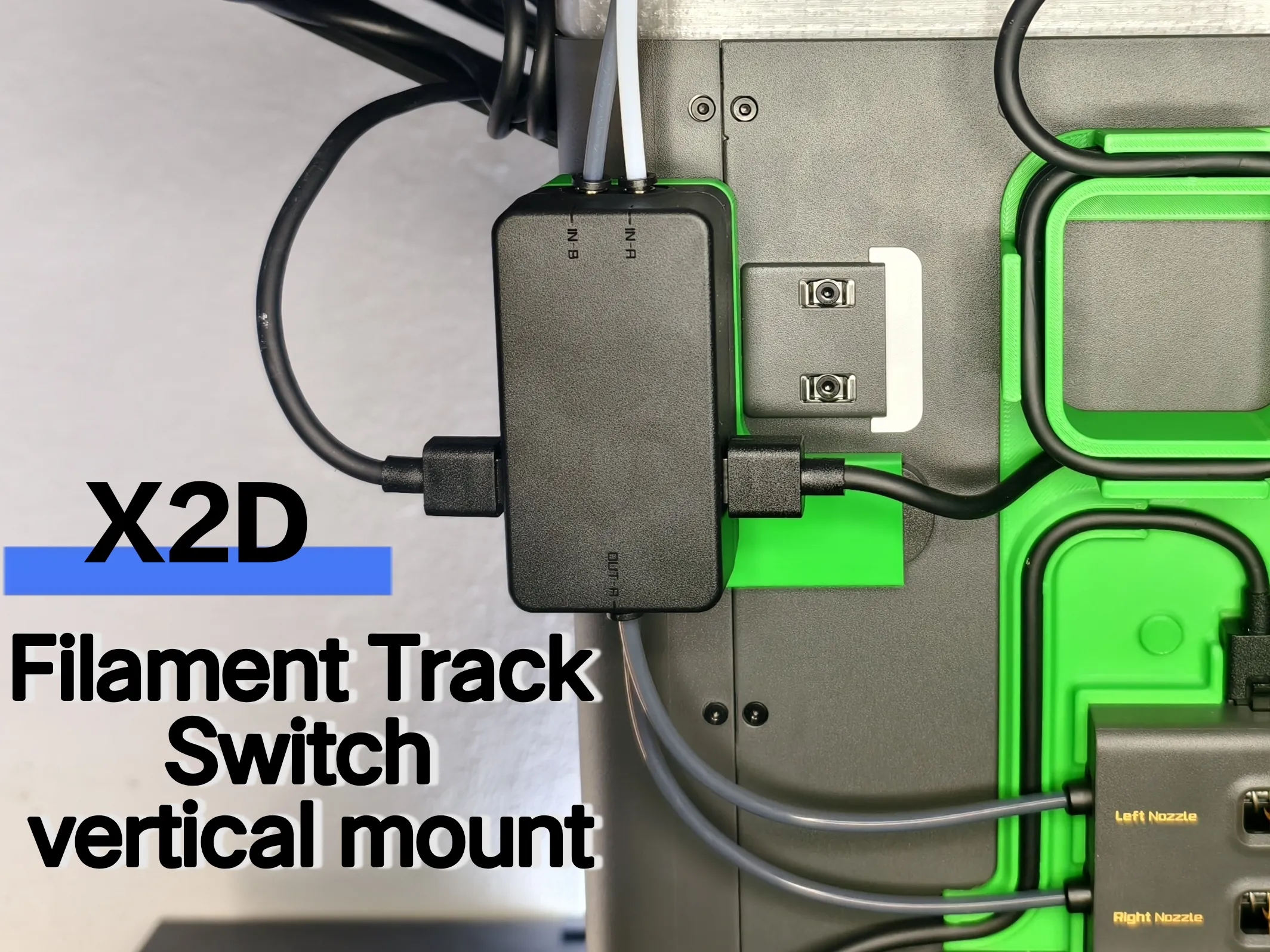

X2D Filament Track Switch vertical mount

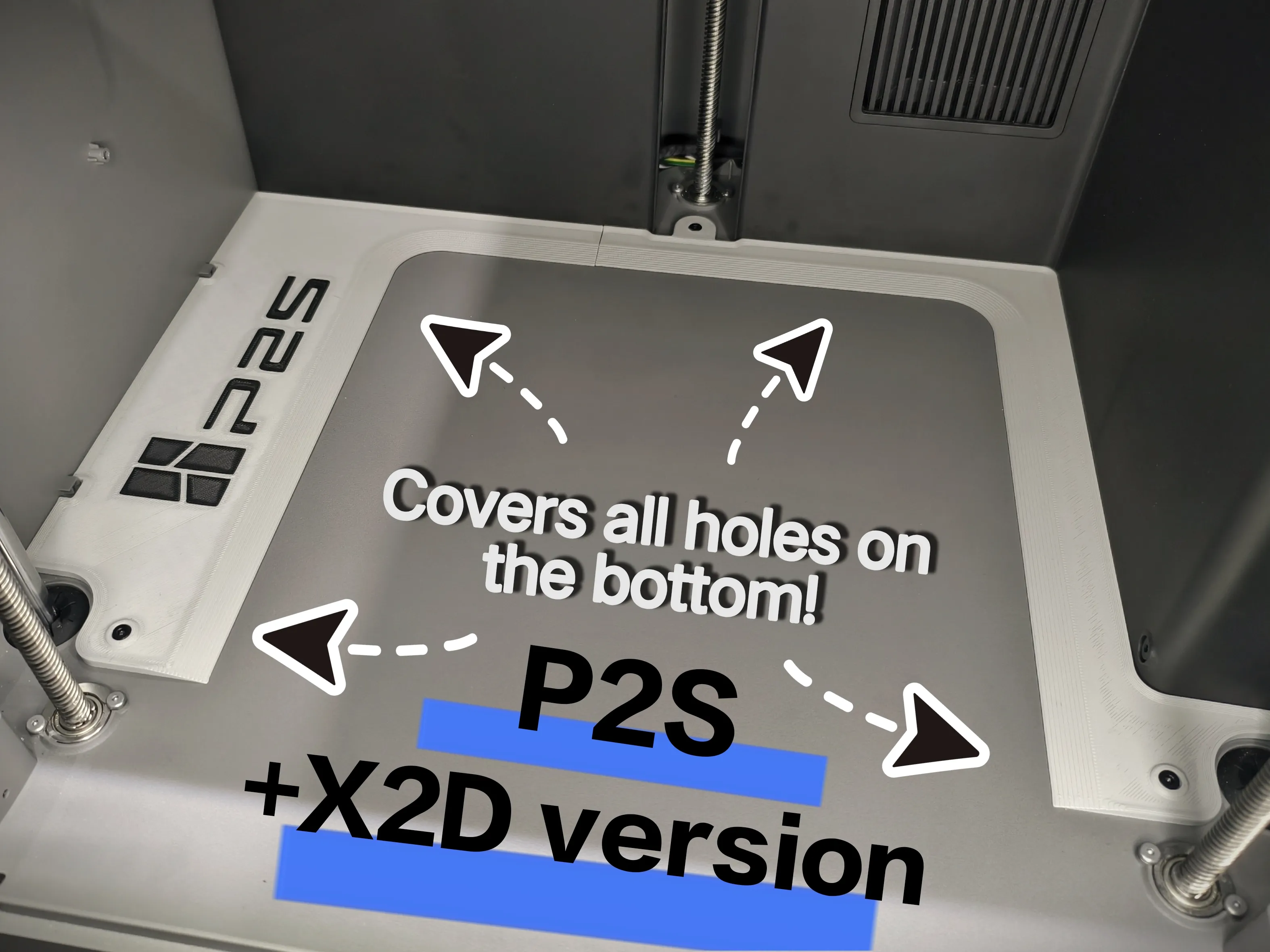

X2D / P2S Dustcover for holes on the bottom full cover

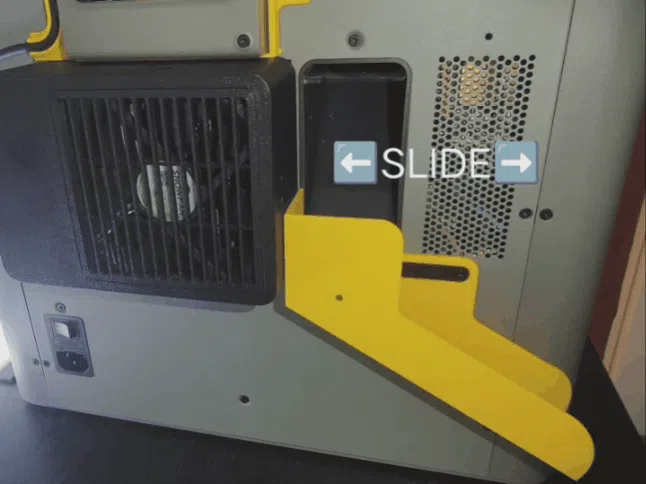

X2d / P2S Poop Chute slideable for Exhaust fan kit

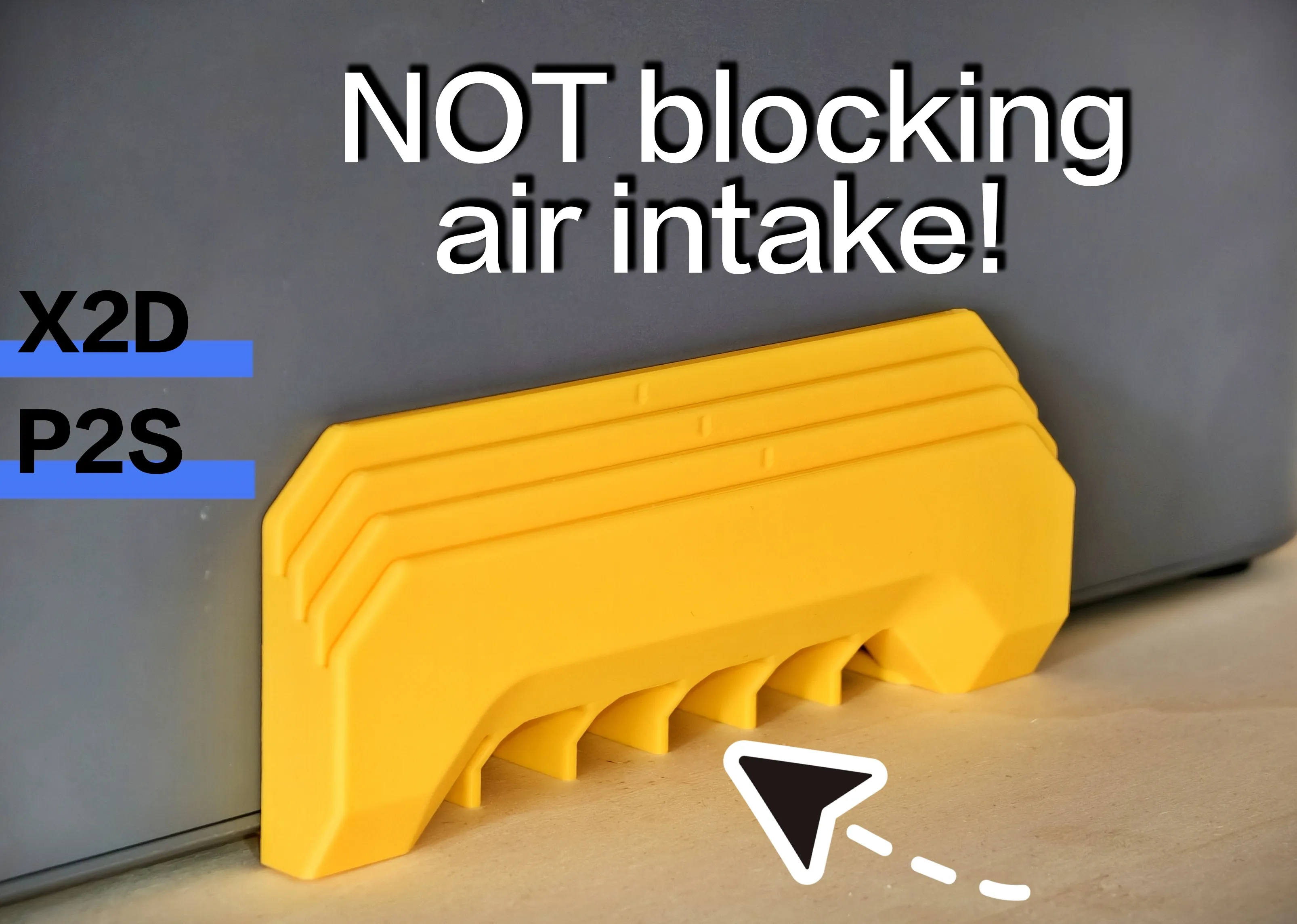

X2D / P2S build plate holder 3,4,5 Plates:

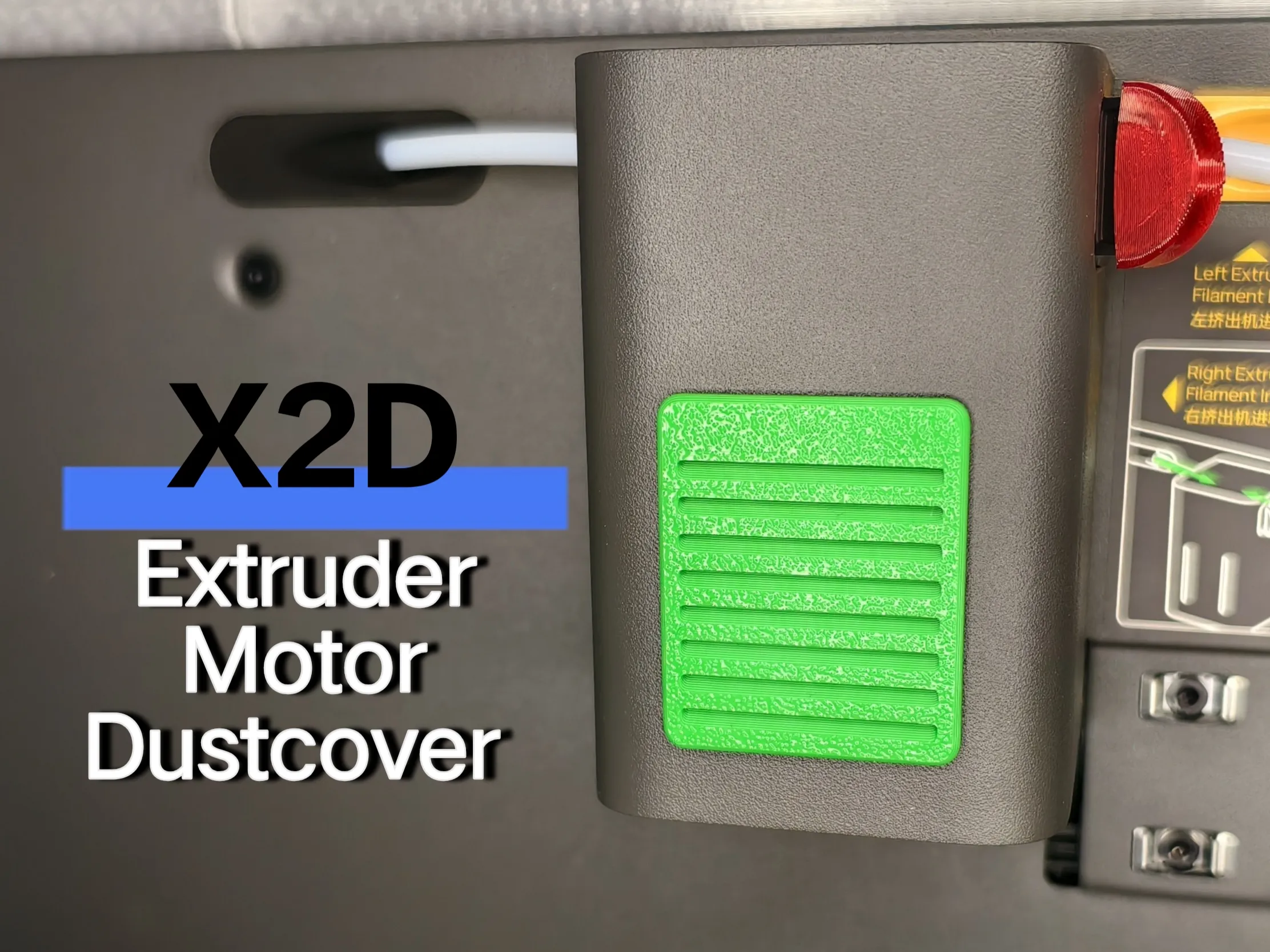

X2D Bowden Extruder Dustcover

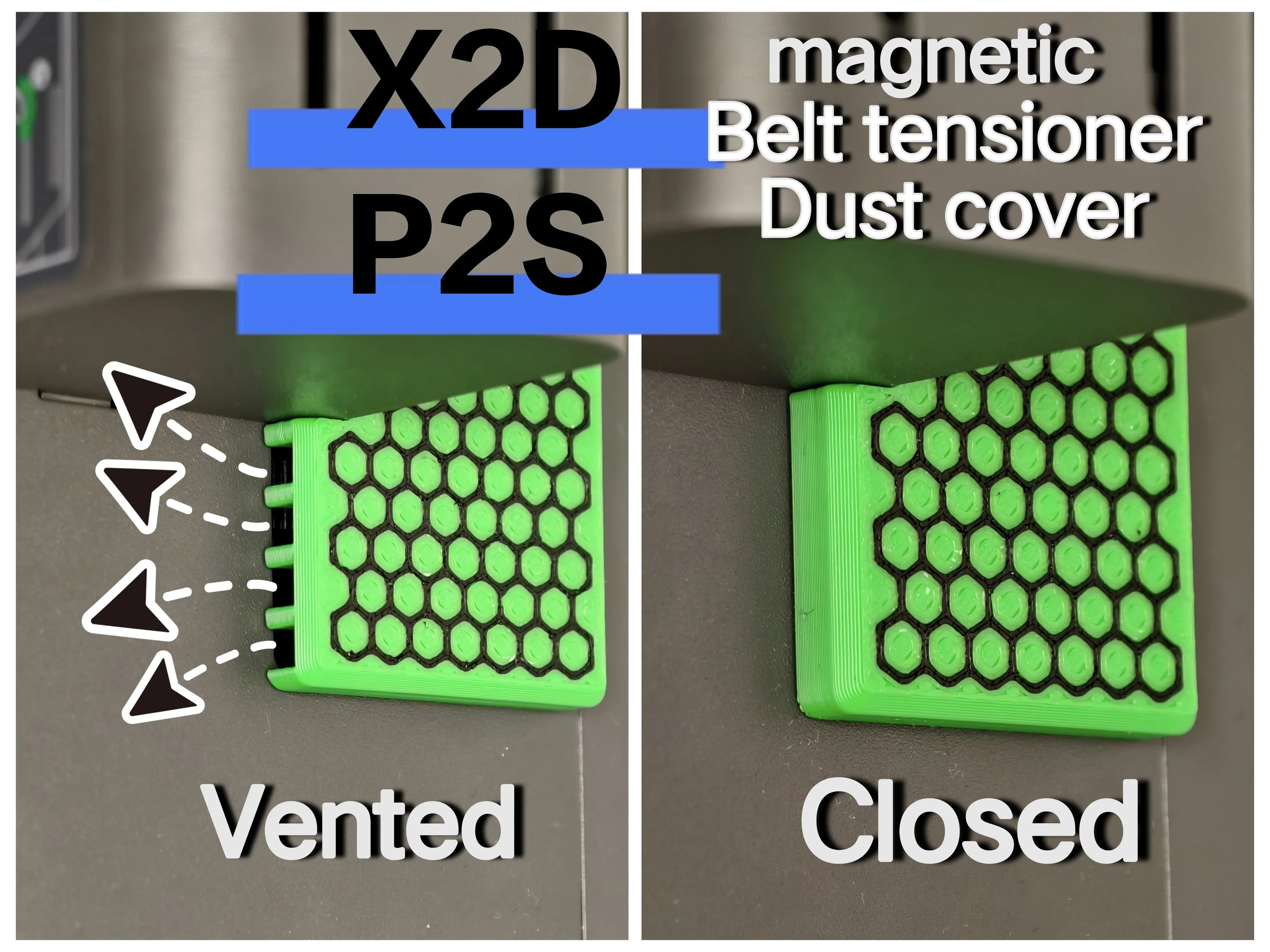

X2D / P2S magnetic Belt tensioner dust cover

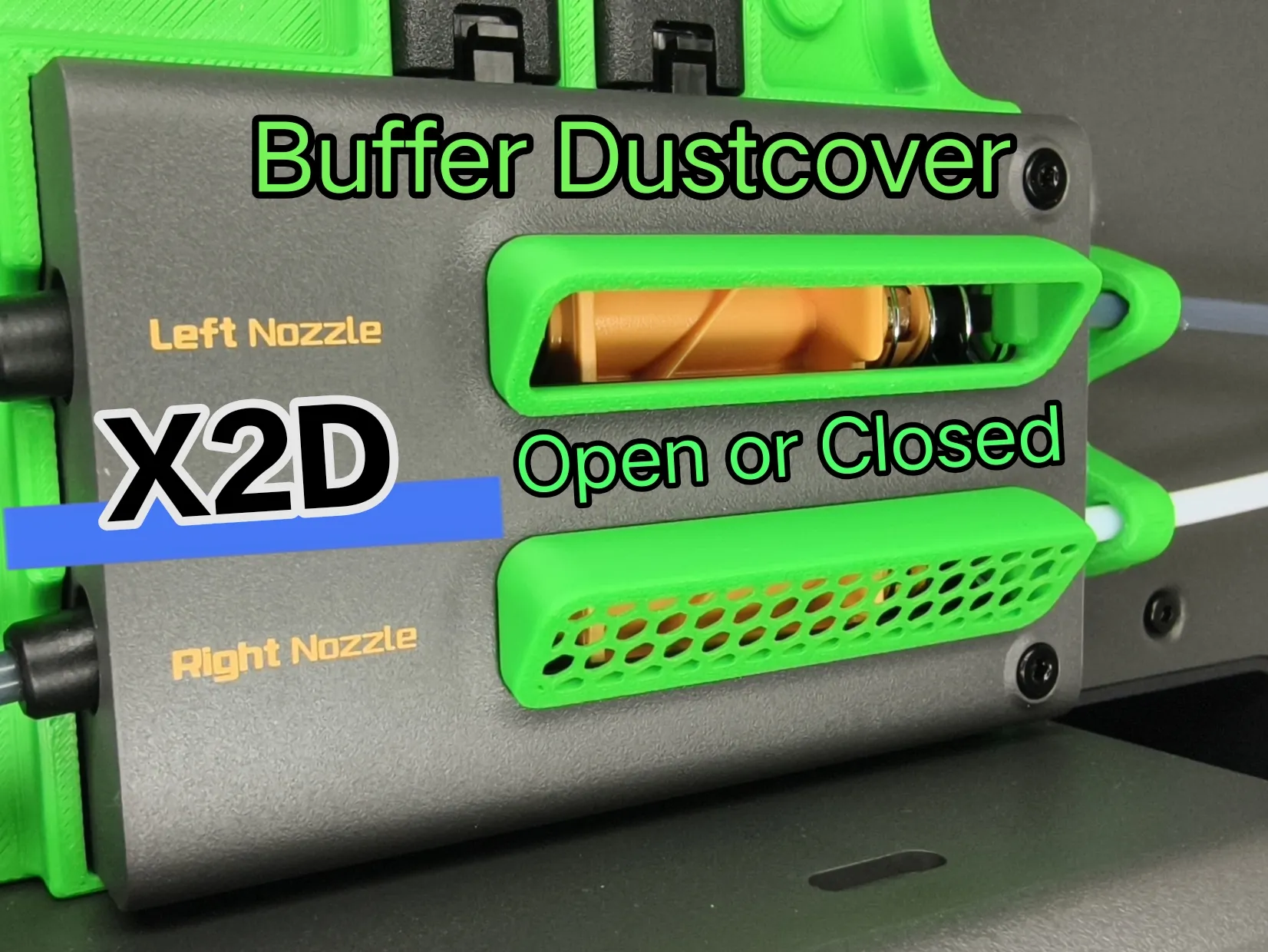

X2D Buffer Dustcover 2 Versions

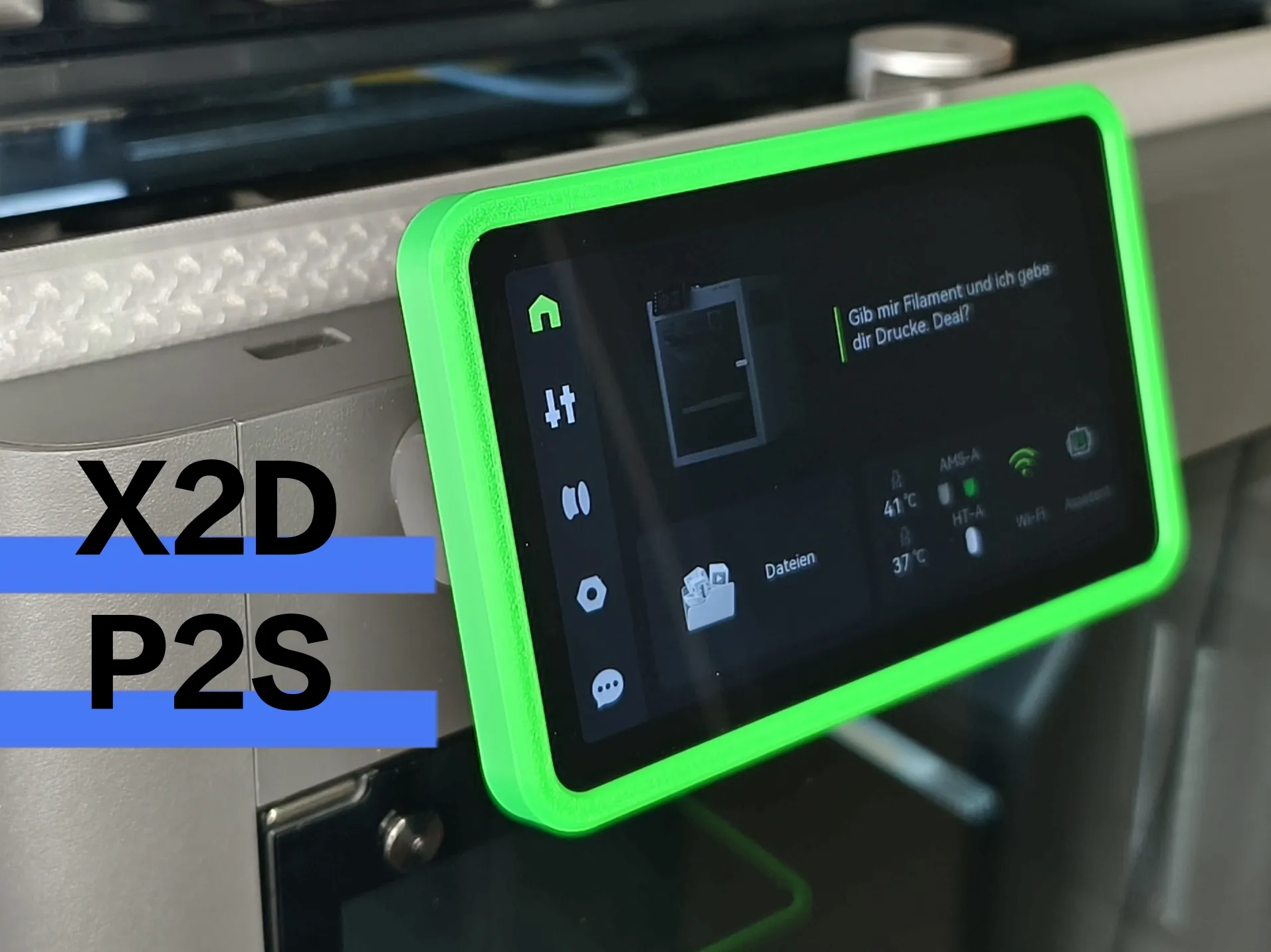

X2D / P2S Display cover
