Sound Bite Mini
Print Profile(1)
Description
Reliable Designs for Everyday Use & Creative Projects
Functional prints, clever gadgets, and fun extras — all ready to download and make.
________________________________________________________________________________________________________

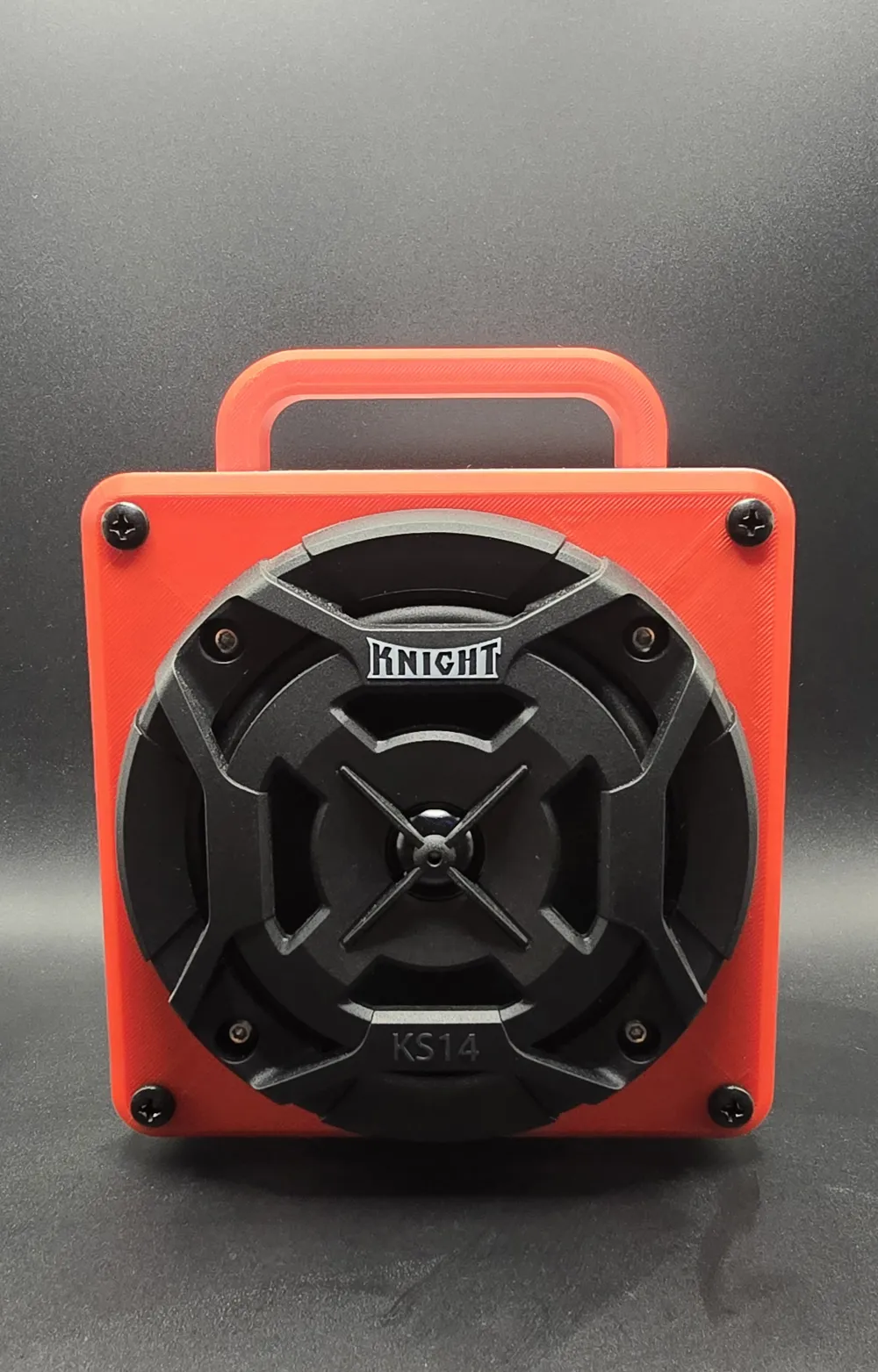

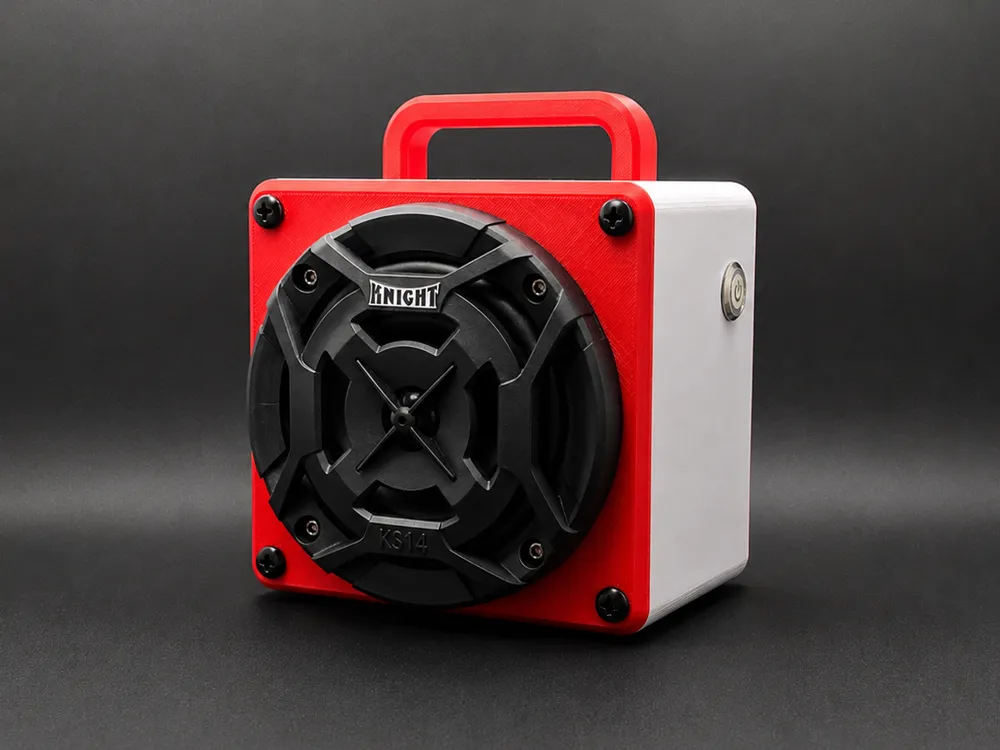

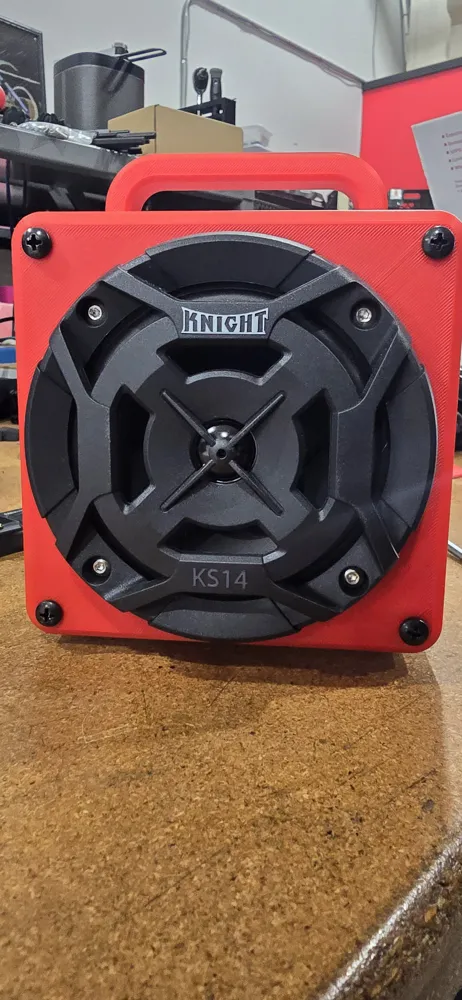

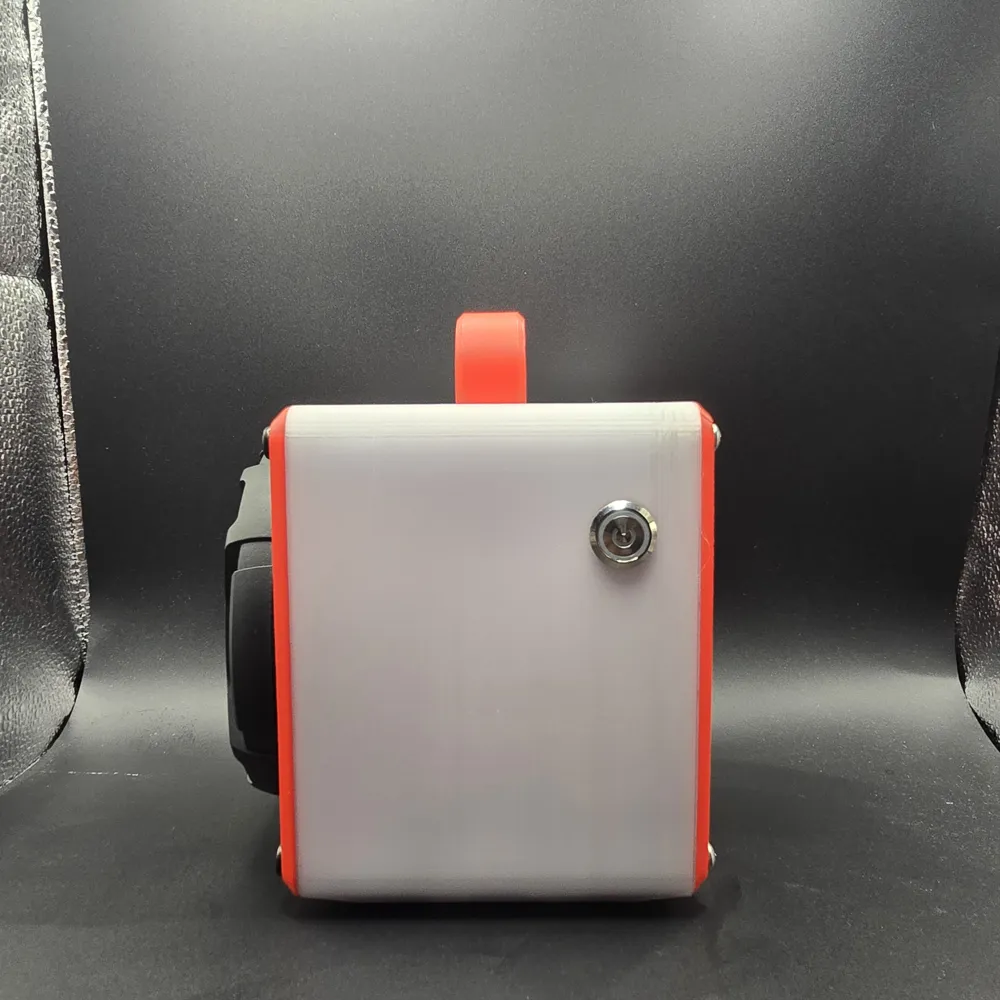

This portable speaker housing was designed in collaboration with Knight ATV as a custom enclosure for the KS14 speaker. The design features an integrated carry handle, recessed power button, and a press-fit charging port hole for a clean and simple assembly.
The battery is secured using a 3D printed clamp with a 1/4-20 x 0.5in screw and flange nut, while the amplifier is mounted inside the housing using double-sided Gorilla tape or using a knight atv amp drop in with some double sided tape.
Electronics Used
Speakers(KNIGHTATV KS14):
https://knightatv.com/products/ks23-4-waterproof-speakers?_pos=1&_sid=f2175d711&_ss=r
Battery:
https://amzn.to/4uf8y81
Amplifier:
DAJUNGUO ZK-1002T
ZK-1001B Bluetooth Amplifier 100W Mono AMP Mini
https://amzn.to/4taqxfm
KnightATV Amplifier:
https://knightatv.com/products/waterproof-bluetooth-amplifier?_pos=1&_psq=amp&_ss=e&_v=1.0
16mm Button:
Cheap Option
Waterproof and Higher Quality RGB Option
https://knightatv.com/products/waterproof-power-button-with-led-light?variant=50393041404200
Assembly Notes

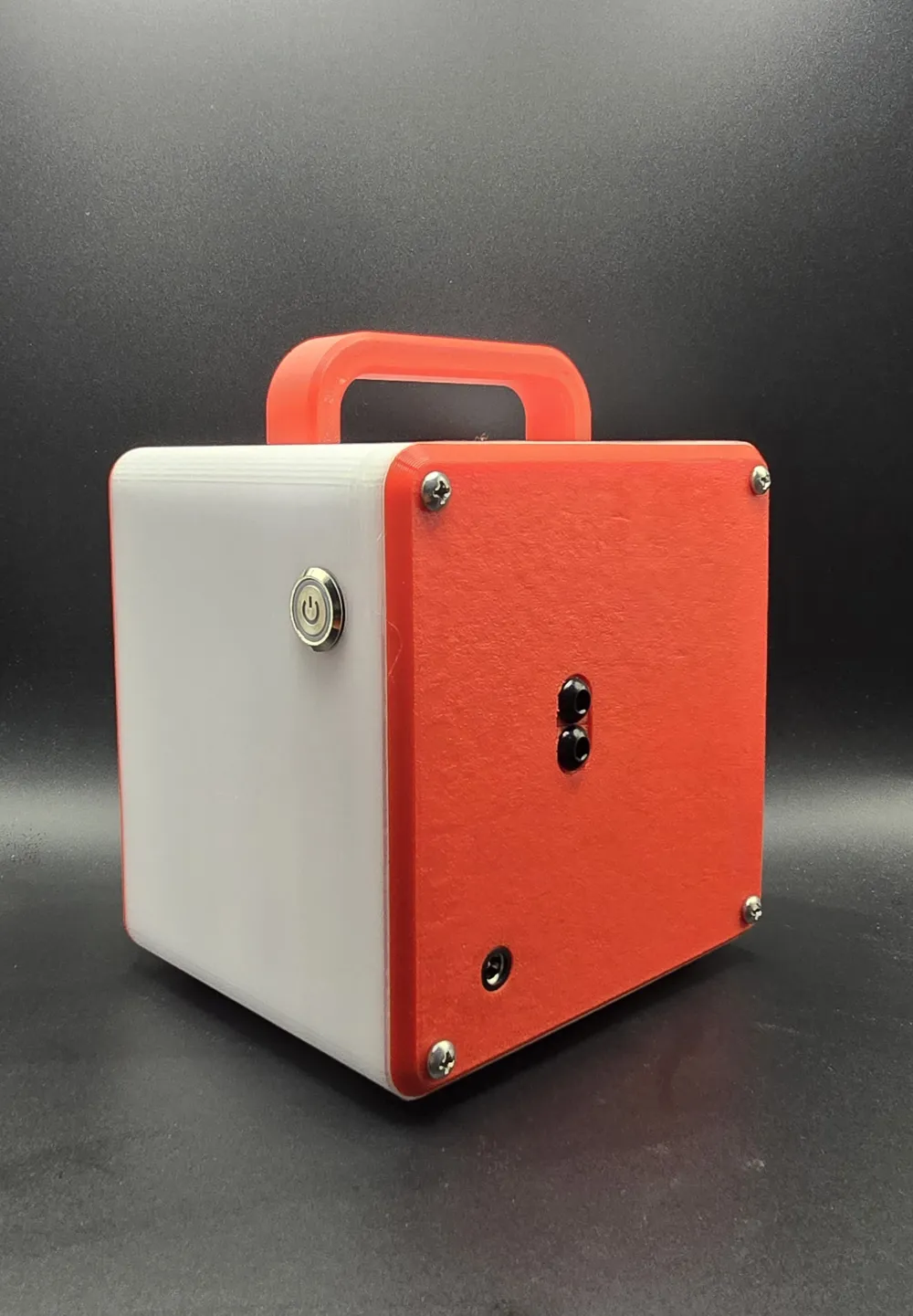

• Charging port press-fits into the rear hole of the housing
• Battery is mounted to the back plate of the speaker housing using 2 screws and flange nuts
• Amplifier is srewed into the rear of housing
Design collaboration with Knight ATV.
Hardware Needed:
- 8x 10-32 thread inserts
- 8x 10-32 x 1in screws
- 2x -¼-20 x 1in Screws
- 2x ¼-20 Flange Nuts
