Cable holder 20-40mm, stable, with cable tie hole

Print Profile(1)

All
X1 Carbon
X1E
P1P
P1S
P2S
H2S
H2D
H2D Pro
H2C
A1 mini
A1
X1
X2D
A2L

0.2mm layer, 3 walls, 35% infill
0.2mm layer, 3 walls, 35% infill
Designer
2 h
1 plate

Open in Bambu Studio
Boost
0
1
0
0
2
2
Released

Description

Content has been automatically translated.
Show original

Cable holders for gluing and screwing
With attachment for cable ties
Sturdy design

For various cable tasks I repeatedly need cable holders

With the hardware store parts only small cable ties fit through, also it should be sturdy and available in different colors if needed (In the hardware store there are only 50 shades of grey)



So I quickly designed something good myself

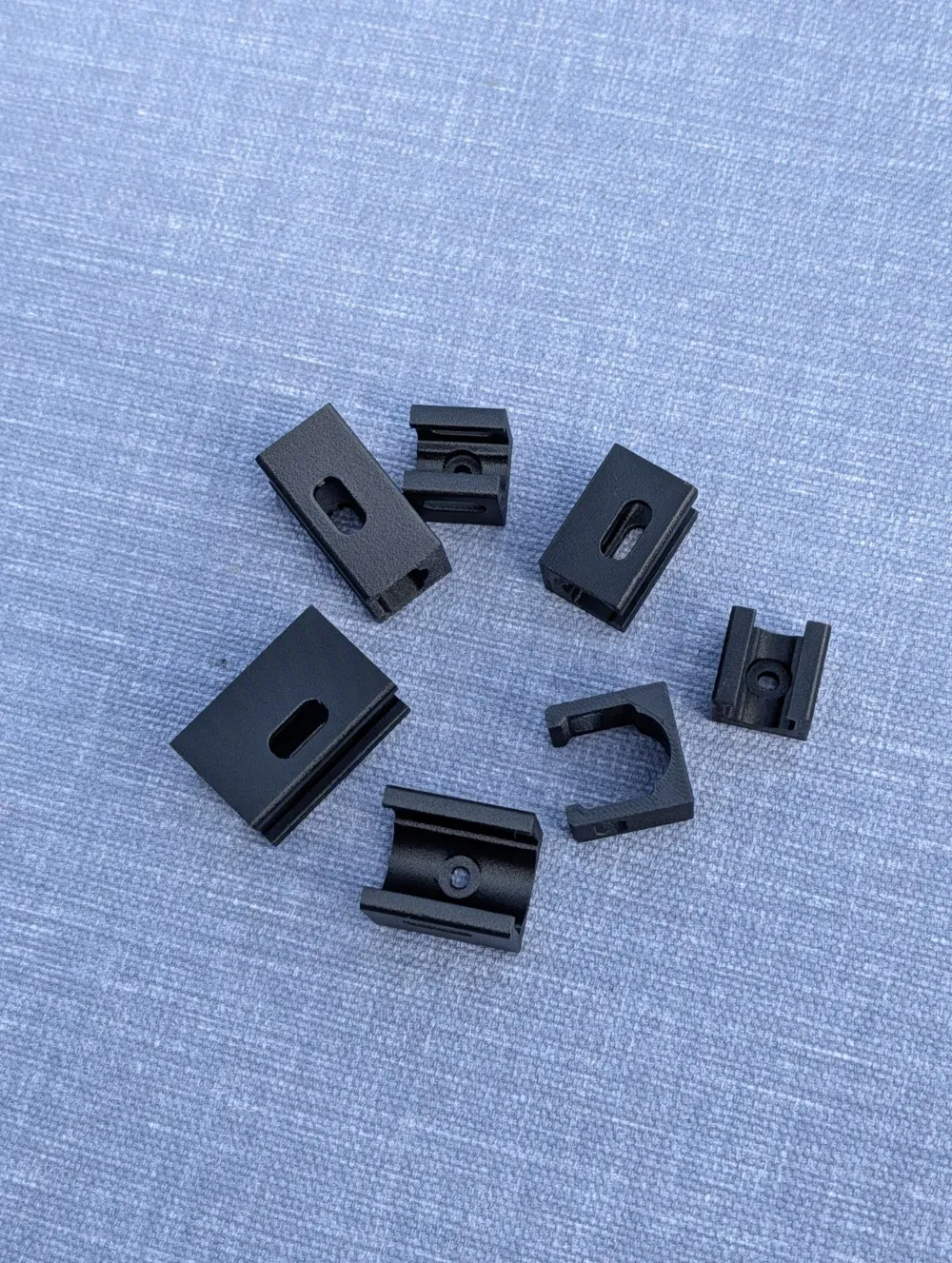

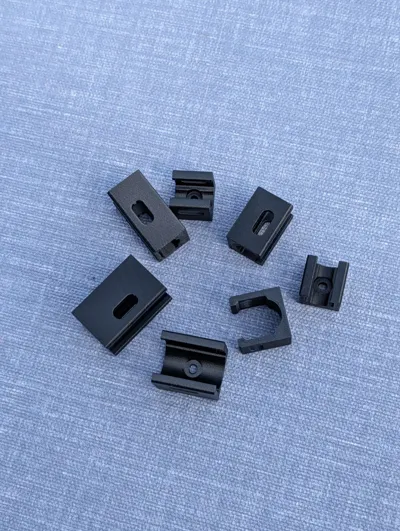

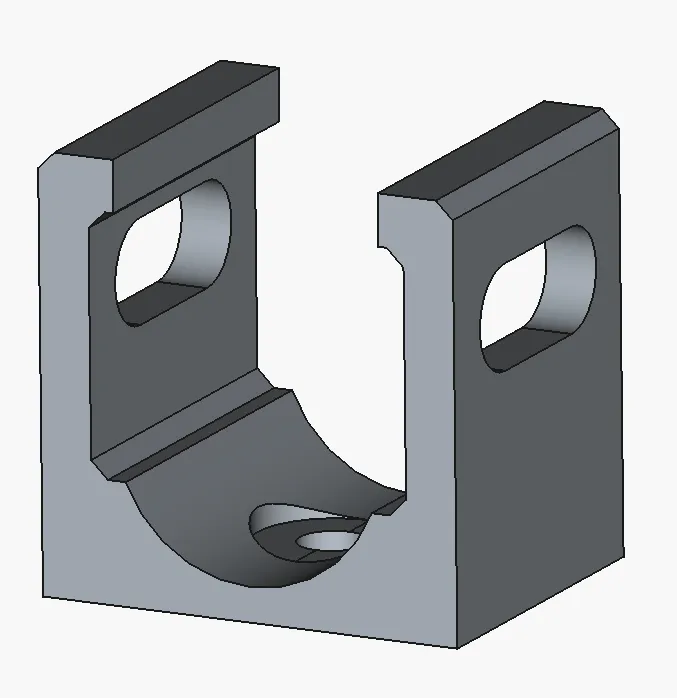

Various widths. 20 - 40 mm

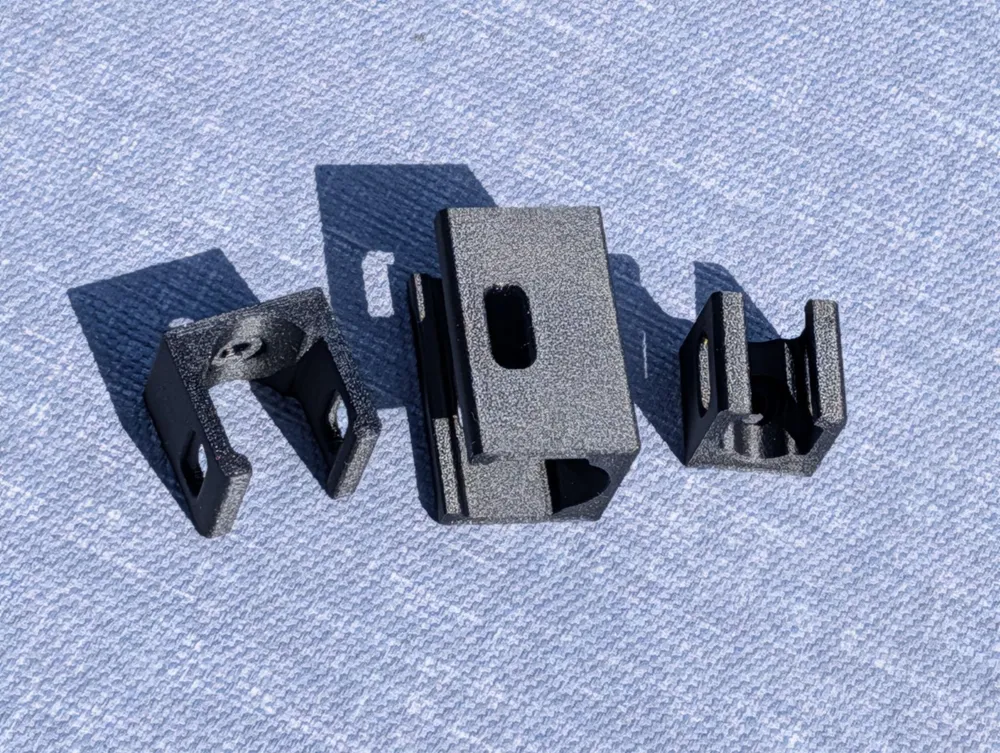

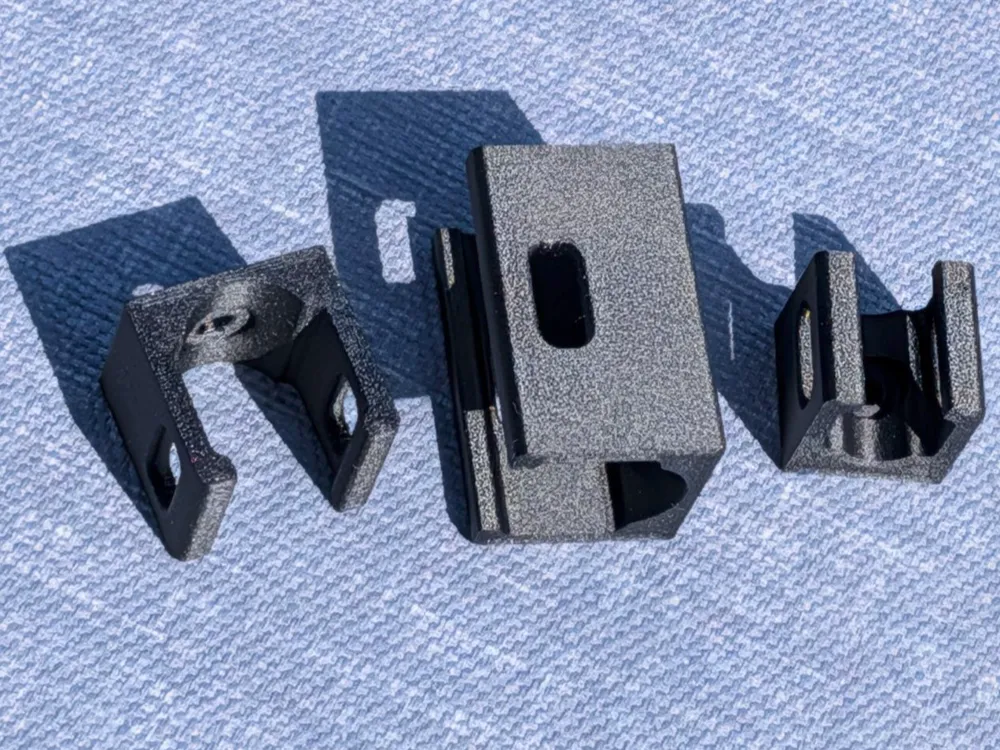

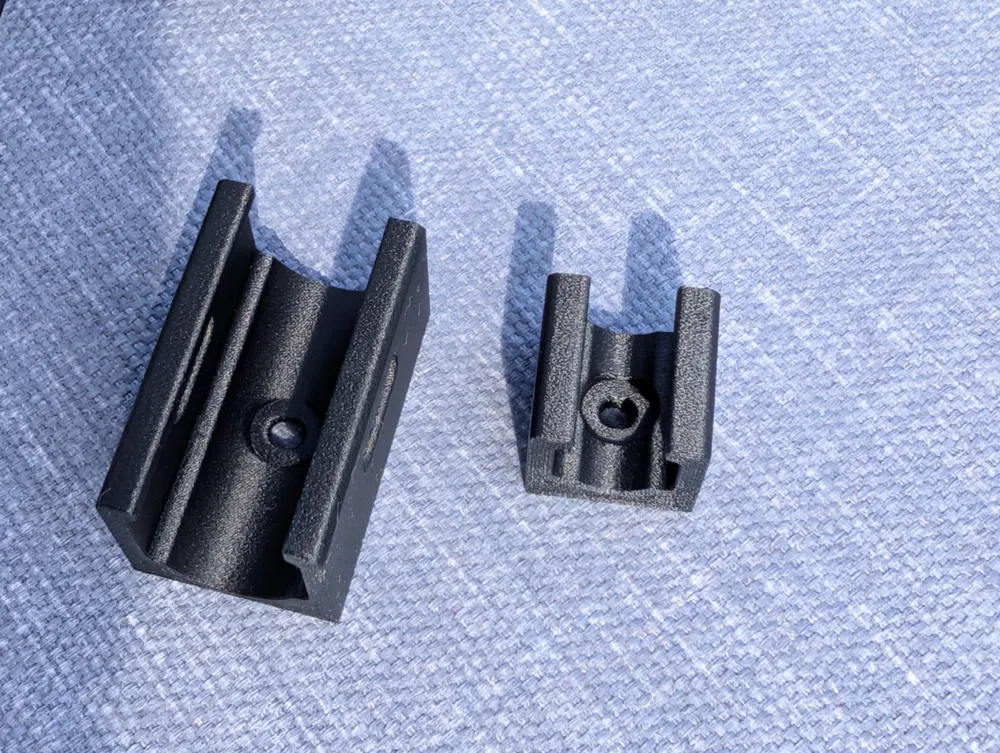

2 different thicknesses for various cables: approx 14mm inner width and approx 19mm inner width

I print the parts with PETG-CF, which is very stable. PETG-HF or normal PETG are OK. ABS also, I do not recommend PLA

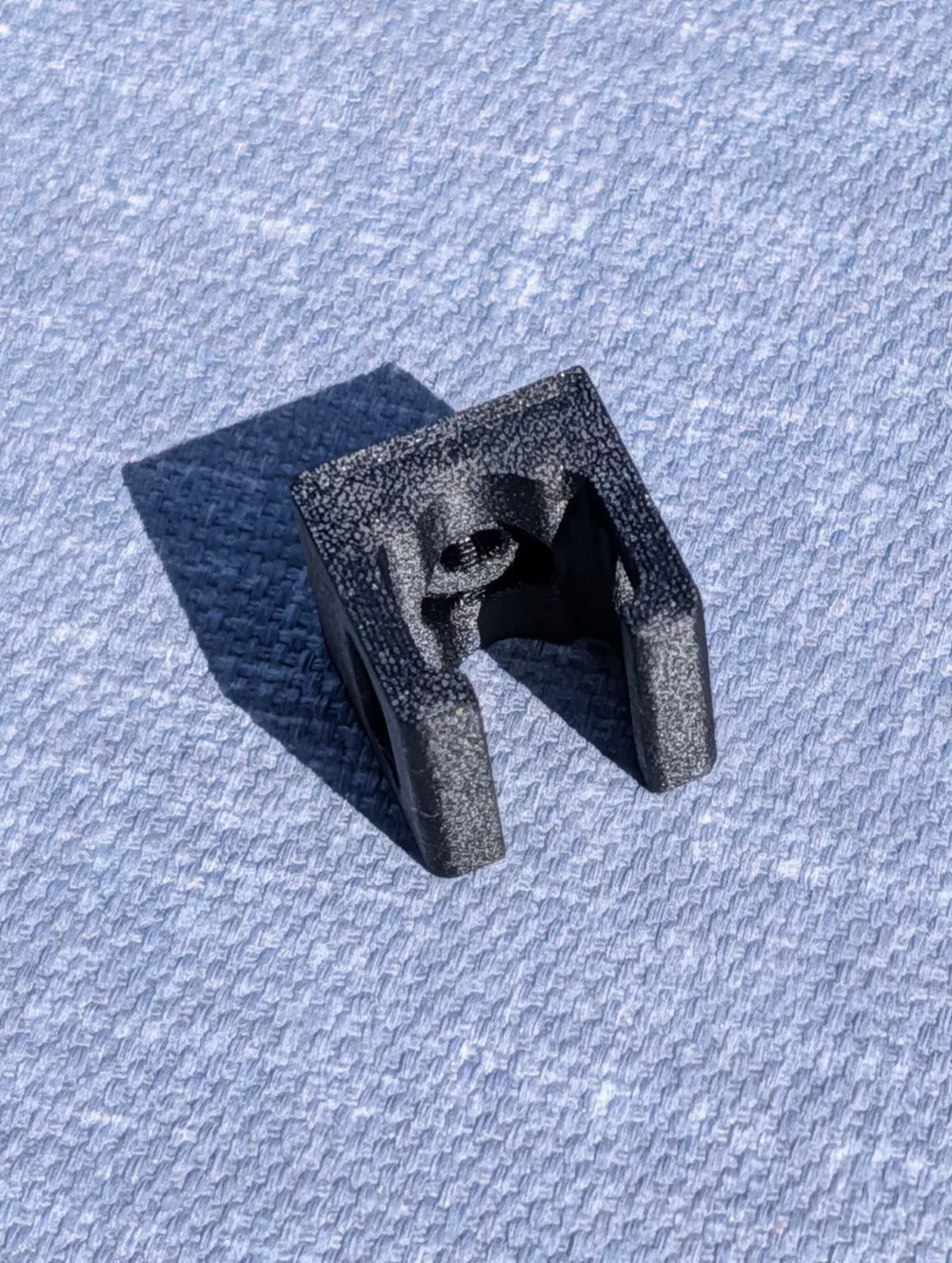

With a hole for 4mm screws, or suitable for gluing

With a wide slot for large cable ties (up to approx 10mm width)

Pay attention to the layers during printing - 3D prints are most sensitive between the layers, therefore I print the parts rotated 90°

3 perimeters and decent infill ensure stability, which can of course be adjusted as needed

I have already used the parts for various outdoor projects, 2 examples included as photos

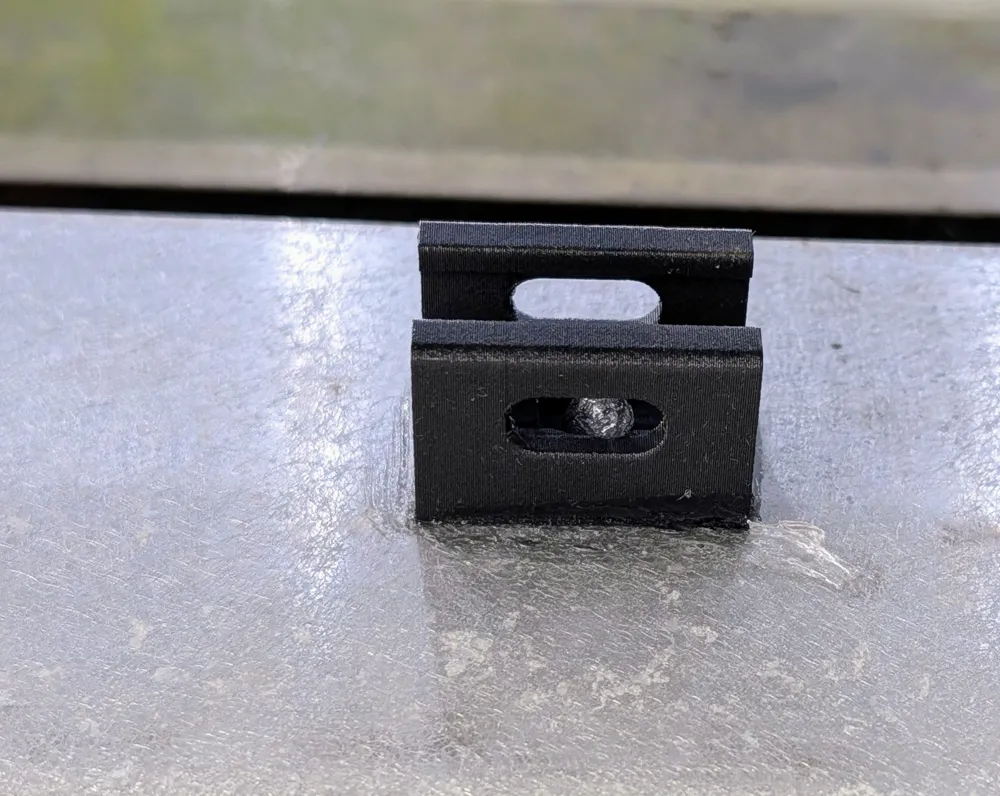

Attachment of power cables for my HUE lighting to an aluminum gutter (glued)

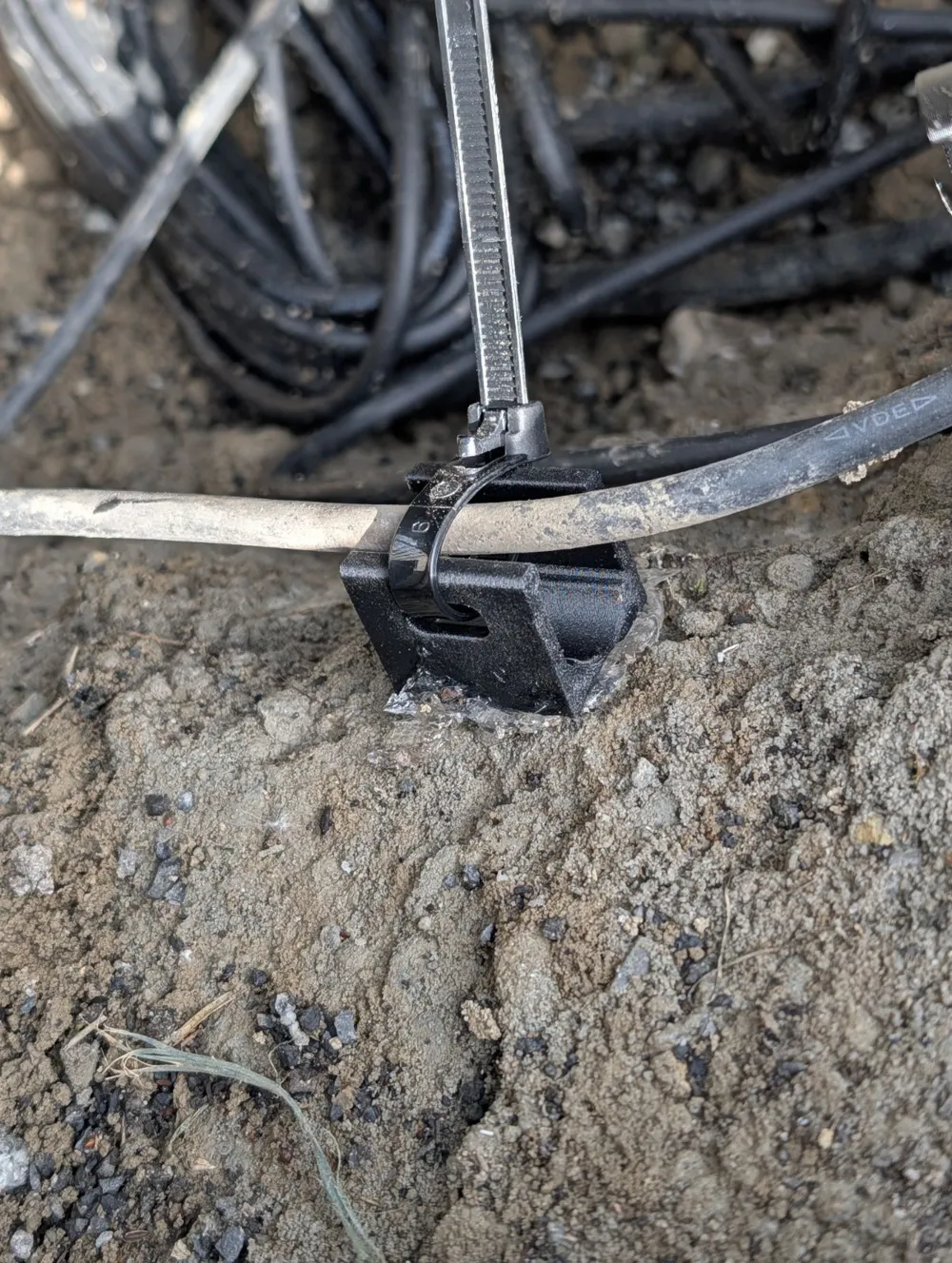

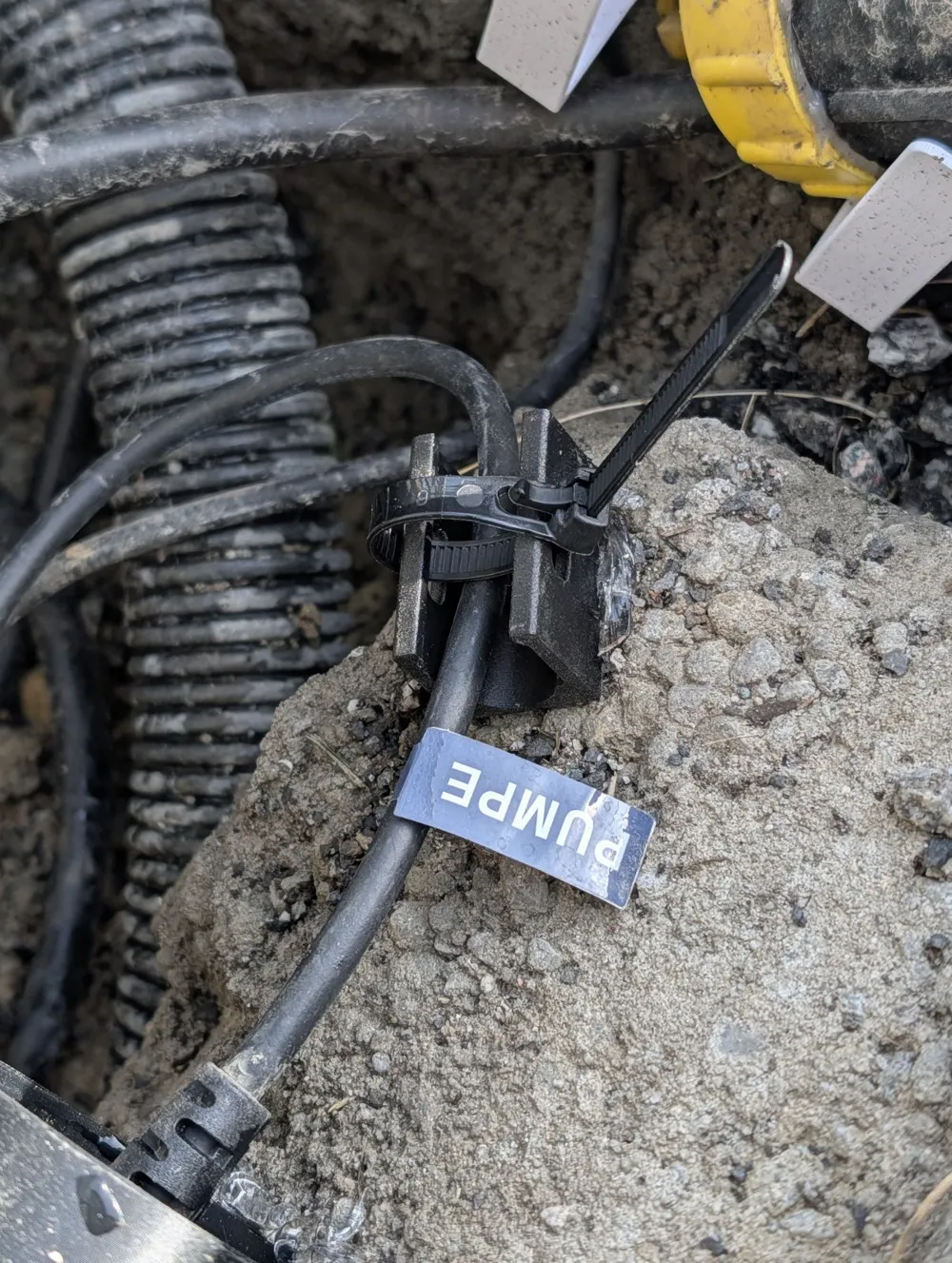

Attachment of power cables to the water feature, glued directly onto concrete

Advantage over hardware store goods: always available in the desired quantity, size, and color :-)

Maybe someone else can use it too
