FUSi PA01 Charging Dock
Print Profile(1)
Description

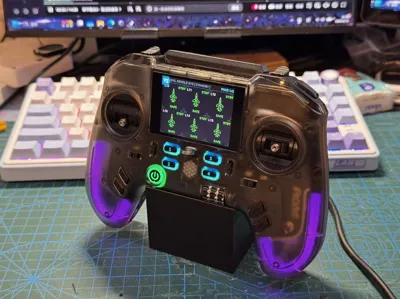

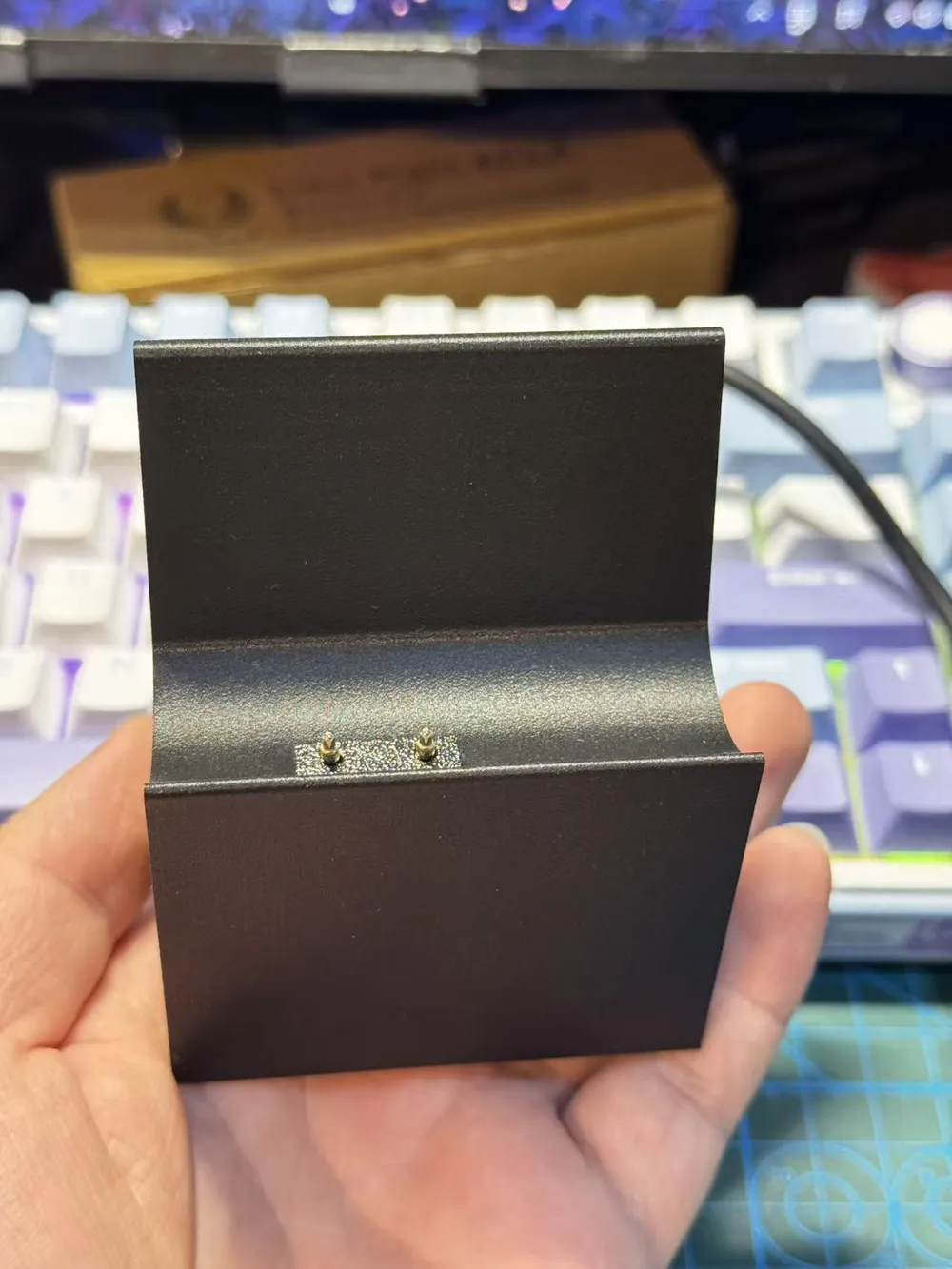

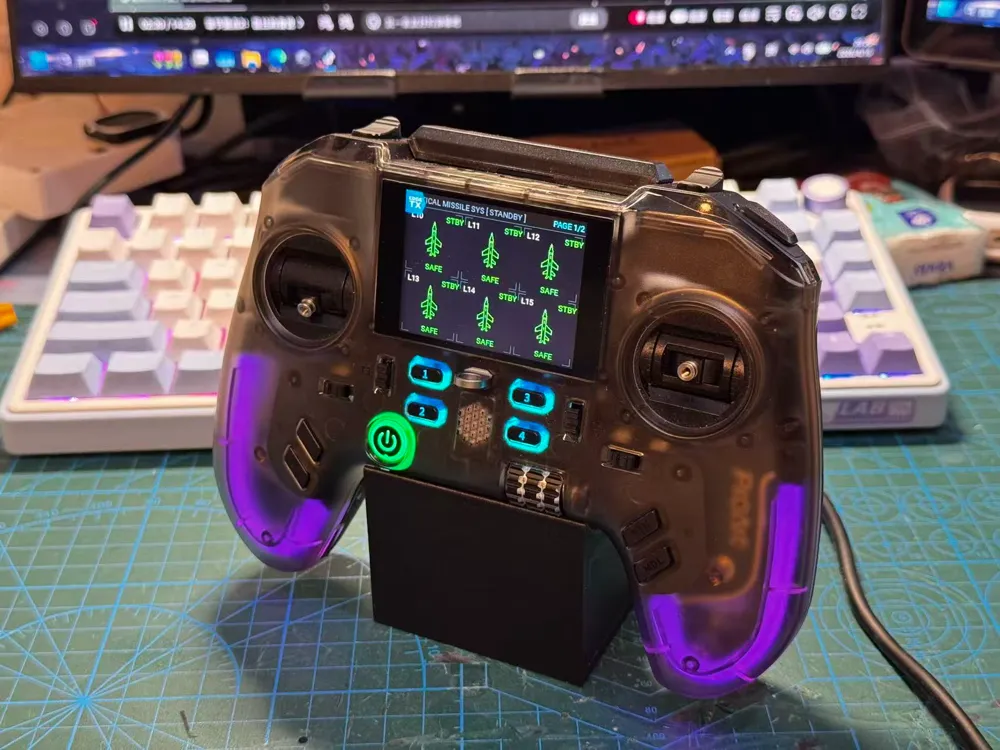

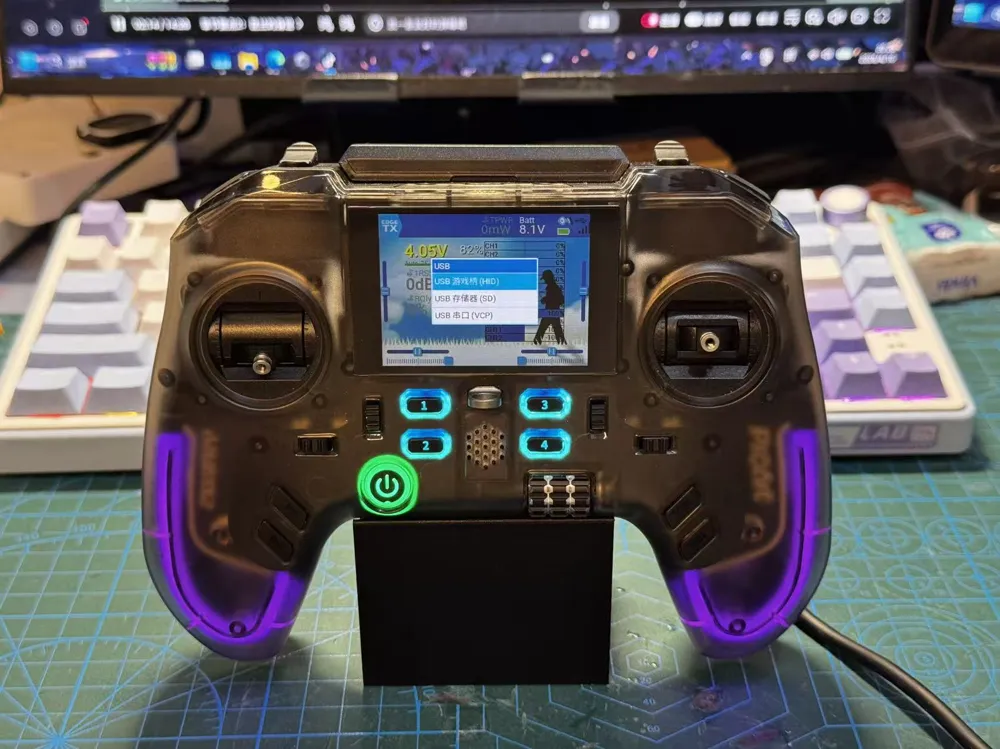

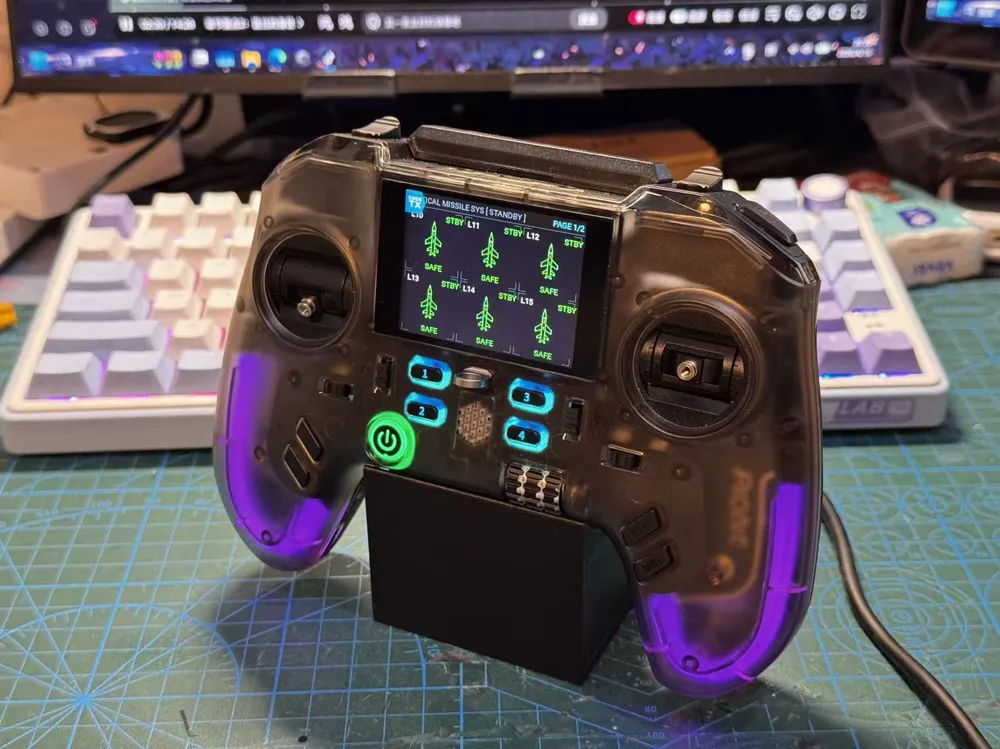

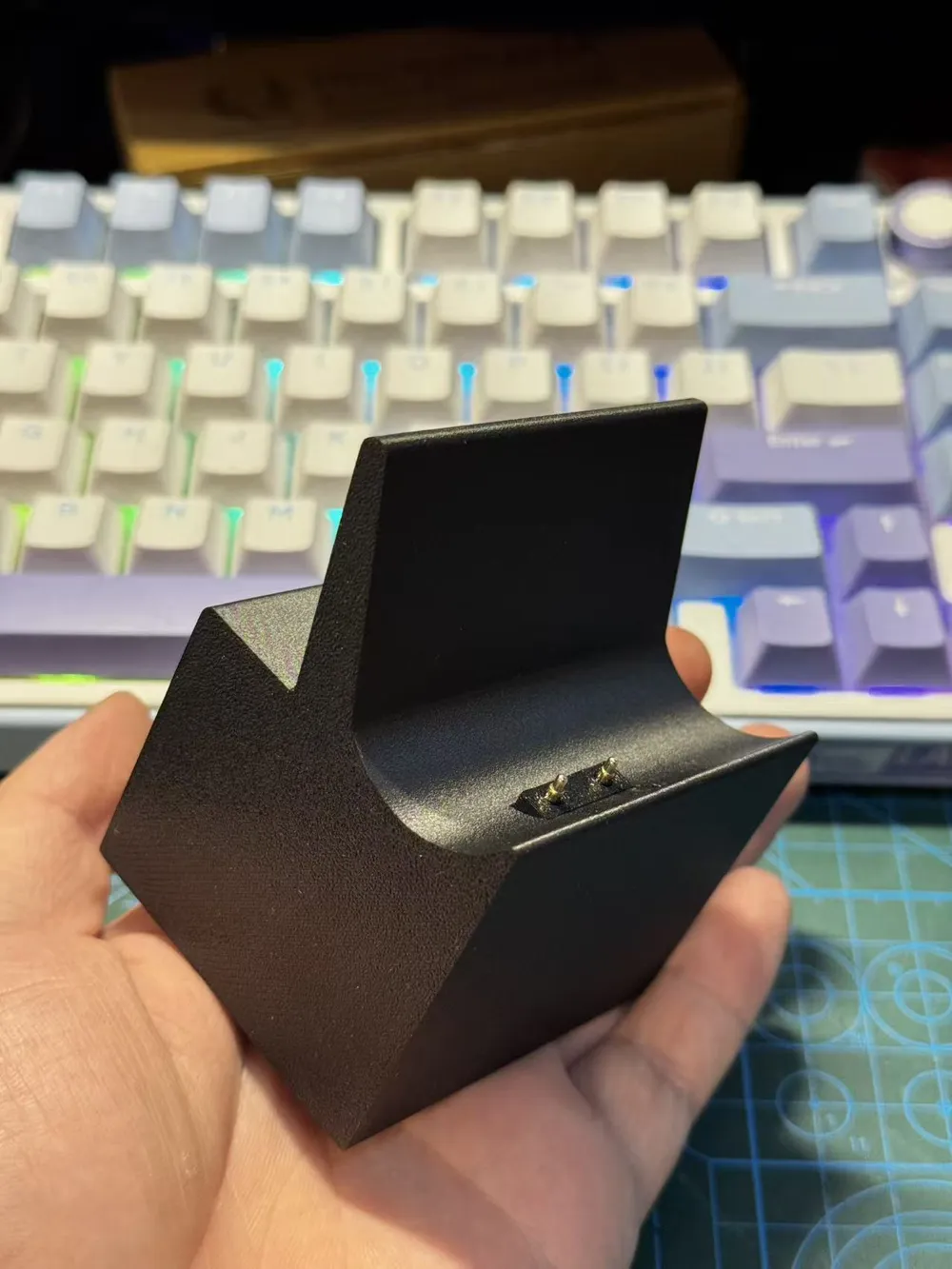

FUSi PA01 charging dock. The official version has been delayed, so I simply designed one. It's a bit ugly, don't mind the appearance (my skills are limited and I really can't draw curved surfaces). The production process is very simple:
Two board-mounted pogo pins (SMT antenna contact probes, gold-plated high-current test probes, retractable spring pogo pins)
About 10cm of silicone wire (around 22 AWG, no need for it to be very thick)
One Type-C female connector (with resistor or 5V trigger)

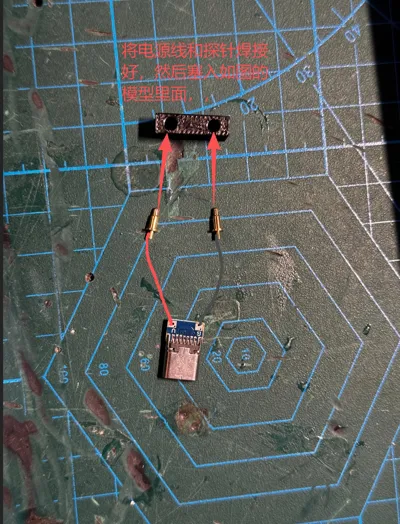

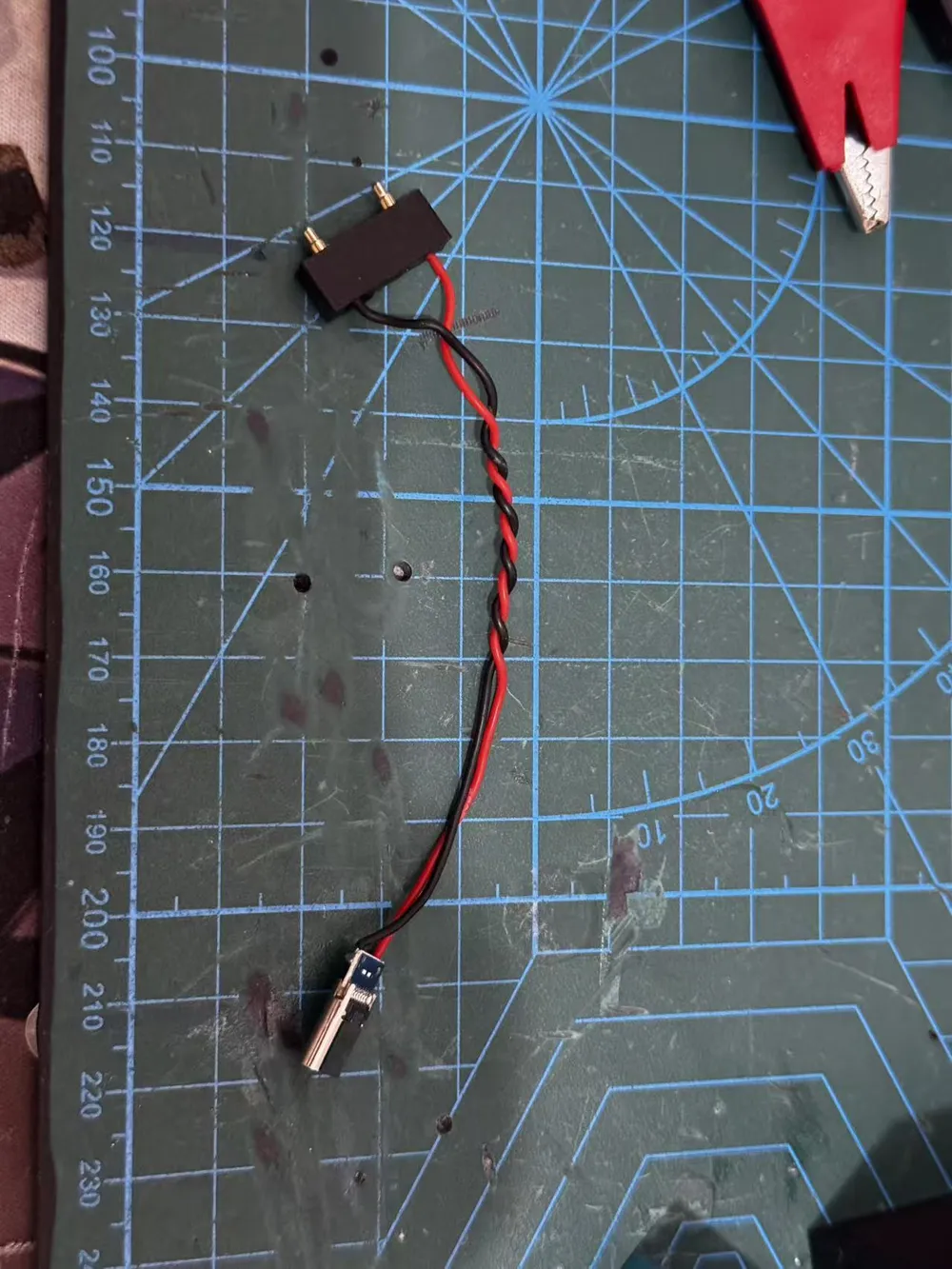

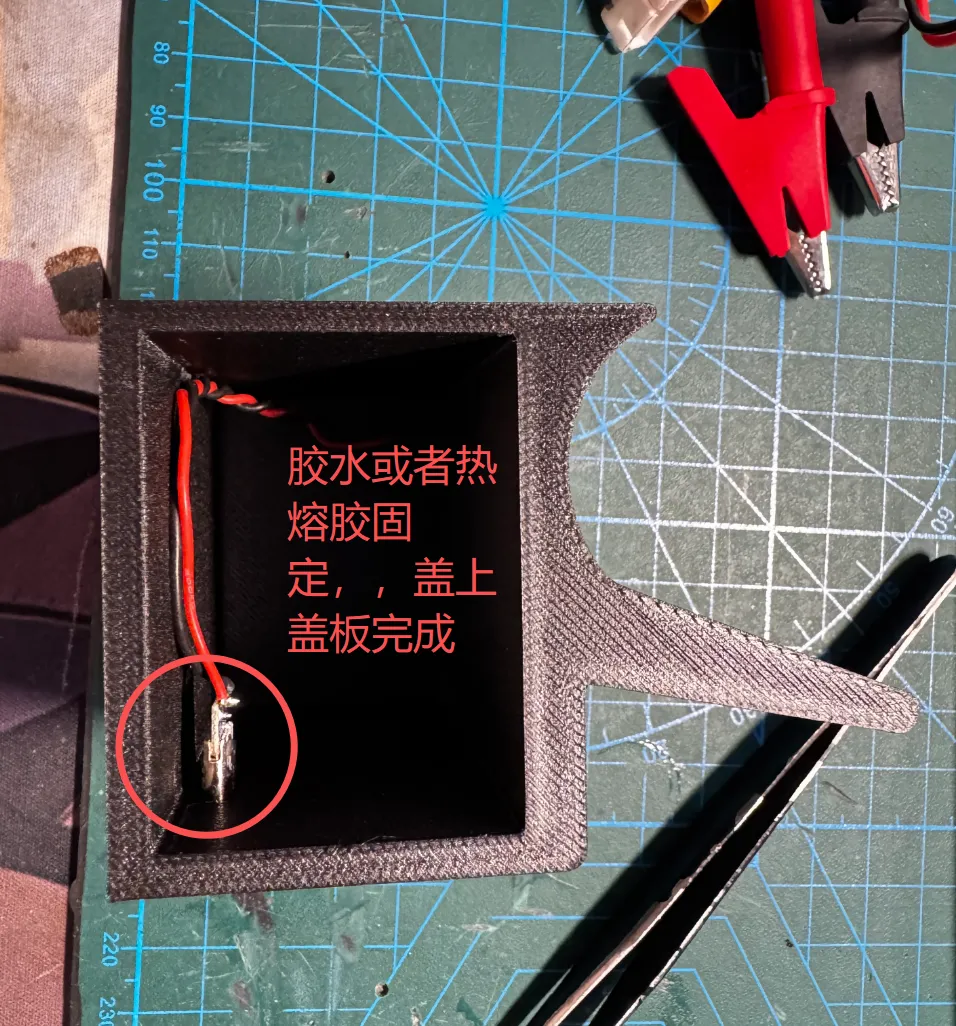

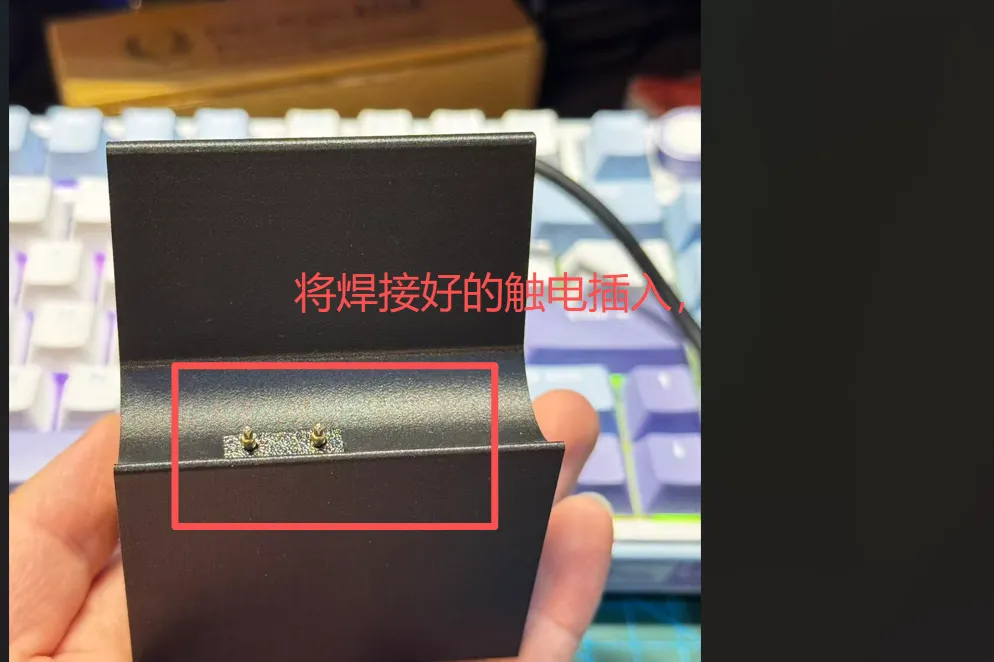

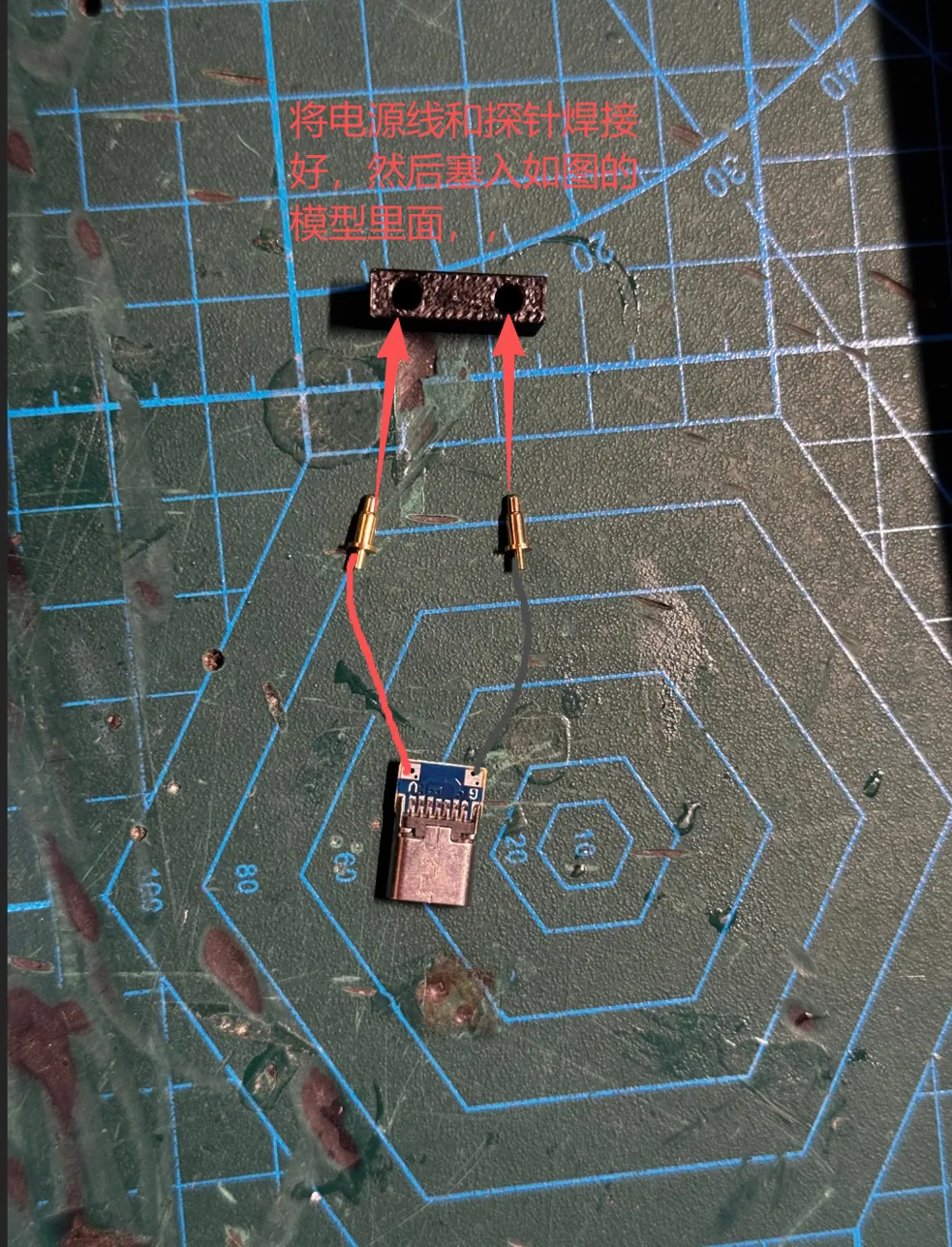

There is a tutorial in the pictures
Boost Me (for free)

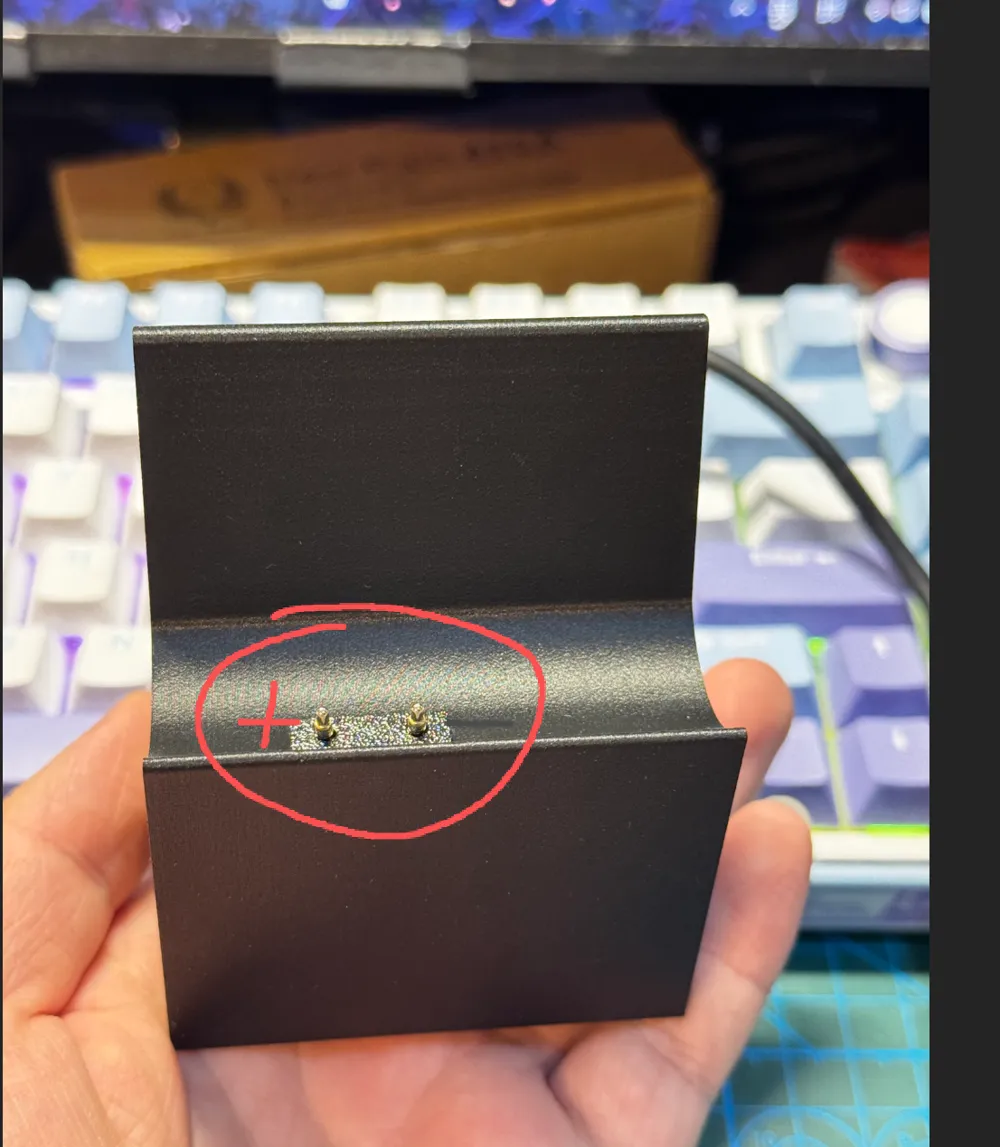

The side closer to the power button is the positive pole!!!!!!!!!!!
The side closer to the power button is the positive pole!!!!!!!!!!!
The side closer to the power button is the positive pole!!!!!!!!!!!
