Brakeline holders for Ø60mm coilovers.
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
1
7
0
0
0
0
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- Foam tape 1mm thick, upto 15mm wide x 1: I used 2 pieces of 3mm wide 1mm thick
- M5 x 25 internal HEX bolt x 4: DIN 912 / ISO 4762
Description

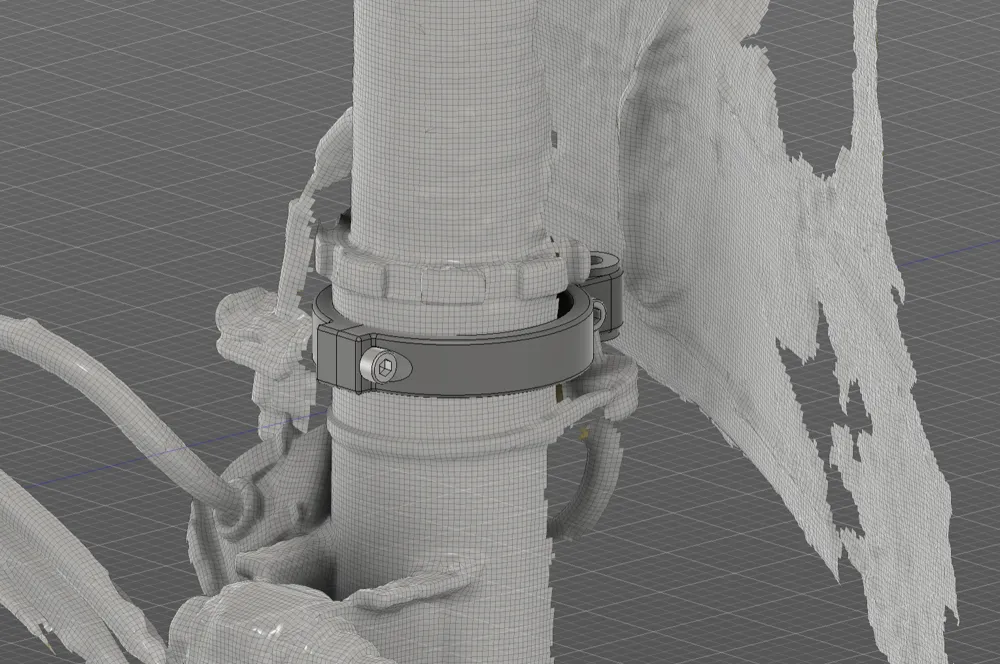

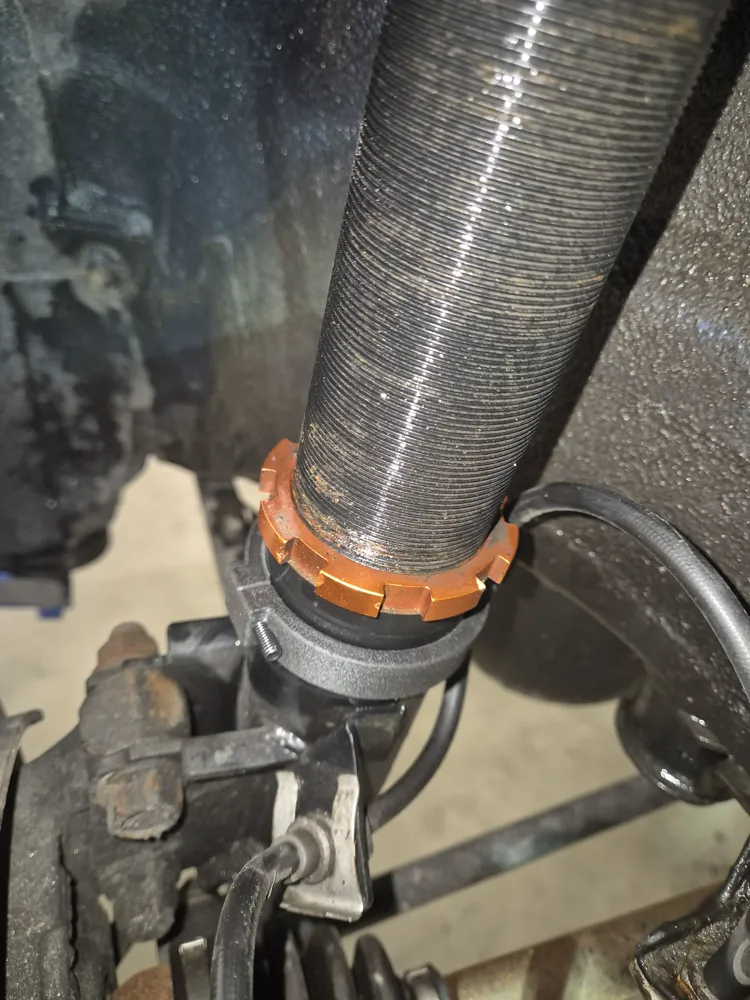

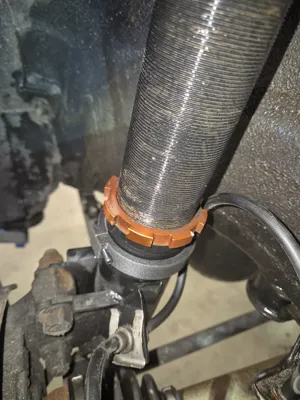

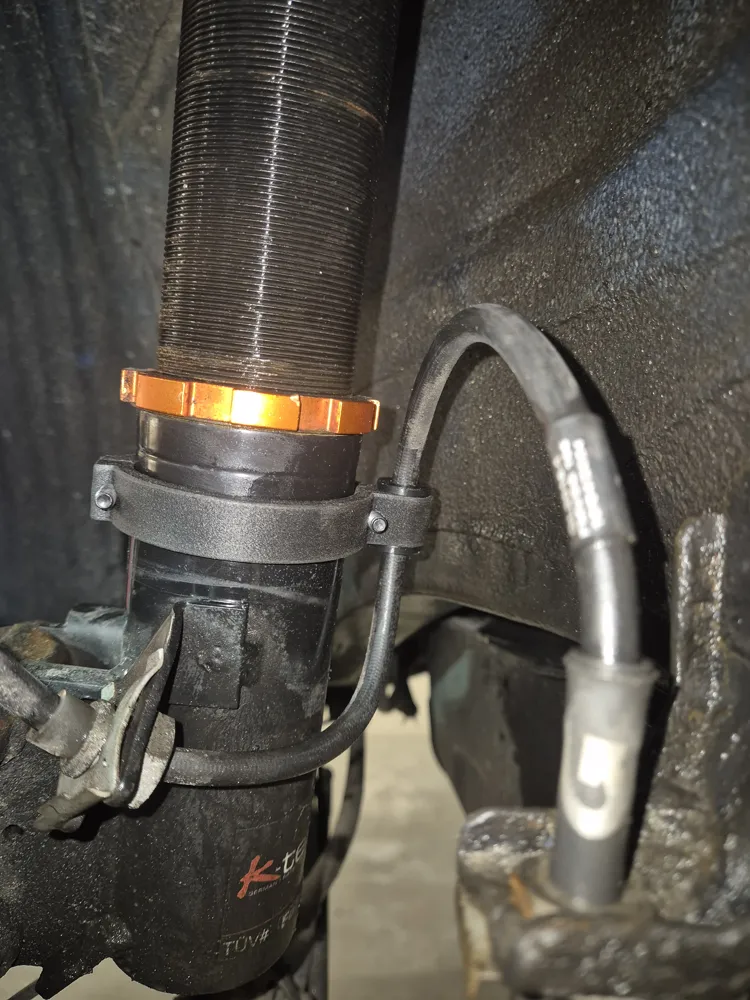

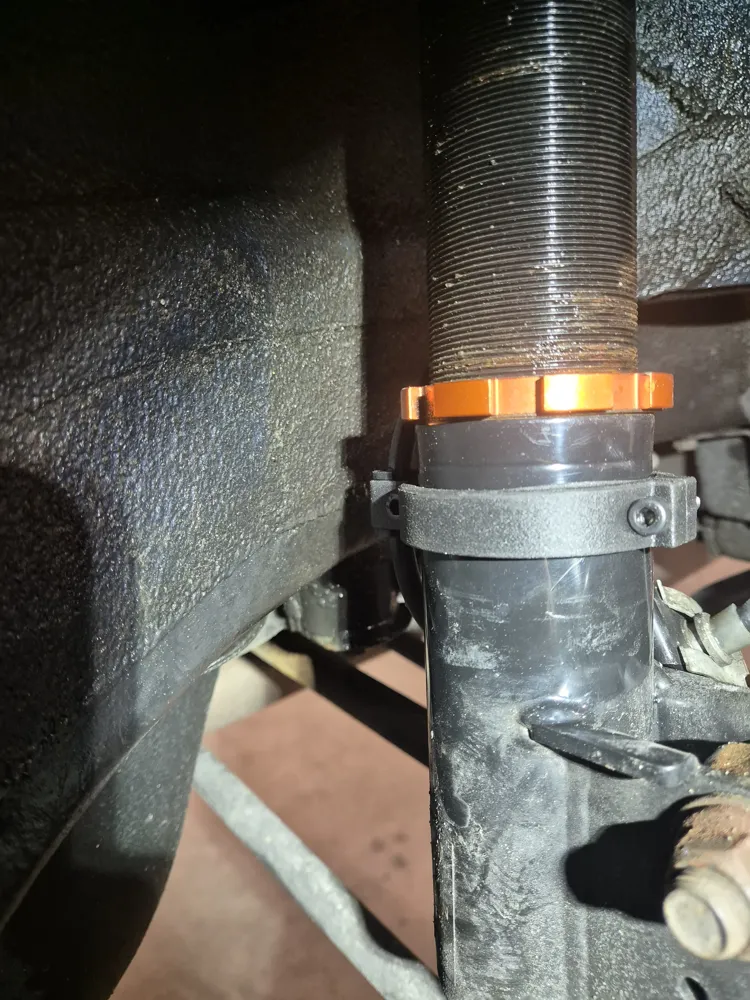

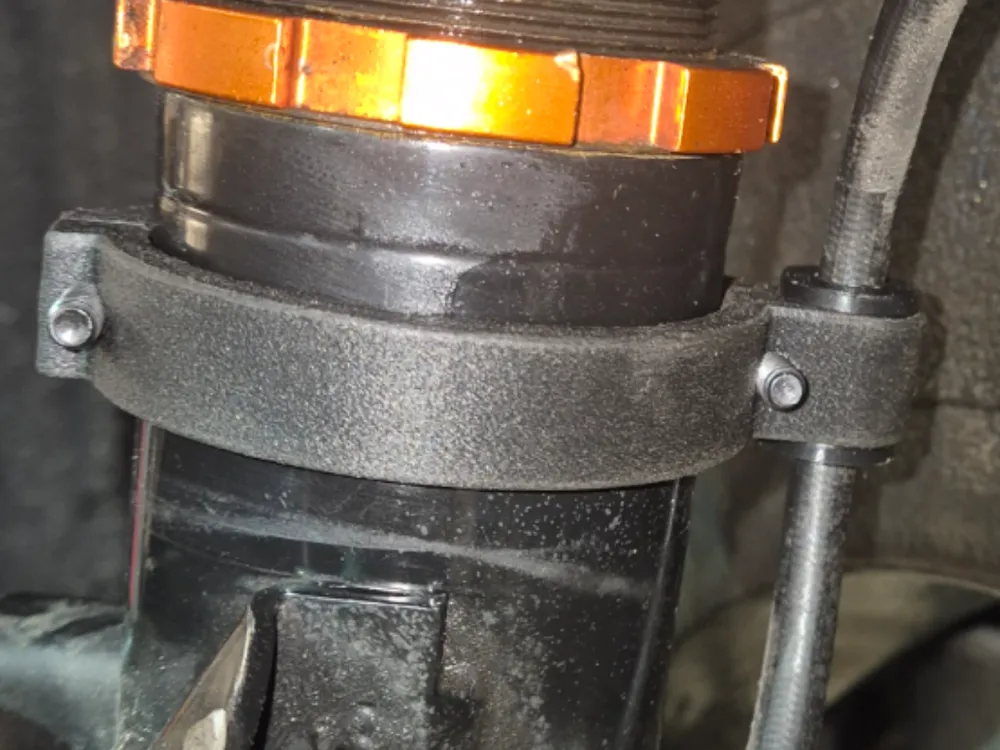

Brake line holders made for my K-sport Coilovers for my 2000 Subaru WRX.
Will fit other vehicles with 60mm diameter lowers on suspension.
Made for 8mm OD brakelines. Goodridge SS braided in my exact situation.
Used Some small foam tape on the inside to make the fit even better.
I used M5x25 bolts, need to be atleast M5x16mm

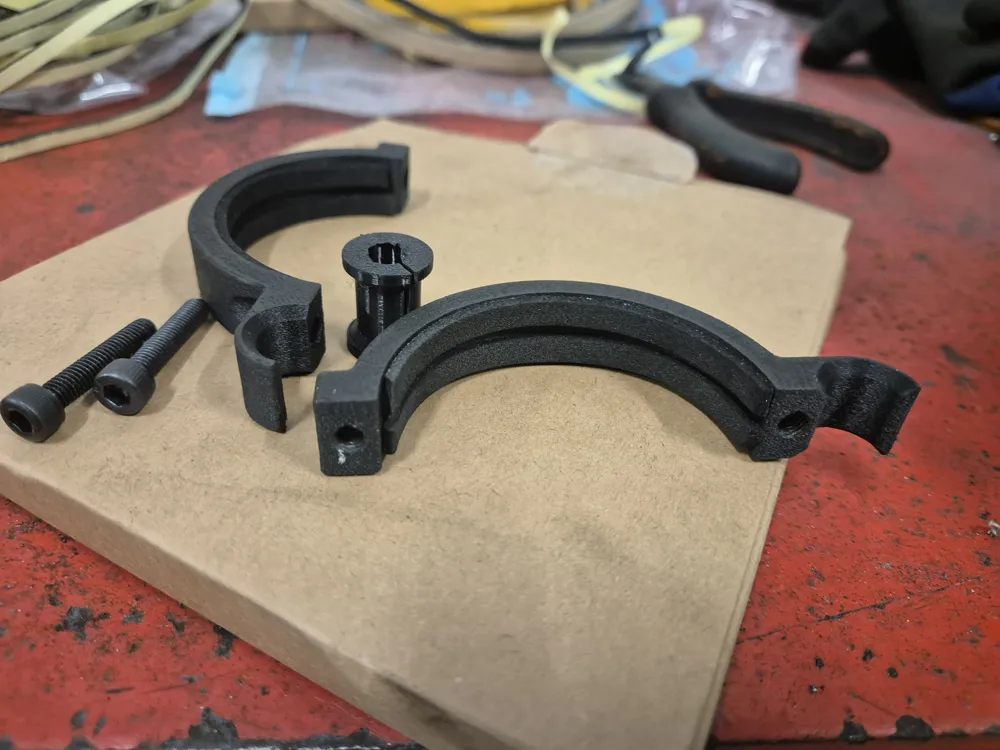

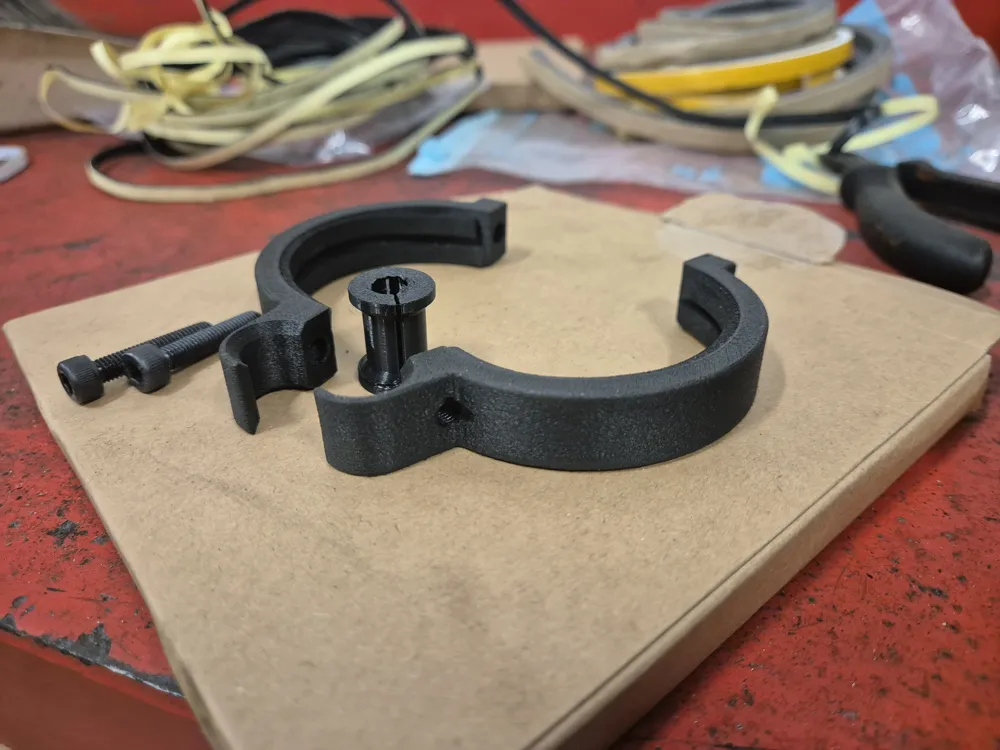

Printed in Bambulab PAHT-CF and Black TPU, the PAHT-CF is probably overkill, but it was free for me.
Make sure to print with the “teardrop shape” in the threads pointing upwards.
