Limelight Vision 4 Camera Mount

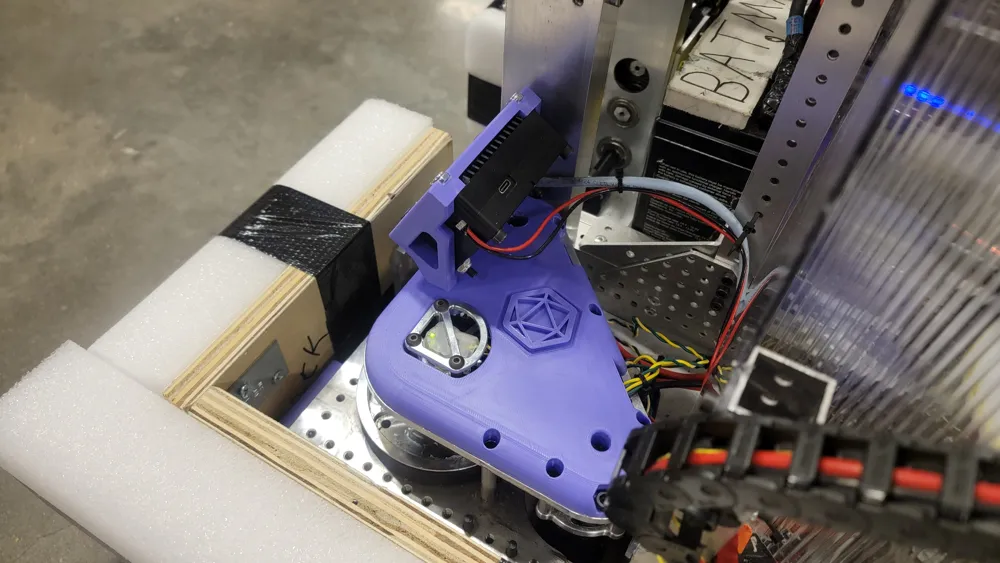

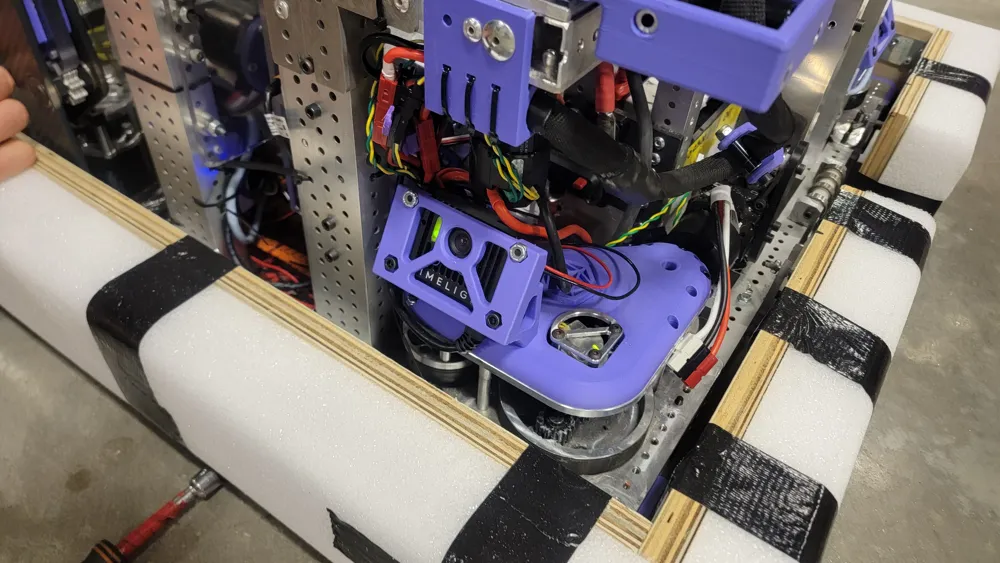

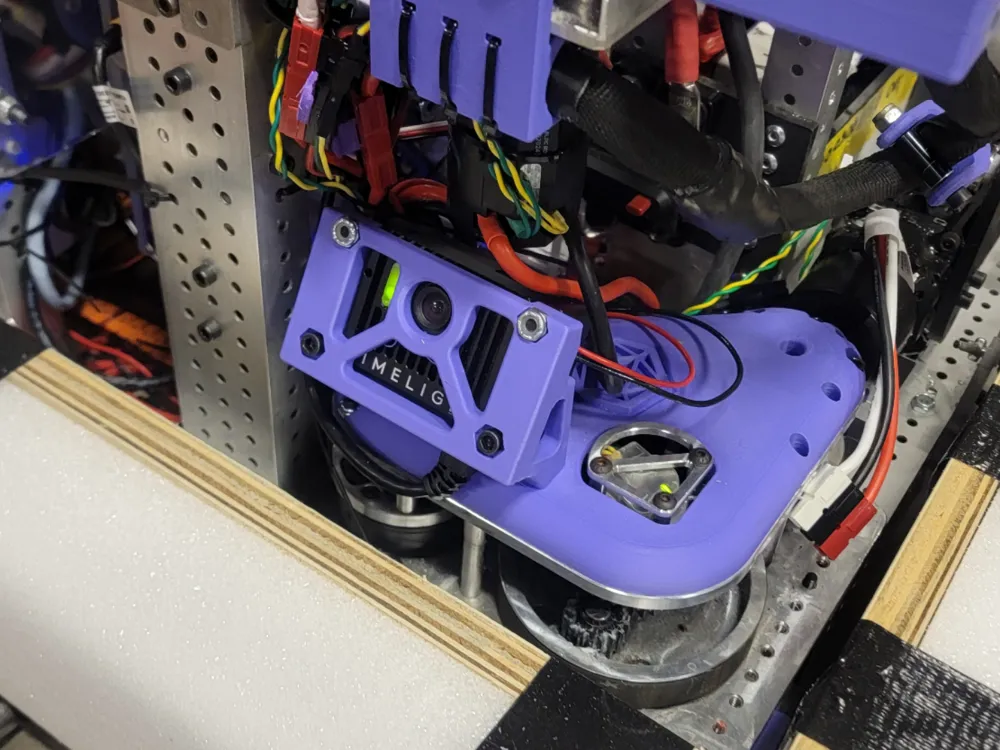

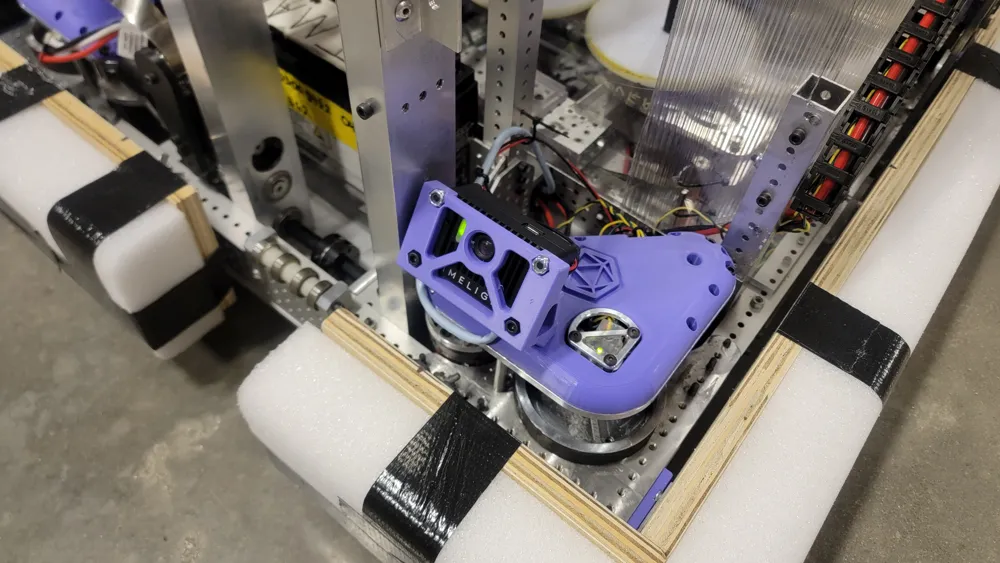

This is a camera mount for the limelight vision camera 4. It mounts ontop of the swervedrivespecialties mk4I swerve drive module. Currently only this version is available. we are working on the second version. This mount is very strong and has survived quite a few hits from other robots. It prints in around 10 hours and uses around 165g of filament. I recommend increasing wall count before you increase infill. I typically use 6-8 walls.

This model positions the camera at a 30 degree angle. Be sure to insert the model into your CAD software to calculate offsets for the camera in the limelight UI, or pose will not work. Feel free to make derivatives or remixes of this model!
