Metal Model Kit Custom Forming & Shaping Toolset
Print Profile(1)
Description
This is a custom-designed set of 3D-printed forming tools specifically created for high-detail metal model kits. These tools allow for precise shaping of cylindrical and curved surfaces without scratching factory-painted metal surfaces.

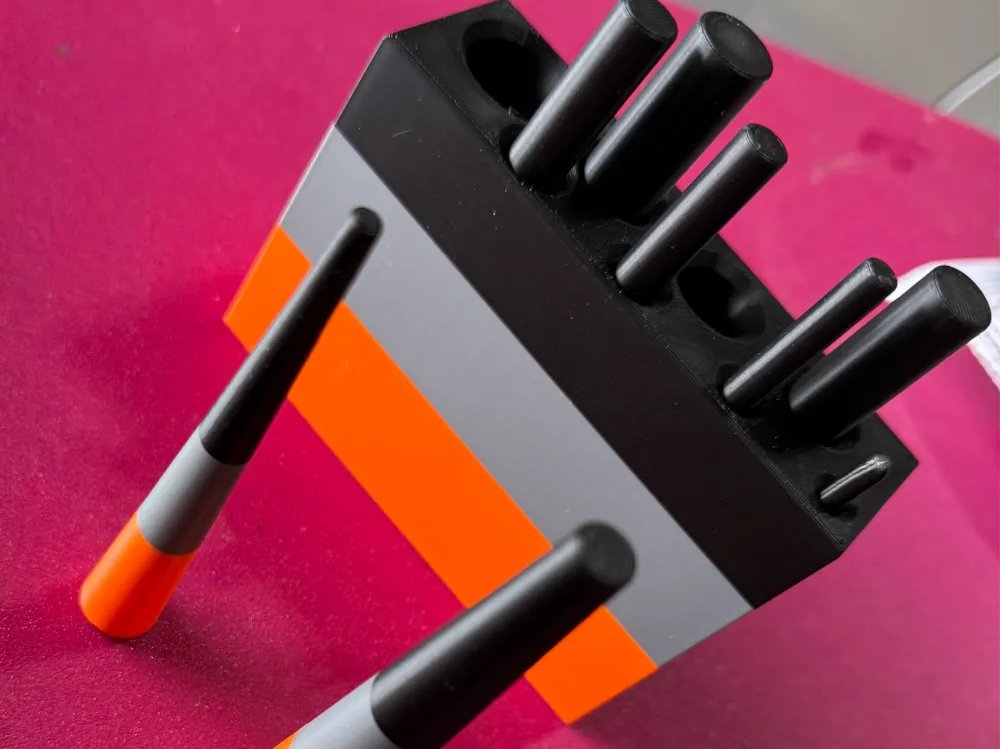

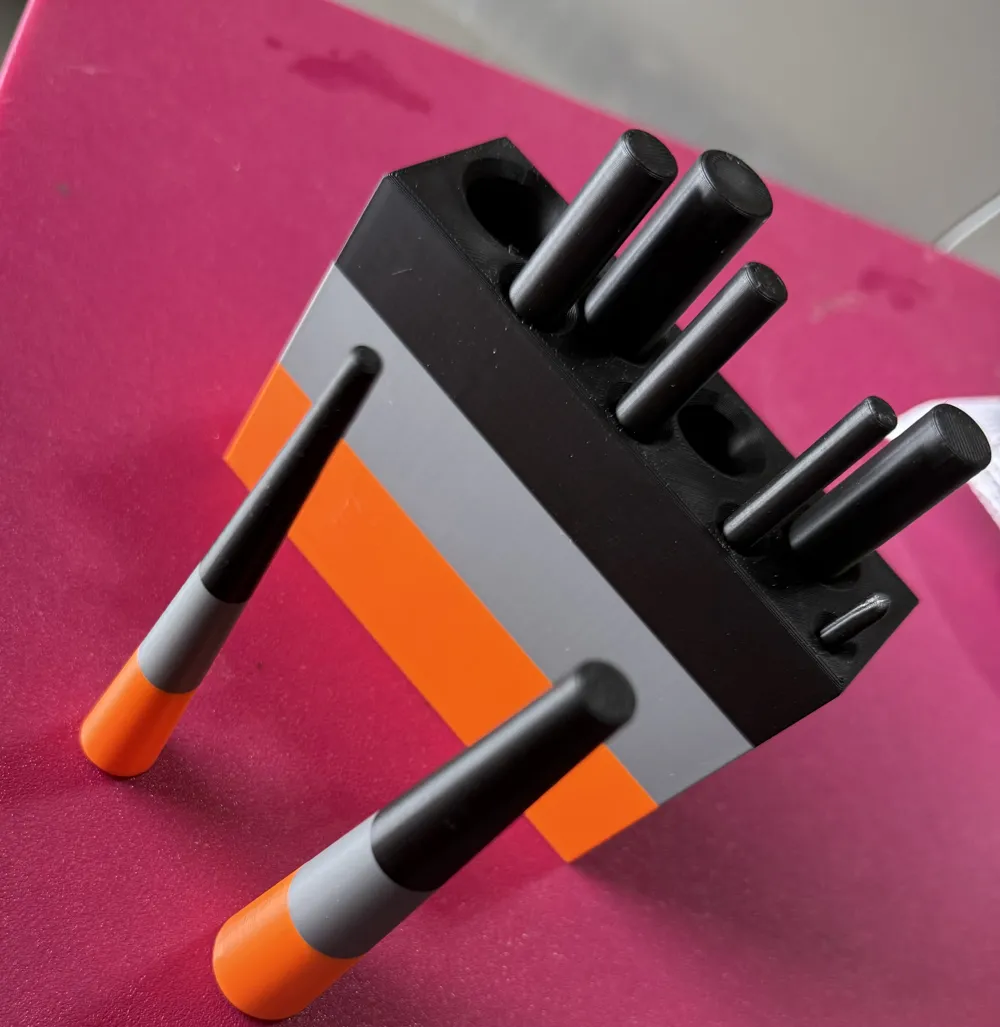

The set includes:
6 Straight Shaping Rods: Diameters of 14mm, 12mm, 10mm, 8mm, 6mm, and 4mm (100mm length).
2 Tapered Shaping Rods: Tapered from 20mm to 8mm and 14mm to 4mm (100mm length).
Edge Bending Block (Brake): A 50x30x20mm block for clean 90-degree bends on small metal flaps.
- Staggered Storage Block: A custom organizer designed with a staggered layout for easy finger clearance.
The object printer settings are already included in the file.
*I have had an issue with the smallest rod not printing all the way up correctly. It didn't mess up anything else, but if you're concerned, remove it from the plate*
My image has multiple colors as I used this to finish up a couple of rolls nearing their end.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
