YiBOX - All-in-one Expandable Riser X2D Dedicated Version

This is the X2D dedicated version of the YIBOX raiser series

This model link will be continuously updated with all relevant accessories for YIBOX raisers that have been released, and the current complete version is shown below:

Version Update Log:

April 30: Uploaded new modules: Configuration 2: additional raiser module; Configuration 3: pegboard module; Configuration 4: additional raiser AMSHT module; Configuration 5: pegboard AMSHT module

May 4: Configuration 4: Modified the model issues of the module panel (A, B side duplication, integrated supports difficult to remove issues)

May 5: Configuration 3: Modified the model structure to make the rear buckle support more stable

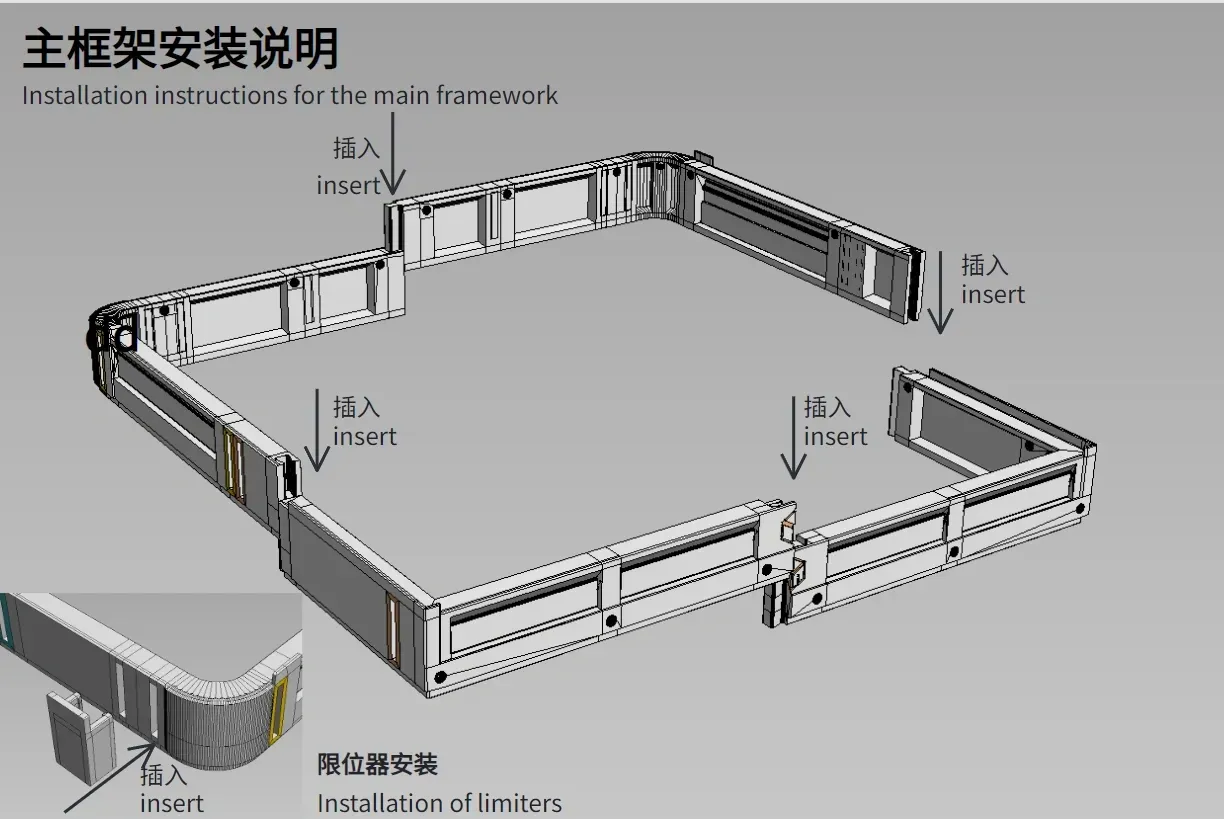

Introduction to the X2D version of the raiser main body and assembly method:

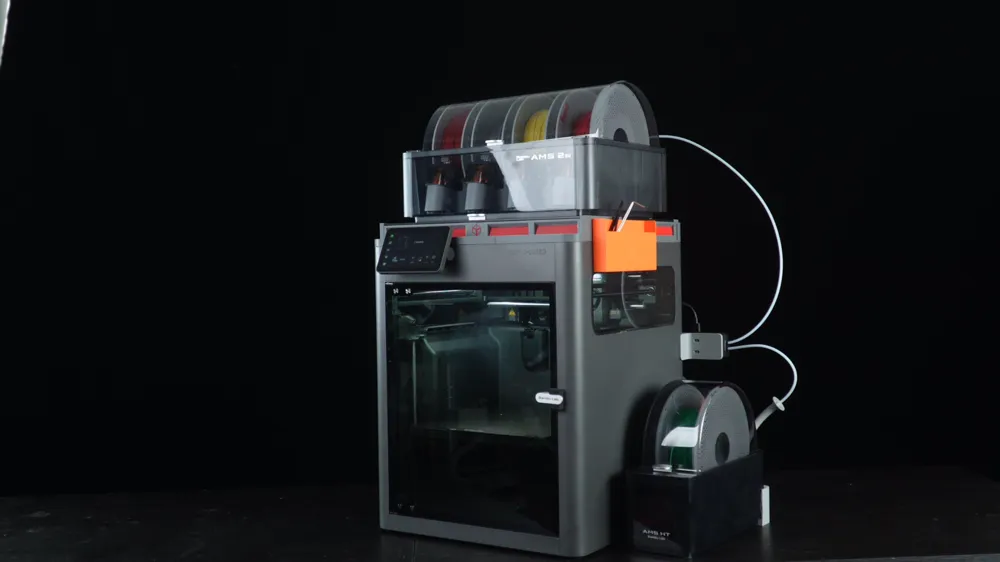

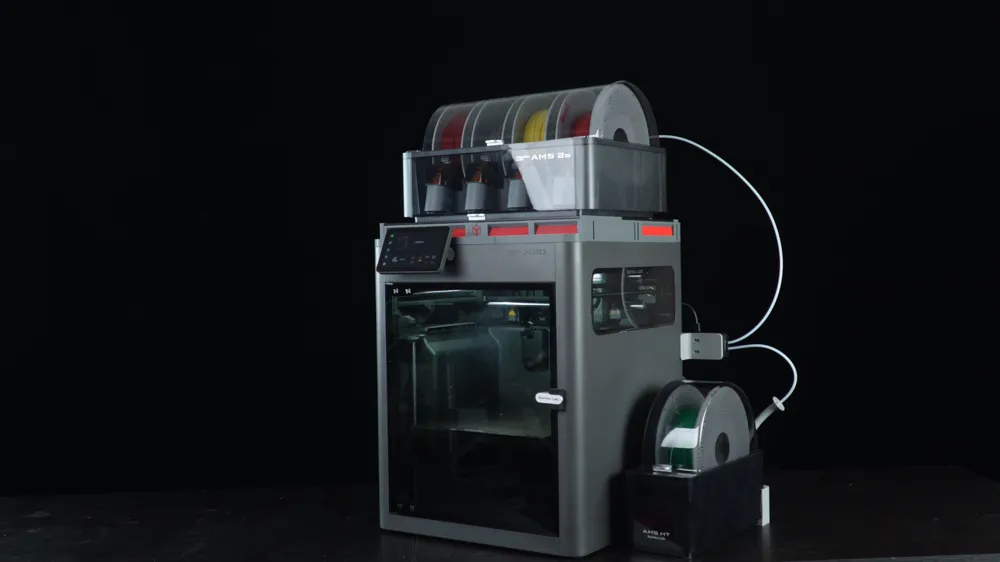

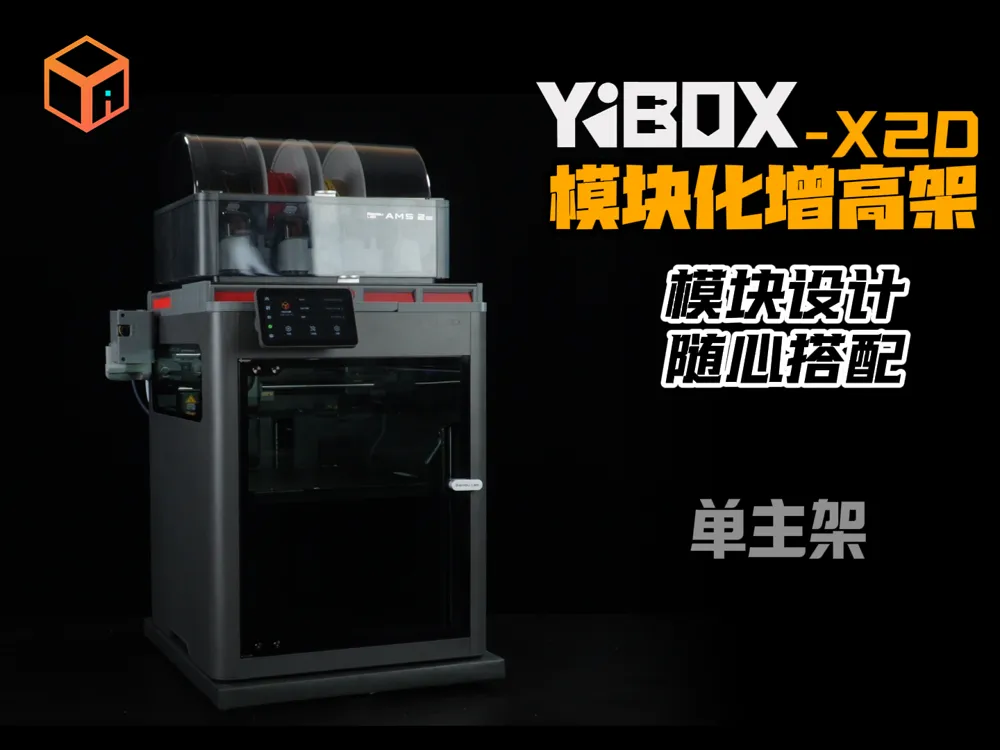

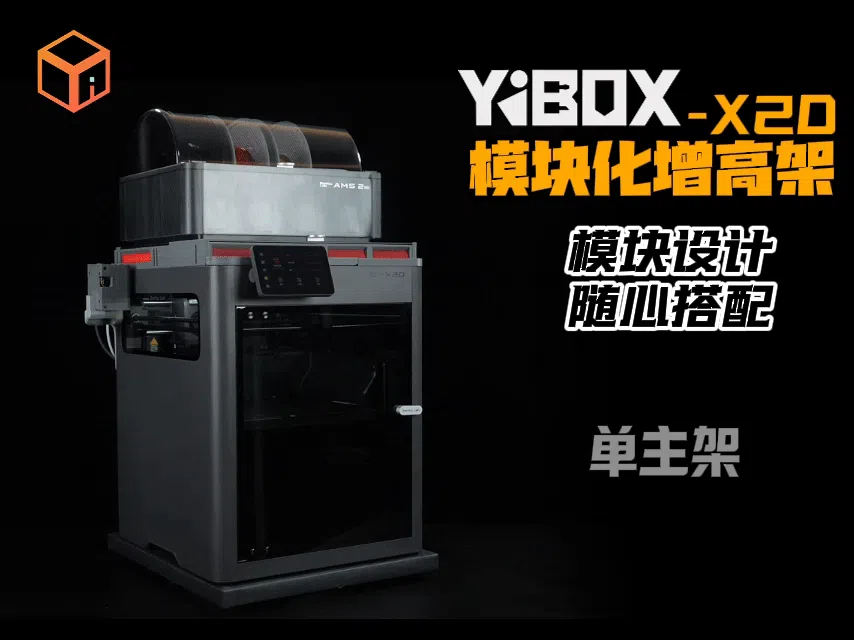

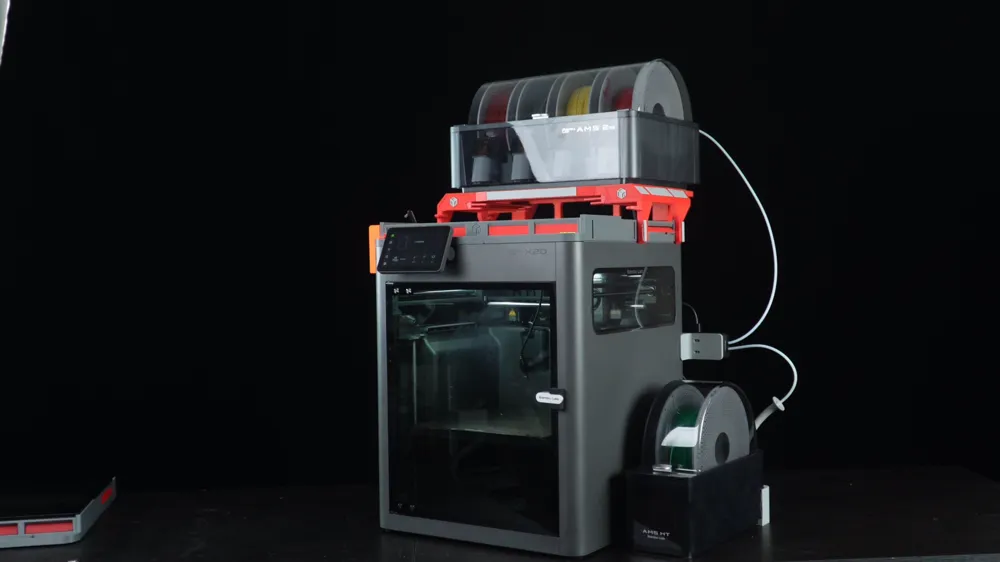

The X2D version of the raiser is also a good-looking raiser when used independently! All expansion parts can be installed on this stand

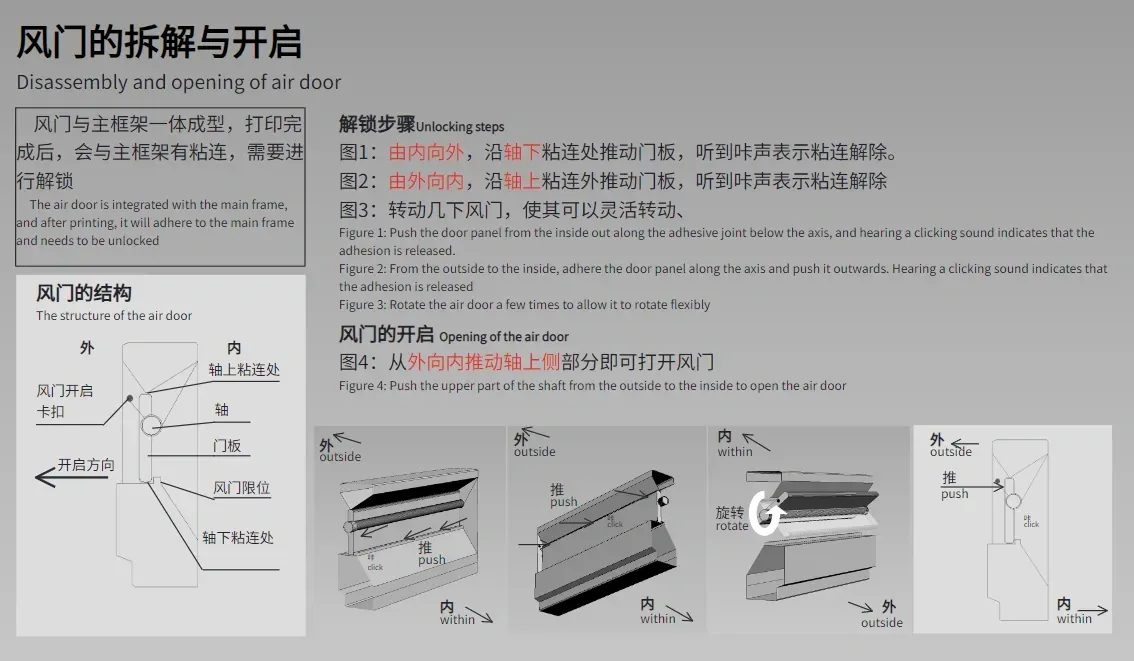

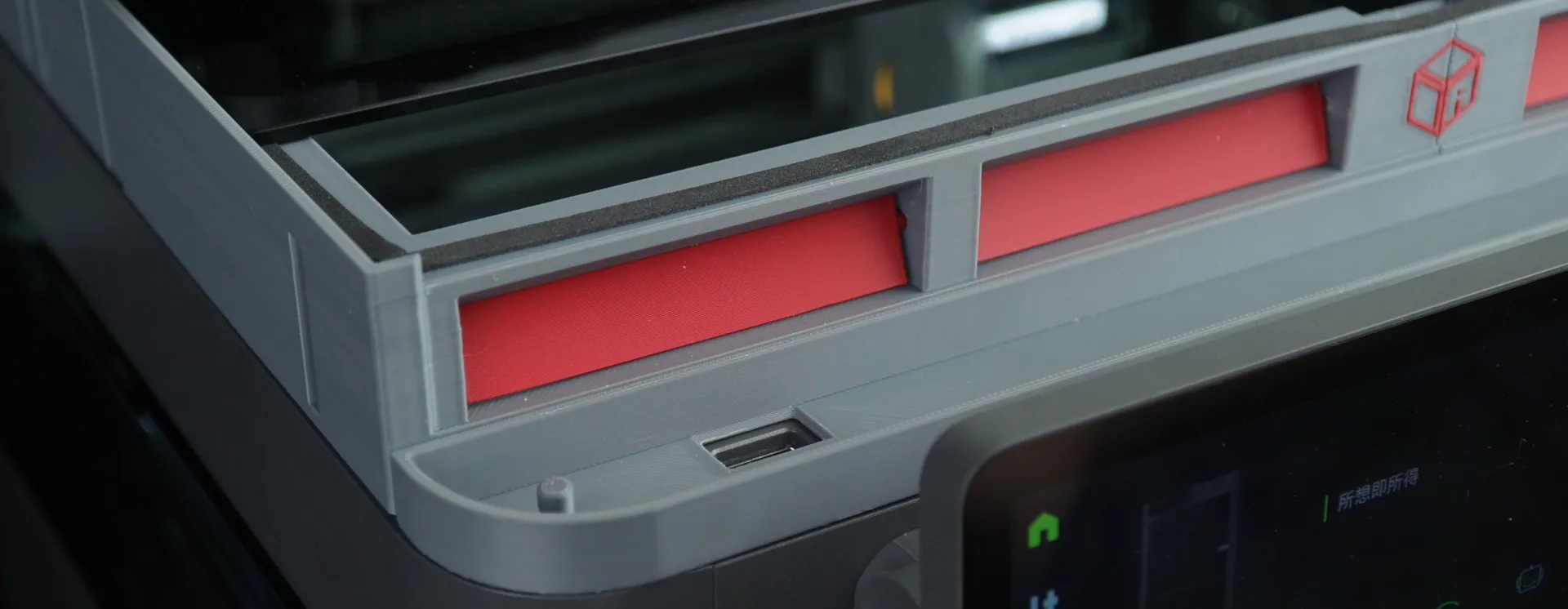

To adapt to the X2D's dual nozzles, the gap between the air gate and the frame has been adjusted, and the structure of the air gate shaft has been optimized to make it more streamlined and uniform. The main body is printed with PETG, and the air gate with PLA. No need to adjust any parameters during printing, just change the filament you need(Must be printed with dual PETG/PLA materials, otherwise the air gate cannot be opened)

Note, this configuration only highlights the dual nozzle printing advantages of the X2D. Due to the characteristics of the auxiliary agent coming out of the machine, the air gate may have some imperfections. Second, because the air gate is printed with PLA, it cannot support high chamber temperature mode. If you need to print at a chamber temperature above 50 degrees Celsius, you need to replace the air gate and print with PETG or higher temperature filament!!

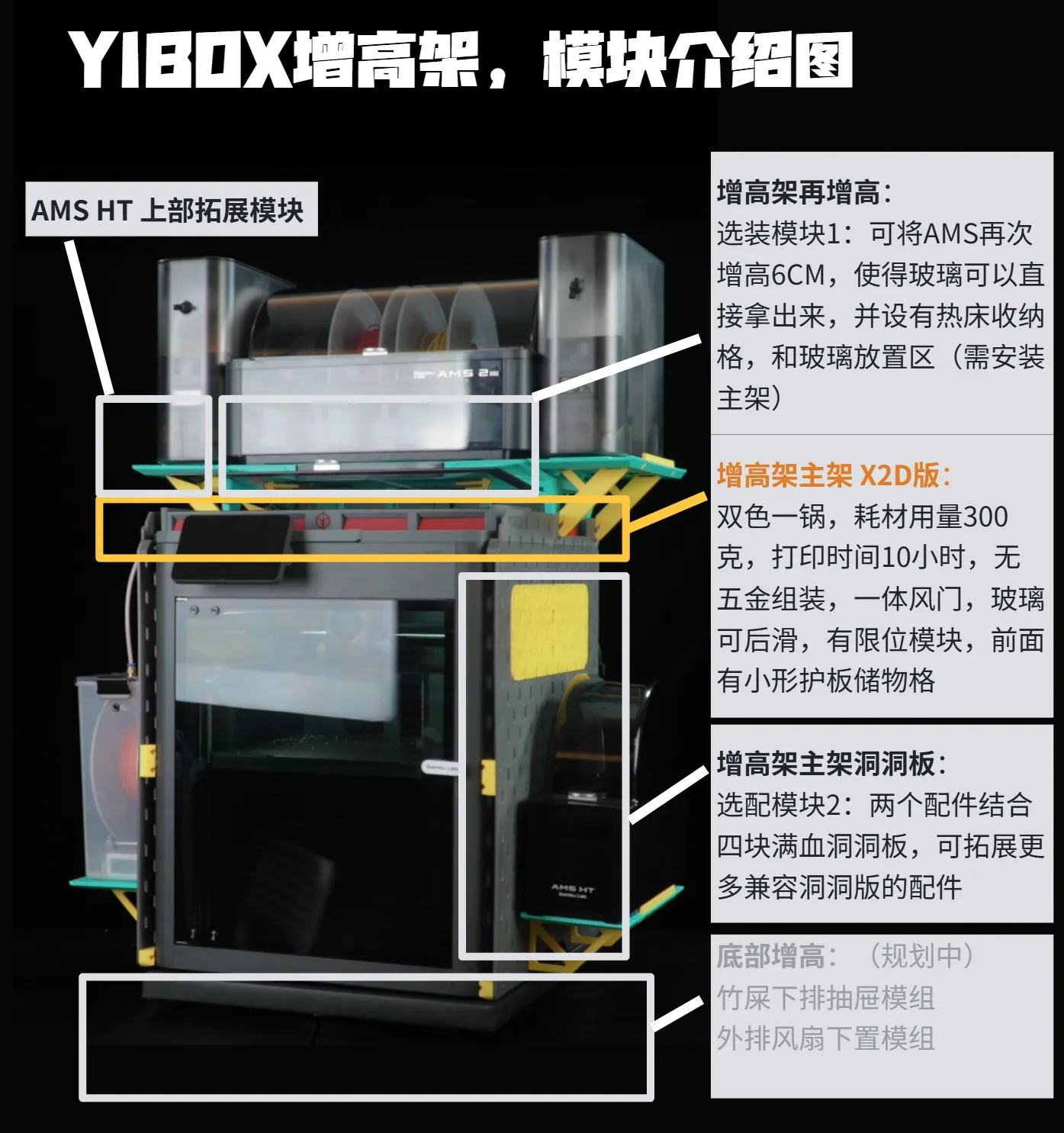

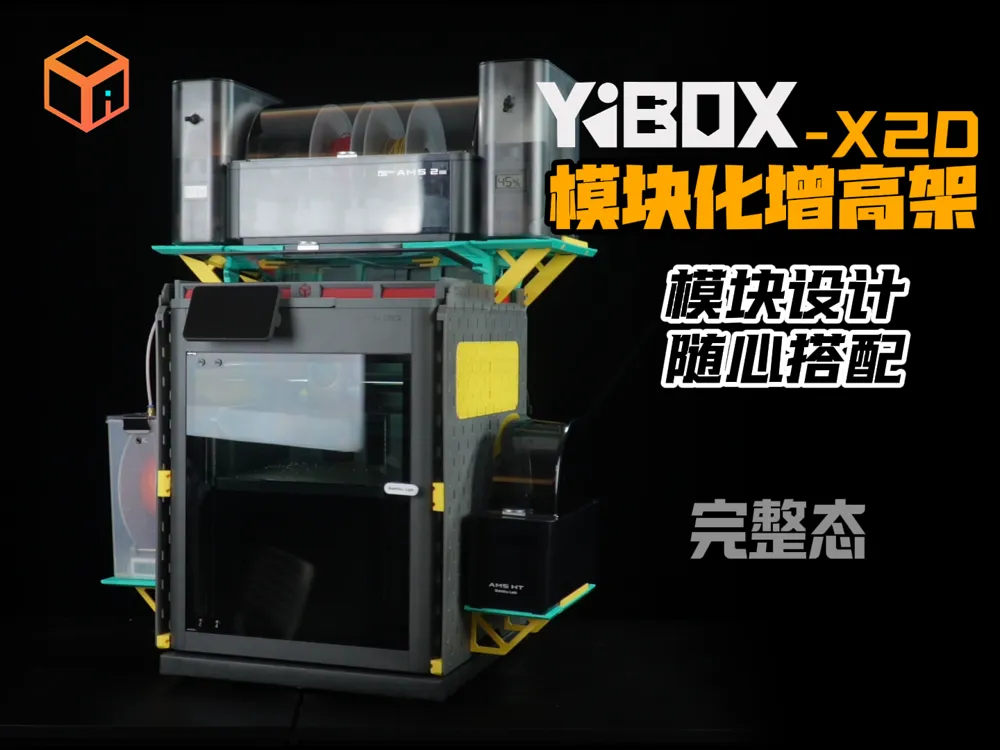

All expansion components for the complete state have been uploaded, and the configuration information is as follows:

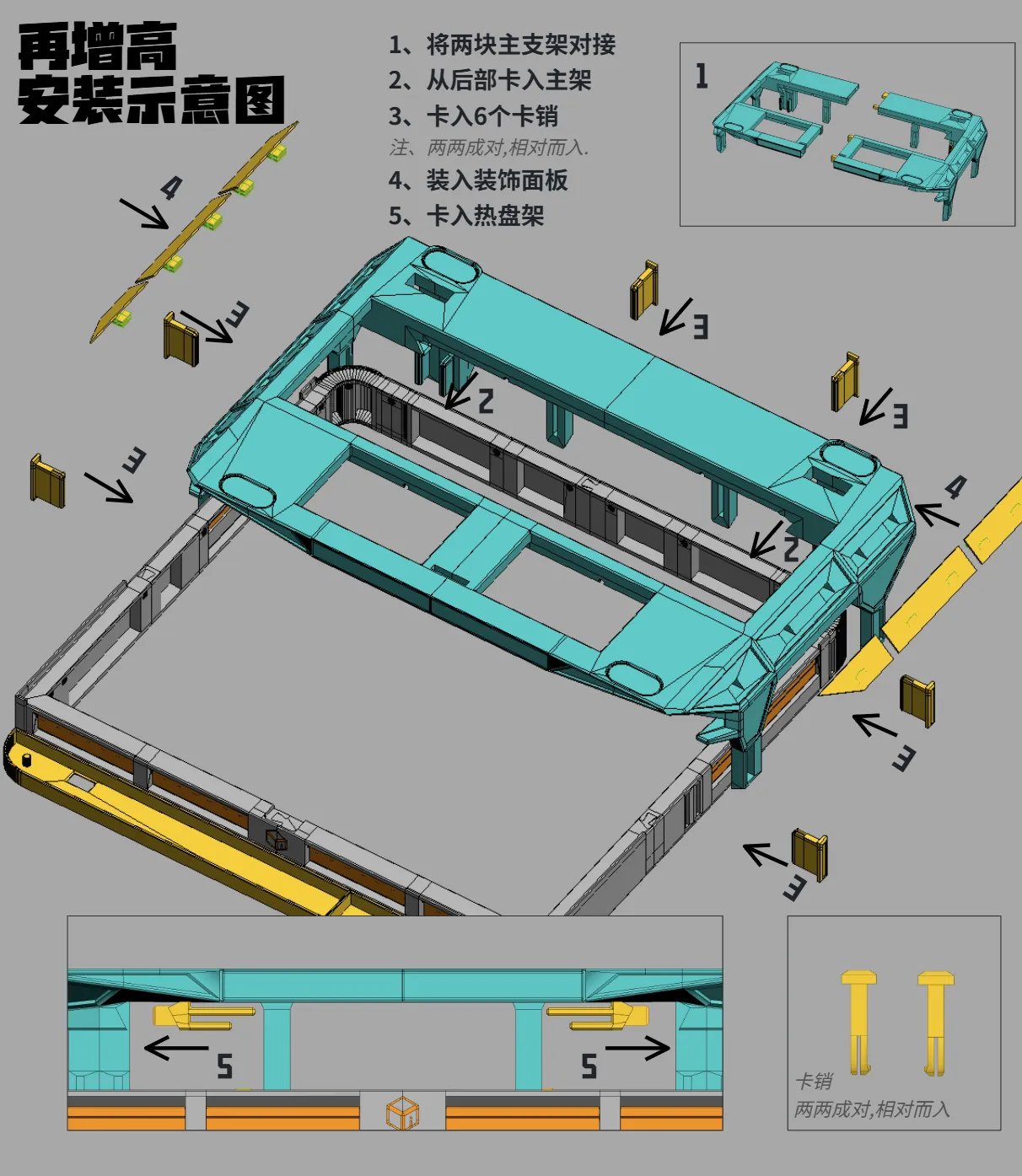

Configuration 2: additional raiser module

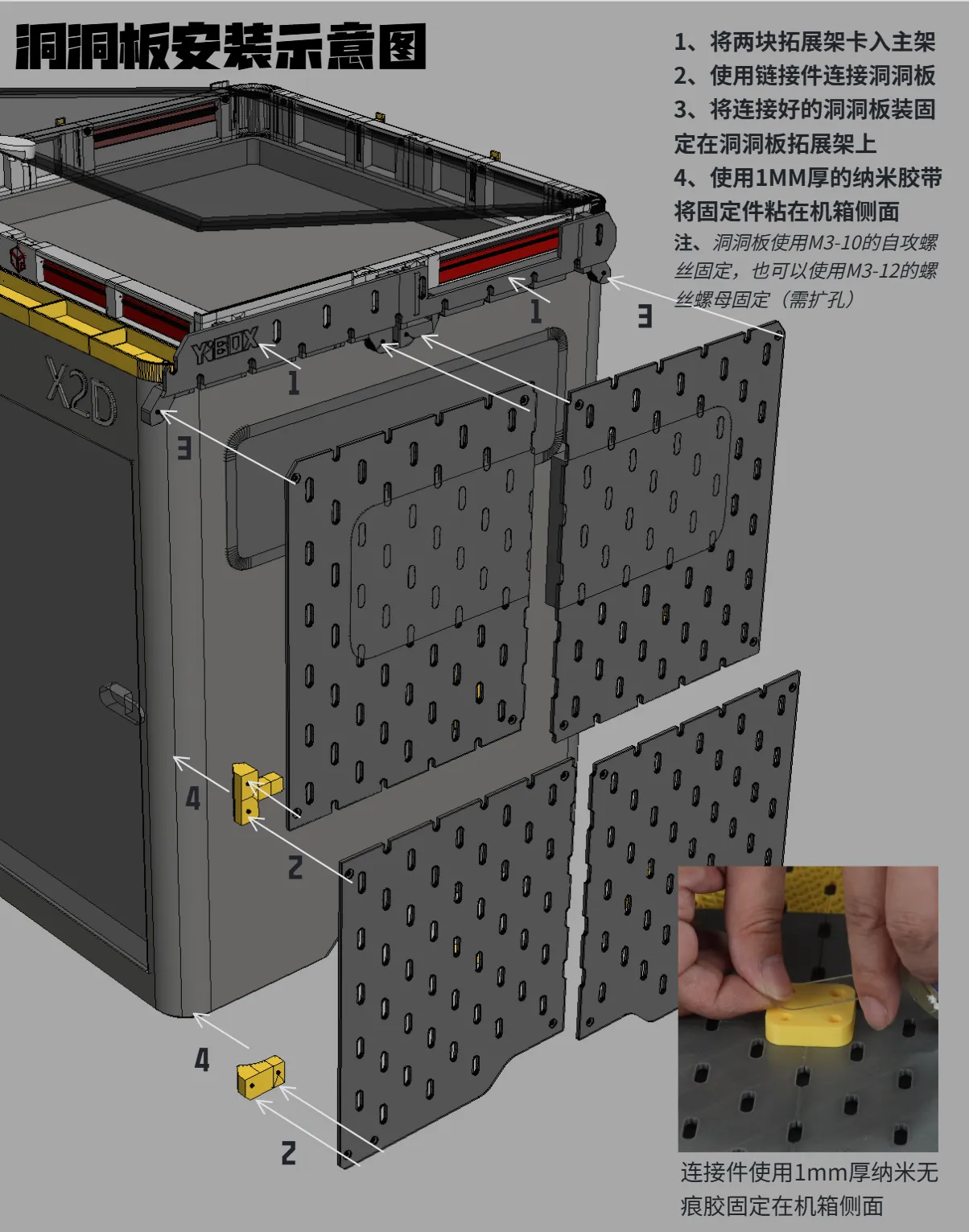

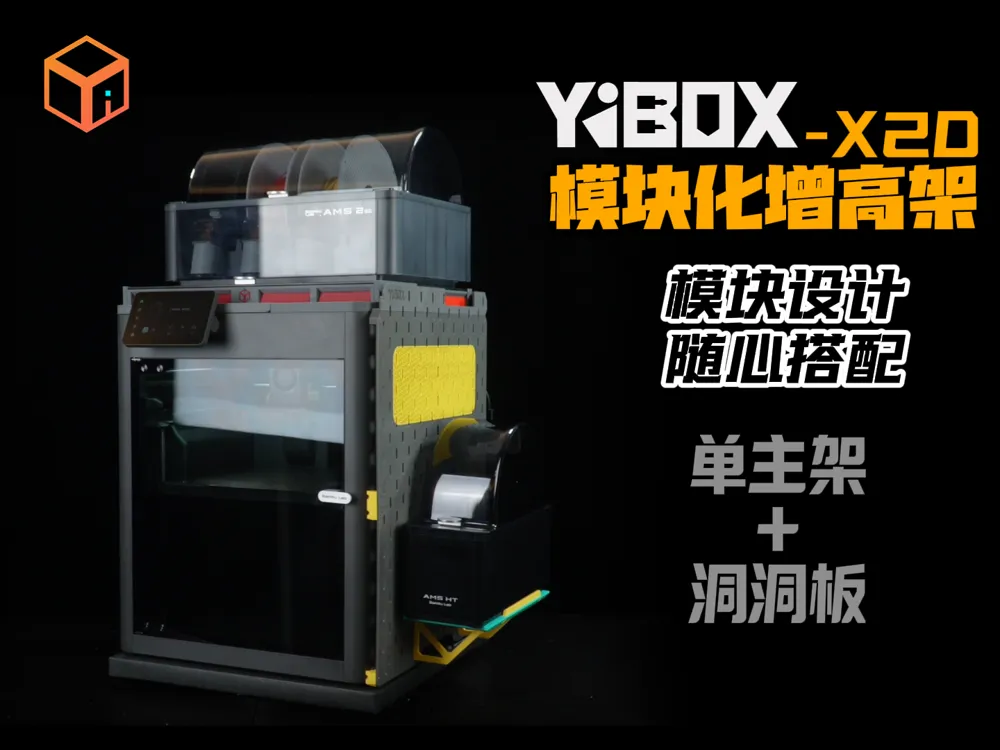

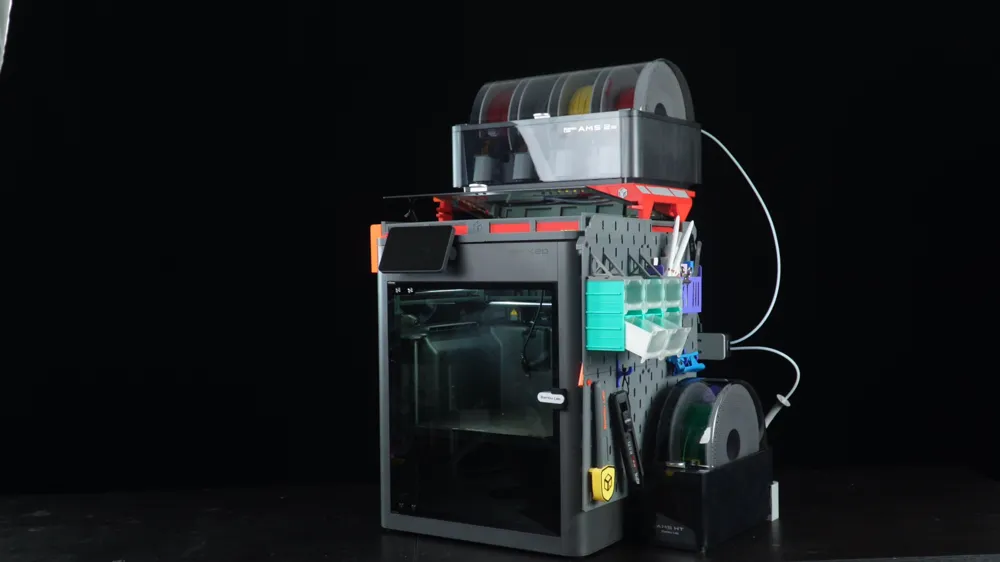

Configuration 3: pegboard module

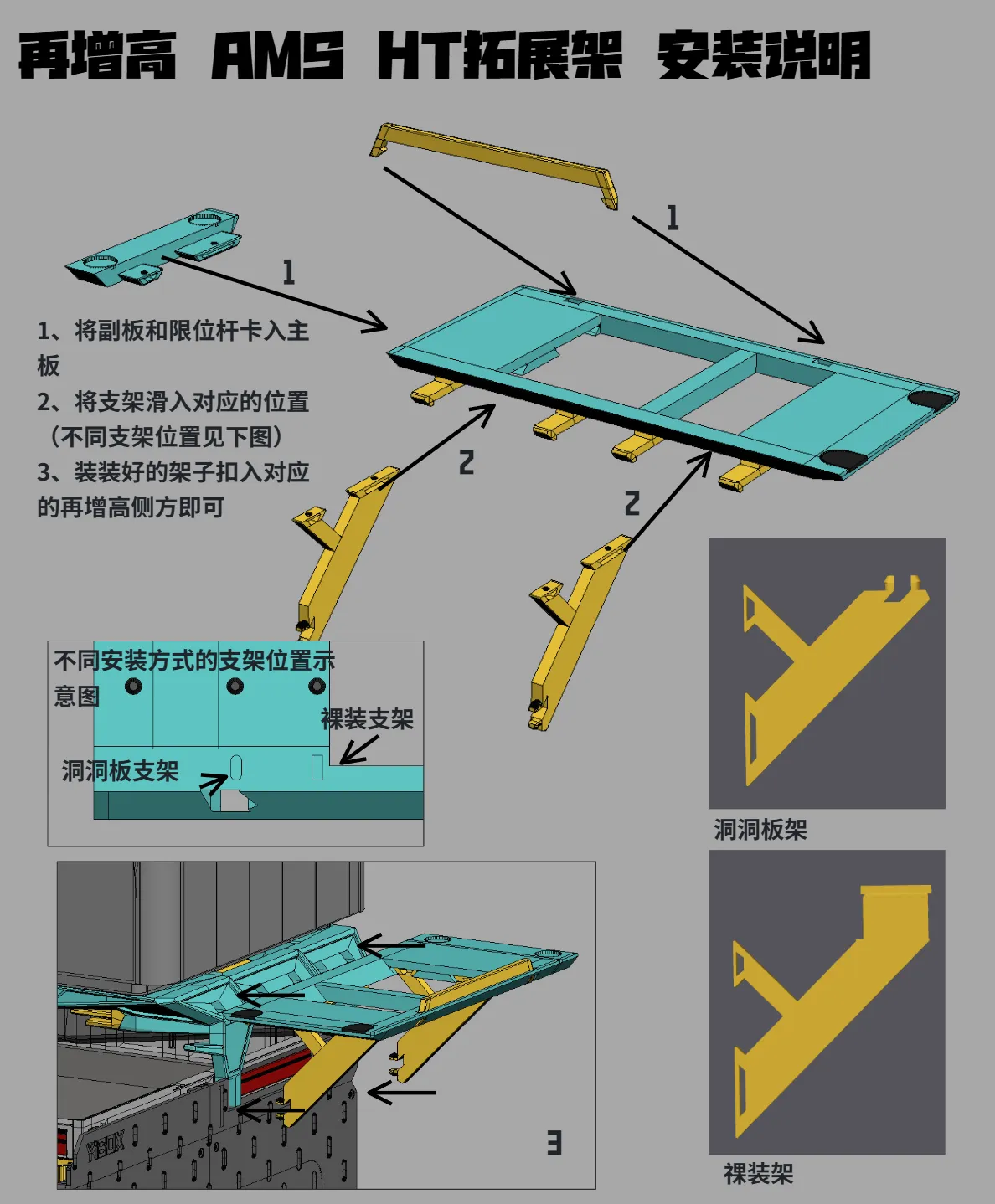

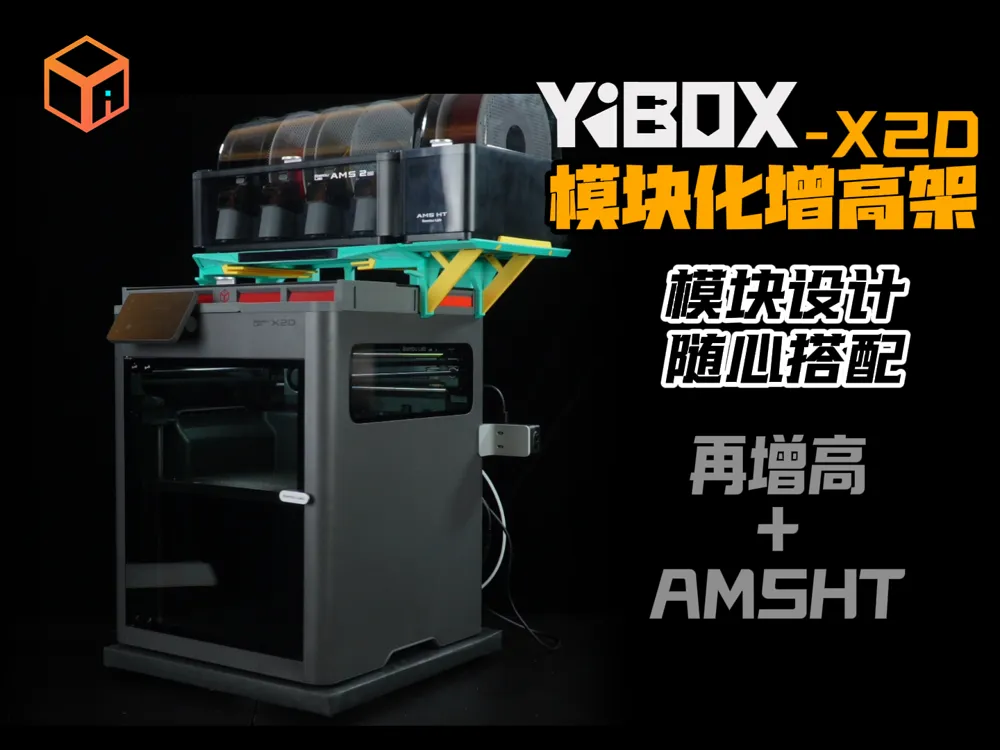

Configuration 4: additional raiser AMSHT module

Configuration 5: pegboard AMSHT module

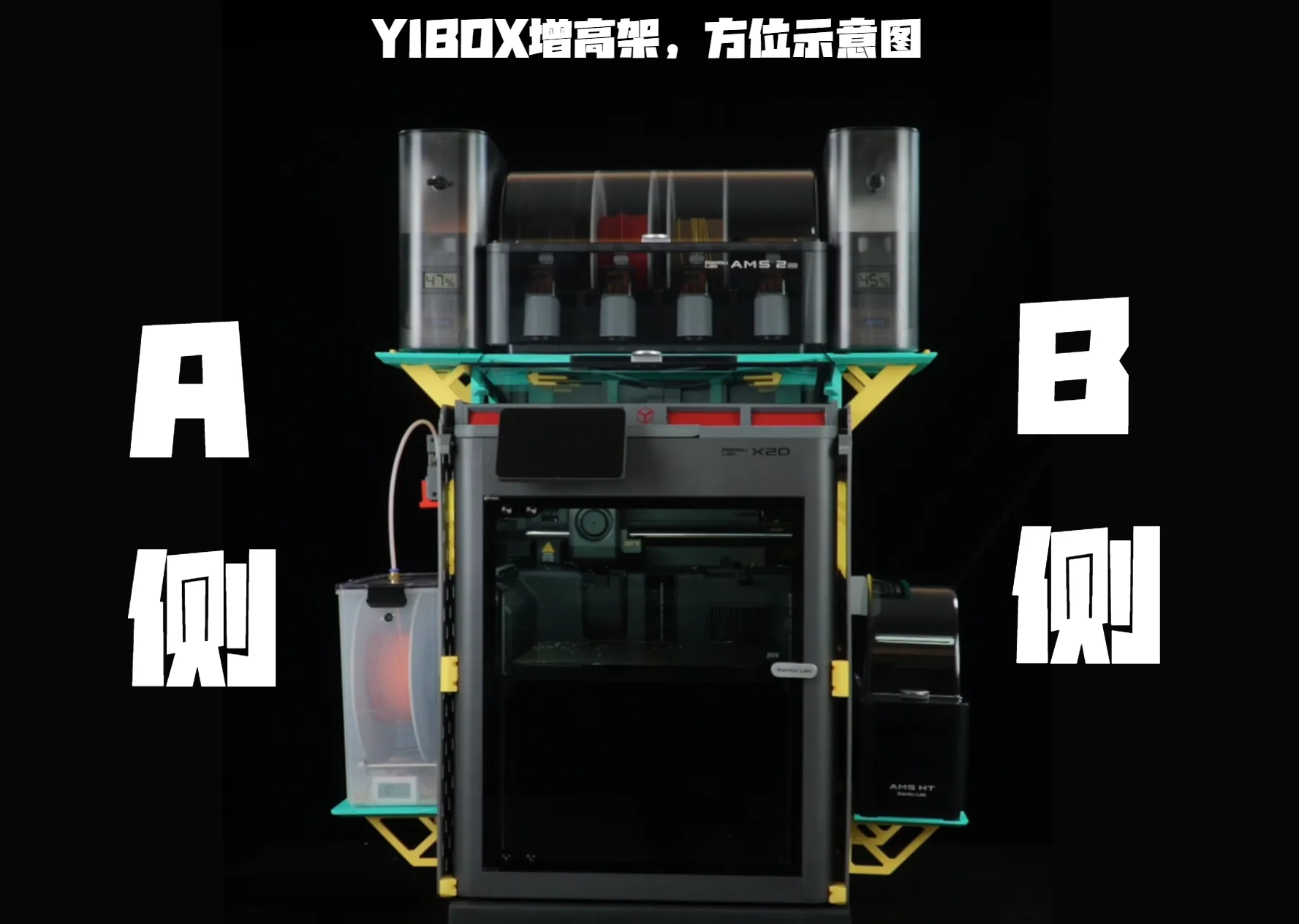

Note, Configurations 3, 4, and 5 are divided into left and right sides. Facing the machine, the left hand side is side A, and the right hand side is side B. You can print the accessories for the corresponding side as needed

Installation instructions will be updated after the holidays. If you encounter any problems during installation, you can leave a comment in the comment section
