FNIRSI SG-004A Gridfinity Bin
Print Profile(1)
Description

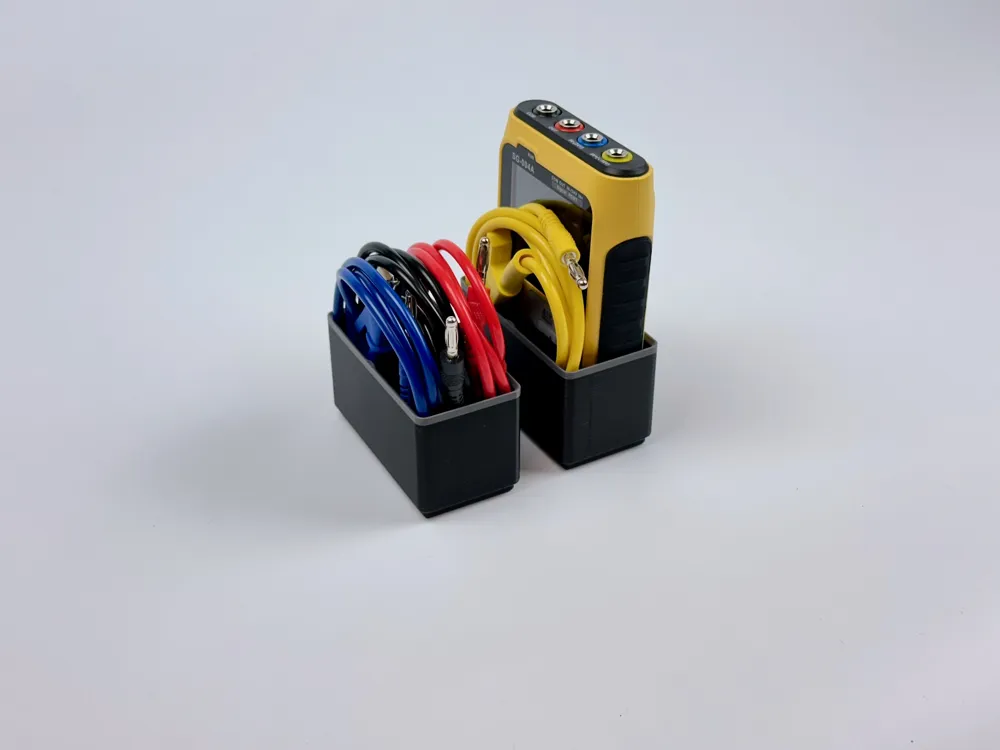

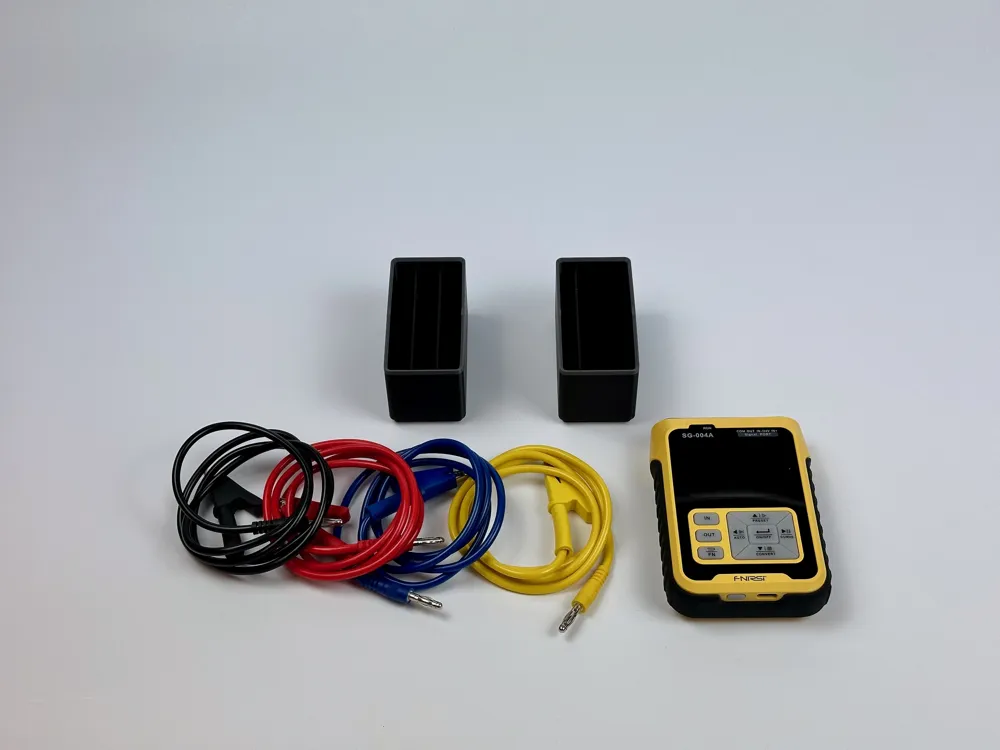

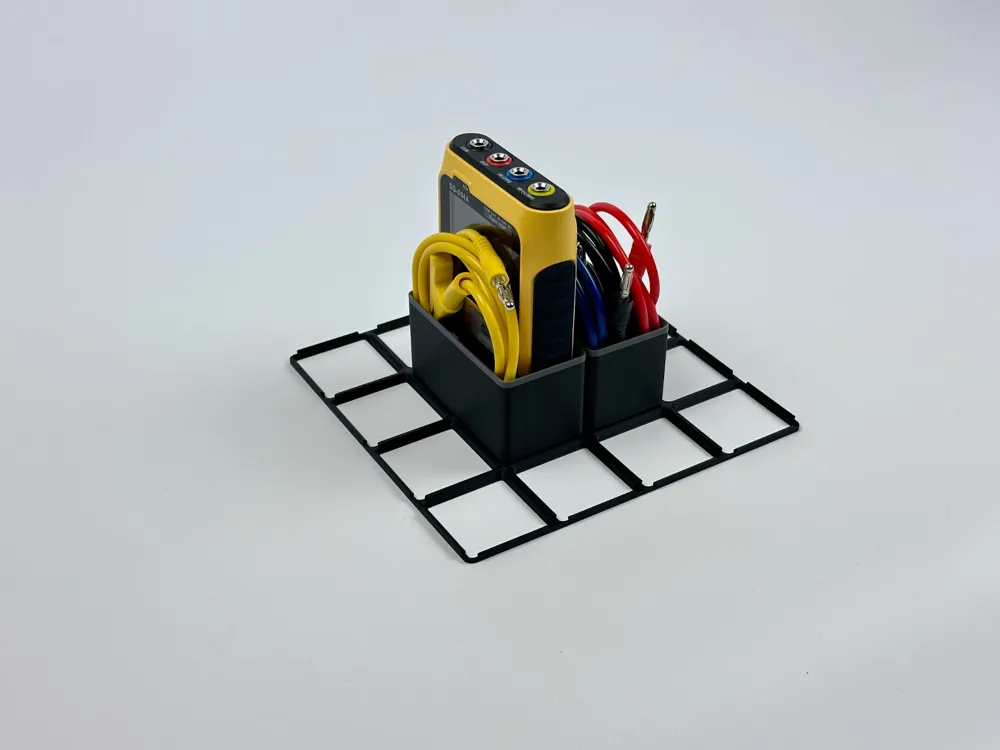

This is a Gridfinity bin set for the FNIRSI SG-004A multifunction process calibrator and its alligator test leads. The bin for the SG-004A and one alligator test lead is a slightly modified standard Gridfinity bin with one separator, so you can also use it for something else if you ever want to. Both bins are compact, each using 1×2×6 grid units with a stacking lip. The alligator test lead bin has two separators to help keep the cables organized.

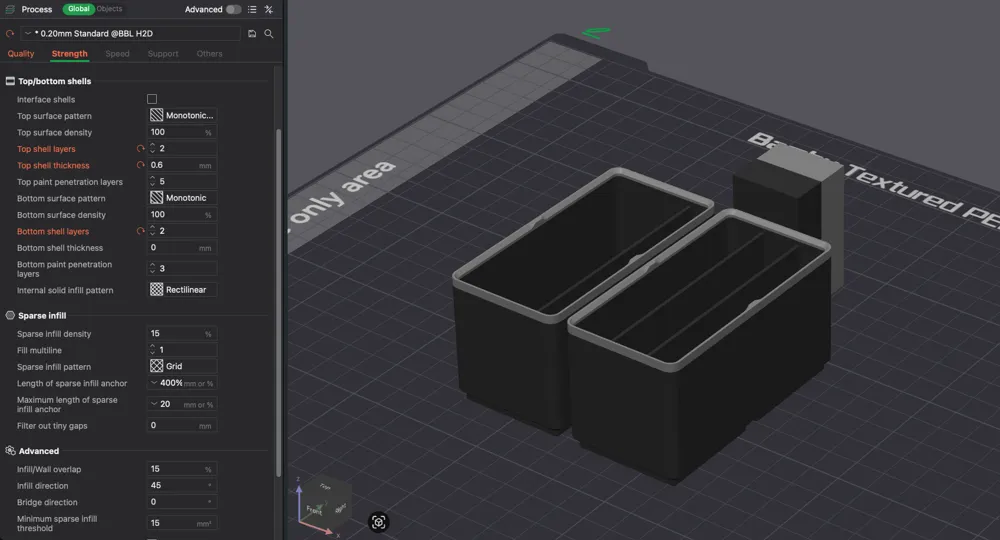

In the slicer, I colored the upper part where the stacking lip starts to widen, so it can be printed with a single color change. I set the Wall Generator to Arachne, Bottom Shell Layers and Top Shell Layers to 2, and Top Shell Thickness to 0.6 to save a bit of filament (see screenshot). Otherwise, the default settings should work fine. In general, it’s designed to be easy to print.
If you’d like to support my work, consider grabbing this model, or any of my other designs, on Cults:
https://cults3d.com/de/modell-3d/werkzeuge/fnirsi-sg-004a-gridfinity-bin
Designing, testing, and publishing models takes a fair bit of time, so every purchase genuinely helps.
