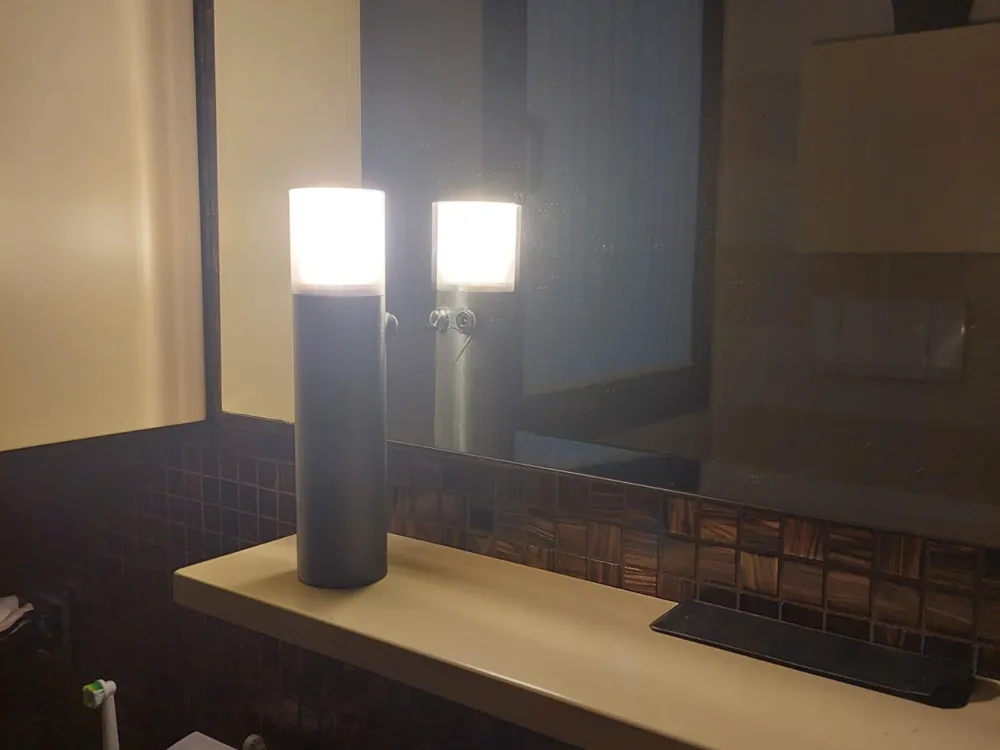

<h2>Lampada LED Cilindrica 12V – G4 Socket – Modular Design – Inserti Ottone M2 – No Glue</h2><h3>Lampada cilindrica stampabile in 3D con attacco G4, inserti filettati in ottone e assemblaggio completamente meccanico.</h3><p>&nbsp;</p><p>Progetto pensato per essere <strong>stampato, assemblato e utilizzato senza adattamenti</strong>.</p><p>L’obiettivo non è estetico ma funzionale:<br>👉 trasformare componenti standard in una lampada reale, replicabile e manutenzionabile</p><p>Caratteristiche principali:</p><ul><li>struttura modulare stampata in 3D</li><li>diffusore superiore per luce morbida</li><li>attacco LED G4 standard</li><li>alimentazione DC tramite jack</li><li>interruttore integrato</li><li>assemblaggio senza colla</li></ul><p>Elemento distintivo del progetto:</p><p>👉 <strong>utilizzo di inserti filettati Rutex M2 in ottone</strong><br>→ garantiscono filettature resistenti e riutilizzabili nel tempo</p><p>&nbsp;</p><h2>🔧 SPEC TECNICHE</h2><figure class="table"><table><thead><tr><th>Parametro</th><th>Valore</th></tr></thead><tbody><tr><td>Materiale</td><td>PLA / PETG</td></tr><tr><td>Layer</td><td>0.2 mm</td></tr><tr><td>Walls</td><td>3</td></tr><tr><td>Infill</td><td>15% Gyroid</td></tr><tr><td>Supporti</td><td>No</td></tr><tr><td>Assemblaggio</td><td>Viti M2 + inserti ottone</td></tr><tr><td>Alimentazione</td><td>12V DC</td></tr><tr><td>Attacco LED</td><td>G4 / GU5.3</td></tr></tbody></table></figure><p>&nbsp;</p><h2>🧩 BOM – COMPONENTI COMPLETI</h2><h2>🔌 Elettronica</h2><ul><li>Lampadina LED G4 12V</li><li>Portalampada ceramico G4 con cavi</li><li>Connettore DC jack femmina 5.5×2.1 mm (panel mount)</li><li>Pulsante ON/OFF panel mount</li><li>Cavi elettrici 0.5–0.75 mm²</li></ul><h2>🔩 Hardware (CRITICO)</h2><ul><li>Viti M2 testa esagonale (brugola – ISO 4762)</li><li><strong>Inserti filettati Rutex M2 in ottone (termoinserti)</strong></li></ul><p>👉 Funzione:</p><ul><li>evitano usura del PLA</li><li>permettono montaggi multipli</li><li>aumentano rigidità strutturale</li></ul><h2>🔋 Alimentazione (opzionale)</h2><ul><li>Batteria LiPo 3S 11.1V</li><li>(consigliato) modulo step-down DC-DC</li></ul><h2>🧱 Parti stampate</h2><ul><li>Corpo cilindrico</li><li>Diffusore superiore</li><li>Supporto portalampada</li><li>Base inferiore</li><li>Inserire gli inserti Rutex M2 a caldo</li><li>Montare portalampada nel supporto</li><li>Collegare LED G4</li><li>Cablare jack DC e interruttore</li><li>Inserire tutto nel corpo</li><li>Chiudere con viti M2</li></ul><h2>🧠 🟥 NOTE TECNICHE (VALORE REALE)</h2><ul><li>Gli inserti Rutex migliorano drasticamente la durata del prodotto</li><li>Il LED G4 sviluppa calore → evitare PLA in ambienti chiusi</li><li>La batteria 3S può arrivare a 12.6V → attenzione alla compatibilità LED</li><li>Diffusione luce dipendente dal materiale del diffusore</li></ul><p>👉 condividi una Make<br>👉 indica materiale + tipo LED</p><p>&nbsp;</p><p>&nbsp;</p>

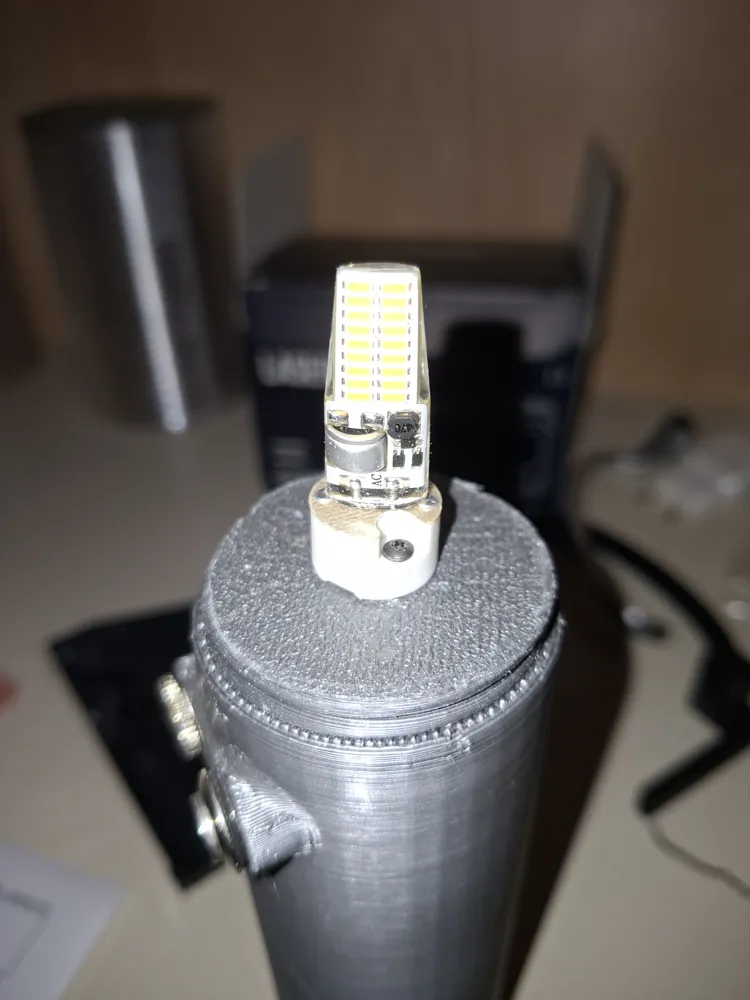

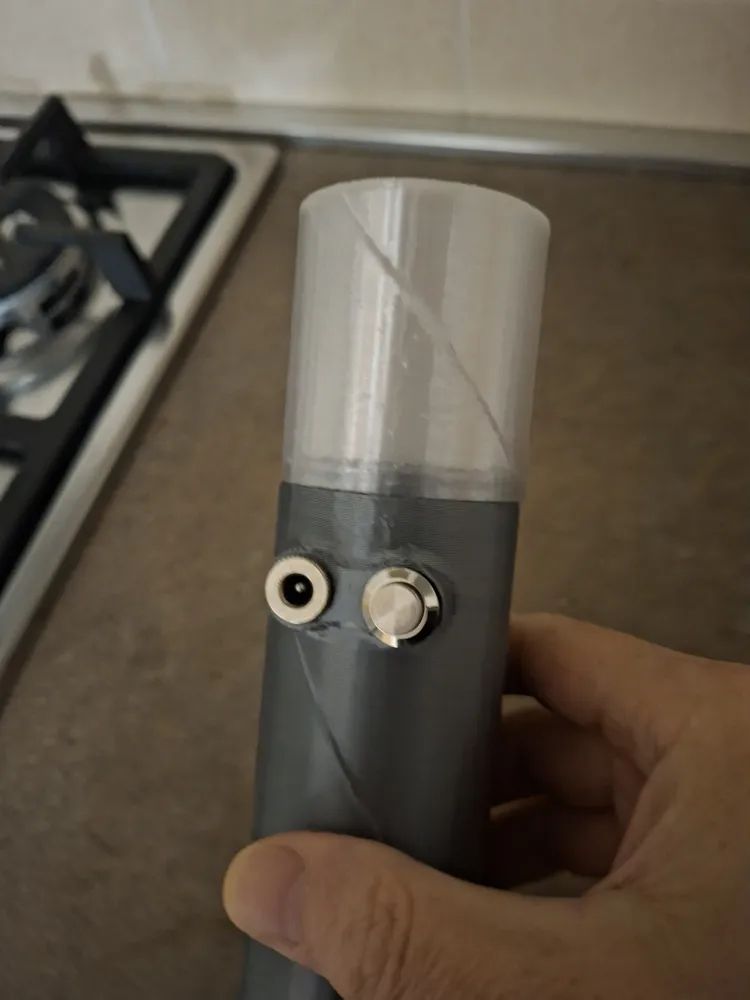

<h2>Cylindrical LED Lamp 12V – G4 Socket – Modular Design – M2 Brass Inserts – No Glue</h2><h3>Cylindrical 3D Printed lamp with G4 socket, brass threaded inserts, and fully mechanical assembly.</h3><p>&nbsp;</p><p>Project designed to be <strong>printed, assembled, and used without modifications</strong>.</p><p>The objective is not aesthetic but functional:<br>👉 to transform standard components into a real, replicable, and maintainable lamp</p><p>Main features:</p><ul><li>modular 3D printed structure</li><li>upper diffuser for soft light</li><li>standard G4 LED socket</li><li>DC power via jack</li><li>integrated switch</li><li>glue-free assembly</li></ul><p>Distinguishing feature of the project:</p><p>👉 <strong>use of Rutex M2 brass threaded inserts</strong><br>→ ensure strong and reusable threads over time</p><p>&nbsp;</p><h2>🔧 TECHNICAL SPECS</h2><figure class="table"><table><thead><tr><th>Parameter</th><th>Value</th></tr></thead><tbody><tr><td>Material</td><td>PLA / PETG</td></tr><tr><td>Layer</td><td>0.2 mm</td></tr><tr><td>Walls</td><td>3</td></tr><tr><td>Infill</td><td>15% Gyroid</td></tr><tr><td>Supports</td><td>No</td></tr><tr><td>Assembly</td><td>M2 screws + brass inserts</td></tr><tr><td>Power Supply</td><td>12V DC</td></tr><tr><td>LED Socket</td><td>G4 / GU5.3</td></tr></tbody></table></figure><p>&nbsp;</p><h2>🧩 BOM – COMPLETE COMPONENTS</h2><h2>🔌 Electronics</h2><ul><li>G4 12V LED bulb</li><li>G4 ceramic lamp holder with cables</li><li>Female DC jack connector 5.5×2.1 mm (panel mount)</li><li>ON/OFF push button panel mount</li><li>Electrical wires 0.5–0.75 mm²</li></ul><h2>🔩 Hardware (CRITICAL)</h2><ul><li>M2 hex head screws (allen – ISO 4762)</li><li><strong>Rutex M2 brass threaded inserts (heat-set inserts)</strong></li></ul><p>👉 Function:</p><ul><li>prevent PLA wear</li><li>allow multiple assemblies</li><li>increase structural rigidity</li></ul><h2>🔋 Power Supply (optional)</h2><ul><li>LiPo 3S 11.1V battery</li><li>(recommended) DC-DC step-down module</li></ul><h2>🧱 Printed parts</h2><ul><li>Cylindrical body</li><li>Upper diffuser</li><li>Lamp holder support</li><li>Bottom base</li><li>Insert Rutex M2 inserts hot</li><li>Mount lamp holder in support</li><li>Connect G4 LED</li><li>Wire DC jack and switch</li><li>Insert everything into the body</li><li>Close with M2 screws</li></ul><h2>🧠 🟥 TECHNICAL NOTES (REAL VALUE)</h2><ul><li>Rutex inserts drastically improve product durability</li><li>The G4 LED generates heat → avoid PLA in enclosed spaces</li><li>The 3S battery can reach 12.6V → pay attention to LED compatibility</li><li>Light diffusion depends on the diffuser material</li></ul><p>👉 share a Make<br>👉 indicate material + LED type</p><p>&nbsp;</p><p>&nbsp;</p>
