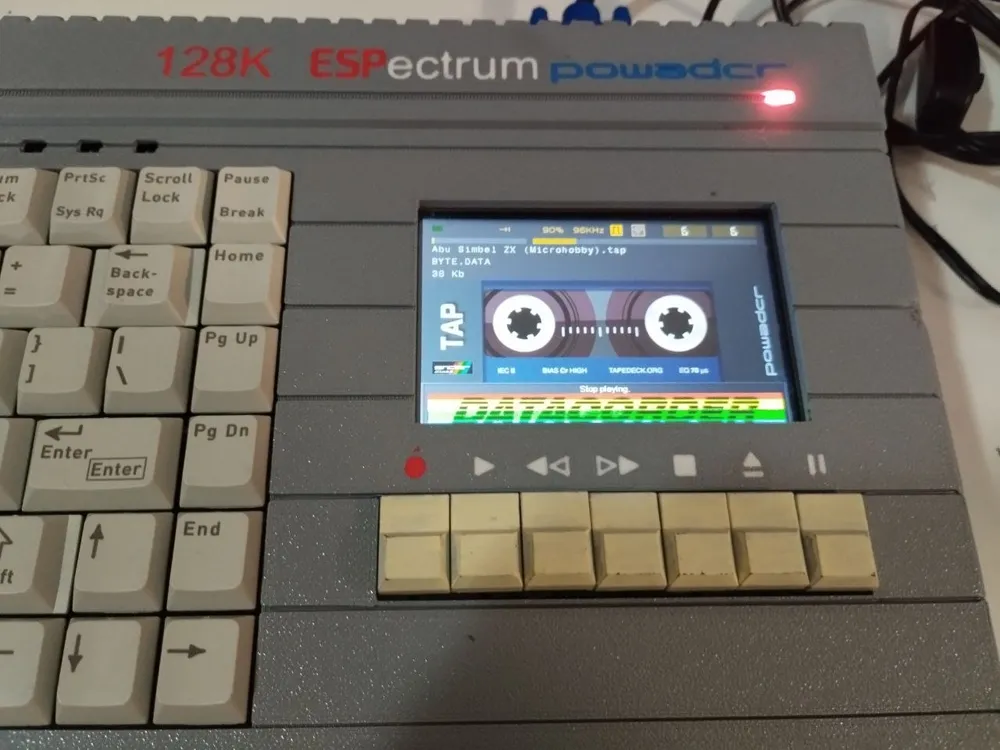

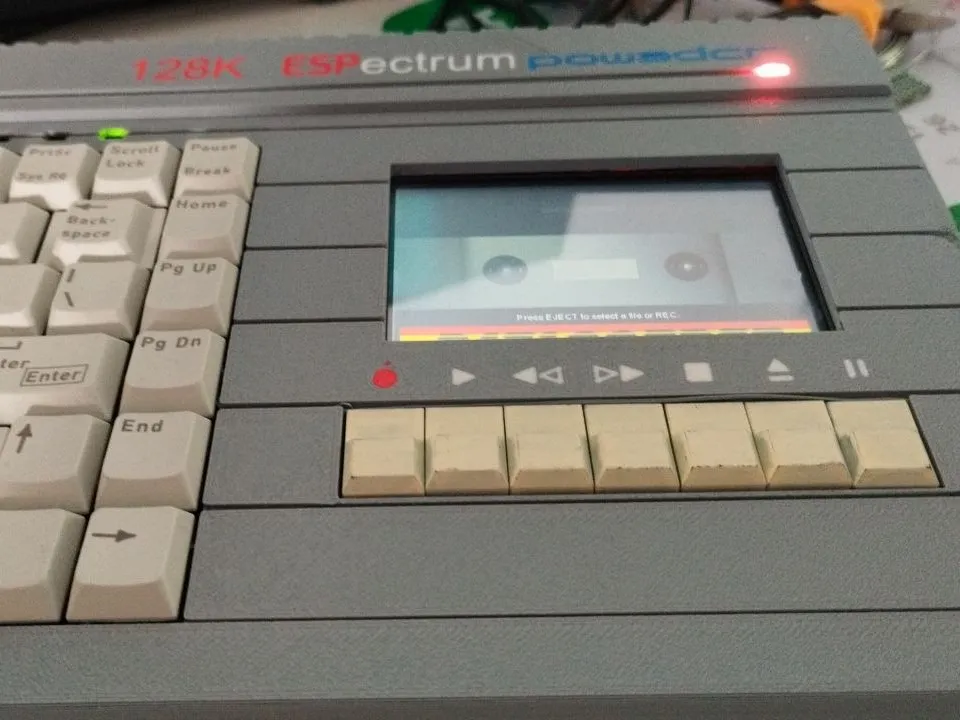

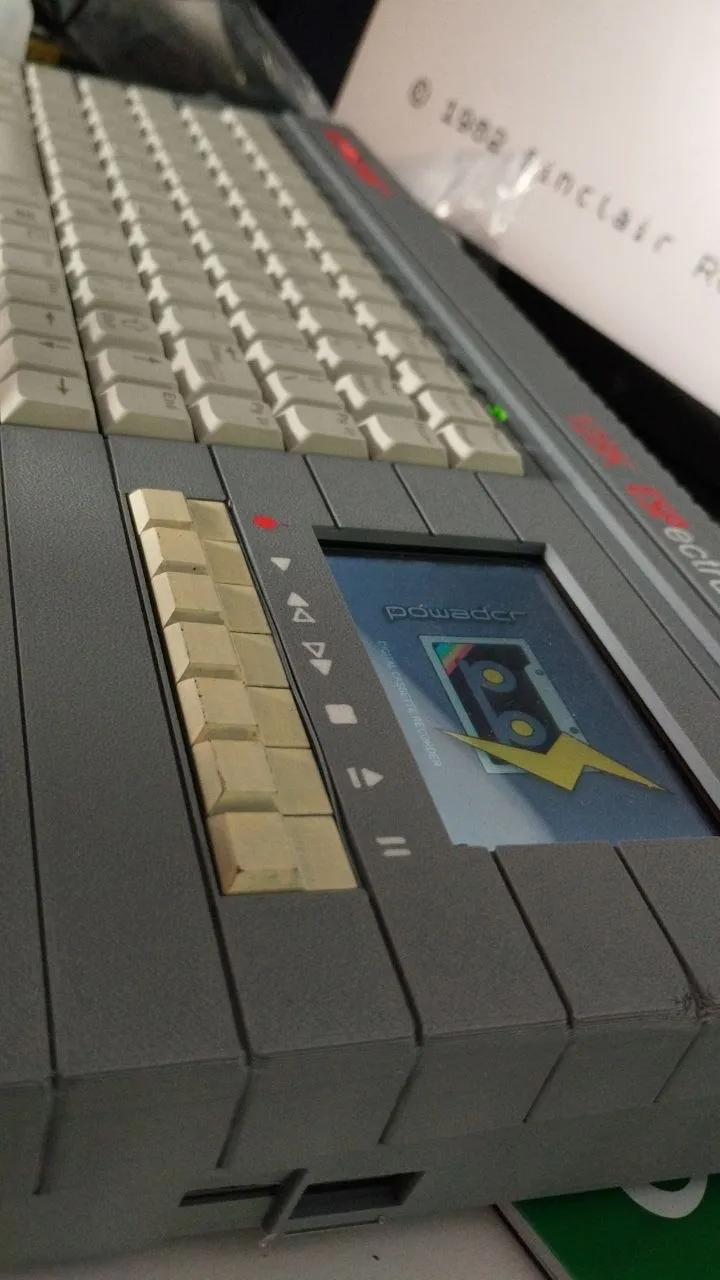

CASE +2 SLIM POWADCR

Case to emulate the legendary ZX Spectrum +2 computer, with a TTGo ESP32 board and an ESP32 audiokit, using the awesome projects ESPectrum (Víctor Iborra, @Eremus) and PowaDCR (Antonio Tamairón, @Hash6ron)

It requires the aforementioned boards (more information in the project links), and a Cherry G48-4100 keyboard

Optional, install the Powajoy firmware with an Arduino Nano for the joysticks, also by @Hash6ron

Links to the projects:

https://github.com/EremusOne/ESPectrum

https://www.patreon.com/ESPectrum

https://github.com/hash6iron/powadcr

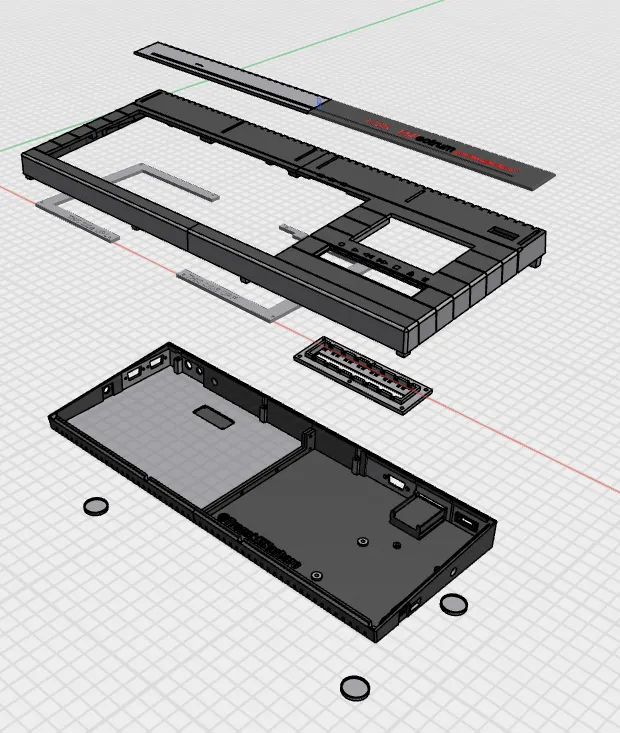

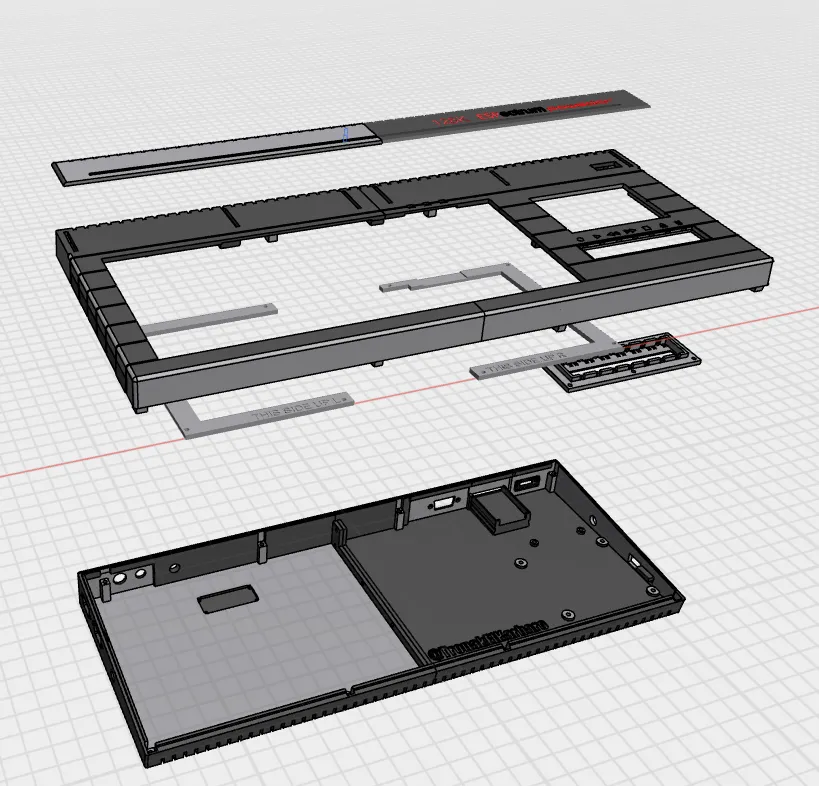

The design includes several holes for optional ports (reset, audio, mini-DIN for a mouse port...), and plugs to cover the holes you don't need

You can use this project for personal use only, without warranty and at your own risk. Commercial use is not allowed

Other materials:

Button panel: M2.5x8 screws

SPDT square tactile push-button switches

Fixing the boards and the screen: M3x5 screws

I have used these:

https://a.aliexpress.com/_EQWVwDw

https://a.aliexpress.com/_EjRBwjA

https://a.aliexpress.com/_Evryl4k

https://a.aliexpress.com/_mOfWi4v

https://a.aliexpress.com/_EGkPp4c

Thanks to Antoni Abenza @AbenZaX, beta tester and quality control for the enclosure. I hope you enjoy it as much as I enjoyed designing it :)
