SONOFF SNZB-02WD Thermometer Outdoor Enclosure

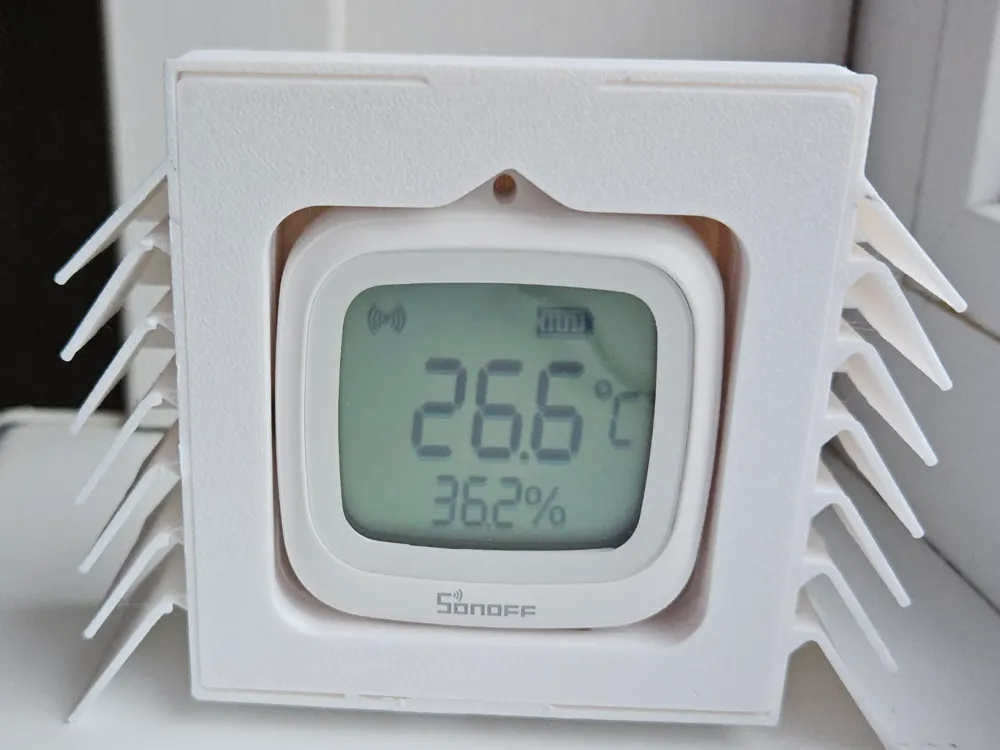

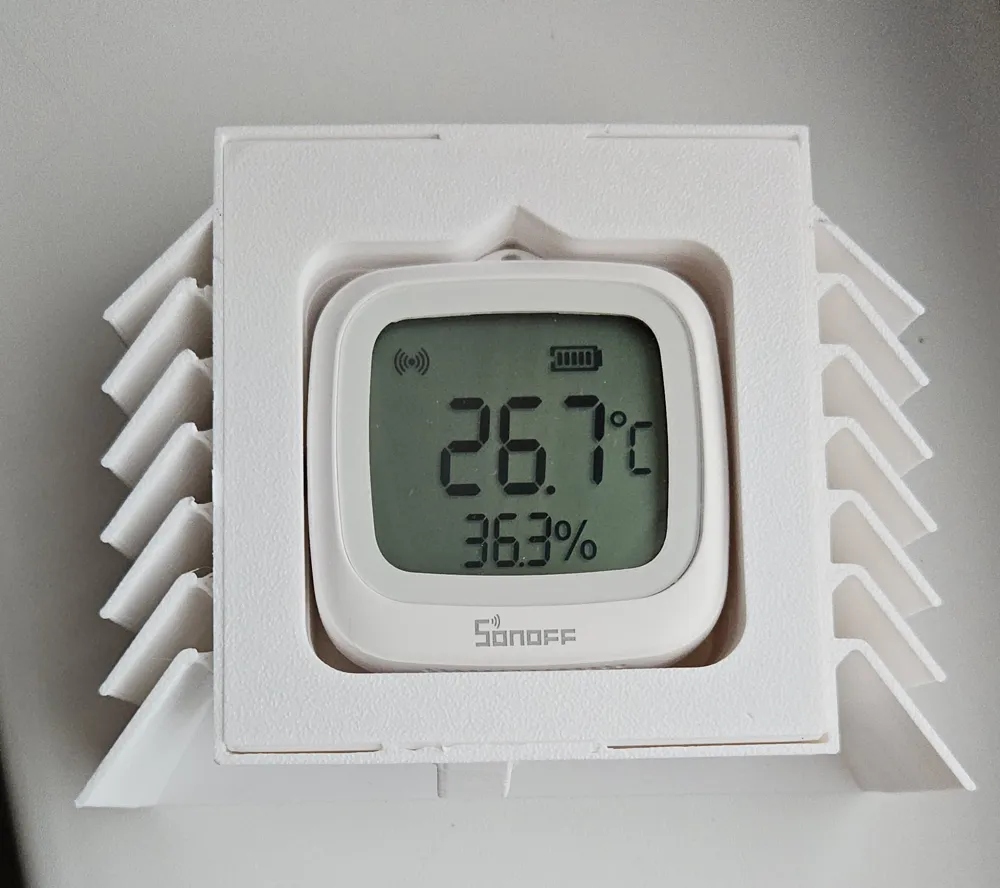

This 3D model is a two-part protective enclosure designed specifically for the Sonoff SNZB-02WD thermometer/hygrometer.

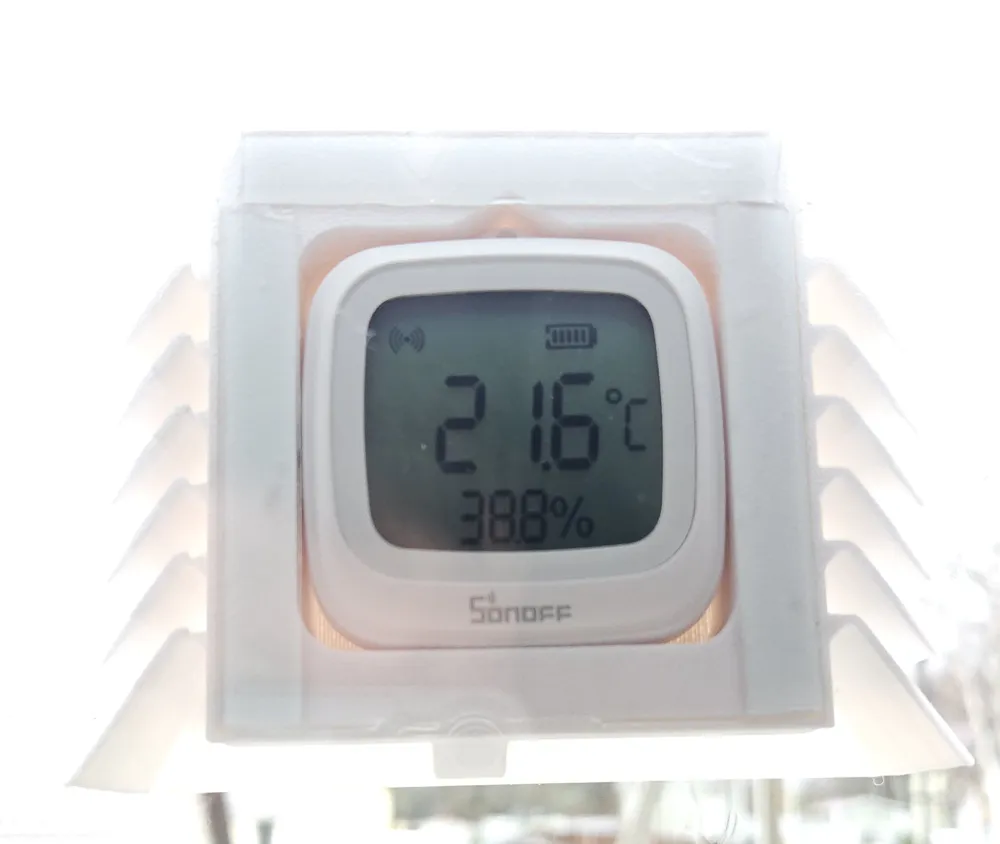

It allows you to mount the sensor outside a window while keeping it protected from environmental factors that can distort readings.

The enclosure acts as a passive radiation shield, helping to ensure more accurate temperature measurements by reducing exposure to direct sunlight and allowing proper airflow.

Key Features

• Designed for Sonoff SNZB-02WD
• Optimized for window mounting (outside)
• Protection against:
  • Direct sunlight ☀️
  • Rain and snow 🌧️
• Ventilated louver design for natural airflow
• Compact and lightweight
• Easy installation with double-sided tape (no drilling required)

Construction

The model consists of two separate parts:

1. Main Holder

• Houses the thermometer securely
• Attaches directly to the window (outside)
• Includes airflow channels for accurate readings

2. Protective Cover

• Slides or mounts over the main holder
• Shields from precipitation and sunlight
• Enhances durability and sensor lifespan

Installation

1. Insert the Sonoff sensor into the main holder
2. Attach the holder to the outside of the window using strong double-sided tape
3. Install the protective cover

Tip: Mount in a shaded area if possible for best accuracy.

Printing Recommendations

• Material: PETG or ABS (recommended for outdoor use)
• Layer height: 0.2 mm
• Infill: 15–25%
• Supports: For protective cover only
• Walls: 2–3 perimeters

Use Cases

• Smart home outdoor temperature monitoring
• Home automation (e.g., Home Assistant setups)
• Weather tracking from inside your home

Notes

• Designed specifically for SNZB-02WD — fit for other models is not guaranteed
• For best results, use UV-resistant filament
• Double-sided tape quality affects durability outdoors
